Description

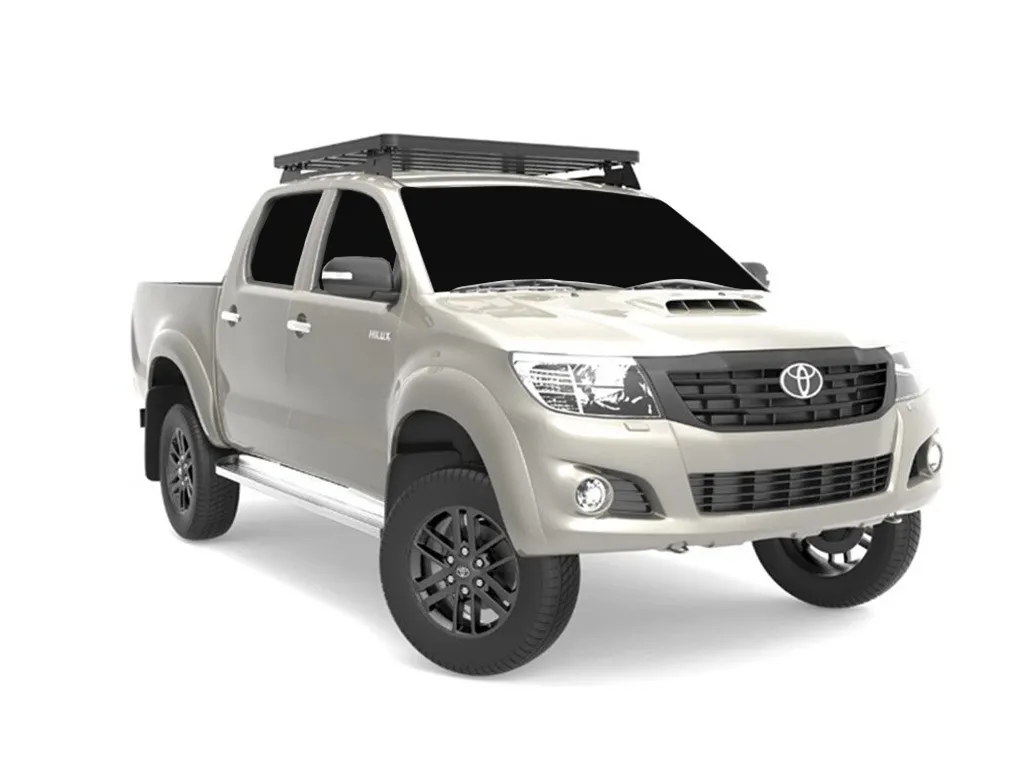

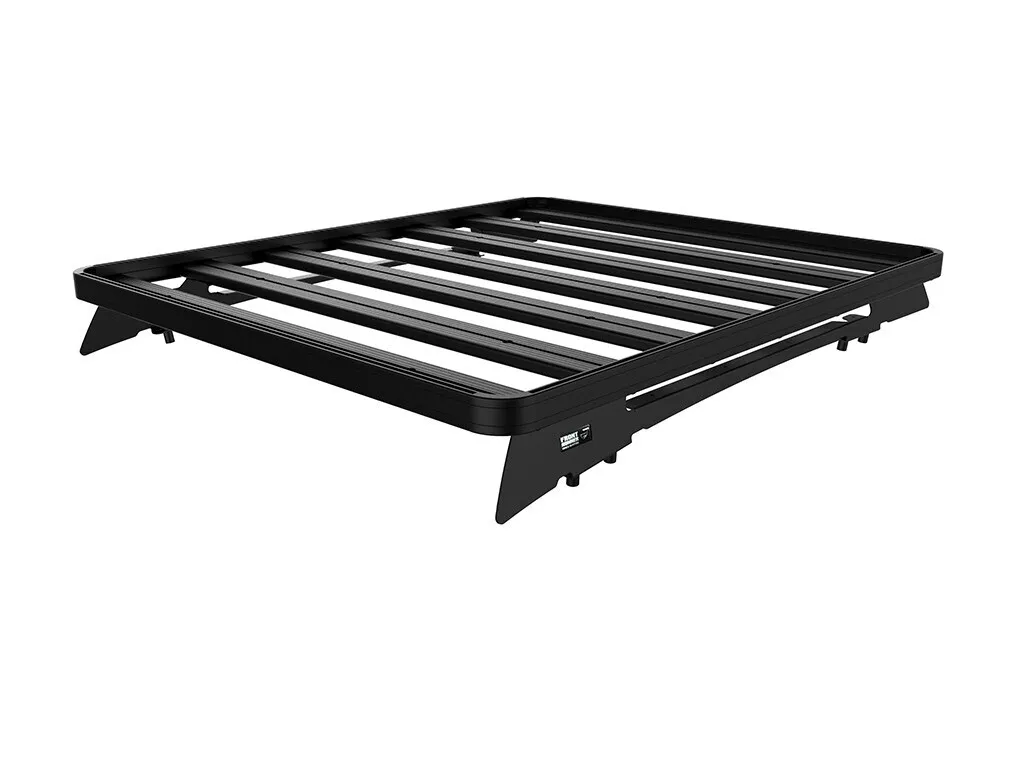

This 1358mm/53.5" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Toyota Hilux (2005-2015). Drilling may be required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.These Foot Rails contain 1 opening to access a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table).All Front Runner Racks are backed by a Limited Lifetime Warranty*

Instructions for FATH001

Instructions for RRSTUNI

Specifications

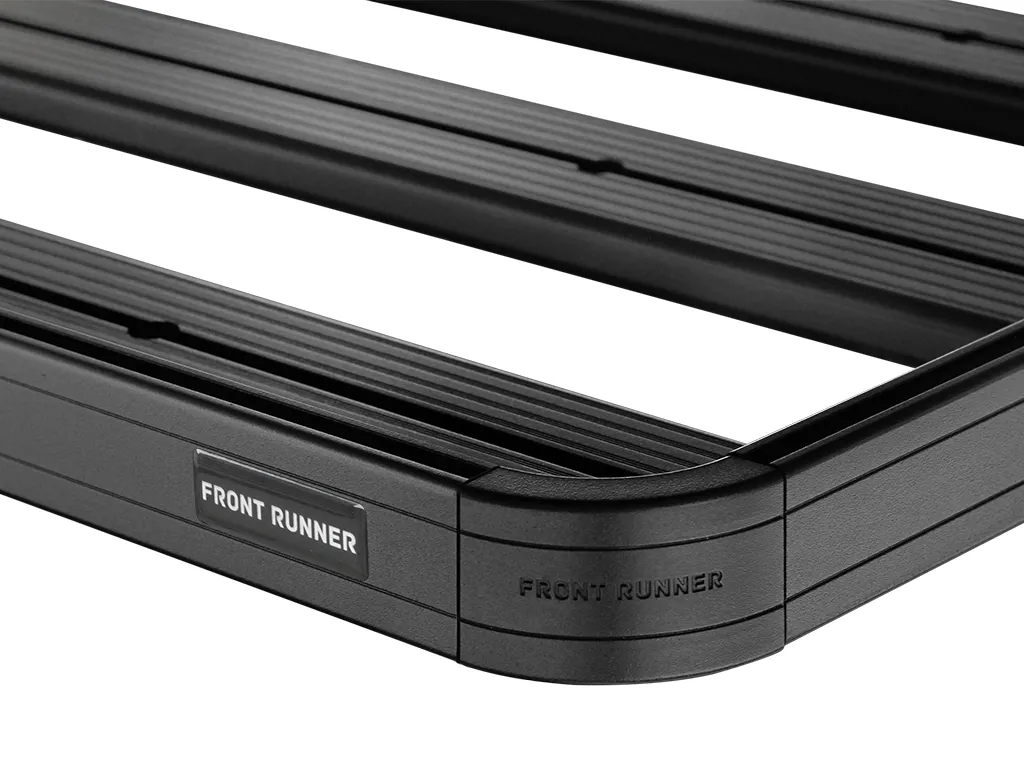

Materials used:Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 24kg (54lbs)

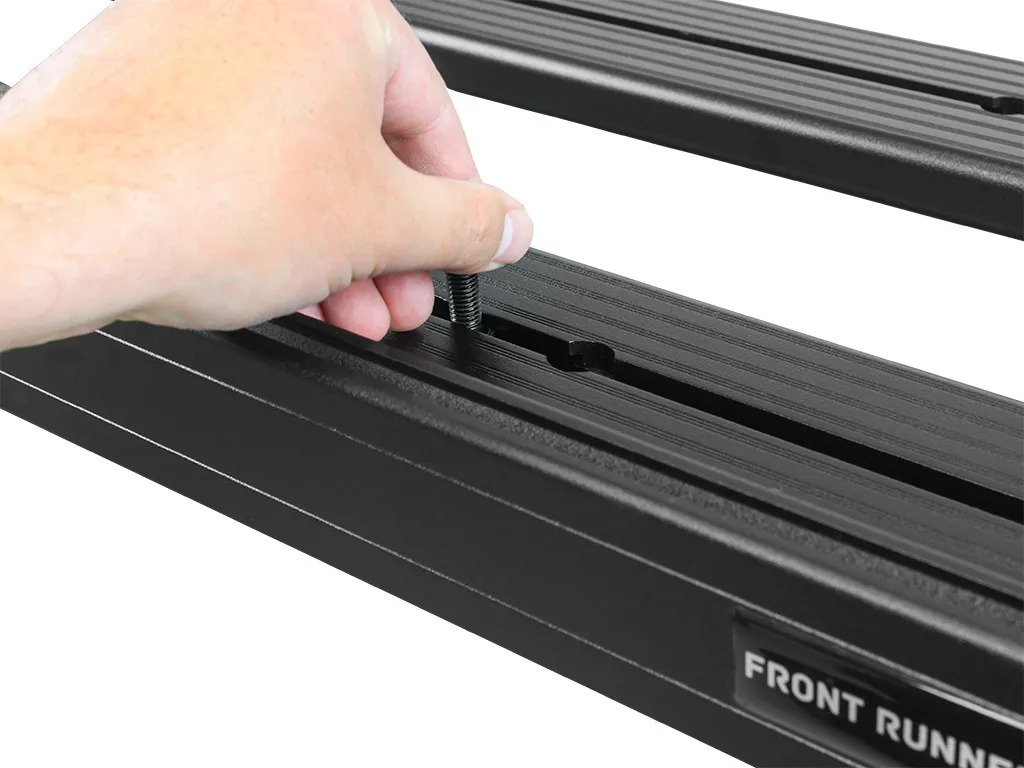

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicleÂ’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 450mm (18")
Length 1615mm (64")
Height 140mm (6")


Shipping Weight:

Weight 28.3kg (62.3lbs)

What's Included

  • 1x FATH001 - Toyota Hilux (2005-2015) Foot Rails
  • 1x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L)

Compatibility

  • 2005-2015 Toyota Hilux

This 1358mm/53.5" long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Toyota Hilux (2005-2015). Drilling may be required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.These Foot Rails contain 1 opening to access a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table).All Front Runner Racks are backed by a Limited Lifetime Warranty*

Instructions for FATH001

Instructions for RRSTUNI

Materials used:Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 24kg (54lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicleÂ’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 450mm (18")
Length 1615mm (64")
Height 140mm (6")


Shipping Weight:

Weight 28.3kg (62.3lbs)

  • 1x FATH001 - Toyota Hilux (2005-2015) Foot Rails
  • 1x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L)
  • 2005-2015 Toyota Hilux
