Description

This 2772mm/122.8" long, full-size, Slimline II cargo carrying roof rack kit for the VW Crafter/MAN TGE contains the Slimline II Tray, Wind Deflector, 2 Tracks and 8 Feet. Drilling is required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Instructions for FASSUNI

Instructions for FASSUNI

Instructions for RRSTUNI

Instructions for TRMS001

Specifications

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 52.39kg (115.5lbs)

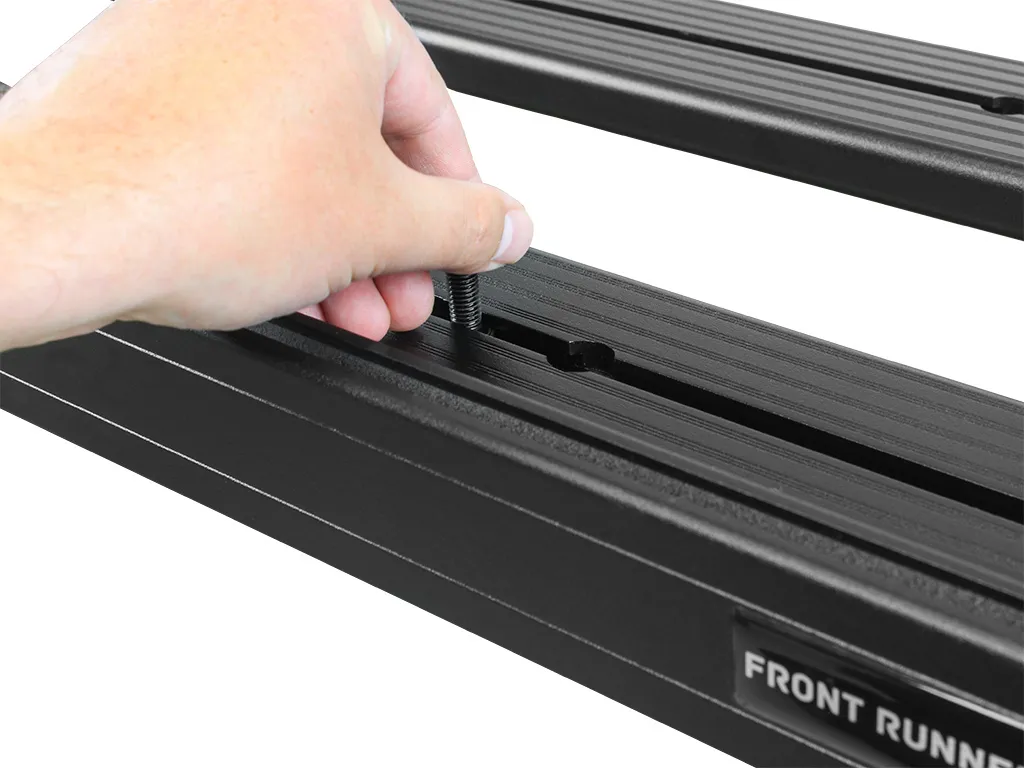

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17")
Length: 1800mm (71")
Height: 270mm (11")

Shipping Weight:
Weight: 52.6kg (116lbs)

What's Included

  • 3x FASS012 - Foot Set / 40mm - 50mm
  • 1x FASS017 - Foot Set / 75mm-85mm
  • 1x RRSTM14 - SLII Tray - 1475mm(W)X2772mm(L)
  • 1x TRMS001 - Mercedes Sprinter (2006-Curr) Tracks/3082-4098mmL
  • 1x WDST009 - Wind Deflector 20mm Lip Wide Pair / 1345mm(W)

Compatibility

  • 2017-Current Volkswagen Crafter/MAN TGE w/o OEM Tracks

This 2772mm/122.8" long, full-size, Slimline II cargo carrying roof rack kit for the VW Crafter/MAN TGE contains the Slimline II Tray, Wind Deflector, 2 Tracks and 8 Feet. Drilling is required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Instructions for FASSUNI

Instructions for FASSUNI

Instructions for RRSTUNI

Instructions for TRMS001

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 52.39kg (115.5lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicleÂ’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 440mm (17")
Length: 1800mm (71")
Height: 270mm (11")

Shipping Weight:
Weight: 52.6kg (116lbs)

  • 3x FASS012 - Foot Set / 40mm - 50mm
  • 1x FASS017 - Foot Set / 75mm-85mm
  • 1x RRSTM14 - SLII Tray - 1475mm(W)X2772mm(L)
  • 1x TRMS001 - Mercedes Sprinter (2006-Curr) Tracks/3082-4098mmL
  • 1x WDST009 - Wind Deflector 20mm Lip Wide Pair / 1345mm(W)
  • 2017-Current Volkswagen Crafter/MAN TGE w/o OEM Tracks
