Description

Oil and Water Cooled, Ball Bearing, 475-950hp, 2.0L - 7.0L Applications

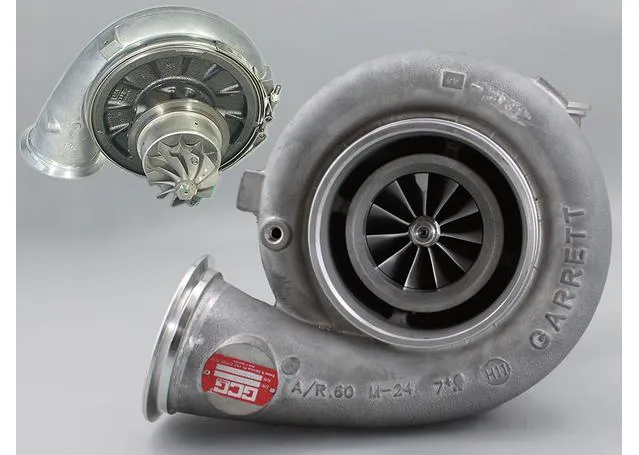

A "Supercore" is a complete turbocharger, without a turbine housing fitted.

The GTX4294R Supercore fits directly into any existing GT4294, GT4294R, GT4202 and GTX4202R turbine housings.
The Turbine Wheel is cast from Inconnel material for extreme applications.
This Turbocharger has a ported shroud/surge slotted compressor housing to increase surge resistance.

Specifications

Bearing Type: Ball Bearing.
Cooling System: Oil & Water Cooled.
Horsepower: 475-950hp.
Displacement: 2.0L - 7.0L Applications.

Features of the Garrett GTX range of turbochargers:

Forged, fully-machined 11-blade billet compressor wheel
Ported shroud/Surge Slotted compressor housing to increase surge resistance
10%+ Gain in flow over traditional GT compressor wheel designs
10%+ Higher pressure ratio compared to traditional GT compressor wheel designs
11 Full-blade design for improved efficiency and ultra quiet operation.
Outline interchangeable with Garrett GT Series turbos.
Garrett OE-quality for unbeatable reliability

Compatibility

  • Universal Part

Oil and Water Cooled, Ball Bearing, 475-950hp, 2.0L - 7.0L Applications


A "Supercore" is a complete turbocharger, without a turbine housing fitted.

The GTX4294R Supercore fits directly into any existing GT4294, GT4294R, GT4202 and GTX4202R turbine housings.
The Turbine Wheel is cast from Inconnel material for extreme applications.
This Turbocharger has a ported shroud/surge slotted compressor housing to increase surge resistance.
Bearing Type: Ball Bearing.
Cooling System: Oil & Water Cooled.
Horsepower: 475-950hp.
Displacement: 2.0L - 7.0L Applications.

Features of the Garrett GTX range of turbochargers:

Forged, fully-machined 11-blade billet compressor wheel
Ported shroud/Surge Slotted compressor housing to increase surge resistance
10%+ Gain in flow over traditional GT compressor wheel designs
10%+ Higher pressure ratio compared to traditional GT compressor wheel designs
11 Full-blade design for improved efficiency and ultra quiet operation.
Outline interchangeable with Garrett GT Series turbos.
Garrett OE-quality for unbeatable reliability
  • Universal Part
