Description

Oil and Water Cooled, Ball Bearing, 450-850hp, 2.0L - 6.0L Applications

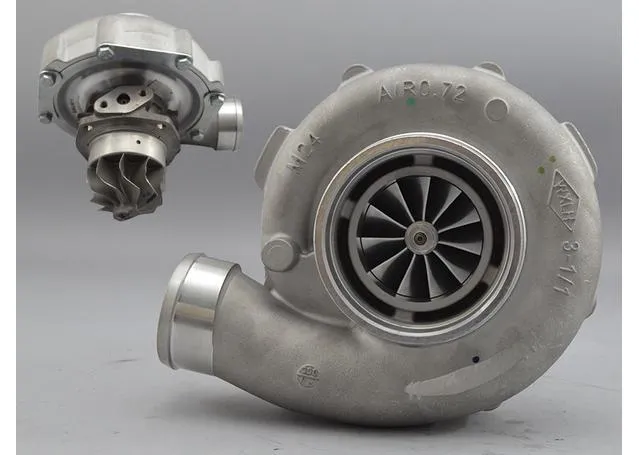

A "Supercore" is a complete turbocharger, without a turbine housing fitted.
The GTX4088R Supercore fits directly into any existing GT4088R/GT4094R turbine housings.
The Turbine Wheel is cast from Inconnel material for extreme applications.
This Turbocharger has a ported shroud/surge slotted compressor housing to increase surge resistance.

Specifications

Bearing Type: Ball Bearing.
Cooling System: Oil & Water Cooled.
Horsepower: 450-850hp.
Displacement: 2.0L - 6.0L Applications.

Features of the Garrett GTX range of turbochargers:

Forged, fully-machined 11-blade billet compressor wheel
Ported shroud/Surge Slotted compressor housing to increase surge resistance
10%+ Gain in flow over traditional GT compressor wheel designs
10%+ Higher pressure ratio compared to traditional GT compressor wheel designs
11 Full-blade design for improved efficiency and ultra quiet operation.
Outline interchangeable with Garrett GT Series turbos.
Garrett OE-quality for unbeatable reliability

Compatibility

  • Universal Part

Oil and Water Cooled, Ball Bearing, 450-850hp, 2.0L - 6.0L Applications


A "Supercore" is a complete turbocharger, without a turbine housing fitted.
The GTX4088R Supercore fits directly into any existing GT4088R/GT4094R turbine housings.
The Turbine Wheel is cast from Inconnel material for extreme applications.
This Turbocharger has a ported shroud/surge slotted compressor housing to increase surge resistance.
Bearing Type: Ball Bearing.
Cooling System: Oil & Water Cooled.
Horsepower: 450-850hp.
Displacement: 2.0L - 6.0L Applications.

Features of the Garrett GTX range of turbochargers:

Forged, fully-machined 11-blade billet compressor wheel
Ported shroud/Surge Slotted compressor housing to increase surge resistance
10%+ Gain in flow over traditional GT compressor wheel designs
10%+ Higher pressure ratio compared to traditional GT compressor wheel designs
11 Full-blade design for improved efficiency and ultra quiet operation.
Outline interchangeable with Garrett GT Series turbos.
Garrett OE-quality for unbeatable reliability
  • Universal Part
