DASH OVERVIEW

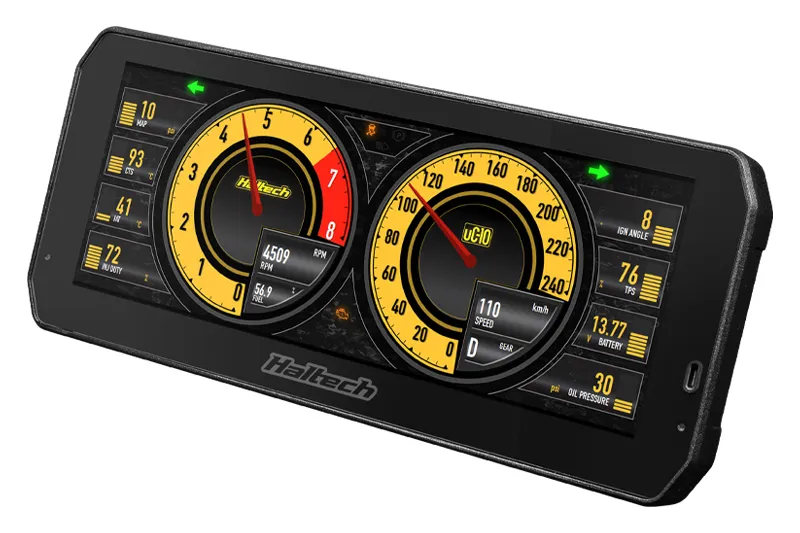

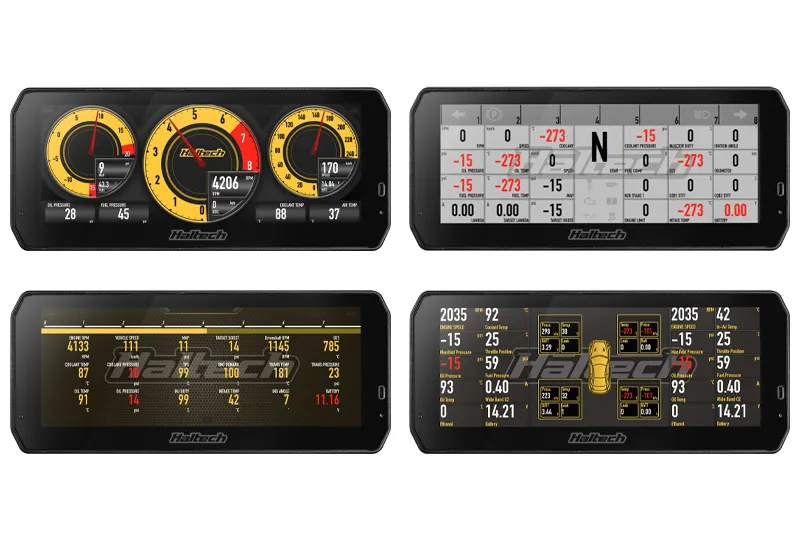

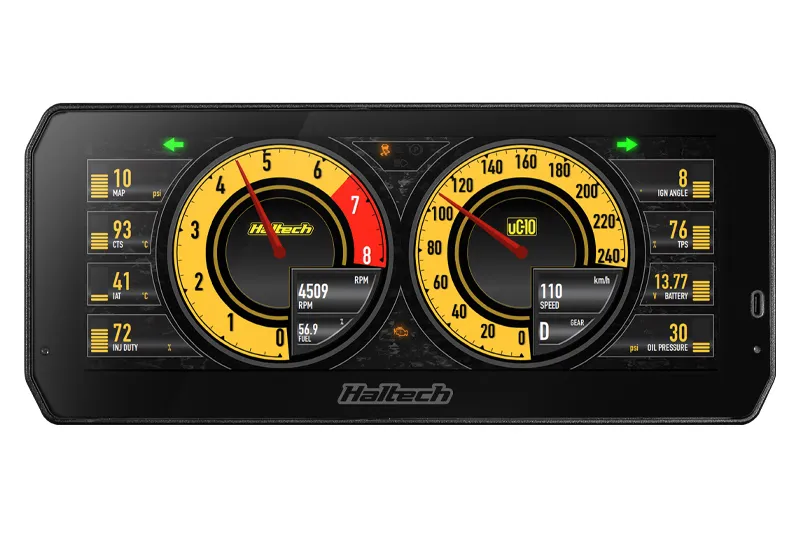

With a crisp, clear and full-color display, the all-new Haltech uC-10 Display Dash is now available for pre-order. The uC-10 is compatible with Haltech CAN, OBD2, and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups. The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration or for use as an I/O expander in a Haltech environment.
  • Full-colour, optically-bonded TFT screen
  • 70° minimum viewing angle (vertical and horizontal)
  • 1280 x 480 resolution, 600+ lumens
  • IP64 (Dust-tight and protected against water splashes)
  • 6-digit odometer
  • 512MB of on-board looped data logging
  • NSP compatible
  • 10 x user configurable AVIP's
  • 4 x user configurable DPO's
  • 4 x user configurable SPI's
  • 1 x dedicated Tacho Input
  • 1 x dedicated alternator excite
  • 2 x Ambient light sensors

Specifications

  • Full-colour, optically-bonded TFT screen
  • 70° minimum viewing angle (vertical and horizontal)
  • 1280 x 480 resolution, 600+ lumens
  • IP64 (Dust-tight and protected against water splashes)
  • 6-digit odometer
  • 512MB of on-board looped data logging
  • NSP compatible
  • 10 x user configurable AVIP's
  • 4 x user configurable DPO's
  • 4 x user configurable SPI's
  • 1 x dedicated Tacho Input
  • 1 x dedicated alternator excite
  • 2 x Ambient light sensors

What's Included

  • 1 x Haltech uC-10 Display Dash

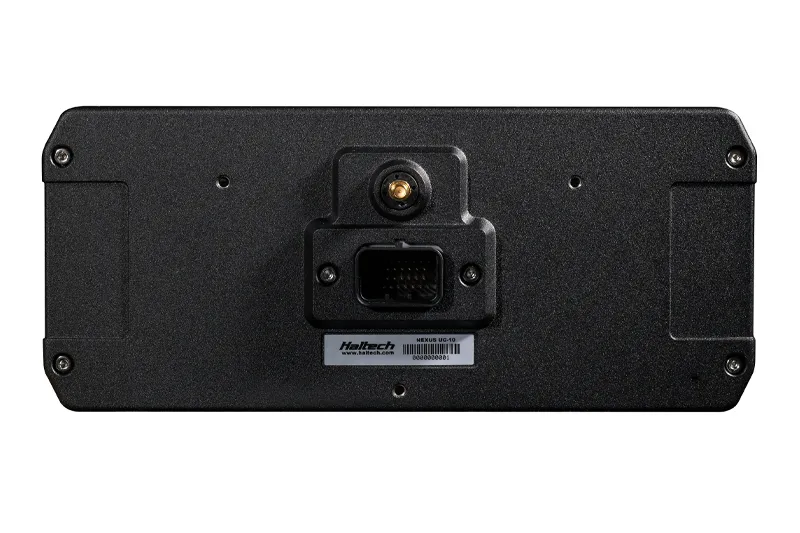

  • 1 x 34P connector - same as HT-131001
  • 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in)
  • 1 x USB-C cable
  • 3 x M5 x 8mm mounting screws
  • 2 x Momentary switches
  • pre-terminated 800mm 22AWG Cable
  • 1 x Glass Mount WiFi antenna
  • 1 x Haltech fabric keytag
  • Haltech stickers

Compatibility

  • Universal Part

**NOTE** Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Link, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.
