Description

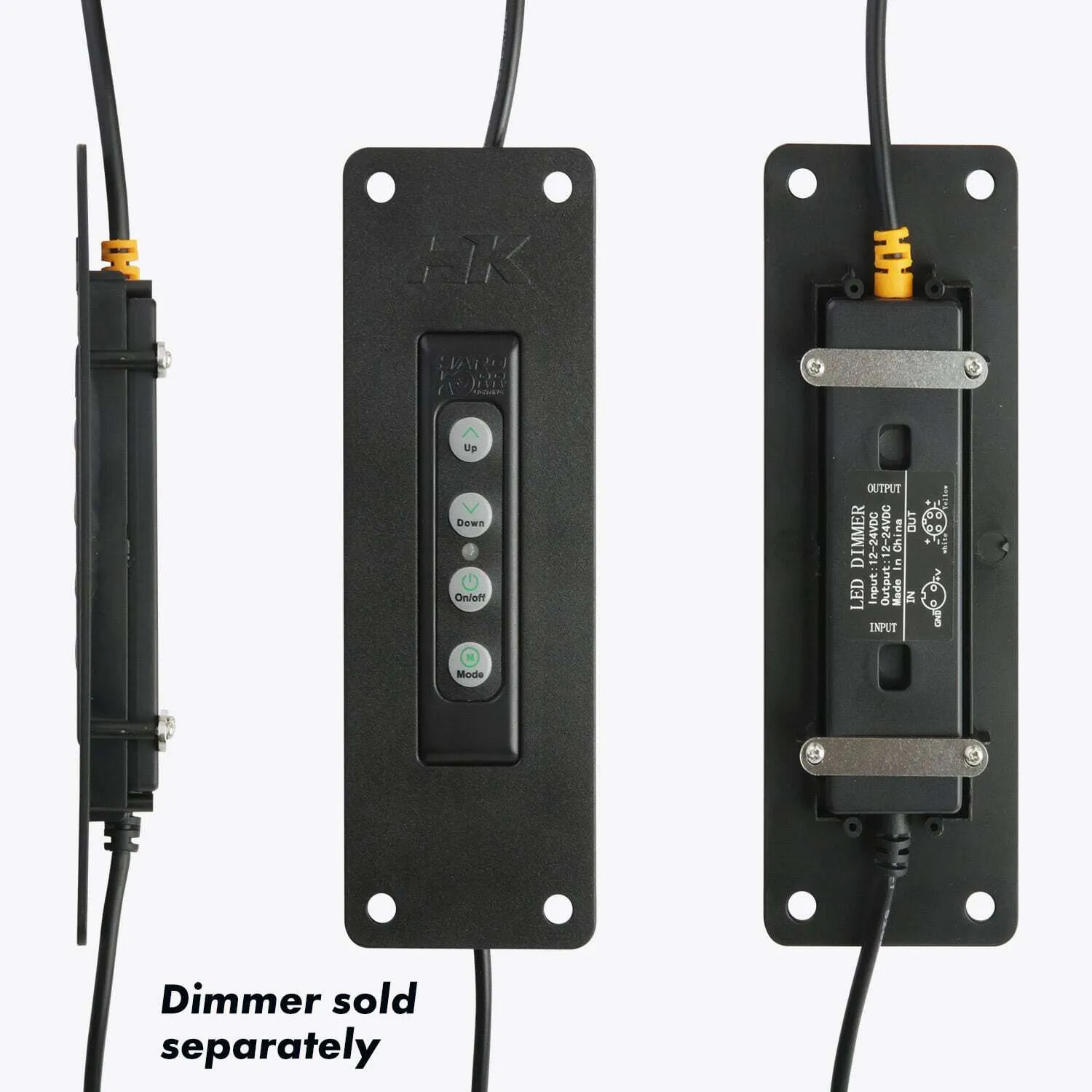

Our Dimmer Flush Mount Panel will allow you to easily flush mount your Hardkorr push-button dimmer into any flat surface. They are handy for ute canopies, boat dashboards and many other applications.

This handy accessory works with all Hardkorr push-button dimmers including tri-colour, orange & white and blue & white (marine) variants. The dimmer itself is sold separately.

The panel requires a 120mm (h) x 35mm (w) cut-out with 15mm depth allowance, and can be fastened with four 6-6 rivets, 10G screws or an adhesive such as Sikaflex.

Specifications

  • Compatible with Tri-colour push-button dimmers / Orange & white push-button dimmers / Blue & white (marine) push-button dimmers
  • Materials ABS plastic panel / 316 stainless steel bracing strips & screws
  • External dimensions 150mm (h) x 50mm (w) x 15mm (d)
  • Cut-out size 120mm (h) x 35mm (w)
  • Fasten with 4 x 6-6 rivets or 10G screws (not included)

What's Included

  • 1x Flush mount panel
  • 2x Bracing strips
  • 4x Screws

Compatibility

  • Universal Part

Our Dimmer Flush Mount Panel will allow you to easily flush mount your Hardkorr push-button dimmer into any flat surface. They are handy for ute canopies, boat dashboards and many other applications.

This handy accessory works with all Hardkorr push-button dimmers including tri-colour, orange & white and blue & white (marine) variants. The dimmer itself is sold separately.

The panel requires a 120mm (h) x 35mm (w) cut-out with 15mm depth allowance, and can be fastened with four 6-6 rivets, 10G screws or an adhesive such as Sikaflex.

  • Compatible with Tri-colour push-button dimmers / Orange & white push-button dimmers / Blue & white (marine) push-button dimmers
  • Materials ABS plastic panel / 316 stainless steel bracing strips & screws
  • External dimensions 150mm (h) x 50mm (w) x 15mm (d)
  • Cut-out size 120mm (h) x 35mm (w)
  • Fasten with 4 x 6-6 rivets or 10G screws (not included)
  • 1x Flush mount panel
  • 2x Bracing strips
  • 4x Screws
  • Universal Part
