Description

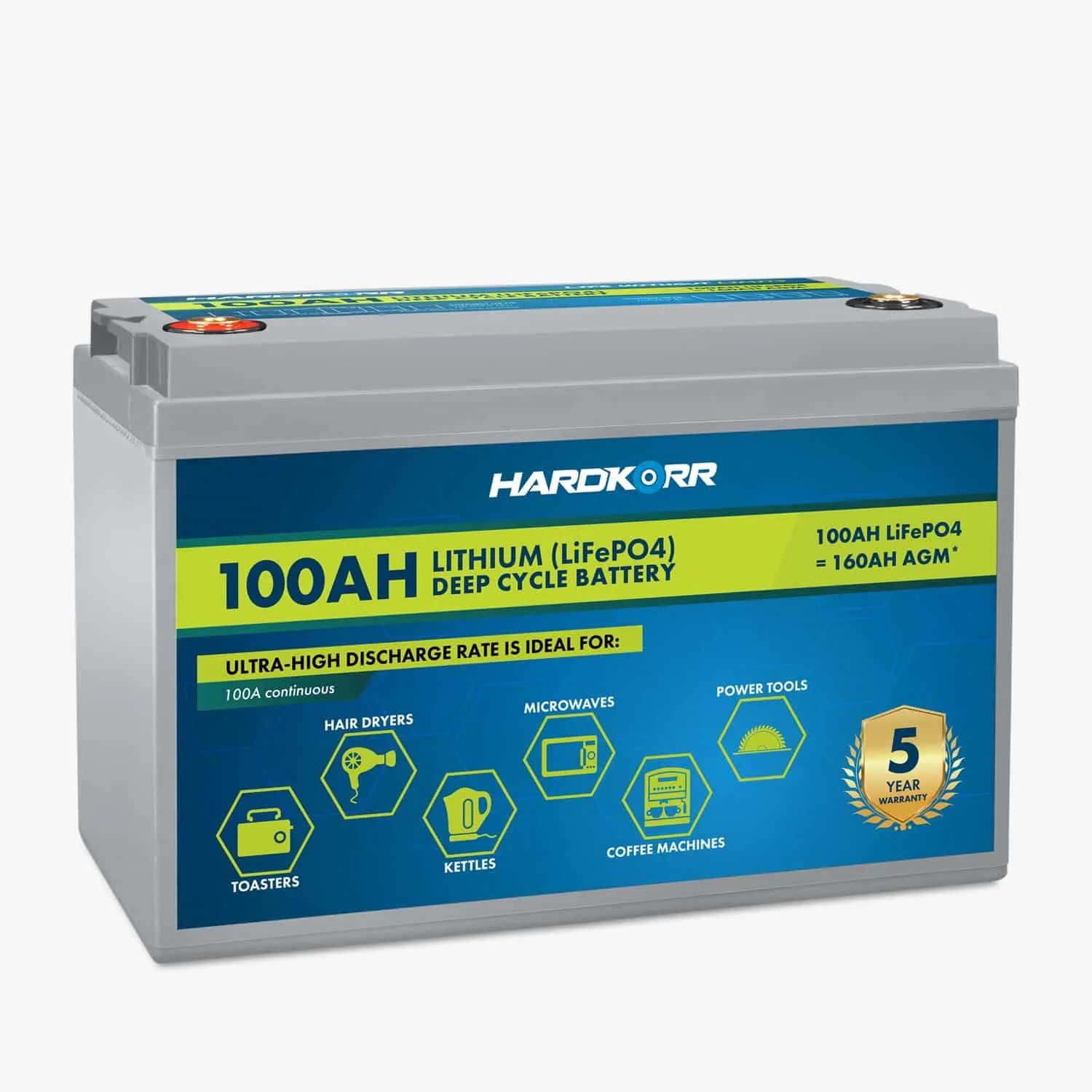

Our latest 100Ah lithium (LiFePO4) deep-cycle batteries are the most reliable, long-lasting batteries we have ever manufactured. With outstanding performance characteristics and full international certification, youÂ’ll never be caught short of 12v power on your 4wding and camping adventures again! Coming in a standard Group 27 (N70) size case, they are will fit into standard-sized battery boxes and trays.

These batteries are made using best-in-class robotic manufacturing processes with rigorous quality assurance (including serialised tracking) and pre-shipment cycle testing. We even store the test report for each battery for later reference if needed. ThatÂ’s why we can now confidently offer you a 5-year Australian warranty.

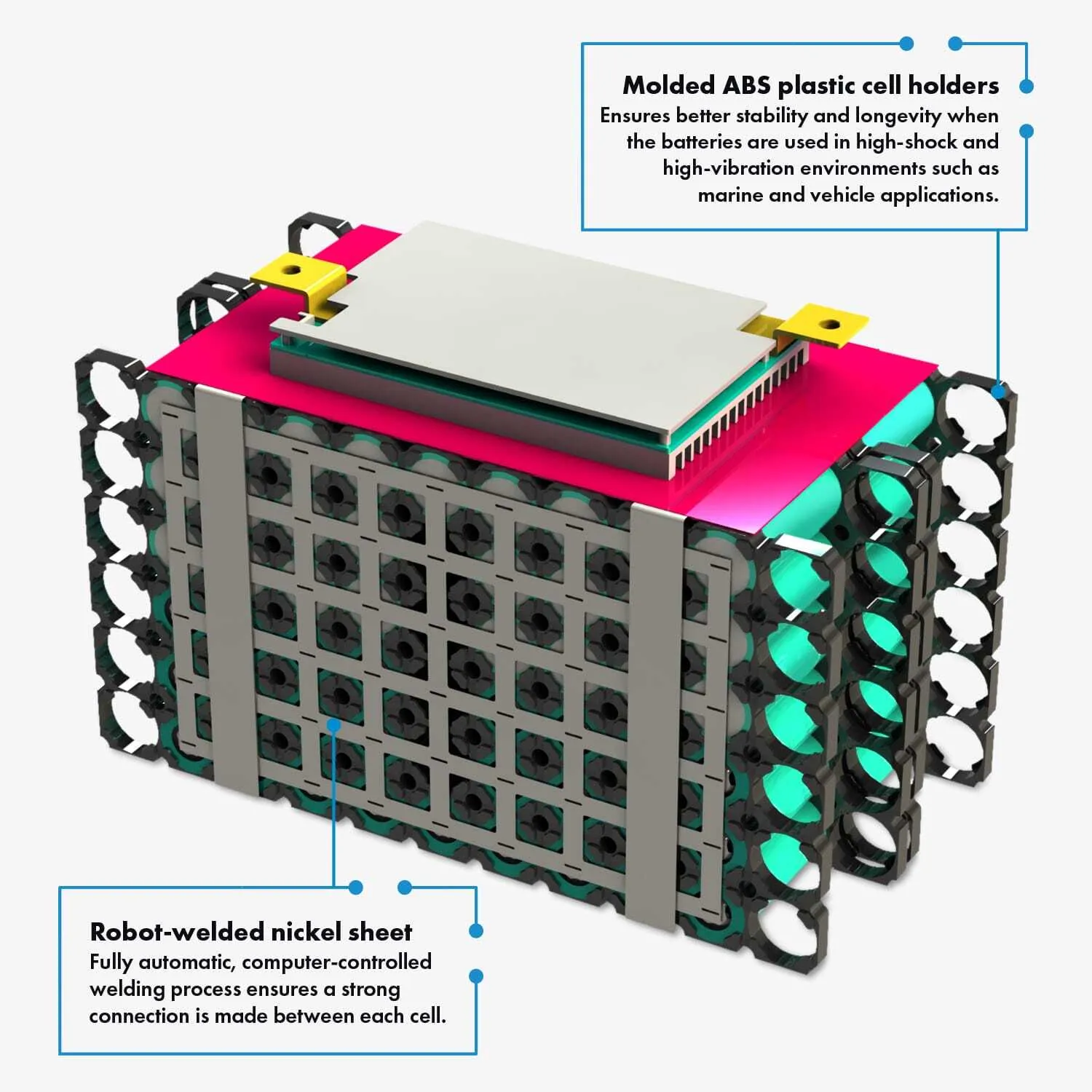

Our 100Ah deep-cycle lithium batteries are constructed from the highest quality 26700 high-discharge cylindrical cells. The cells are carefully matched to ensure the difference in internal resistance is less than 1m? and voltage difference is less than 5mV. They are then ultrasonically welded using automated equipment to ensure a strong connection is made between each cell, and encased in custom-molded ABS plastic cell holders to ensure reliability and consistency even when subjected to shock and vibration.

WaitÂ… arenÂ’t prismatic cells better?

Prismatic and cylindrical cells both have inherent advantages and disadvantages. Batteries which use prismatic cells are somewhat lighter than those with cylindrical cells, and are easier to manufacture due to having fewer connections between cells. Cylindrical cells, on the other hand, are usually more efficient in their energy usage, produce somewhat less heat and tend to be more reliable than their prismatic counterparts.

The improved cell reliability and efficiency of cylindrical cells are what made us decide, like Tesla and Rivian, to manufacture these batteries from cylindrical cells.

Specifications

  • Nominal voltage 12.8V
  • Capacity (C5) 100Ah
  • Max series/parallel config 4S/6P
  • Normal charge voltage 14.4V ± 0.2V
  • Standard charge current 50A
  • Max discharge current (constant) 100A (1C)*
  • Max discharge current (pulse) 200A
  • Discharge cut-off voltage 8.8V
  • Charge temp 0°C to 55°C
  • Discharge temp -20°C to 60°C
  • Storage temp 0°C to 45°C
  • Ingress protection IP64
  • Self-discharge <3% per month
  • Weight 12.0kg
  • Dimensions 330mm x 173mm x 216mm (Group 27)
  • Certifications UN 38.3, UL 1642, IEC 62133-2:2017, IEC 62619:2017, CE

Compatibility

  • Universal Part

Our latest 100Ah lithium (LiFePO4) deep-cycle batteries are the most reliable, long-lasting batteries we have ever manufactured. With outstanding performance characteristics and full international certification, youÂ’ll never be caught short of 12v power on your 4wding and camping adventures again! Coming in a standard Group 27 (N70) size case, they are will fit into standard-sized battery boxes and trays.

These batteries are made using best-in-class robotic manufacturing processes with rigorous quality assurance (including serialised tracking) and pre-shipment cycle testing. We even store the test report for each battery for later reference if needed. ThatÂ’s why we can now confidently offer you a 5-year Australian warranty.

Our 100Ah deep-cycle lithium batteries are constructed from the highest quality 26700 high-discharge cylindrical cells. The cells are carefully matched to ensure the difference in internal resistance is less than 1m? and voltage difference is less than 5mV. They are then ultrasonically welded using automated equipment to ensure a strong connection is made between each cell, and encased in custom-molded ABS plastic cell holders to ensure reliability and consistency even when subjected to shock and vibration.

WaitÂ… arenÂ’t prismatic cells better?

Prismatic and cylindrical cells both have inherent advantages and disadvantages. Batteries which use prismatic cells are somewhat lighter than those with cylindrical cells, and are easier to manufacture due to having fewer connections between cells. Cylindrical cells, on the other hand, are usually more efficient in their energy usage, produce somewhat less heat and tend to be more reliable than their prismatic counterparts.

The improved cell reliability and efficiency of cylindrical cells are what made us decide, like Tesla and Rivian, to manufacture these batteries from cylindrical cells.

  • Nominal voltage 12.8V
  • Capacity (C5) 100Ah
  • Max series/parallel config 4S/6P
  • Normal charge voltage 14.4V ± 0.2V
  • Standard charge current 50A
  • Max discharge current (constant) 100A (1C)*
  • Max discharge current (pulse) 200A
  • Discharge cut-off voltage 8.8V
  • Charge temp 0°C to 55°C
  • Discharge temp -20°C to 60°C
  • Storage temp 0°C to 45°C
  • Ingress protection IP64
  • Self-discharge <3% per month
  • Weight 12.0kg
  • Dimensions 330mm x 173mm x 216mm (Group 27)
  • Certifications UN 38.3, UL 1642, IEC 62133-2:2017, IEC 62619:2017, CE
  • Universal Part
