Description

This battery monitor, also known as a coulometer, displays essential battery information through its full-colour LCD screen or by connecting your smartphone via Bluetooth. By using a 500A shunt, highly accurate data is collected such as charge level (Ah and %), live current draw (A), live voltage (V) and live watts (W). The monitor also includes an integrated alarm function to alert you when your battery is discharged to a set level, and short circuit and reverse polarity protection technology.

It is suitable for all common battery types including Lithium, AGM, Wet, Gel and Calcium.

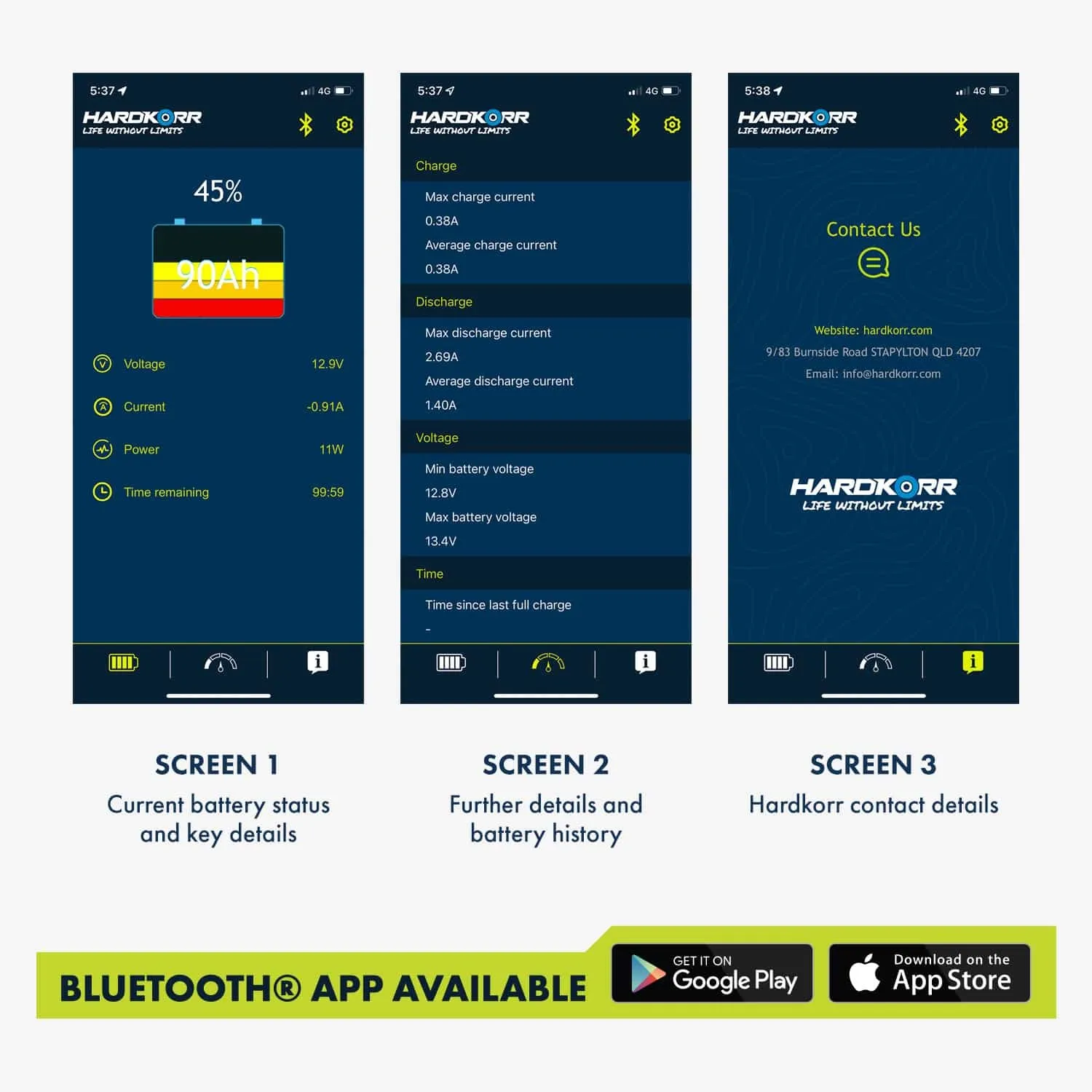

Using our free Bluetooth app, you can easily access all of the information from the battery monitor screen via your smartphone. You can also change settings from the app and wirelessly synchronise them with the monitor.

Specifications

  • Working voltage 10-120V DC
  • Battery capacity range 10-1000Ah
  • Max. current 500A peak / 350A continuous
  • Working power draw <1W
  • Accuracy ±1%
  • Operating temperature -20°C to 50°C
  • Weight 110g
  • Dimensions (LCD screen) 125mm x 82mm x 21mm
  • Cut-out size 106mm x 76mm
  • Certifications EN62368-1:2014+A11:2017, EN50663:2017, RCM

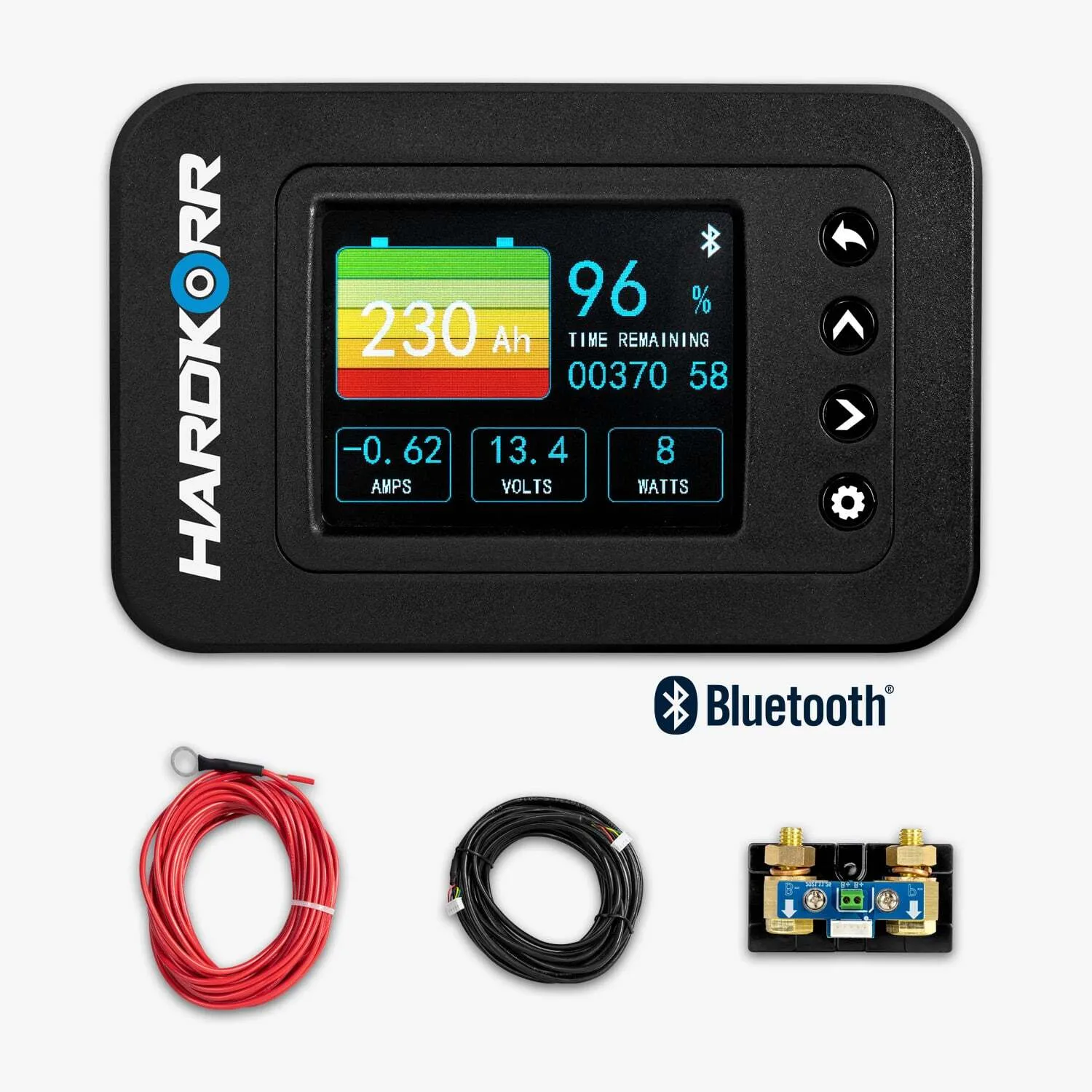

What's Included

  • 1x LCD display module
  • 1x 500A shunt
  • 1x 6m shielded cable
  • 1x 6m B+ wire
  • 1x Mounting screws and pad
  • 1x Mounting indicator card

Compatibility

  • Universal Part

This battery monitor, also known as a coulometer, displays essential battery information through its full-colour LCD screen or by connecting your smartphone via Bluetooth. By using a 500A shunt, highly accurate data is collected such as charge level (Ah and %), live current draw (A), live voltage (V) and live watts (W). The monitor also includes an integrated alarm function to alert you when your battery is discharged to a set level, and short circuit and reverse polarity protection technology.

It is suitable for all common battery types including Lithium, AGM, Wet, Gel and Calcium.

Using our free Bluetooth app, you can easily access all of the information from the battery monitor screen via your smartphone. You can also change settings from the app and wirelessly synchronise them with the monitor.

  • Working voltage 10-120V DC
  • Battery capacity range 10-1000Ah
  • Max. current 500A peak / 350A continuous
  • Working power draw <1W
  • Accuracy ±1%
  • Operating temperature -20°C to 50°C
  • Weight 110g
  • Dimensions (LCD screen) 125mm x 82mm x 21mm
  • Cut-out size 106mm x 76mm
  • Certifications EN62368-1:2014+A11:2017, EN50663:2017, RCM
  • 1x LCD display module
  • 1x 500A shunt
  • 1x 6m shielded cable
  • 1x 6m B+ wire
  • 1x Mounting screws and pad
  • 1x Mounting indicator card
  • Universal Part
