Description

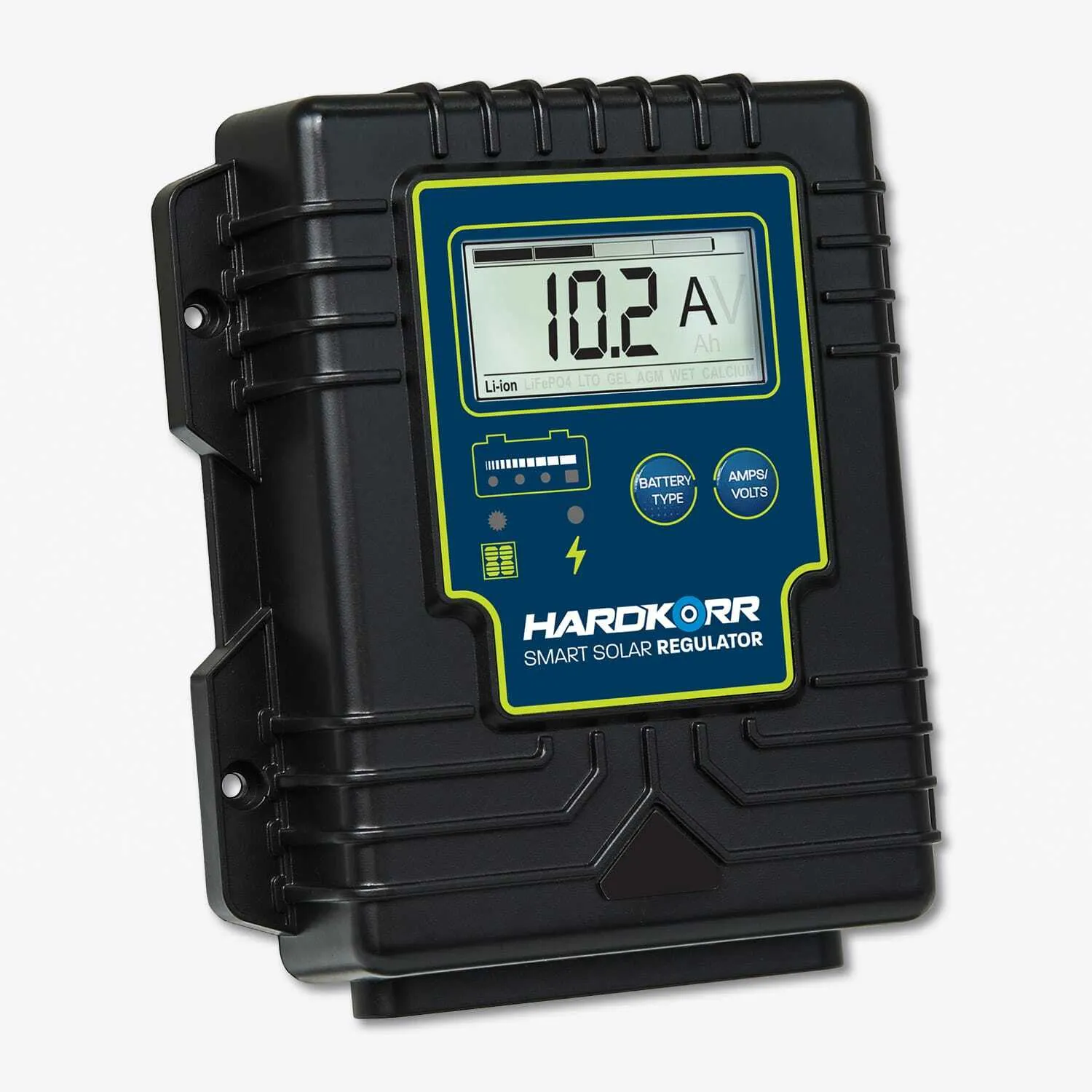

HardkorrÂ’s 15A 6-stage PWM smart solar regulator is tough as nails and designed to work perfectly with our range of 12v solar panels.

This smart regulator will optimally charge a range of battery types, including AGM, Gel, Calcium, Wet and all lithium variants (LiFePO4, Li-ion, Li4Ti5O12). It contains a host of smart electronics including reverse polarity protection, short circuit protection, reverse current protection, overcharge protection and more.

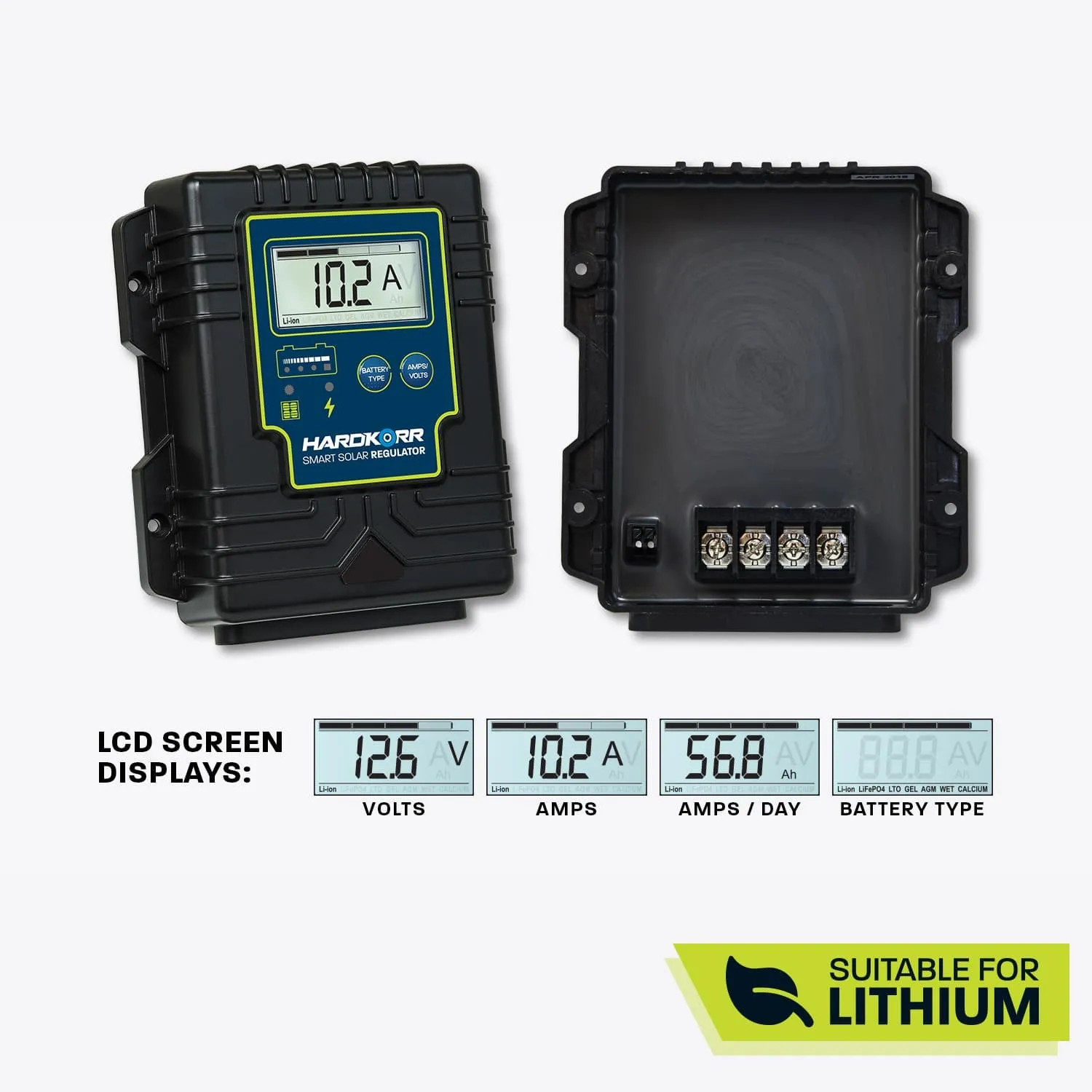

Its large, backlit LCD screen provides useful information relating to power input and battery charge level, and inbuilt LEDs provide a quick-reference indicator of battery charge status.

It now also contains smart re-activation technology, which gives it the ability to wake up a “dead” lithium battery where the BMS over-discharge protection circuit has been tripped. Simply connect the regulator to the battery and it will deliver special small-current pulses until the battery has recovered enough to be charged normally.

Specifications

  • Suitable battery types LiFePO4, Li-ion, Li4Ti5O12, AGM, Gel, Calcium, Wet
  • Rated throughput 15A
  • Ingress Protection IP65
  • LCD screen display modes Volts, amps, amp hours, battery type
  • Weight 0.4kg
  • Self-consumption <3mA
  • Operating temperature -40°C to 60°C
  • Storage temperature -40°C to 85°C

What's Included

  • 1x 15A 6-stage smart solar regulator

Compatibility

  • Universal Part

HardkorrÂ’s 15A 6-stage PWM smart solar regulator is tough as nails and designed to work perfectly with our range of 12v solar panels.

This smart regulator will optimally charge a range of battery types, including AGM, Gel, Calcium, Wet and all lithium variants (LiFePO4, Li-ion, Li4Ti5O12). It contains a host of smart electronics including reverse polarity protection, short circuit protection, reverse current protection, overcharge protection and more.

Its large, backlit LCD screen provides useful information relating to power input and battery charge level, and inbuilt LEDs provide a quick-reference indicator of battery charge status.

It now also contains smart re-activation technology, which gives it the ability to wake up a “dead” lithium battery where the BMS over-discharge protection circuit has been tripped. Simply connect the regulator to the battery and it will deliver special small-current pulses until the battery has recovered enough to be charged normally.

  • Suitable battery types LiFePO4, Li-ion, Li4Ti5O12, AGM, Gel, Calcium, Wet
  • Rated throughput 15A
  • Ingress Protection IP65
  • LCD screen display modes Volts, amps, amp hours, battery type
  • Weight 0.4kg
  • Self-consumption <3mA
  • Operating temperature -40°C to 60°C
  • Storage temperature -40°C to 85°C
  • 1x 15A 6-stage smart solar regulator
  • Universal Part
