Description

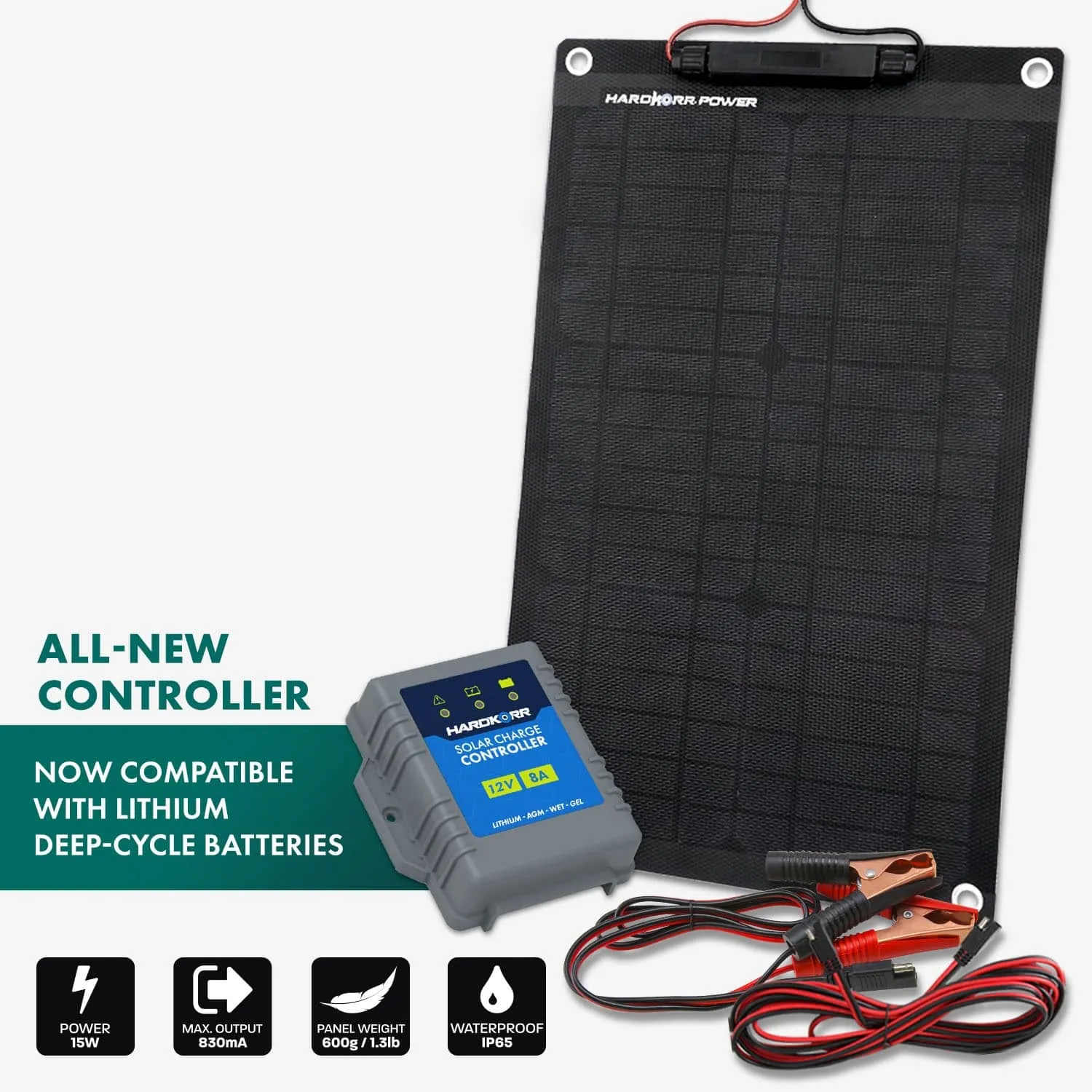

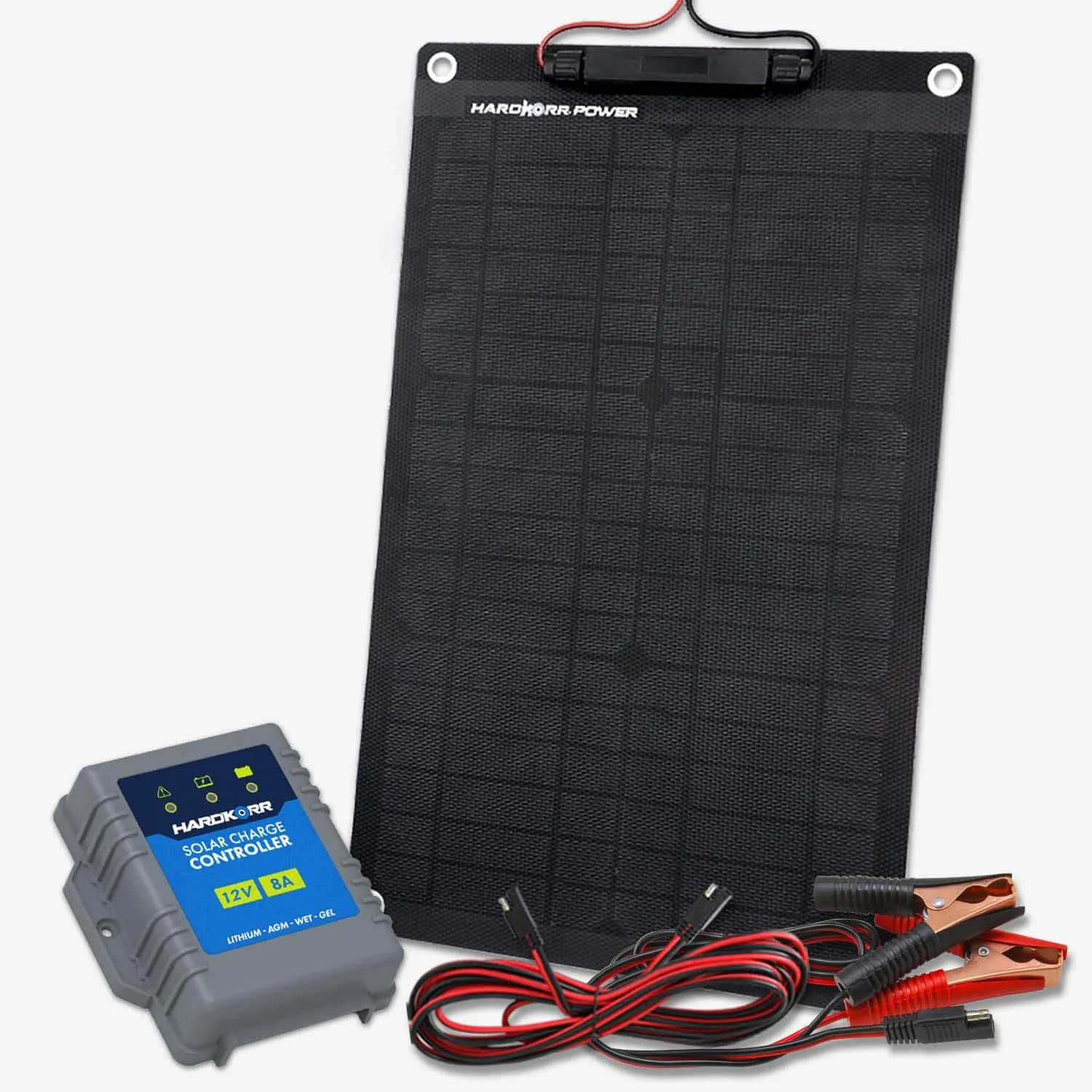

This 15w trickle charge solar panel will help you prolong the life of your 12v batteries, by topping them up when theyÂ’re not in use. It is ideal for cars, 4wd, caravans, boats, and machinery that periodically sit idle.

The built-in diode prevents reverse charging and ensures batteries do not become discharged at night, and the included controller protects against battery overcharge. It works with Lithium, AGM, gel and wet/flooded cell batteries.

Simply use the included alligator clamps and extension cable (if required) to connect your battery to the controller, and the controller to the solar panel. The panel incorporates pre-punched mounting holes if permanent fixture is desired.

Specifications

  • Cell type A-grade monocrystalline silicon
  • Wattage 15W
  • Max. voltage 17.96V
  • Max. current 830mA
  • Open circuit 22.5V
  • Short circuit 920mA
  • Dimensions 270mm x 450mm
  • Cable gauge 2 x 2.5mm2 (14AWG)
  • Suitable battery types Lithium, AGM, Gel, Wet/Flooded
  • Ingress Protection IP65
  • Weight 0.5kg
  • Operating temperature -20°C to 80°C
  • Certifications CE, RoHS, C-Tick

What's Included

  • 1x 15w solar panel
  • 1x 8A waterproof (IP65) solar controller
  • 1x 5m lead with bullet/SAE plugs
  • 1x Bullet/SAE to battery clamp cable

Compatibility

  • Universal Part
