Description

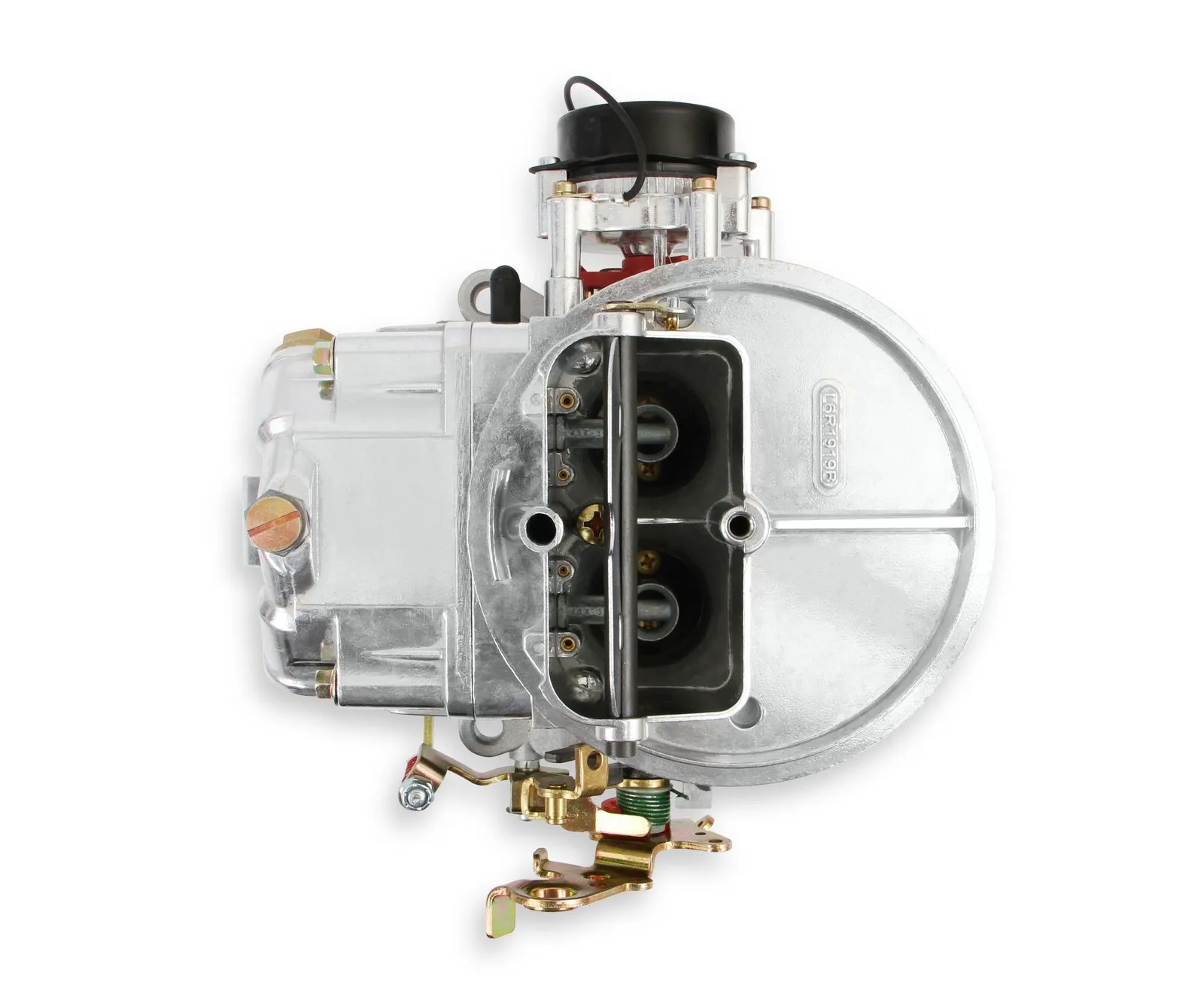

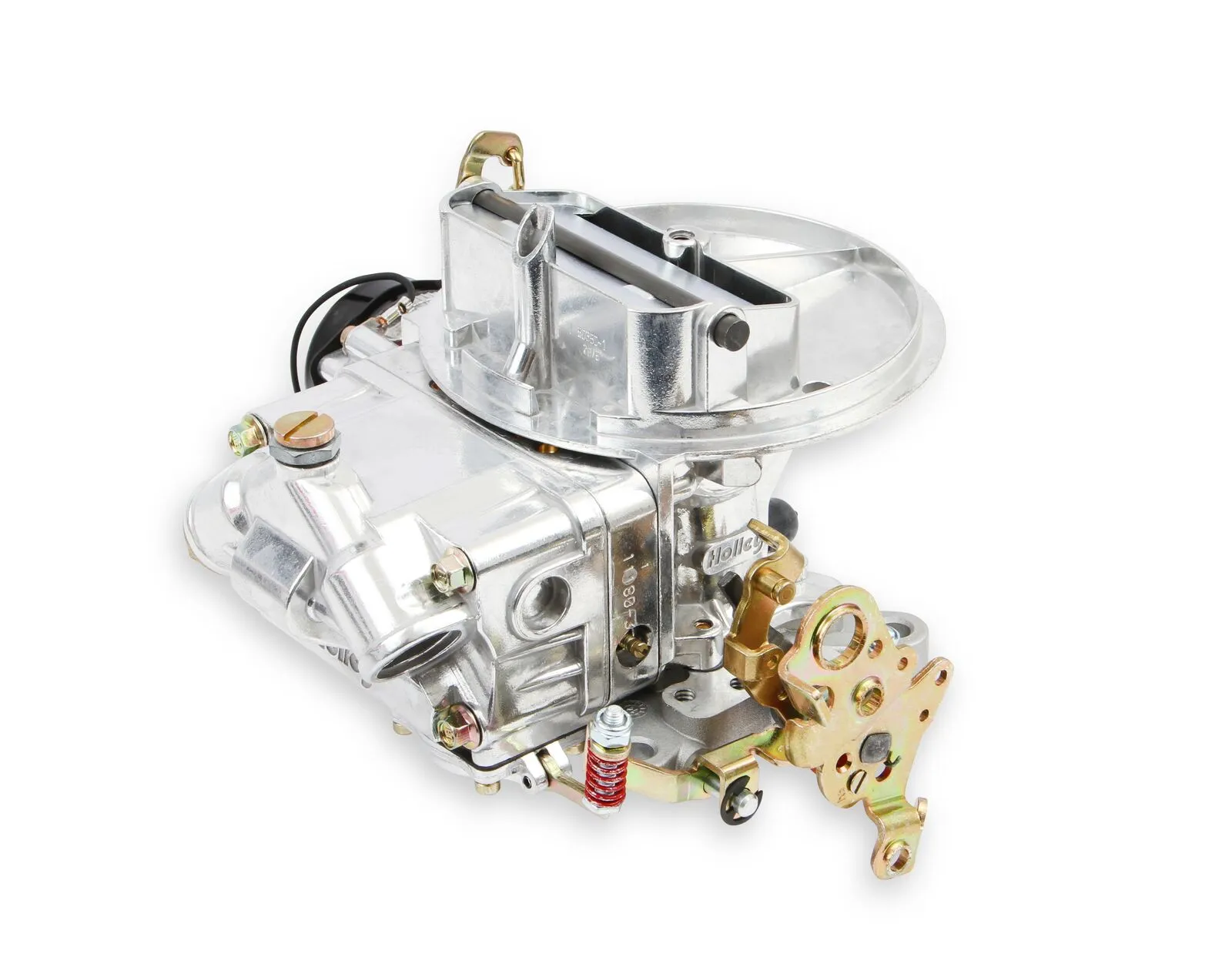

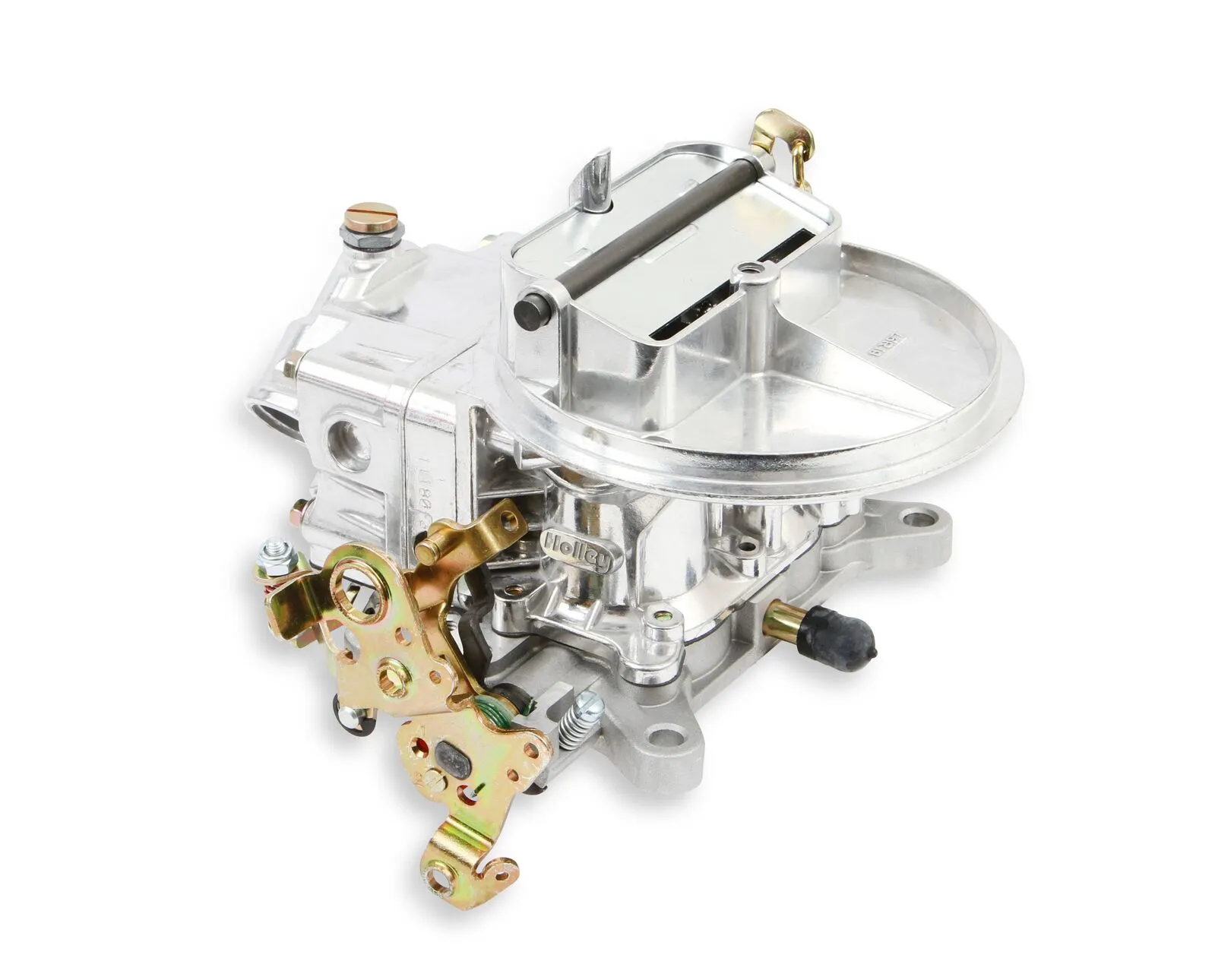

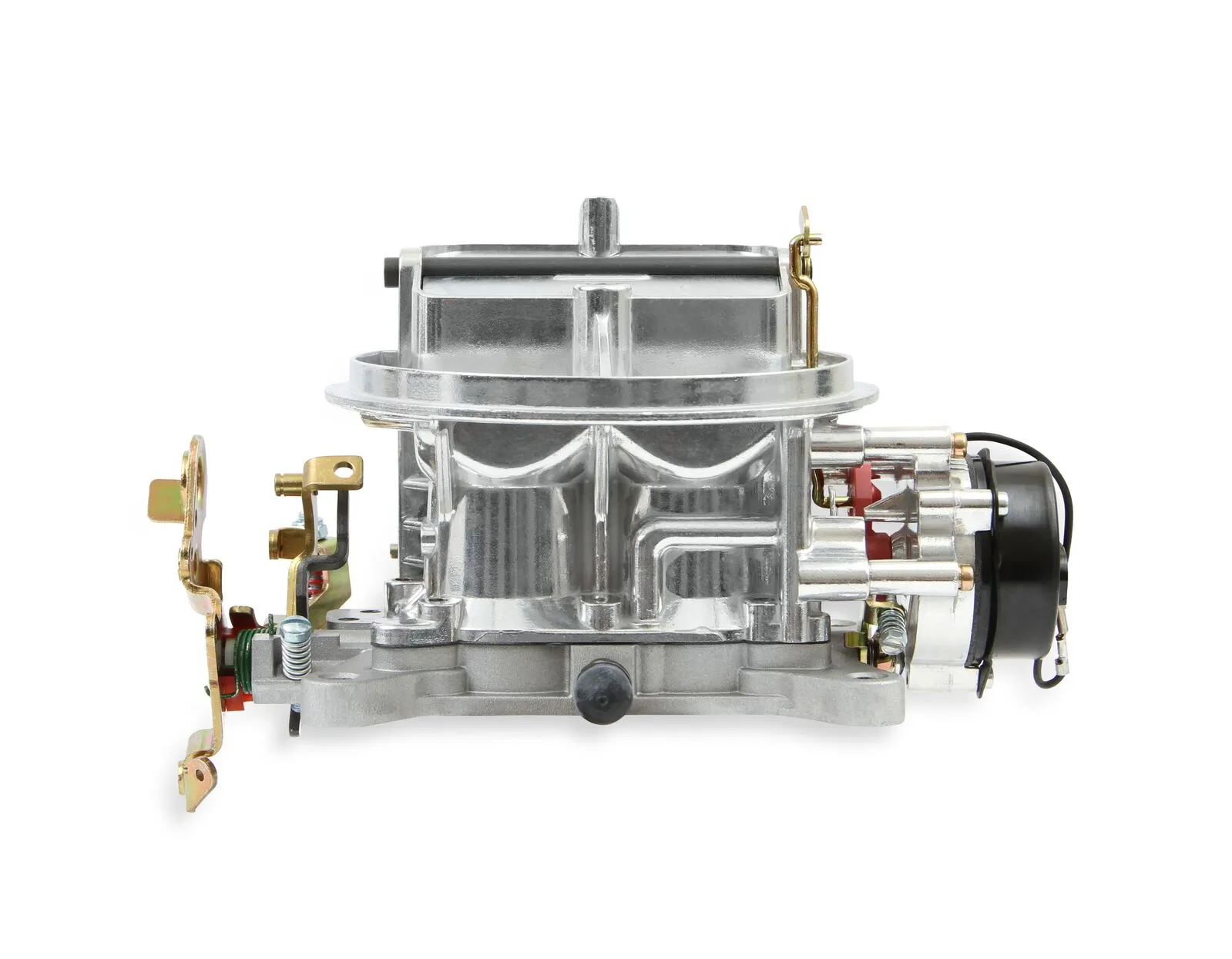

Street Avenger carburetors are known to bolt on right out of the box. The 500 CFM Street Avenger carburetor has great features such as optimized street calibrations; three vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy startups; built-in fuel filters; and an included 3/8" fuel line connection so there are no unnecessary trips back to the parts store.

The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.

Features

  • Vibratory polished for good looks
  • Optimized street calibration that works-out-of-the-box

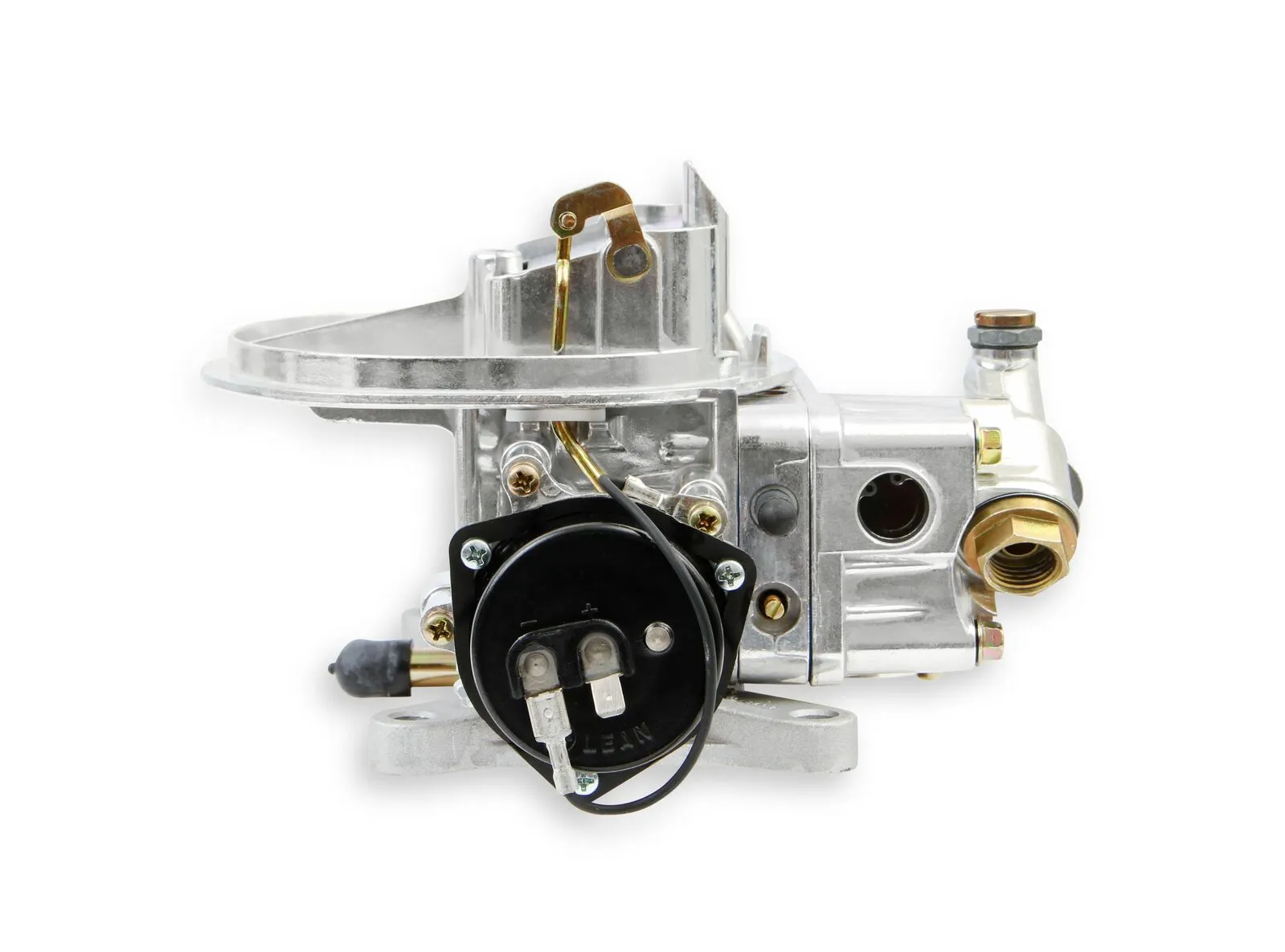

  • Factory preset electric choke for easy startups (Range identified and restricted for easy no trouble adjustment)
  • Built in No Trouble fuel inlet filter
  • Street Avenger fuel metering system provides precise fuel control for great low end torque and awesome acceleration

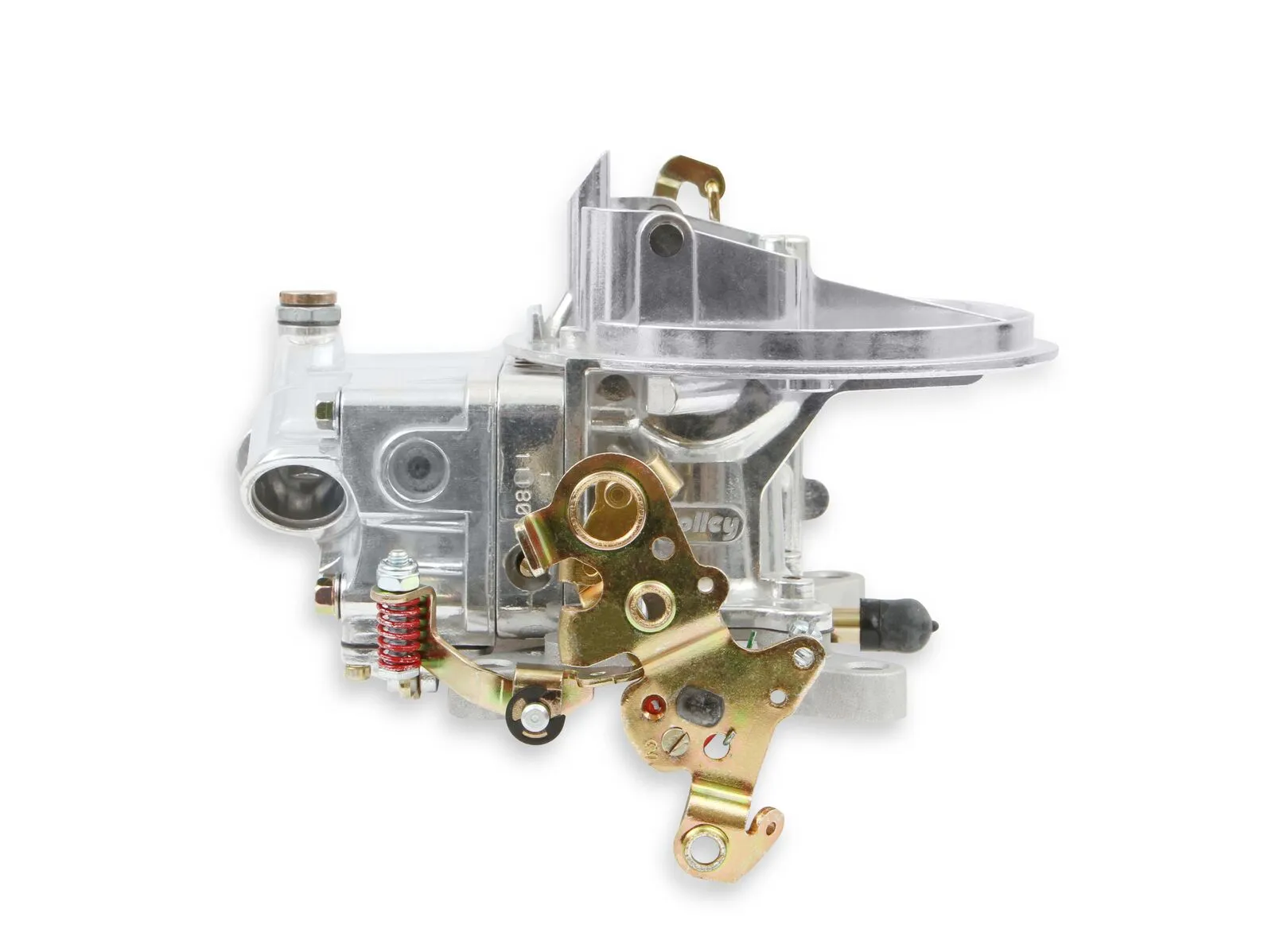

  • Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
  • Gen IV No Trouble power valve
  • Three vacuum ports (1 PCV/Brake, 1 timed spark, 1 full)
  • Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product!
  • 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

Specifications

Barrel Quantity2
Barrels2
Body ColourPolished
Body FinishPolished
BoosterStraight
Booster DesignStraight
BrandHolley
Carburetor MaterialAluminum
Carburetor UseStreet
CFM500
ChokeElectric
Choke TypeElectric
ConditionNew
Cubic Feet Per Minute Rating500
Emission Code3
FinishShiny

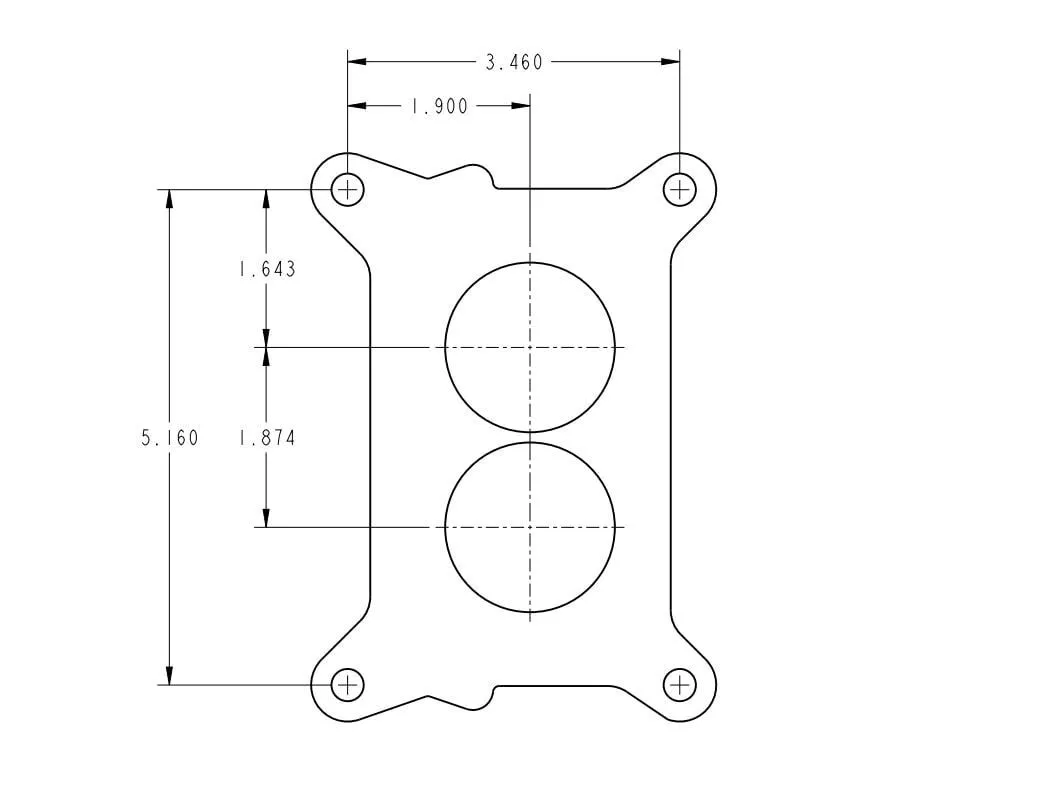

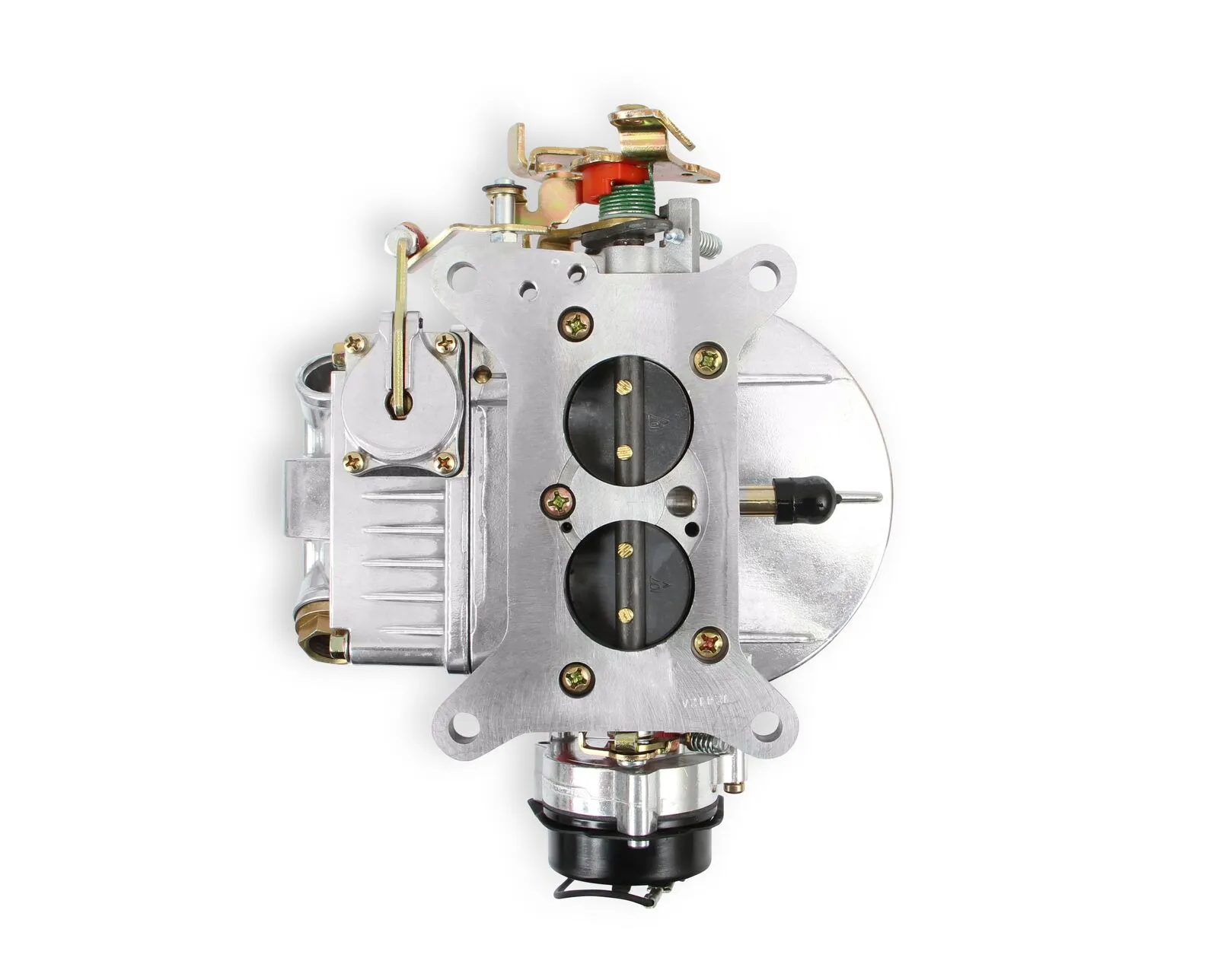

Flange Type2300 2-BBL
FuelGasoline
Grade TypePerformance
Linkage AttachedYes
Marine ApprovedNo
Marine UseNo
MaterialAluminum
Model2300
Mounting Hole Quantity4
Primary Jet Diameter73
Primary Main Jet73
Primary Power Valve5.0
Primary Pump Nozzle Size28
Product TypeCarburetor
Sale CategoryCarburetors and Components
Secondaries
Spacer IncludedNo
Supercharged ApplicationNo
Vacuum Ports1 timed (spark) port, 1 full, and 1 PCV port
WarrantyLimited Lifetime Warranty

Compatibility

  • Universal Part

Street Avenger carburetors are known to bolt on right out of the box. The 500 CFM Street Avenger carburetor has great features such as optimized street calibrations; three vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy startups; built-in fuel filters; and an included 3/8" fuel line connection so there are no unnecessary trips back to the parts store.

The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.

Features

  • Vibratory polished for good looks
  • Optimized street calibration that works-out-of-the-box
  • Factory preset electric choke for easy startups (Range identified and restricted for easy no trouble adjustment)
  • Built in No Trouble fuel inlet filter
  • Street Avenger fuel metering system provides precise fuel control for great low end torque and awesome acceleration
  • Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required.
  • Gen IV No Trouble power valve
  • Three vacuum ports (1 PCV/Brake, 1 timed spark, 1 full)
  • Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product!
  • 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Barrel Quantity2
Barrels2
Body ColourPolished
Body FinishPolished
BoosterStraight
Booster DesignStraight
BrandHolley
Carburetor MaterialAluminum
Carburetor UseStreet
CFM500
ChokeElectric
Choke TypeElectric
ConditionNew
Cubic Feet Per Minute Rating500
Emission Code3
FinishShiny
Flange Type2300 2-BBL
FuelGasoline
Grade TypePerformance
Linkage AttachedYes
Marine ApprovedNo
Marine UseNo
MaterialAluminum
Model2300
Mounting Hole Quantity4
Primary Jet Diameter73
Primary Main Jet73
Primary Power Valve5.0
Primary Pump Nozzle Size28
Product TypeCarburetor
Sale CategoryCarburetors and Components
Secondaries
Spacer IncludedNo
Supercharged ApplicationNo
Vacuum Ports1 timed (spark) port, 1 full, and 1 PCV port
WarrantyLimited Lifetime Warranty
  • Universal Part
