Description

Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems. Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory at 2.8 PSI so there is no guesswork when first installing the regulator. The Holley 12-804 fuel pressure regulator features 3/8" NPT in/out ports.

***The inlet pressure limitation is 7 psi.

Features

  • Adjustable fuel regulation from 1 to 4 psi
  • .220" (7/32") restriction
  • 3/8" NPT ports ( 1 in, 2 out)
  • Chrome finish

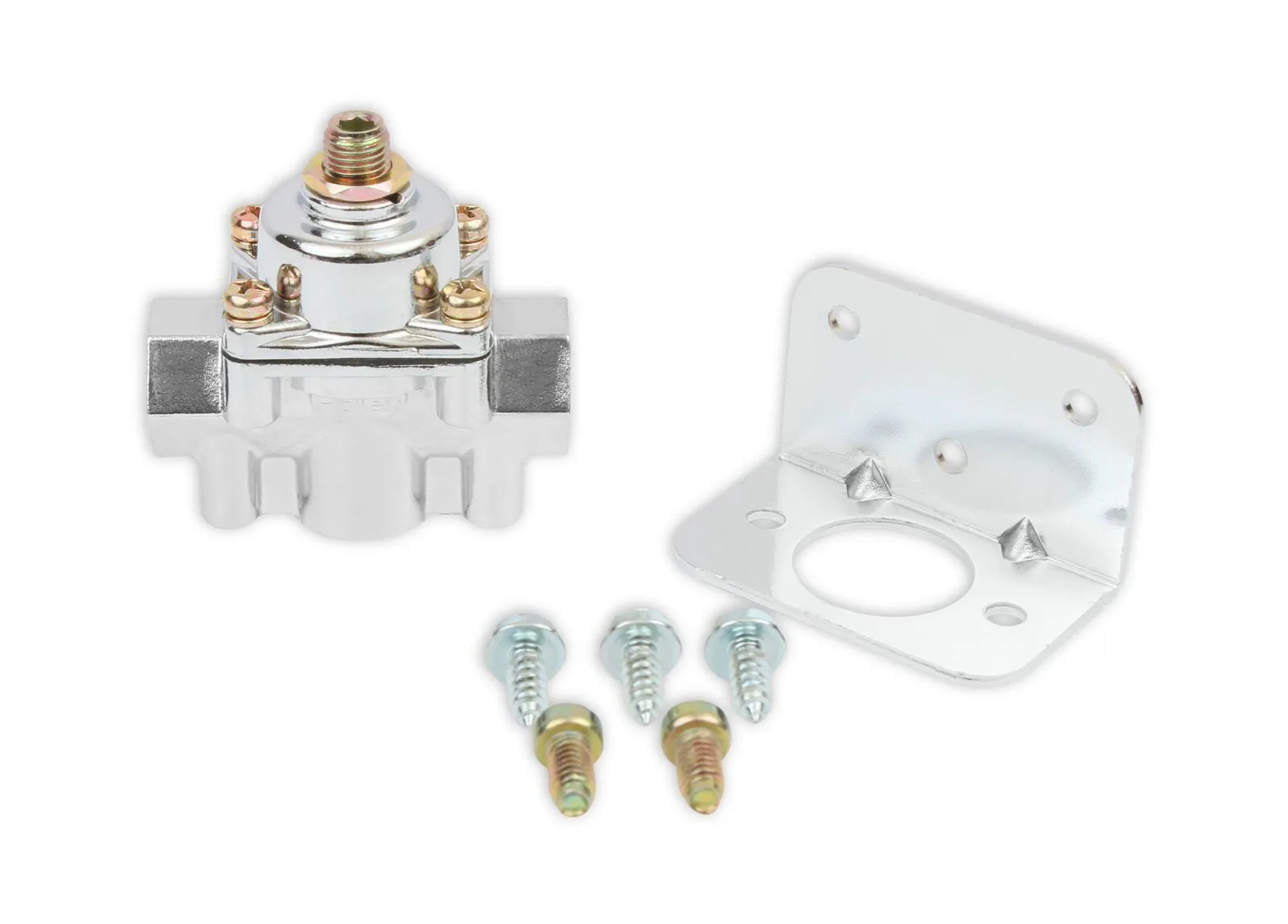

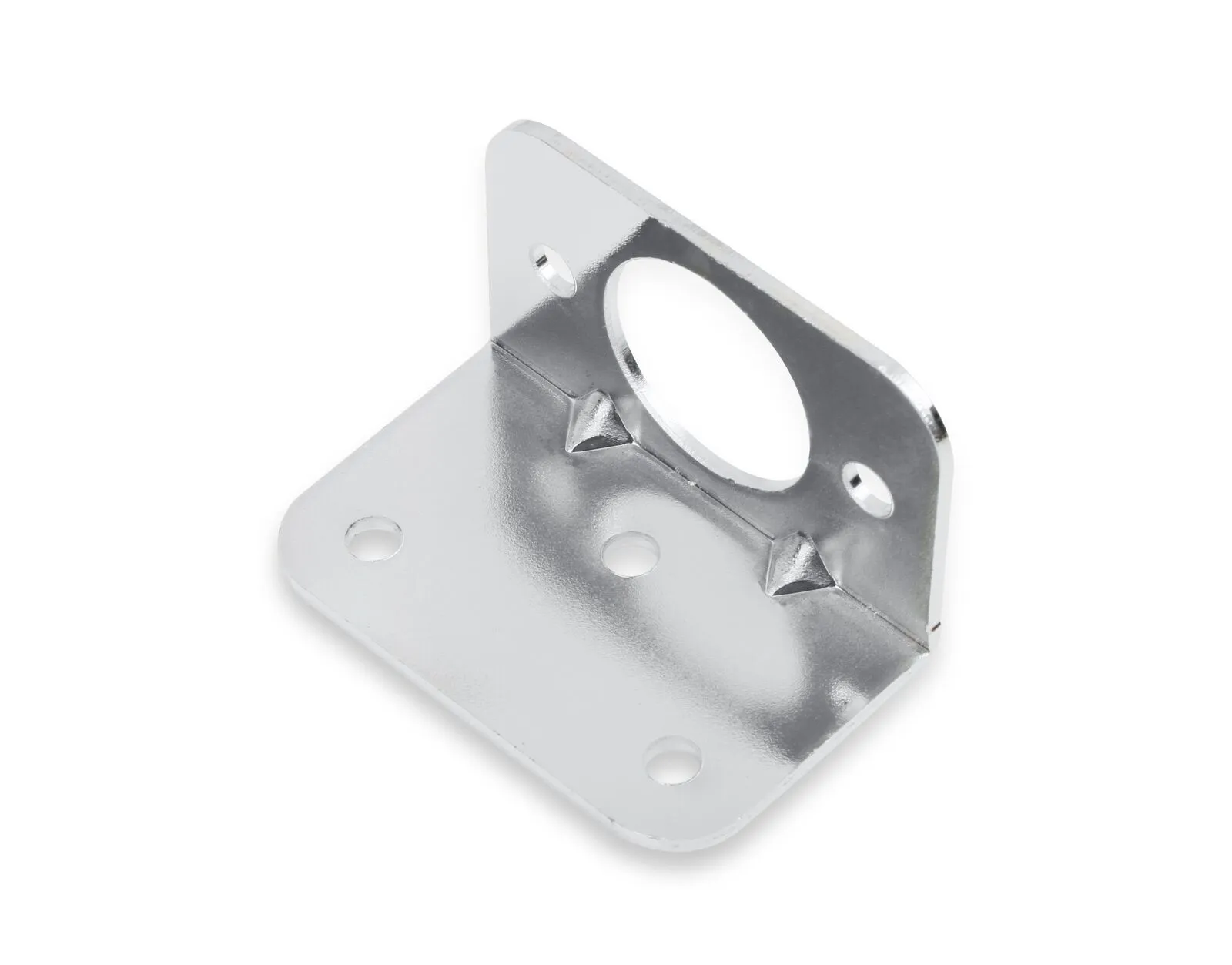

  • Mounting bracket included
  • Pre-set at 2.8 PSI

Specifications

AdjustableYes
BrandHolley
ColourShiny
Emission Code5
Fuel SystemGasoline
Fuel TypeGasoline
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter3/8
Inlet Port Quantity1
Inlet Size3/8 inch NPT
Inlet TypeNPT
MaterialAluminum
Maximum Pressure4
Minimum Pressure1
Mounting Bracket IncludedYes
Mounting TypeInline
Outlet GenderFemale
Outlet Port Diameter3/8
Outlet Port Quantity2
Outlet Size3/8 inch NPT
Outlet TypeNPT
Port Quantity2
Pressure Range1-4 PSI
Product TypeFuel Pressure Regulator
RebuildableYes
Sale CategoryAir and Fuel Delivery
StyleNon-Return
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems. Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory at 2.8 PSI so there is no guesswork when first installing the regulator. The Holley 12-804 fuel pressure regulator features 3/8" NPT in/out ports.

***The inlet pressure limitation is 7 psi.

Features

  • Adjustable fuel regulation from 1 to 4 psi
  • .220" (7/32") restriction
  • 3/8" NPT ports ( 1 in, 2 out)
  • Chrome finish
  • Mounting bracket included
  • Pre-set at 2.8 PSI
AdjustableYes
BrandHolley
ColourShiny
Emission Code5
Fuel SystemGasoline
Fuel TypeGasoline
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter3/8
Inlet Port Quantity1
Inlet Size3/8 inch NPT
Inlet TypeNPT
MaterialAluminum
Maximum Pressure4
Minimum Pressure1
Mounting Bracket IncludedYes
Mounting TypeInline
Outlet GenderFemale
Outlet Port Diameter3/8
Outlet Port Quantity2
Outlet Size3/8 inch NPT
Outlet TypeNPT
Port Quantity2
Pressure Range1-4 PSI
Product TypeFuel Pressure Regulator
RebuildableYes
Sale CategoryAir and Fuel Delivery
StyleNon-Return
WarrantyLimited 90 Day
  • Universal Part
