Description

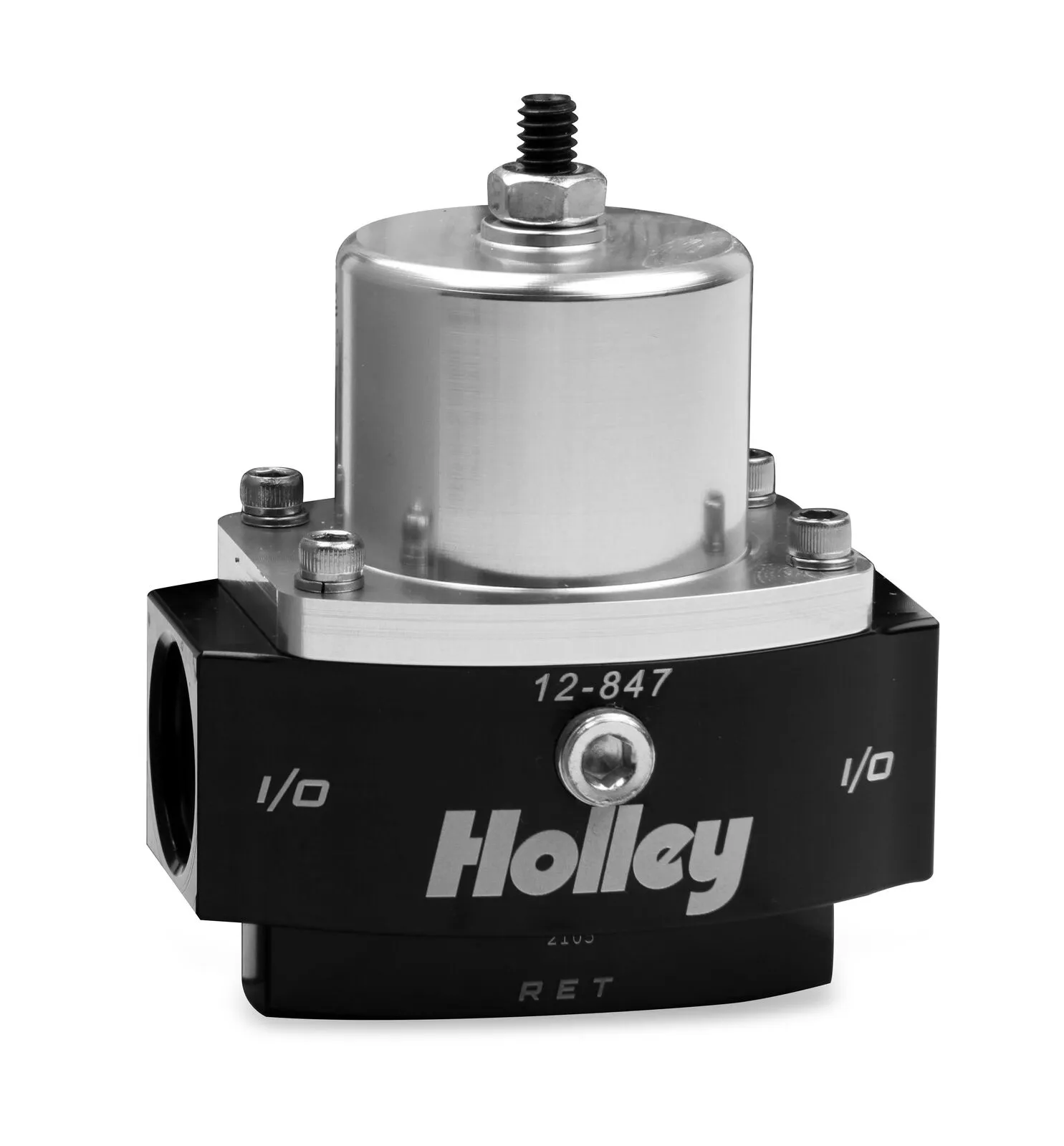

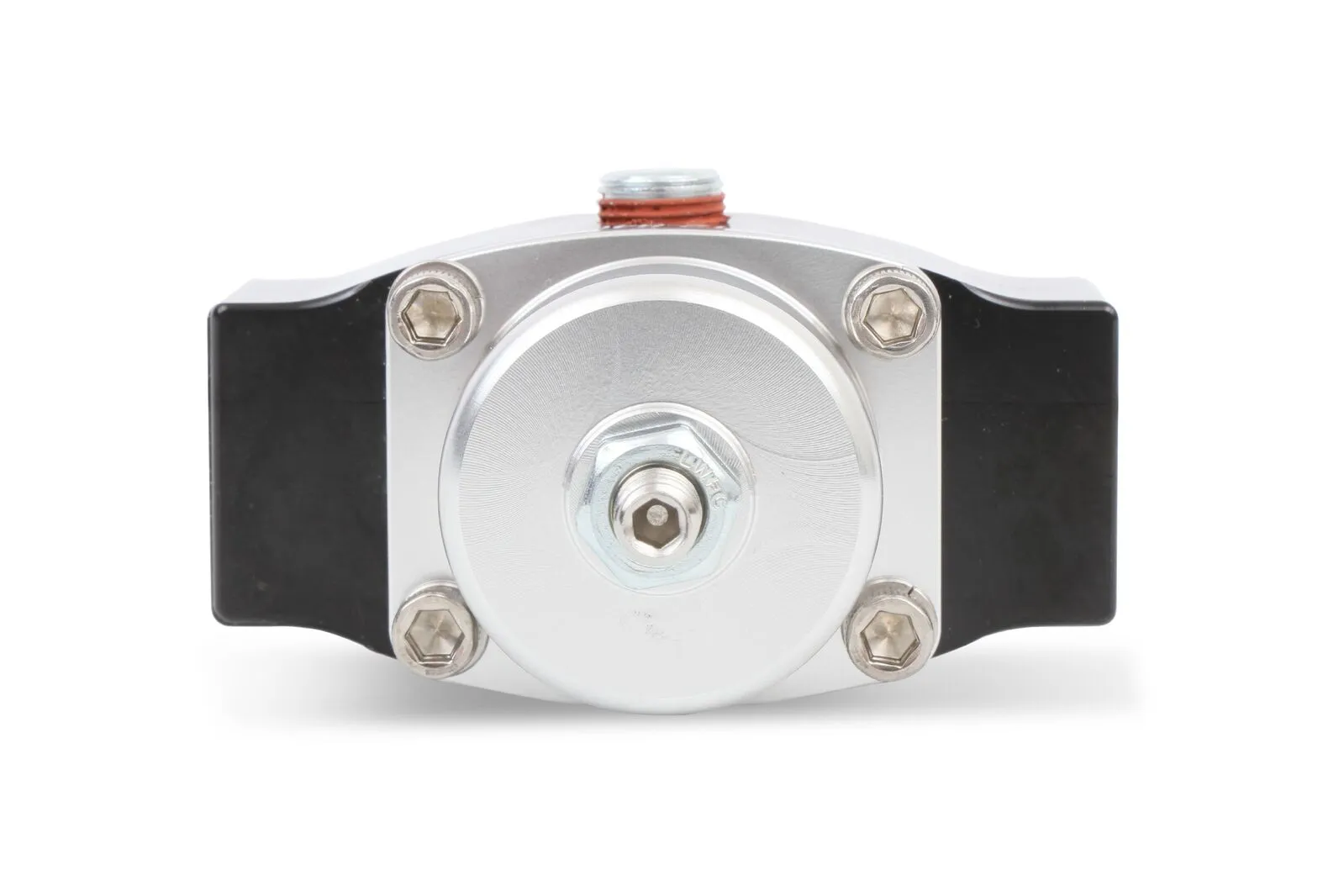

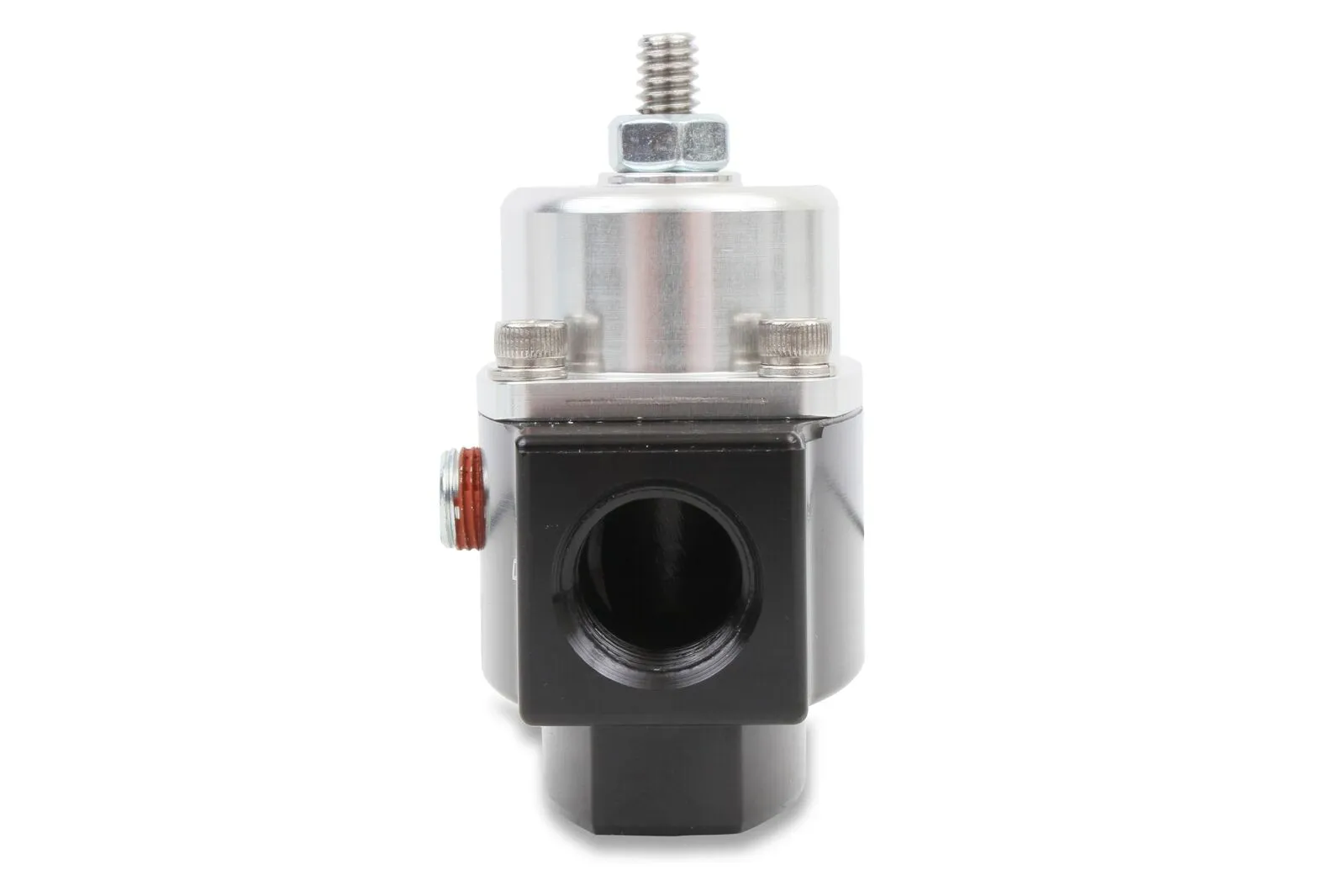

Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-847 fuel pressure regulator features (1) -10 AN O-ring inlet, (1) -10 AN O-ring outlet, (1) -8 AN O-ring return.

Features

  • Adjustable from 4.5-9 psi for precise fuel pressure adjustments
  • Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
  • Used in systems with a return line back to tank
  • Use with electric pumps only
  • (1) -10 an o-ring inlet, (1) -10 an o-ring outlet, (1) -8 an o-ring return
  • 1/8" NPT gauge port
  • Designed for use with the Holley® Dominator™ in-line fuel pumps or other high pressure pumps where return line is needed

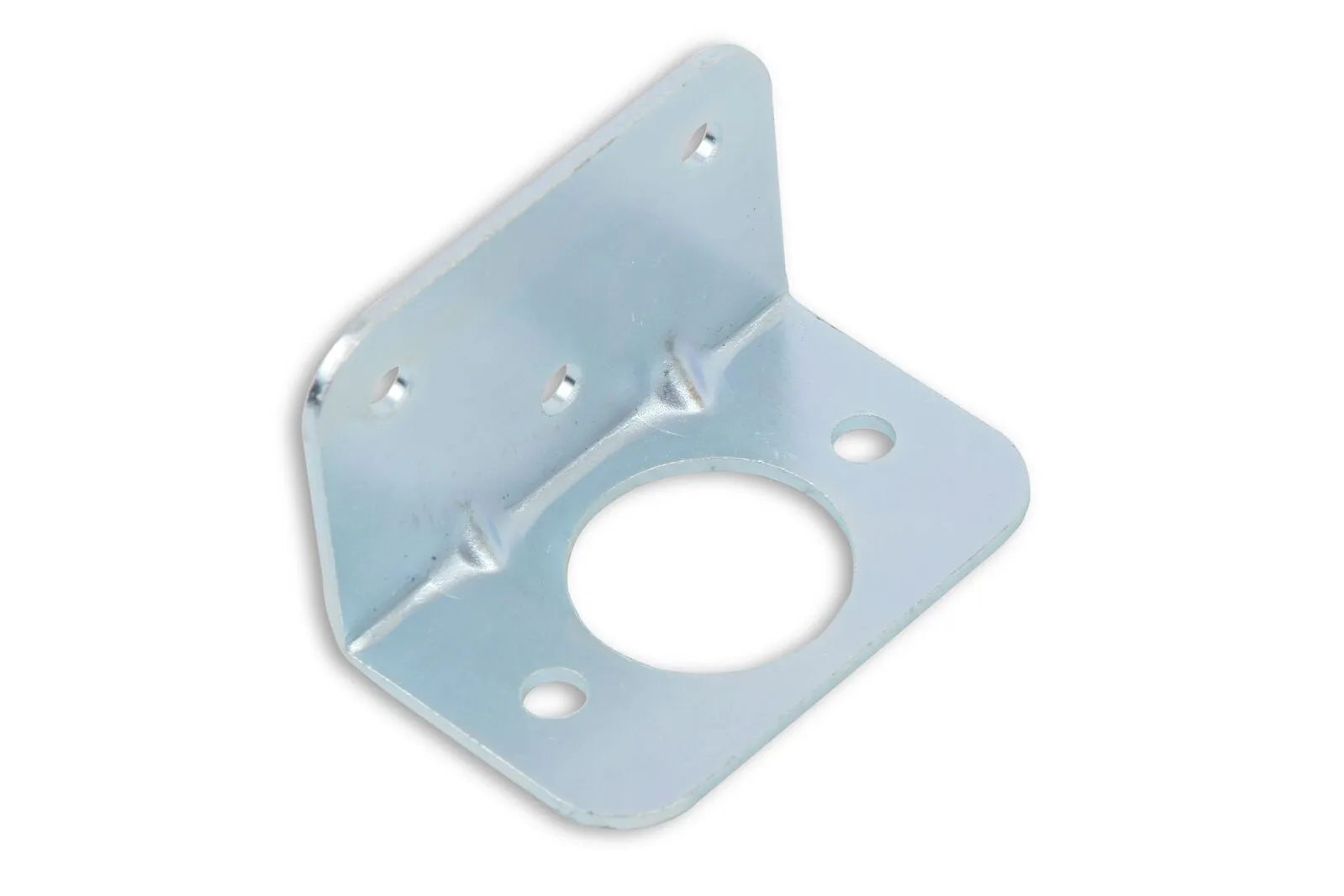

  • Mounting bracket included

Specifications

AdjustableYes
BrandHolley
ColourBlack Anodized
Emission Code5
Fuel SystemCarbureted
Fuel TypeDiesel
Fuel TypeGasoline
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter10 AN ORB
Inlet Port Quantity1
Inlet Type10 AN ORB
MaterialAluminum
Maximum Pressure9
Minimum Pressure4.5
Mounting Bracket IncludedYes
Mounting TypeInline
Outlet GenderFemale
Outlet Port Diameter8 AN ORB
Outlet Port Diameter10 AN ORB
Outlet Port Quantity2
Outlet Type8 AN ORB
Outlet Type10 AN ORB
Port Quantity2
Pressure Range4.5-9 PSI
Product TypeFuel Pressure Regulator
RebuildableYes
Return Size8 AN O-Ring
Sale CategoryAir and Fuel Delivery
StyleBypass
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-847 fuel pressure regulator features (1) -10 AN O-ring inlet, (1) -10 AN O-ring outlet, (1) -8 AN O-ring return.

Features

  • Adjustable from 4.5-9 psi for precise fuel pressure adjustments
  • Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
  • Used in systems with a return line back to tank
  • Use with electric pumps only
  • (1) -10 an o-ring inlet, (1) -10 an o-ring outlet, (1) -8 an o-ring return
  • 1/8" NPT gauge port
  • Designed for use with the Holley® Dominator™ in-line fuel pumps or other high pressure pumps where return line is needed
  • Mounting bracket included
AdjustableYes
BrandHolley
ColourBlack Anodized
Emission Code5
Fuel SystemCarbureted
Fuel TypeDiesel
Fuel TypeGasoline
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter10 AN ORB
Inlet Port Quantity1
Inlet Type10 AN ORB
MaterialAluminum
Maximum Pressure9
Minimum Pressure4.5
Mounting Bracket IncludedYes
Mounting TypeInline
Outlet GenderFemale
Outlet Port Diameter8 AN ORB
Outlet Port Diameter10 AN ORB
Outlet Port Quantity2
Outlet Type8 AN ORB
Outlet Type10 AN ORB
Port Quantity2
Pressure Range4.5-9 PSI
Product TypeFuel Pressure Regulator
RebuildableYes
Return Size8 AN O-Ring
Sale CategoryAir and Fuel Delivery
StyleBypass
WarrantyLimited 90 Day
  • Universal Part
