Description

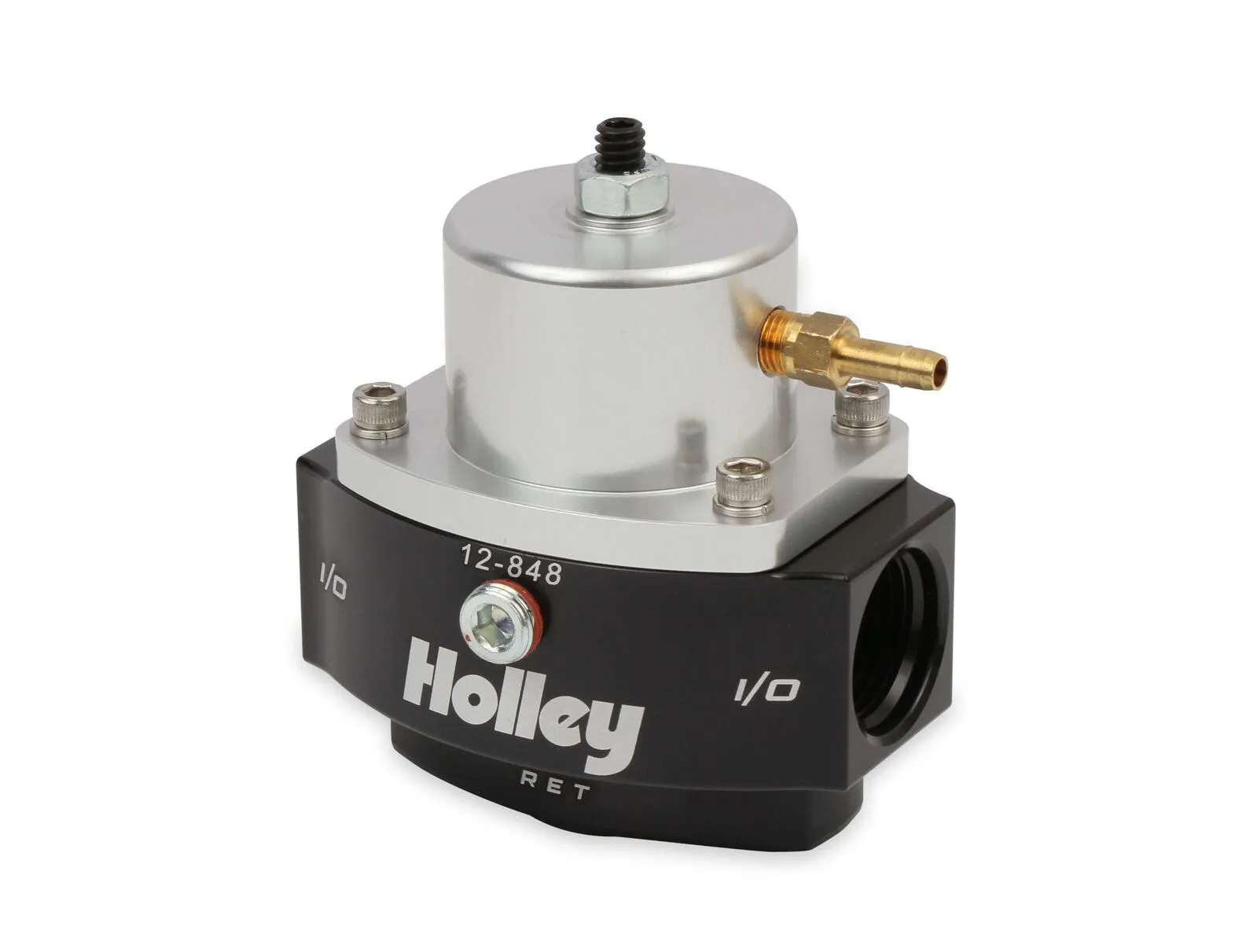

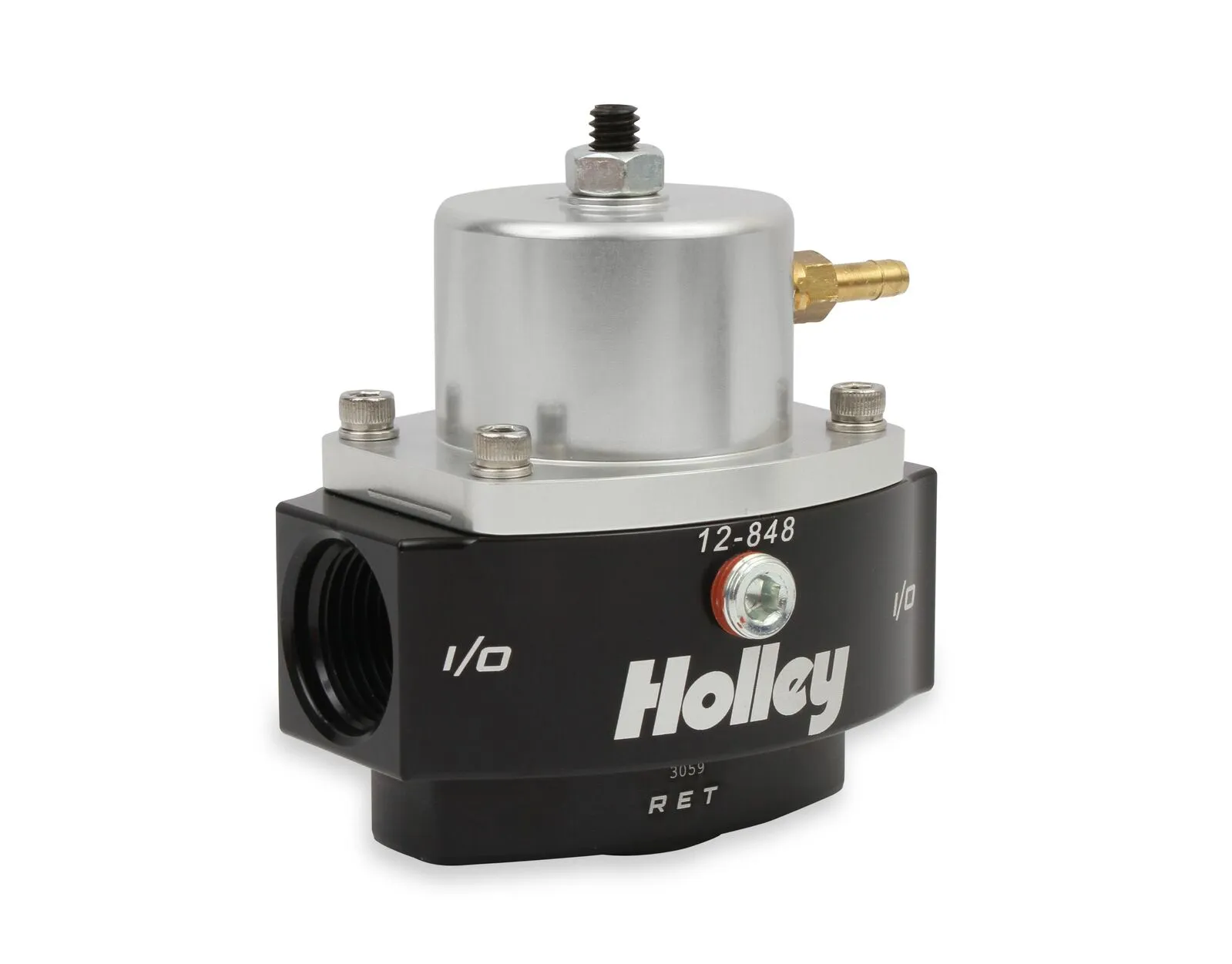

Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-848 fuel pressure regulator features(1) -10 AN O-ring inlet, (1) -10 AN O-ring outlet, (1) -8 AN O-ring return.

Features

  • Adjustable from 15-65 psi for precise fuel pressure adjustments
  • Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
  • Used in systems with a return line back to tank
  • Use with electric pumps only
  • (1) -10 an o-ring inlet, (1) -10 an o-ring outlet, (1) -8 an o-ring return
  • 1/8" NPT gauge port
  • Designed for use with the Holley® Dominator™ in-line fuel pumps or other high pressure pumps where return line is needed

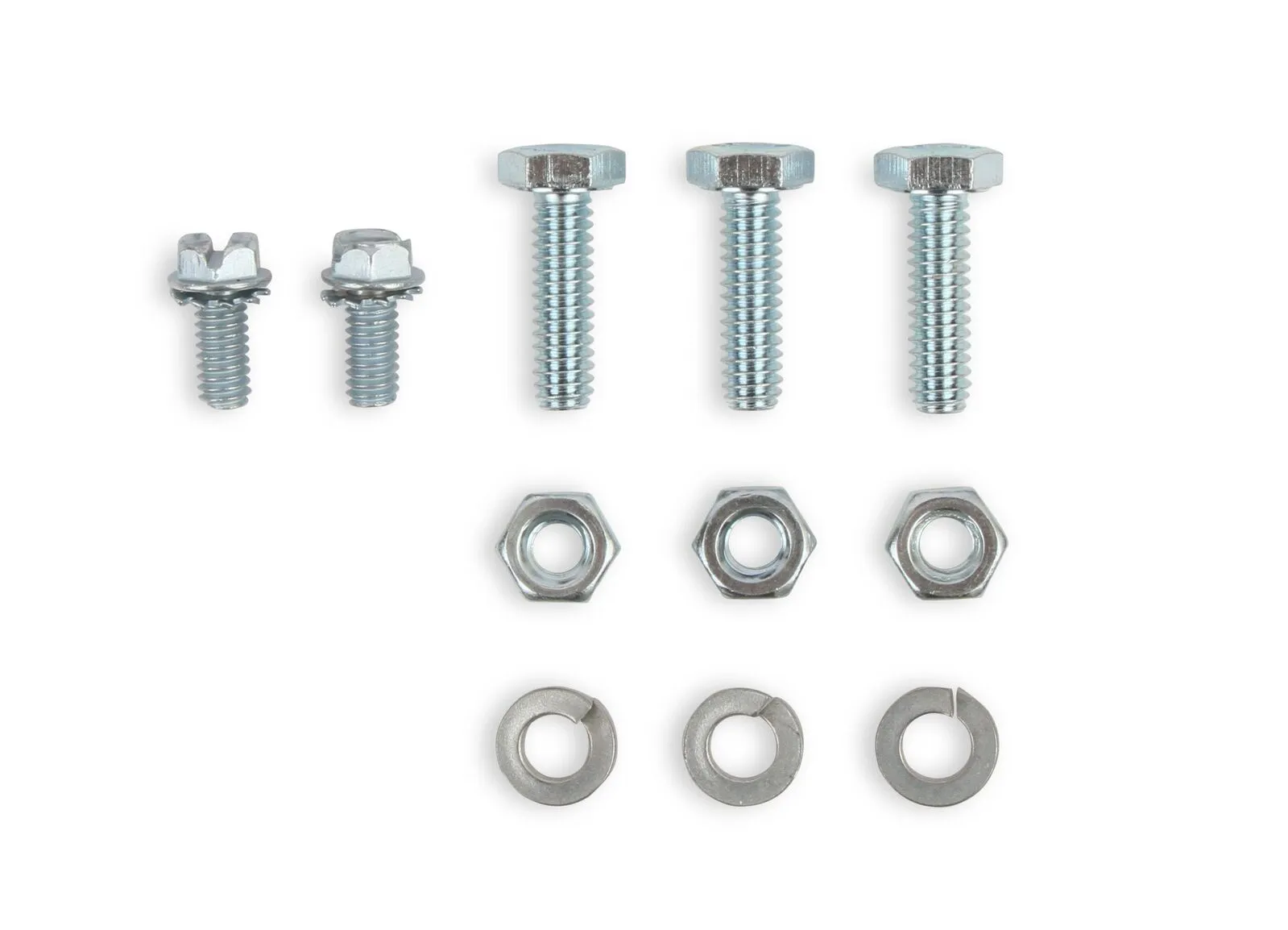

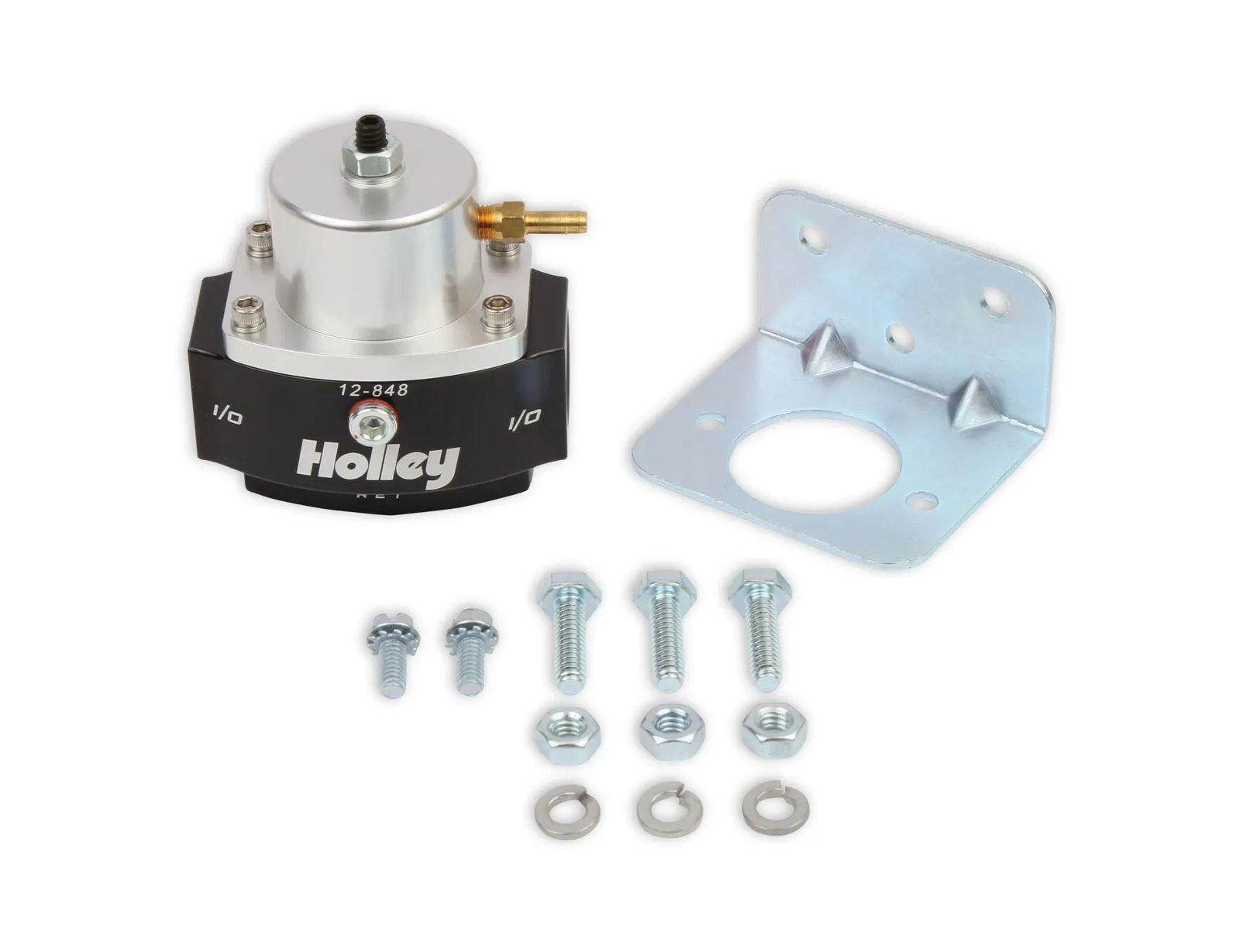

  • Mounting bracket included

Specifications

AdjustableYes
BrandHolley
ColourBlack Anodized
Emission Code5
Fuel SystemEFI
Fuel TypeDiesel
Fuel TypeGasoline
Gauge PortYes
Grade TypePerformance
Inlet Quantity1
Inlet Size10 AN O-ring
Inlet Type10 AN ORB
MaterialAluminum
Mounting Hardware IncludedYes
Mounting TypeInline
Outlet Quantity1
Outlet Size10 AN O-ring
Outlet Type10 AN ORB
Port Quantity3
Pressure Range15-65 PSI
Product TypeFuel Pressure Regulator
Return Size8 AN O-Ring
Sale CategoryAir and Fuel Delivery
StyleBypass
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Holley® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-848 fuel pressure regulator features(1) -10 AN O-ring inlet, (1) -10 AN O-ring outlet, (1) -8 AN O-ring return.

Features

  • Adjustable from 15-65 psi for precise fuel pressure adjustments
  • Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
  • Used in systems with a return line back to tank
  • Use with electric pumps only
  • (1) -10 an o-ring inlet, (1) -10 an o-ring outlet, (1) -8 an o-ring return
  • 1/8" NPT gauge port
  • Designed for use with the Holley® Dominator™ in-line fuel pumps or other high pressure pumps where return line is needed
  • Mounting bracket included
AdjustableYes
BrandHolley
ColourBlack Anodized
Emission Code5
Fuel SystemEFI
Fuel TypeDiesel
Fuel TypeGasoline
Gauge PortYes
Grade TypePerformance
Inlet Quantity1
Inlet Size10 AN O-ring
Inlet Type10 AN ORB
MaterialAluminum
Mounting Hardware IncludedYes
Mounting TypeInline
Outlet Quantity1
Outlet Size10 AN O-ring
Outlet Type10 AN ORB
Port Quantity3
Pressure Range15-65 PSI
Product TypeFuel Pressure Regulator
Return Size8 AN O-Ring
Sale CategoryAir and Fuel Delivery
StyleBypass
WarrantyLimited 90 Day
  • Universal Part
