Description

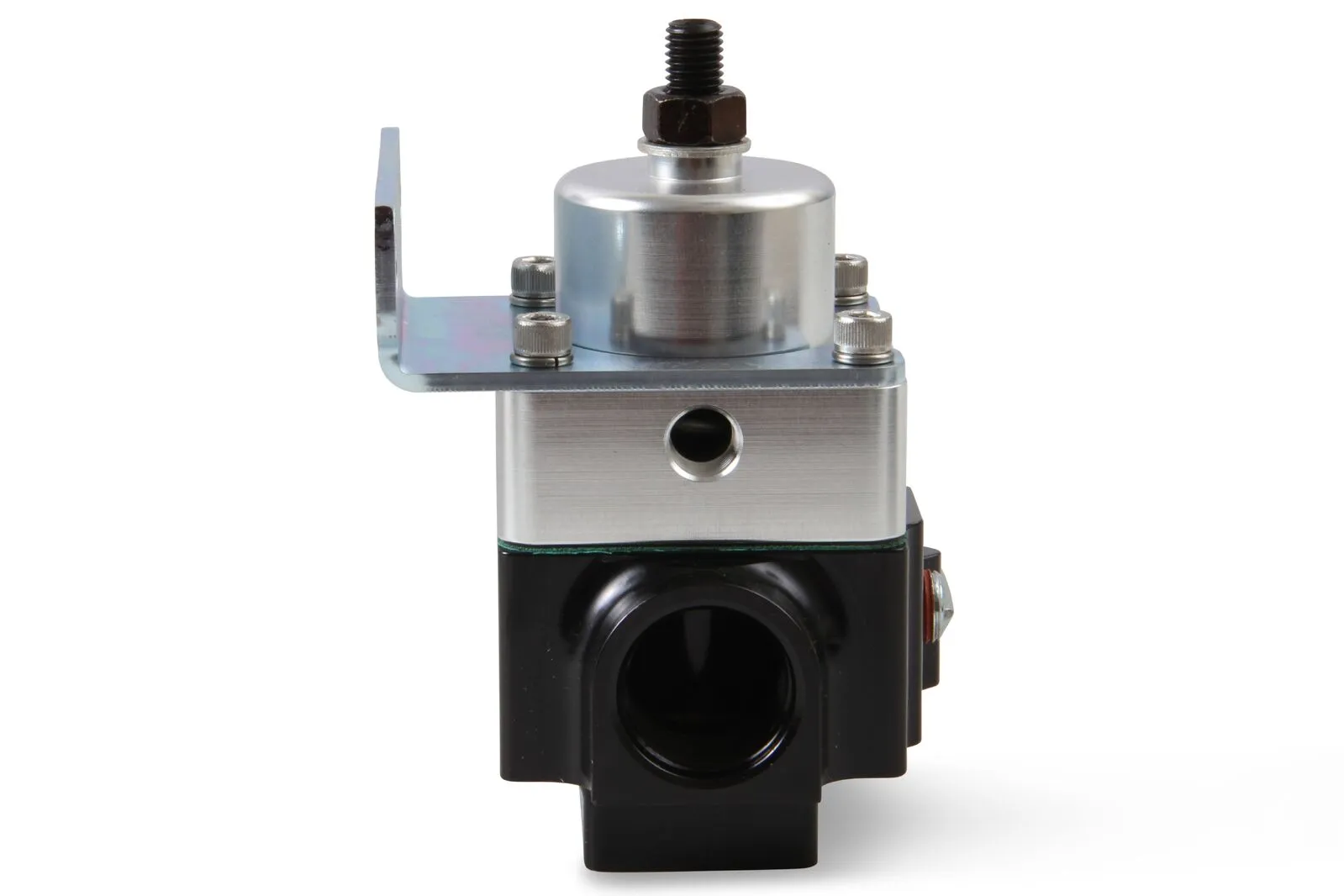

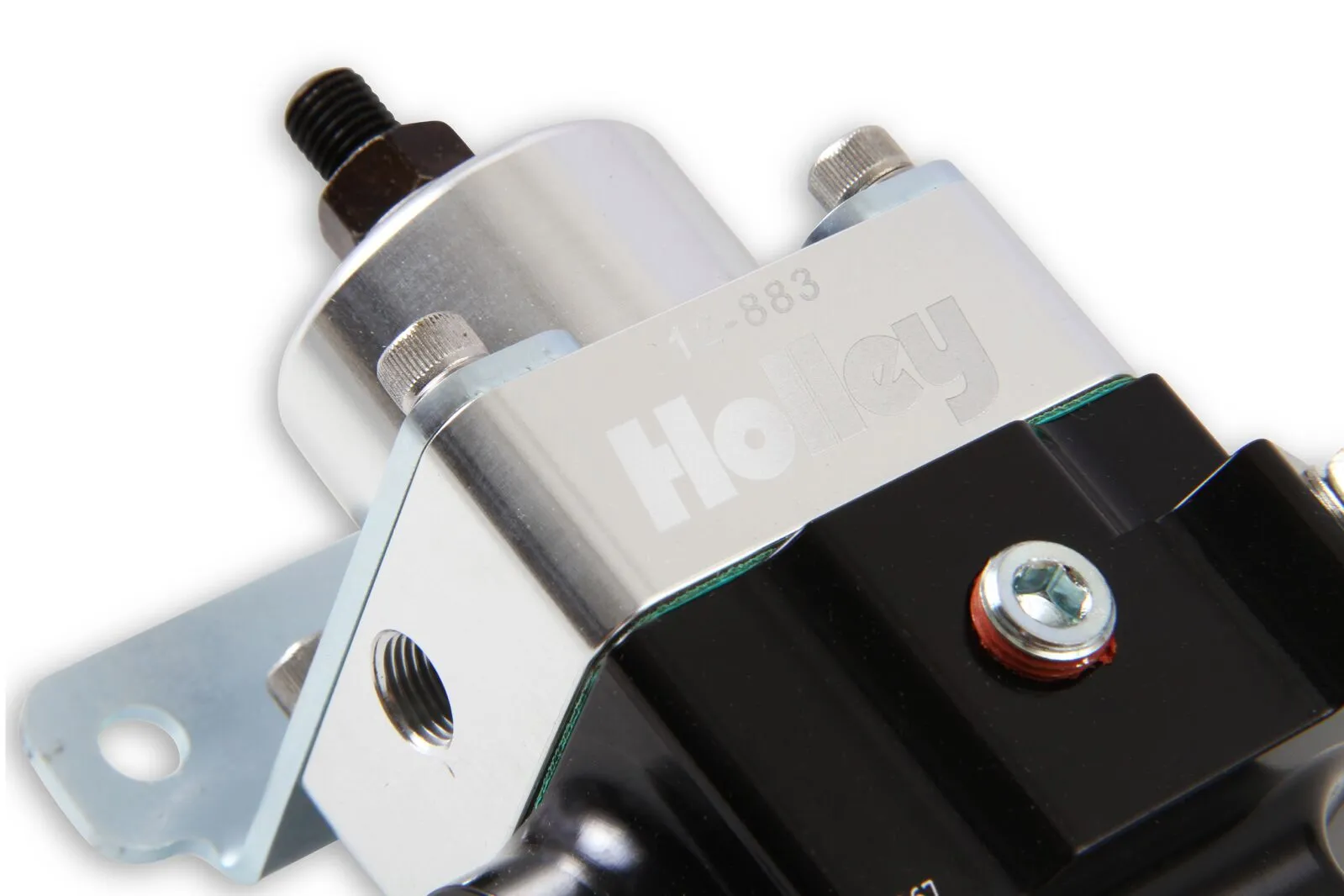

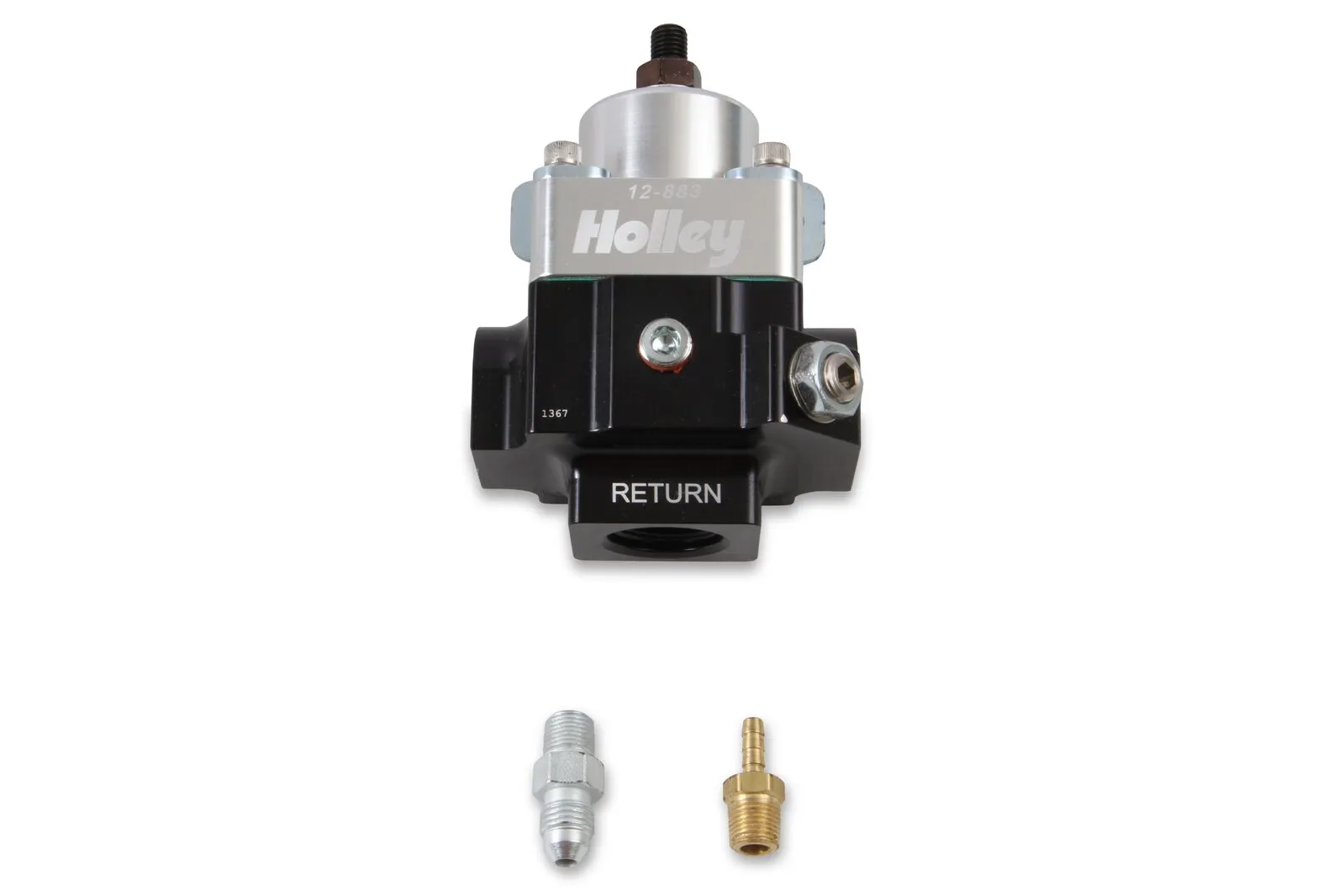

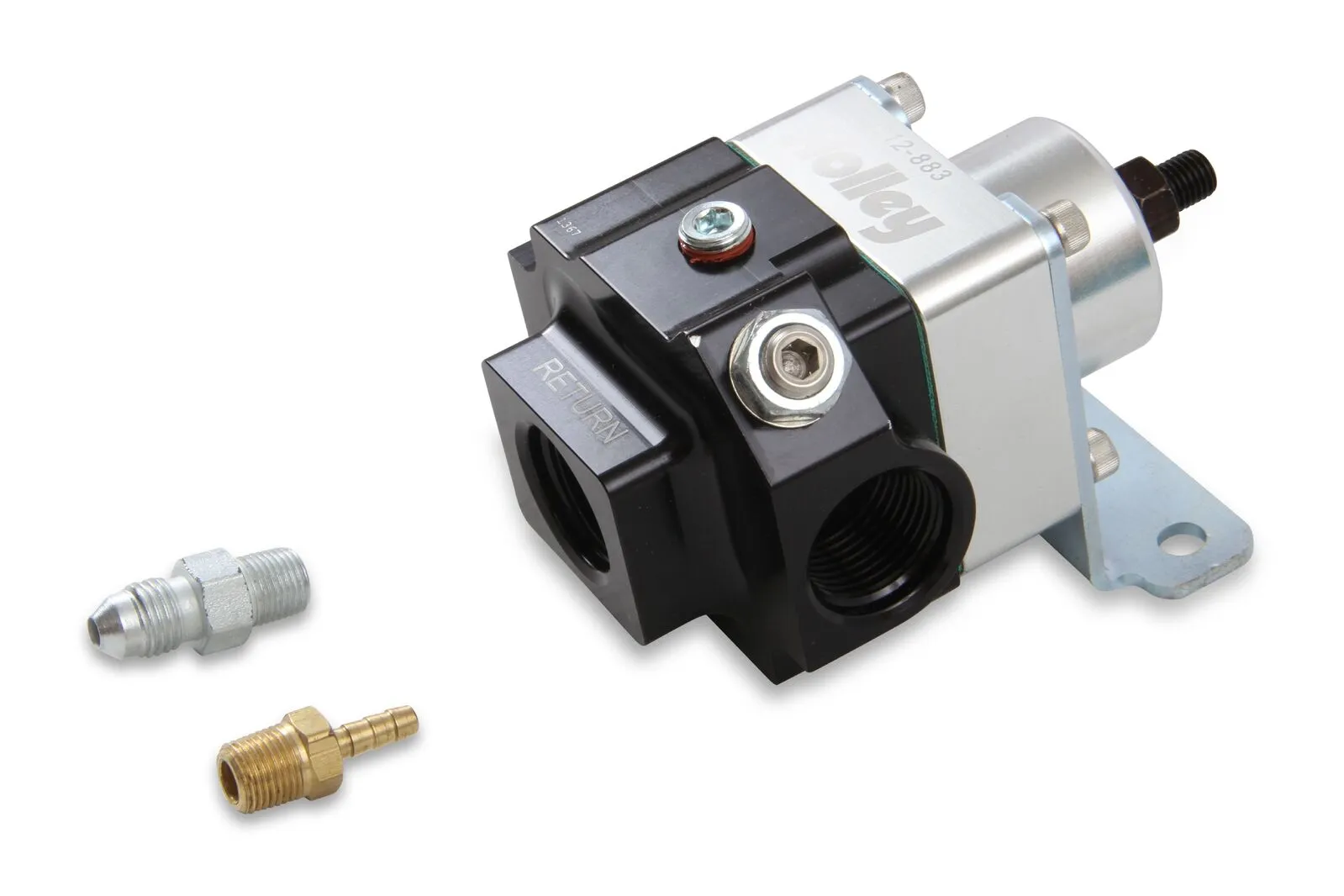

Holley's new double adjustable fuel pressure regulators are designed for belt or cable driven pumps where fuel flow changes with engine rpm. These regulators are compatible with E85 and alcohol applications. Made from billet aluminum, these regulators are offered in both 2-Port and 4-Port models to complete your fuel system requirements.

The idle adjustment design is strategically placed so that none of the ports are blocked like other designs. These regulators retain the true 2 and 4 port flow.

• Alcohol and E85 compatible.

• 2 Port models available with 8AN and 10AN port size

Features

  • Individual adjustment settings, one for idle and wide open throttle.
  • Fuel pressure adjustability at idle can help prevent flooding at low rpms
  • Wide open throttle settings help to prevent fuel starvation at the top end of the rpm range
  • Alcohol and E85 compatible.

Specifications

AdjustableYes
ApplicationUniversal
BrandHolley
Clearance CategoryAir and Fuel Delivery
ColourBlack Anodized
Emission Code5
Fuel SystemCarbureted
Fuel TypeGasoline
Fuel TypeDiesel
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter10 AN ORB
Inlet Port Quantity1
Inlet Size10 AN
Inlet Type10 AN ORB
MaterialAluminum
Maximum Pressure9
Minimum Pressure4
Mounting Bracket IncludedYes
Mounting TypeInline
Outlet GenderFemale
Outlet Port Diameter10 AN ORB
Outlet Port Quantity2
Outlet Size10 AN
Outlet Type10 AN ORB
Port Quantity2
Pressure Range4-9 PSI
Product TypeFuel Pressure Regulator
RebuildableYes
Sale CategoryAir and Fuel Delivery
StyleDouble Adjustable
Vacuum Port Quantity1
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Holley's new double adjustable fuel pressure regulators are designed for belt or cable driven pumps where fuel flow changes with engine rpm. These regulators are compatible with E85 and alcohol applications. Made from billet aluminum, these regulators are offered in both 2-Port and 4-Port models to complete your fuel system requirements.

The idle adjustment design is strategically placed so that none of the ports are blocked like other designs. These regulators retain the true 2 and 4 port flow.

• Alcohol and E85 compatible.

• 2 Port models available with 8AN and 10AN port size

Features

  • Individual adjustment settings, one for idle and wide open throttle.
  • Fuel pressure adjustability at idle can help prevent flooding at low rpms
  • Wide open throttle settings help to prevent fuel starvation at the top end of the rpm range
  • Alcohol and E85 compatible.
AdjustableYes
ApplicationUniversal
BrandHolley
Clearance CategoryAir and Fuel Delivery
ColourBlack Anodized
Emission Code5
Fuel SystemCarbureted
Fuel TypeGasoline
Fuel TypeDiesel
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter10 AN ORB
Inlet Port Quantity1
Inlet Size10 AN
Inlet Type10 AN ORB
MaterialAluminum
Maximum Pressure9
Minimum Pressure4
Mounting Bracket IncludedYes
Mounting TypeInline
Outlet GenderFemale
Outlet Port Diameter10 AN ORB
Outlet Port Quantity2
Outlet Size10 AN
Outlet Type10 AN ORB
Port Quantity2
Pressure Range4-9 PSI
Product TypeFuel Pressure Regulator
RebuildableYes
Sale CategoryAir and Fuel Delivery
StyleDouble Adjustable
Vacuum Port Quantity1
WarrantyLimited 90 Day
  • Universal Part
