Description

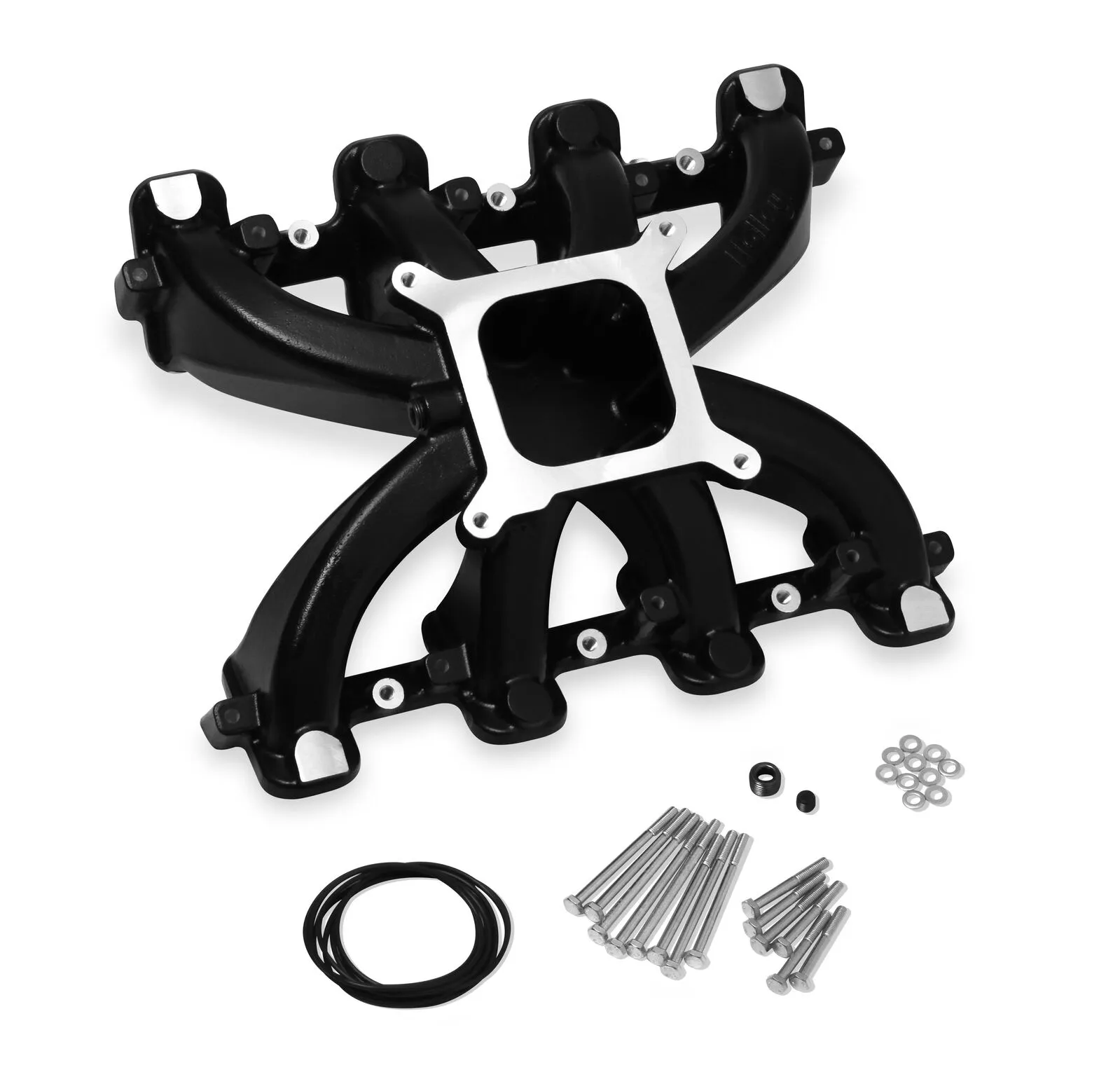

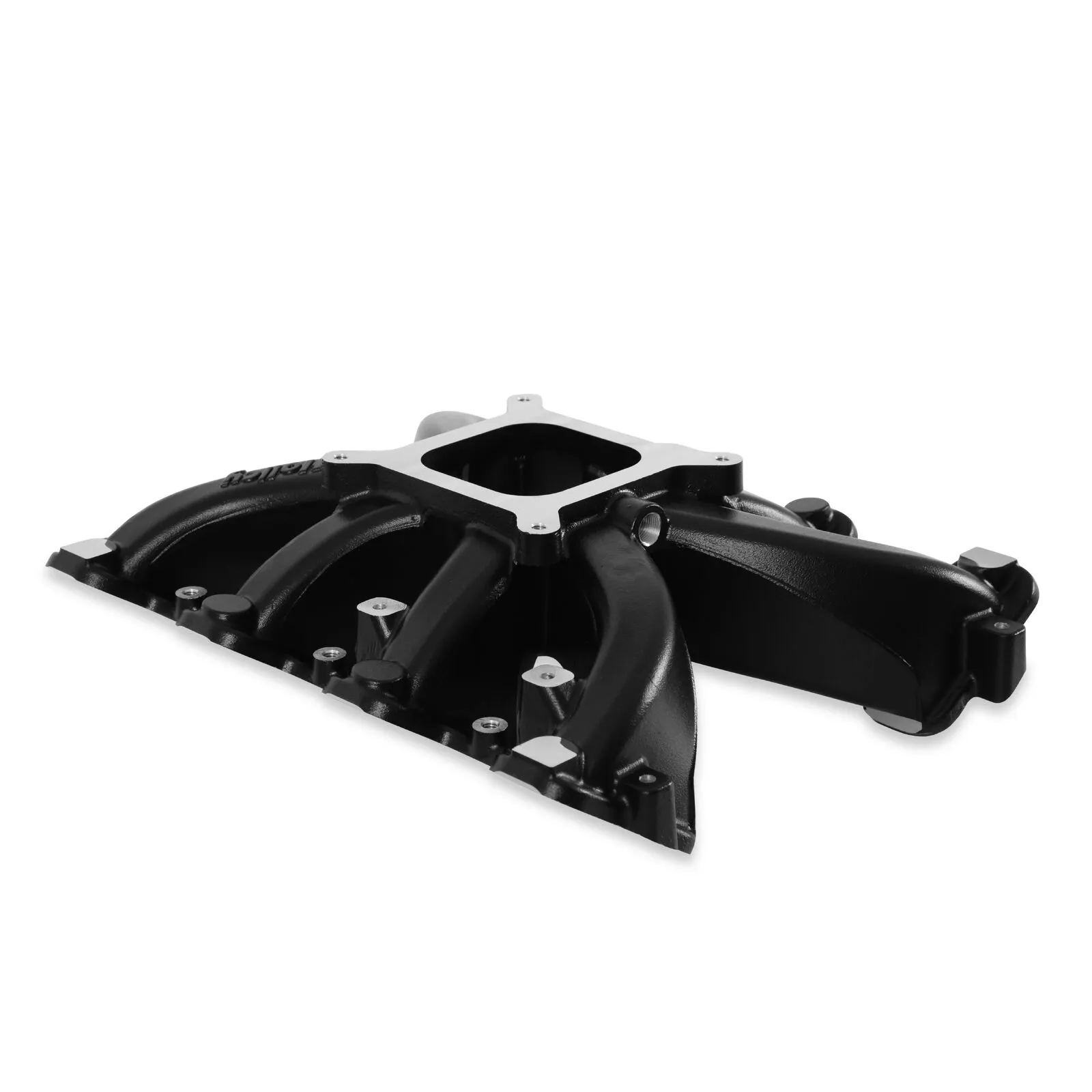

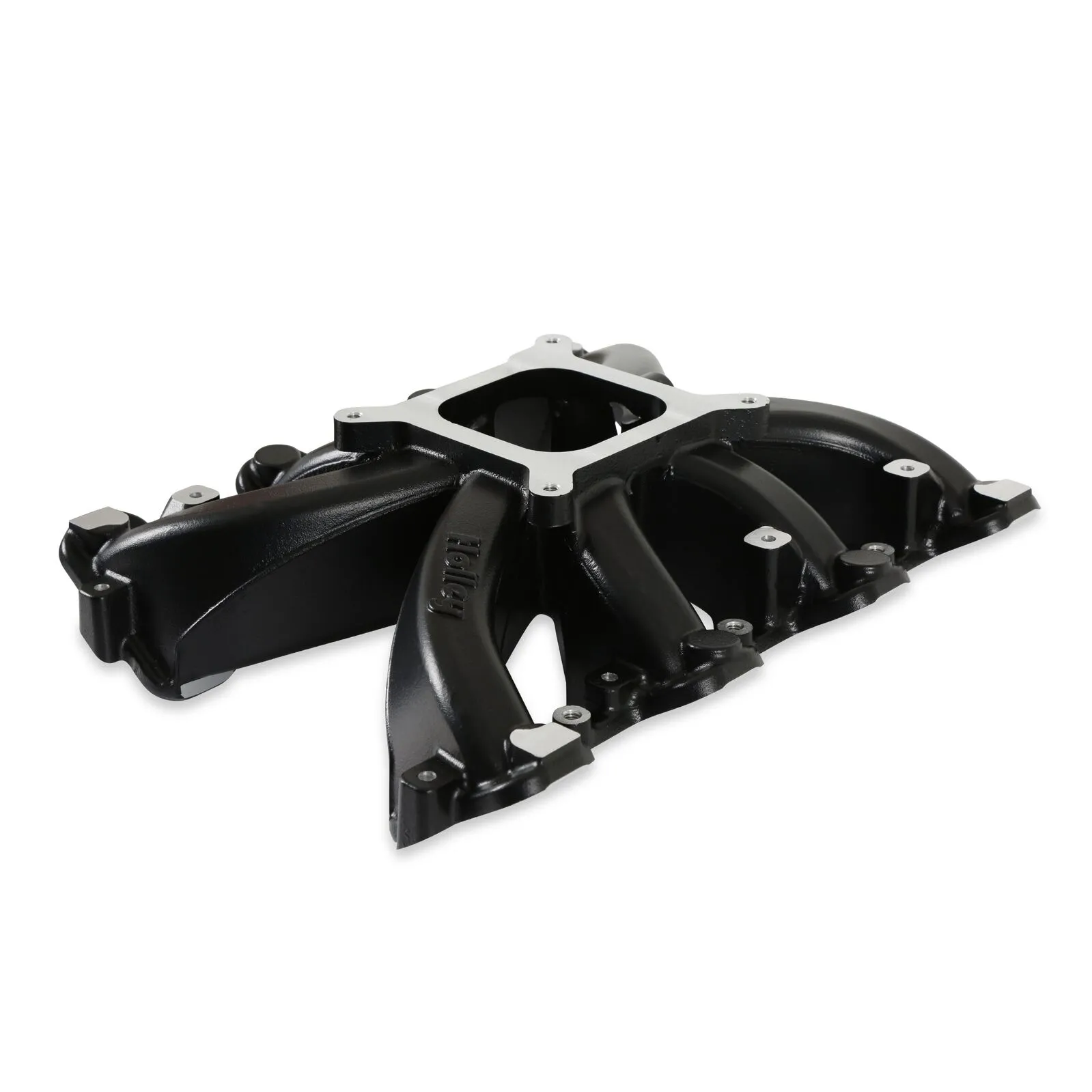

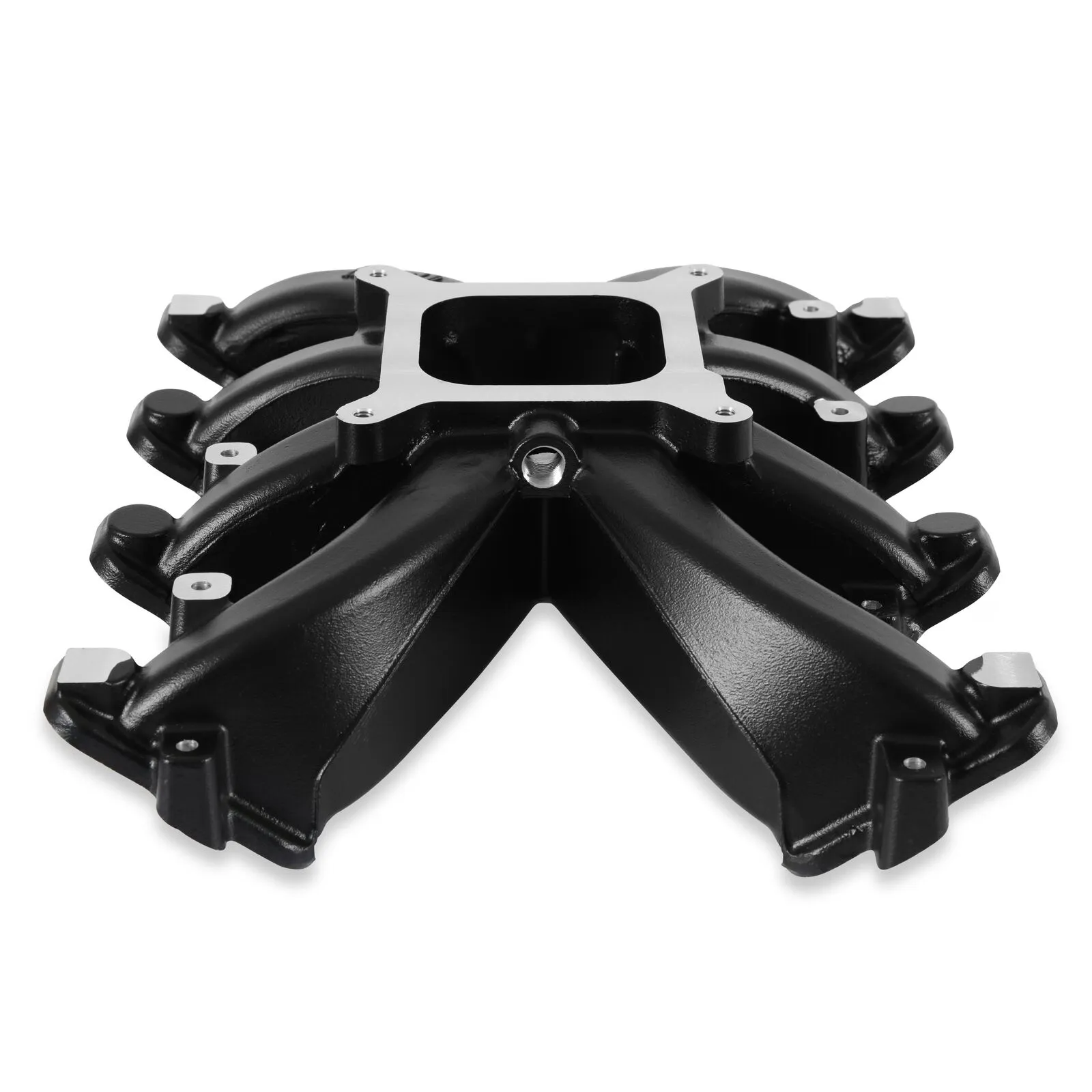

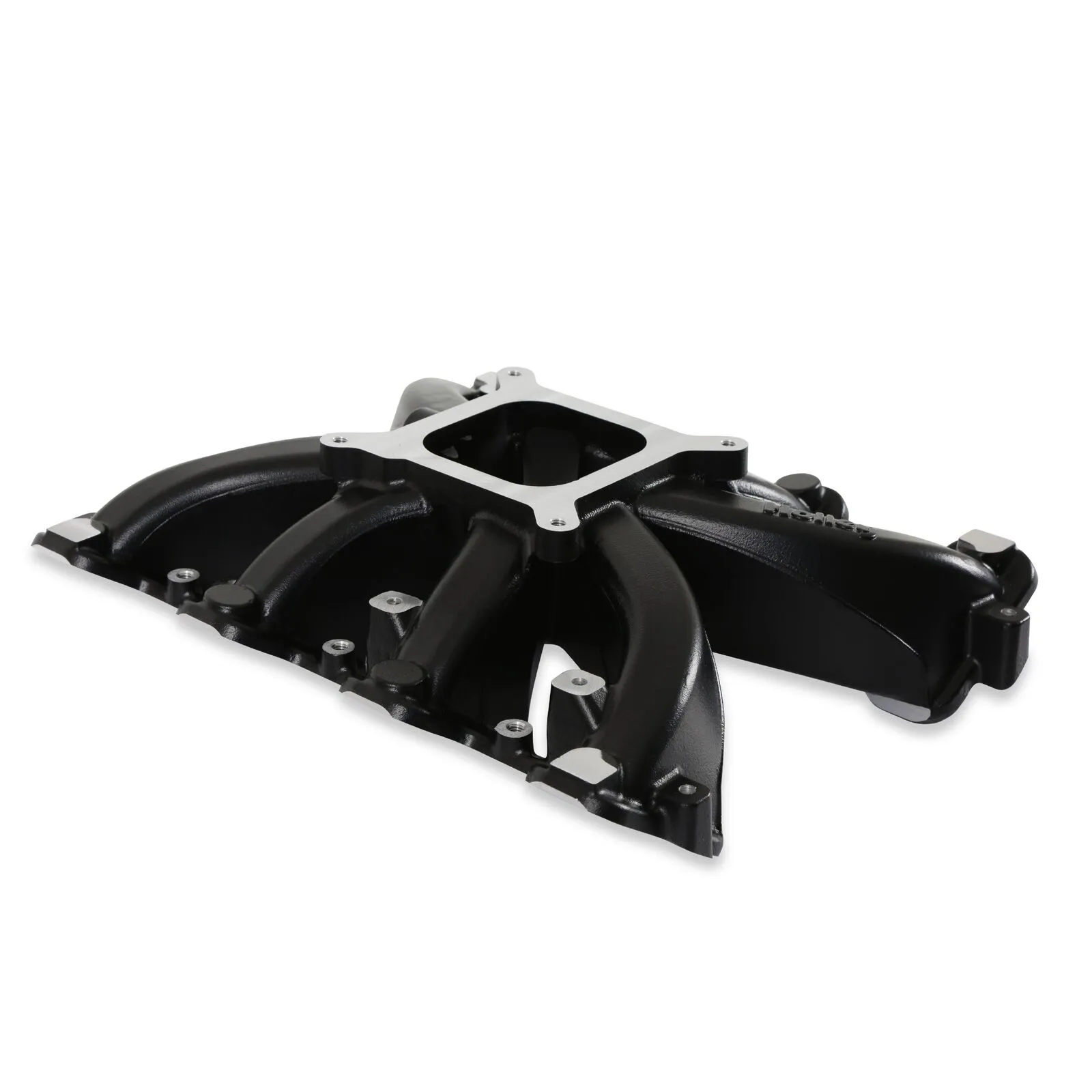

Black Ceramic Coated,Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads

Features

  • 2500-7000 RPM power band

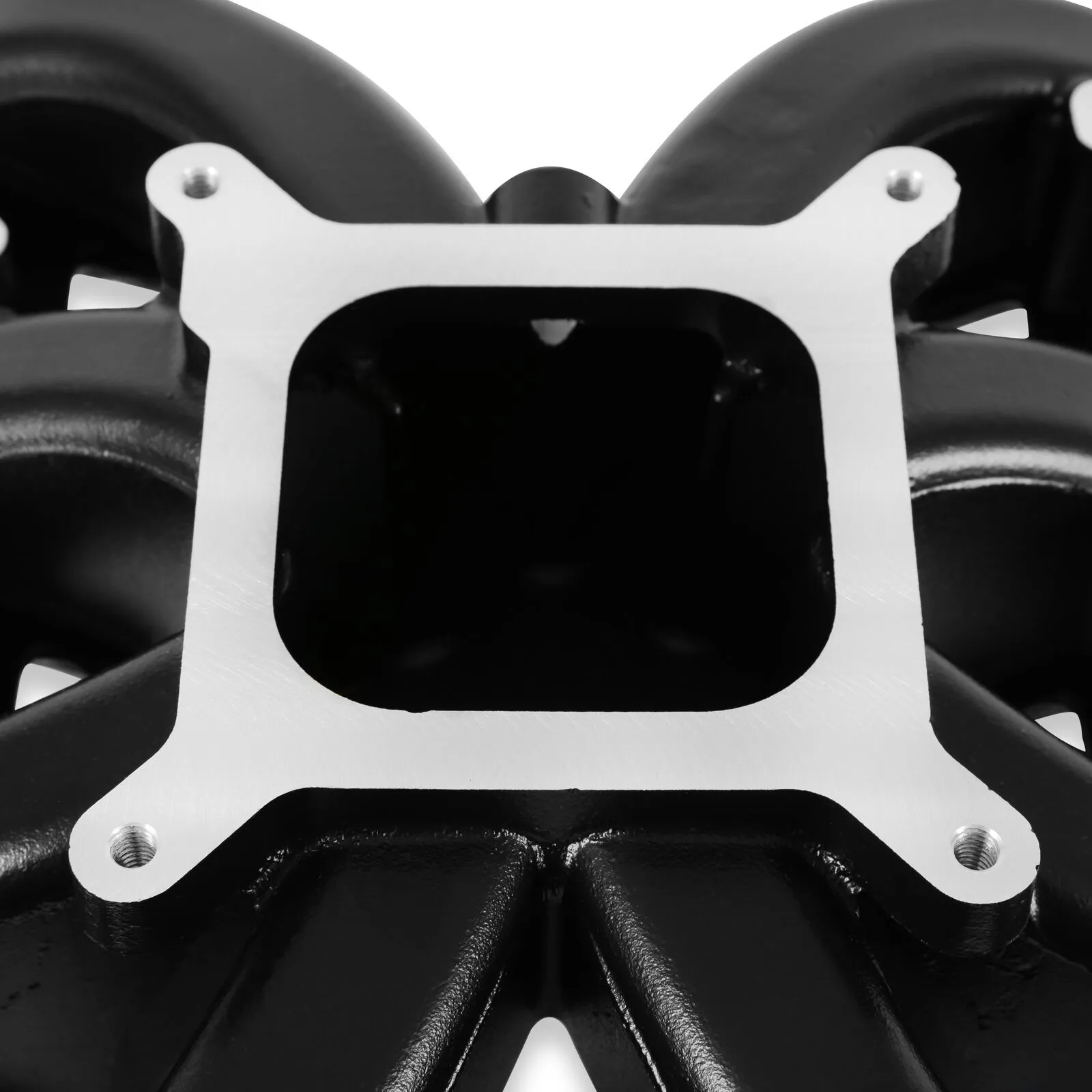

  • 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)
  • Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
  • Minimum carb flange height - fits in vehicles with minimum hood modifications
  • Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
  • Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
  • Weight - 11.5 lbs.
  • Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange
  • Port size - 2.659" height x .918" wide
  • Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers

Specifications

Barrels4
Basic Operating RPM Range2500-7000
BrandHolley
Carburetor FlangeSquare/4150
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourBlack
ConstructionCast
EGR PortNo
Emission Code3
EngineGM LS1/LS2/LS6
FinishBlack
Flange Style4150 Square Bore
Front Height4.95 inch
Front Maximum Height4.95
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Fuel System TypeCarb
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeSingle Plane
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Product TypeIntake Manifold
Rear Height4.95 inch
Rear Maximum Height4.95
Removable RunnersNo
RPM Power Band2500-7000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Black Ceramic Coated,Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads

Features

  • 2500-7000 RPM power band
  • 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)
  • Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
  • Minimum carb flange height - fits in vehicles with minimum hood modifications
  • Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
  • Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
  • Weight - 11.5 lbs.
  • Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange
  • Port size - 2.659" height x .918" wide
  • Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
Barrels4
Basic Operating RPM Range2500-7000
BrandHolley
Carburetor FlangeSquare/4150
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourBlack
ConstructionCast
EGR PortNo
Emission Code3
EngineGM LS1/LS2/LS6
FinishBlack
Flange Style4150 Square Bore
Front Height4.95 inch
Front Maximum Height4.95
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Fuel System TypeCarb
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeSingle Plane
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Product TypeIntake Manifold
Rear Height4.95 inch
Rear Maximum Height4.95
Removable RunnersNo
RPM Power Band2500-7000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
WarrantyLimited 90 Day
  • Universal Part
