Description

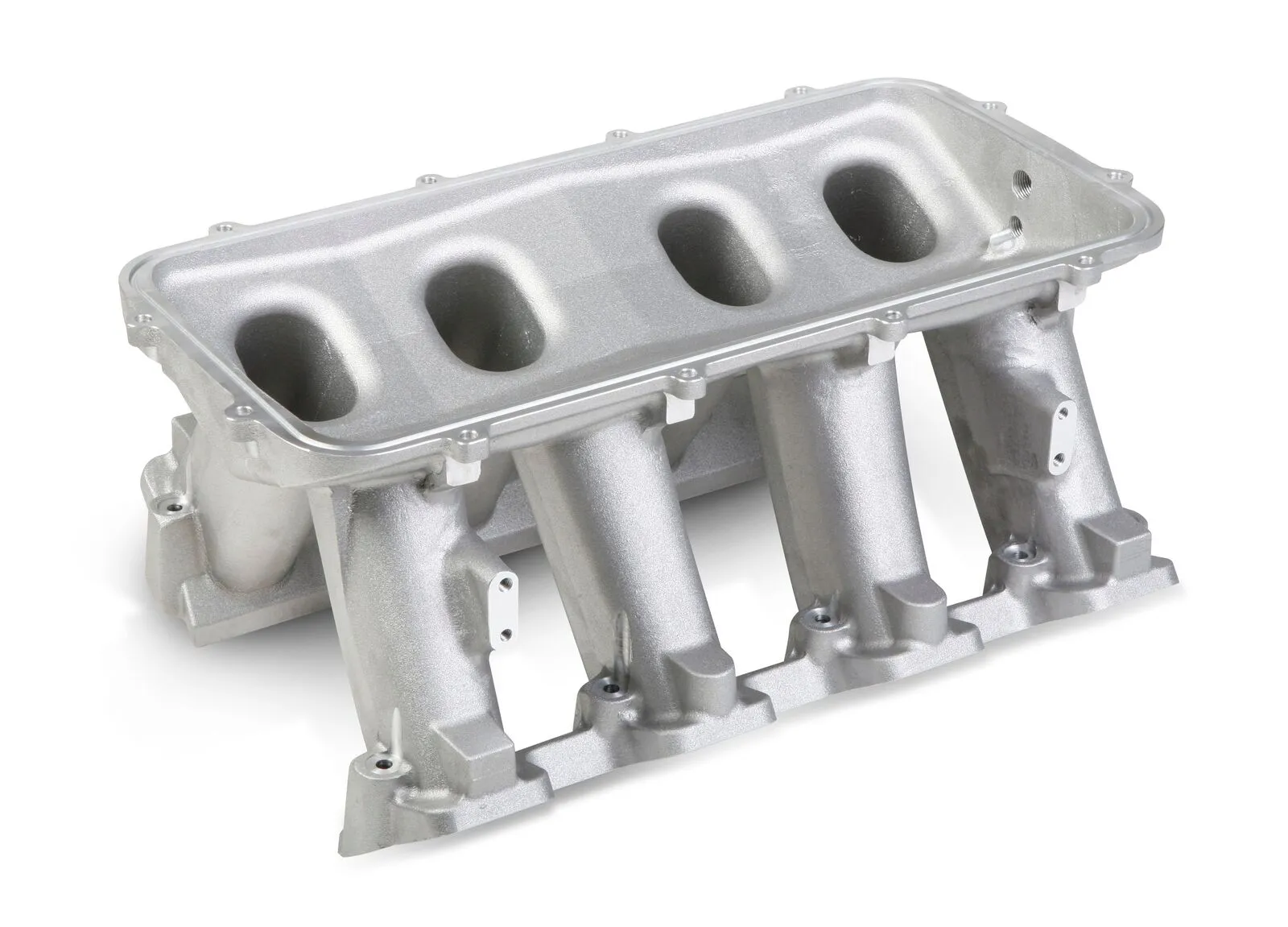

Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)

Features

  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Port Size – 2.49” Height x 1.21” Wide
  • Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25” to 2.77 in²

Specifications

Basic Operating RPM Range3500-8000
BrandHolley
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourNatural
ConstructionCast
EGR PortNo
Emission Code4
EngineGM LS3/L92
FinishSilver
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Fuel System TypeCarb
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural
Product TypeIntake Manifold Base
Removable RunnersNo
RPM Power Band3500-8000 RPM
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
Type of ComponentLower Manifold
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)

Features

  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Port Size – 2.49” Height x 1.21” Wide
  • Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25” to 2.77 in²
Basic Operating RPM Range3500-8000
BrandHolley
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourNatural
ConstructionCast
EGR PortNo
Emission Code4
EngineGM LS3/L92
FinishSilver
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Fuel System TypeCarb
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural
Product TypeIntake Manifold Base
Removable RunnersNo
RPM Power Band3500-8000 RPM
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
Type of ComponentLower Manifold
WarrantyLimited 90 Day
  • Universal Part
