Description

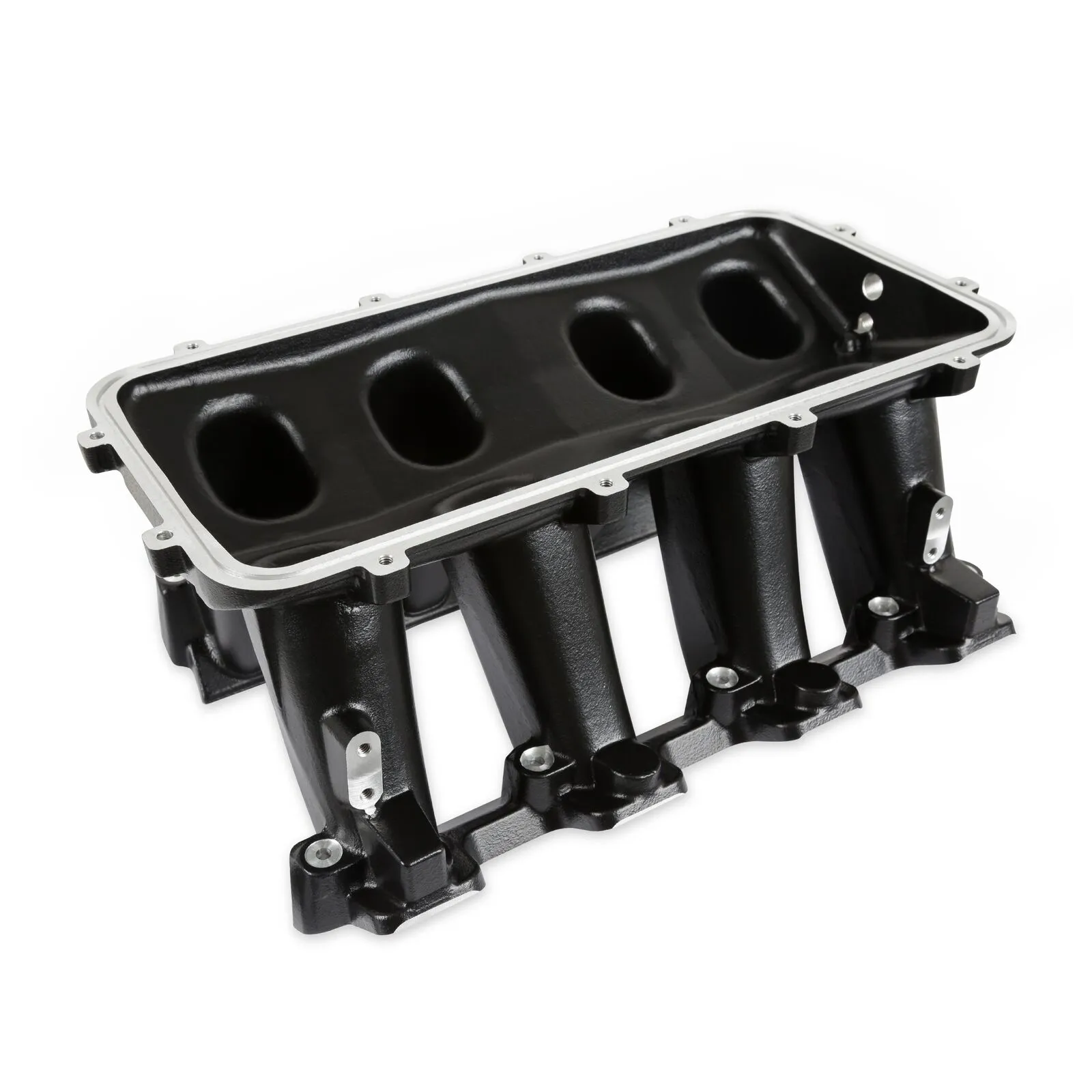

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction.

• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features

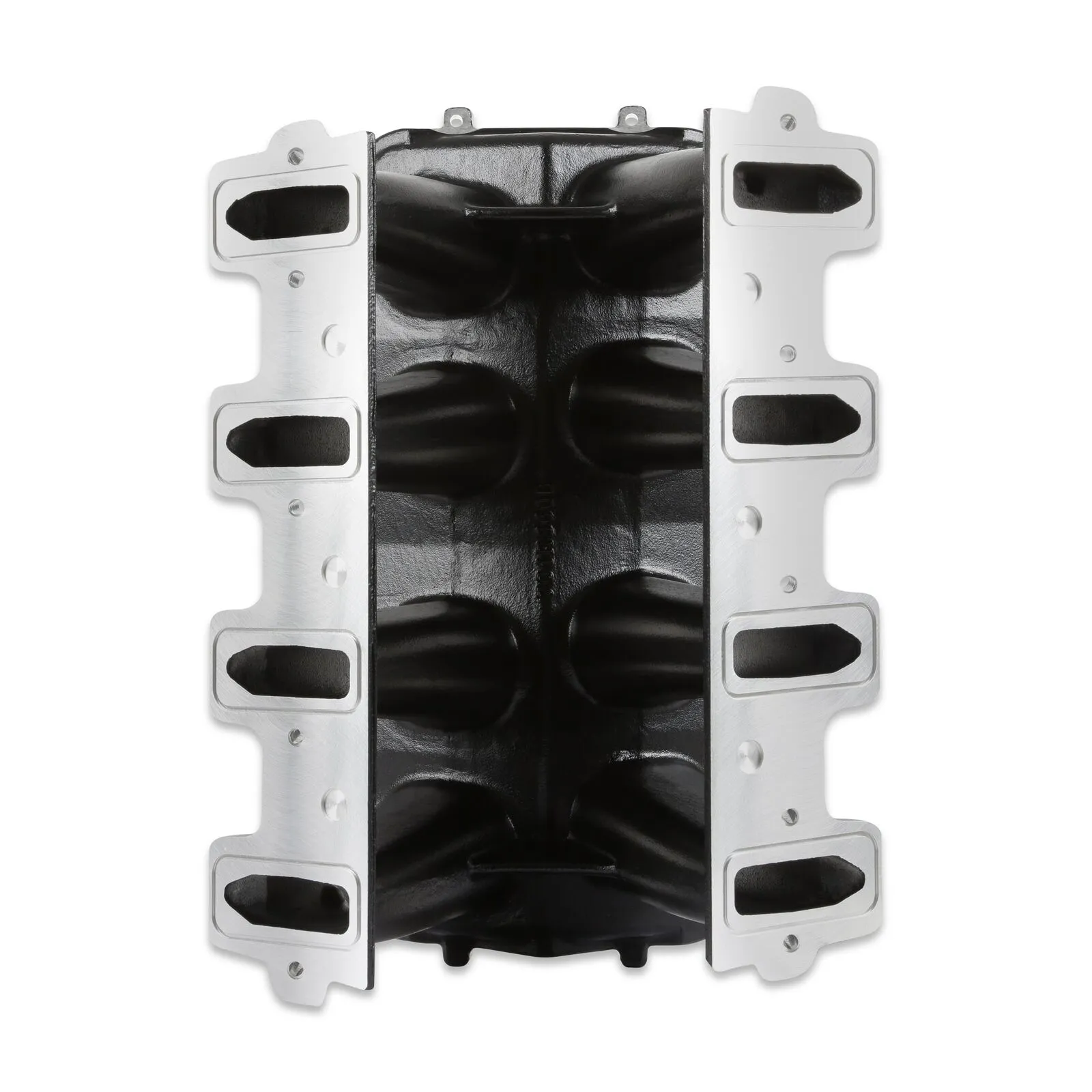

  • Port Size – 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²

Specifications

Basic Operating RPM Range3500-8000
BrandHolley
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourBlack
ConstructionCast
EGR PortNo
Emission Code4
EngineGM LS1/LS2/LS6
FinishBlack
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Fuel System TypeCarb
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Product TypeIntake Manifold Base
Removable RunnersNo
RPM Power Band3500-8000 RPM
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
Type of ComponentLower Manifold
WarrantyLimited 90 Day

Compatibility

  • Universal Part

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction.

• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features

  • Port Size – 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²
Basic Operating RPM Range3500-8000
BrandHolley
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourBlack
ConstructionCast
EGR PortNo
Emission Code4
EngineGM LS1/LS2/LS6
FinishBlack
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Fuel System TypeCarb
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Product TypeIntake Manifold Base
Removable RunnersNo
RPM Power Band3500-8000 RPM
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
Type of ComponentLower Manifold
WarrantyLimited 90 Day
  • Universal Part
