Description

This Kit includes all the hardware and components needed for a complete clutch install on a 6-bolt crank LS engine using a T-56 transmission. A 12-inch organic disc with a 6 spring helix sprung hub provides the superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30% more clamping pressure and transmits that through a Billet steel flywheel.

Features

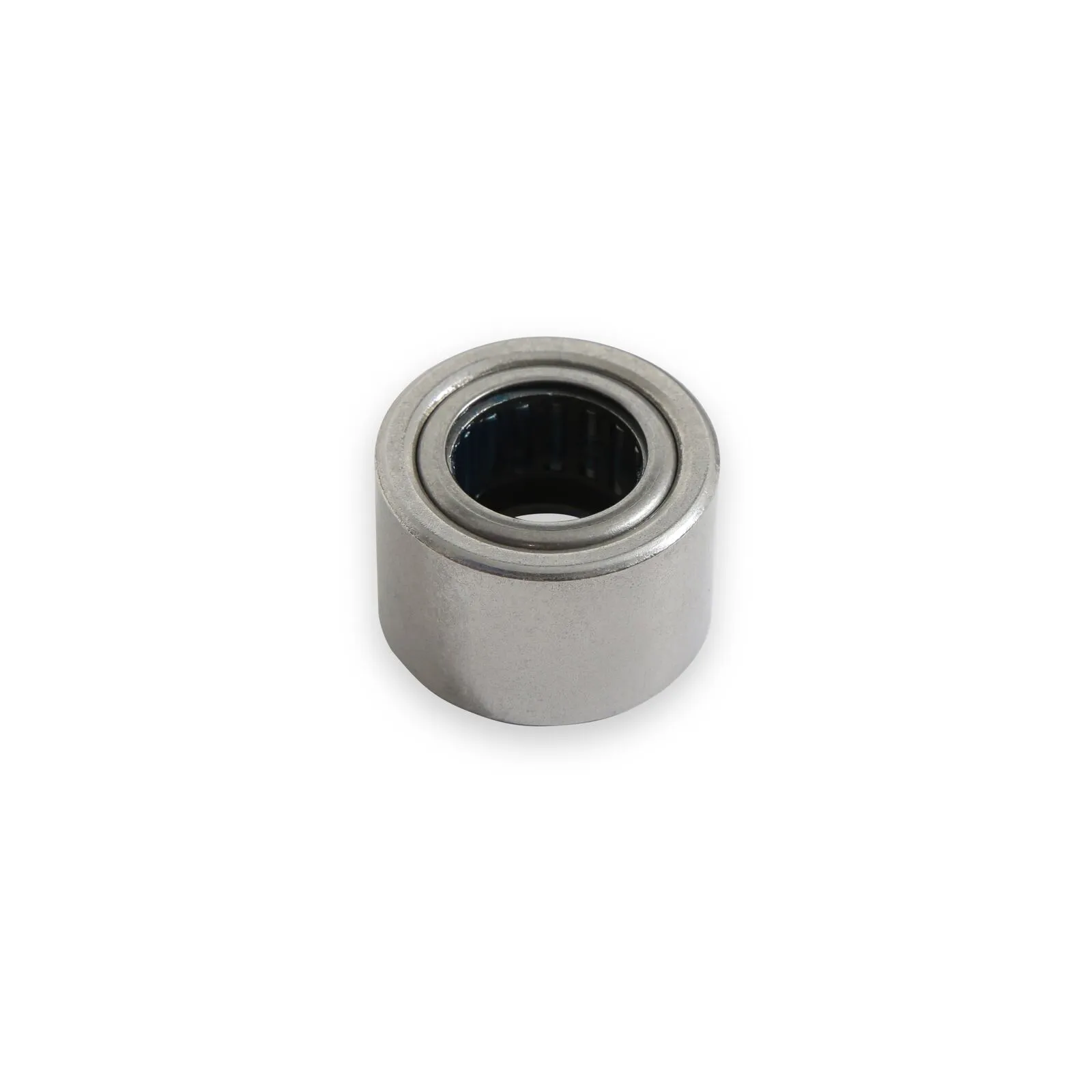

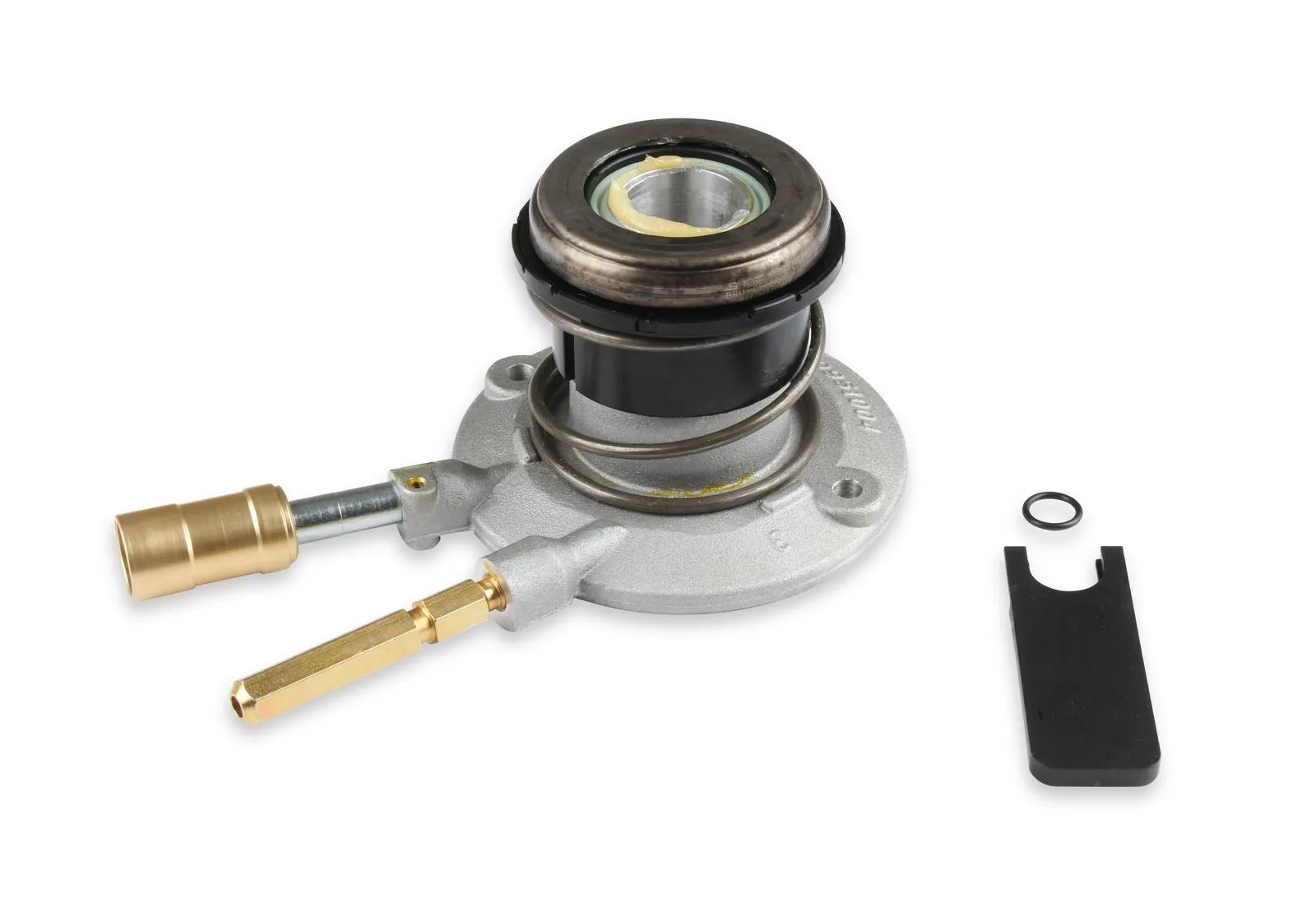

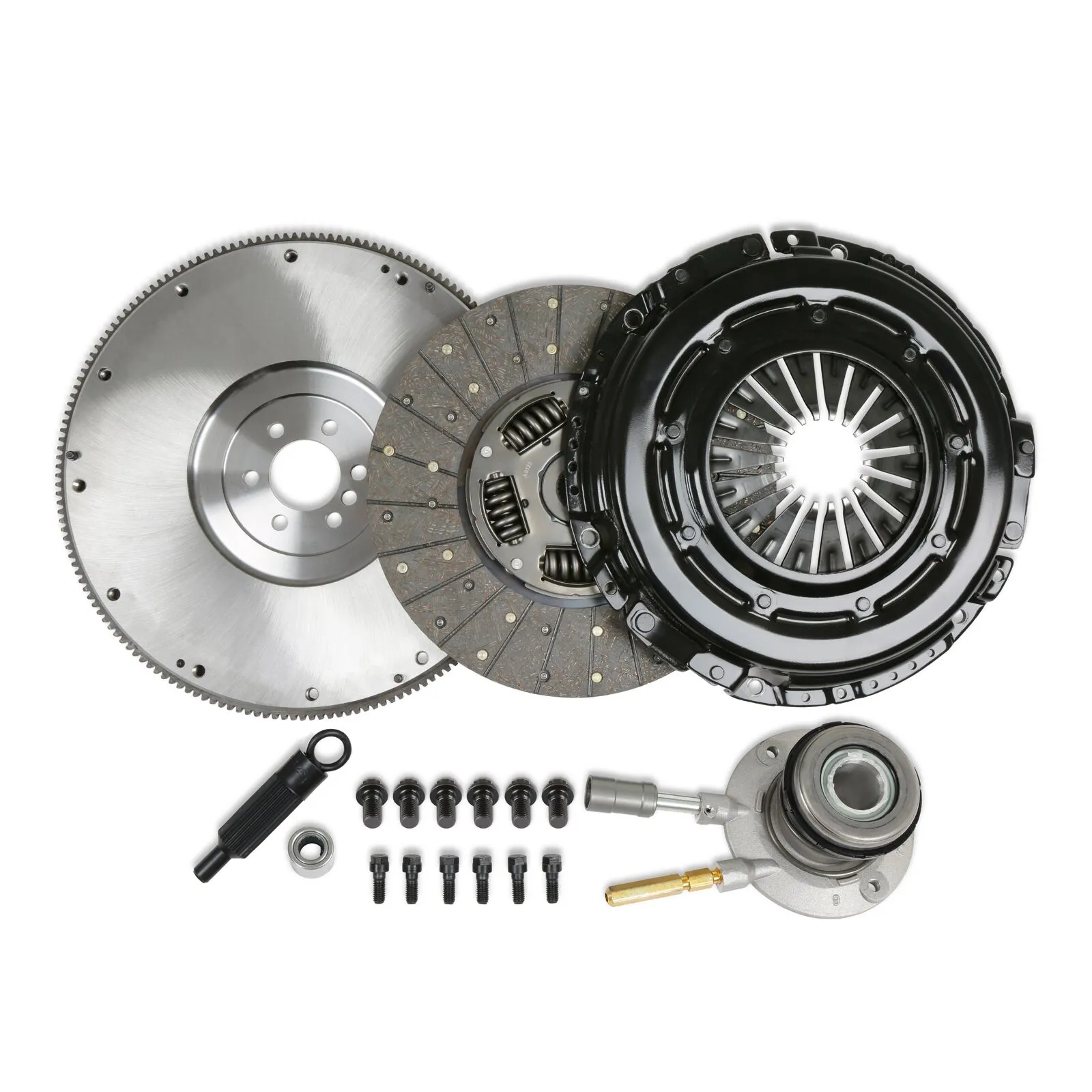

  • Includes Pressure Plate, Disk, Flywheel, Alignment Tool, Pilot Bearing, Pressure Plate Bolts, Flywheel Bolts and Hydraulic release bearing (hydraulic release bearing to transmission bolts not included)

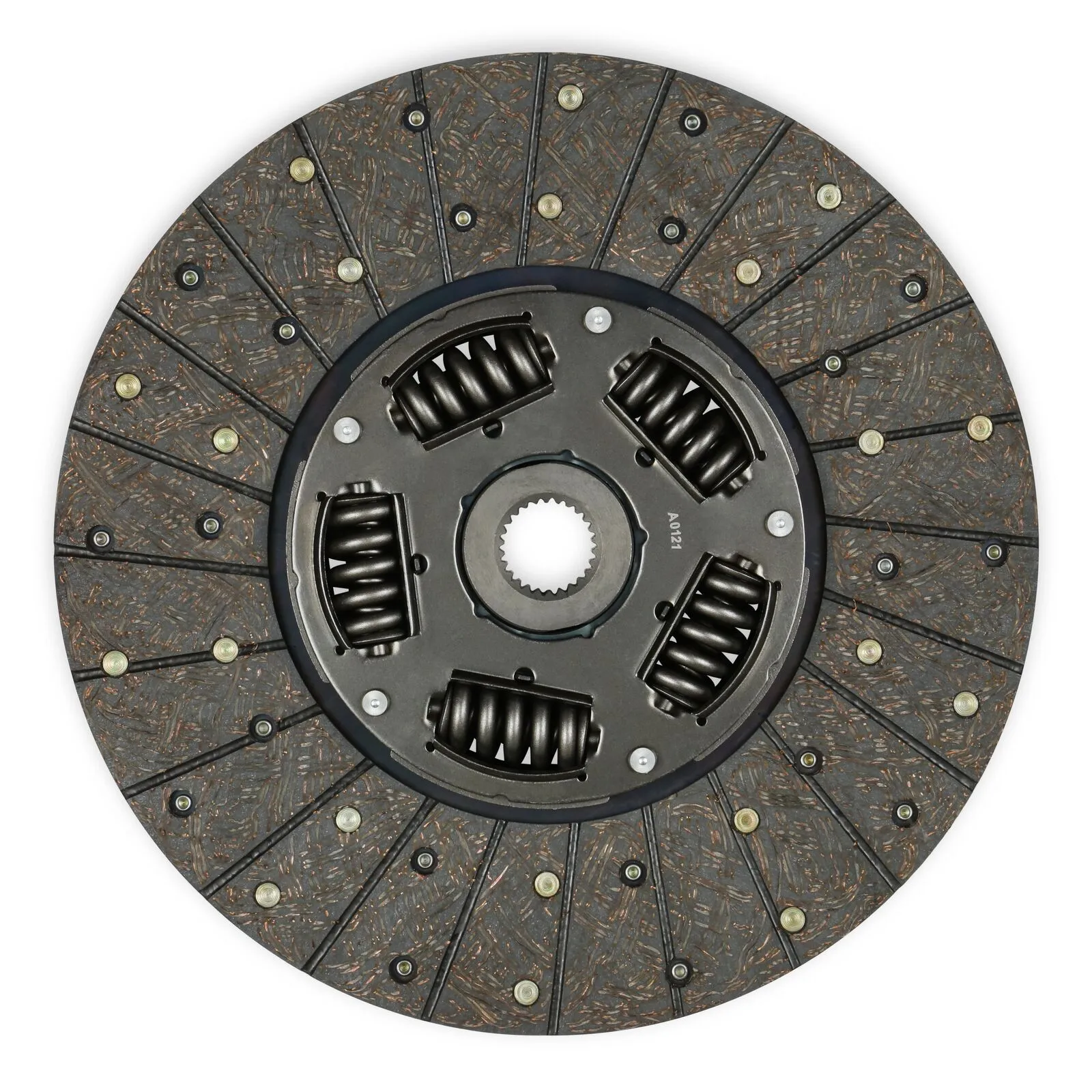

  • 12-inch Organic Single Disc Clutch with 1-1/8-inch 26 Spline Hub for LS Engines with 6 Bolt Crankshaft
  • 6-Bolt Billet Steel Flywheel provides strength and a fresh, new foundation for the clutch
  • Street/Strip Clutch Kit Provides Excellent Holding Strength with a Smooth Daily Driver Pedal Feel
  • Designed for Power Levels up to 550 Naturally Aspirated Horsepower

Specifications

Alignment Tool IncludedYes
BrandHolley
Cable IncludedNo
Disc Diameter12
Disc MaterialOrganic
Disc StyleSpring Hub
Disc Type Sprung SolidSprung
Emission Code5
EngineGM Gen III/IV (LS)
Engine MakeGM
Flywheel Bolts IncludedYes
Flywheel MaterialBillet Steel
Grade TypePerformance
Grease IncludedNo
HardwareSteel
Input Shaft Diameter1-1/8 in.
Input Spline26
Input Spline Quantity26
Mounting Hardware IncludedYes
New Or Remanufactured ClutchNew
PILOT BEARINGRoller
Pilot Bushing IncludedYes
Pressure Plate Bolts IncludedYes
Pressure Plate StyleDiaphragm
Product TypeClutch Installation Kit
RELEASE BEARINGHydraulic
Release Bearing IncludedYes
Sale CategoryTransmission and Drivetrain
TransmissionT56 Magnum GM
TransmissionT56 GM

Compatibility

  • Universal Part

This Kit includes all the hardware and components needed for a complete clutch install on a 6-bolt crank LS engine using a T-56 transmission. A 12-inch organic disc with a 6 spring helix sprung hub provides the superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30% more clamping pressure and transmits that through a Billet steel flywheel.

Features

  • Includes Pressure Plate, Disk, Flywheel, Alignment Tool, Pilot Bearing, Pressure Plate Bolts, Flywheel Bolts and Hydraulic release bearing (hydraulic release bearing to transmission bolts not included)
  • 12-inch Organic Single Disc Clutch with 1-1/8-inch 26 Spline Hub for LS Engines with 6 Bolt Crankshaft
  • 6-Bolt Billet Steel Flywheel provides strength and a fresh, new foundation for the clutch
  • Street/Strip Clutch Kit Provides Excellent Holding Strength with a Smooth Daily Driver Pedal Feel
  • Designed for Power Levels up to 550 Naturally Aspirated Horsepower
Alignment Tool IncludedYes
BrandHolley
Cable IncludedNo
Disc Diameter12
Disc MaterialOrganic
Disc StyleSpring Hub
Disc Type Sprung SolidSprung
Emission Code5
EngineGM Gen III/IV (LS)
Engine MakeGM
Flywheel Bolts IncludedYes
Flywheel MaterialBillet Steel
Grade TypePerformance
Grease IncludedNo
HardwareSteel
Input Shaft Diameter1-1/8 in.
Input Spline26
Input Spline Quantity26
Mounting Hardware IncludedYes
New Or Remanufactured ClutchNew
PILOT BEARINGRoller
Pilot Bushing IncludedYes
Pressure Plate Bolts IncludedYes
Pressure Plate StyleDiaphragm
Product TypeClutch Installation Kit
RELEASE BEARINGHydraulic
Release Bearing IncludedYes
Sale CategoryTransmission and Drivetrain
TransmissionT56 Magnum GM
TransmissionT56 GM
  • Universal Part
