Description

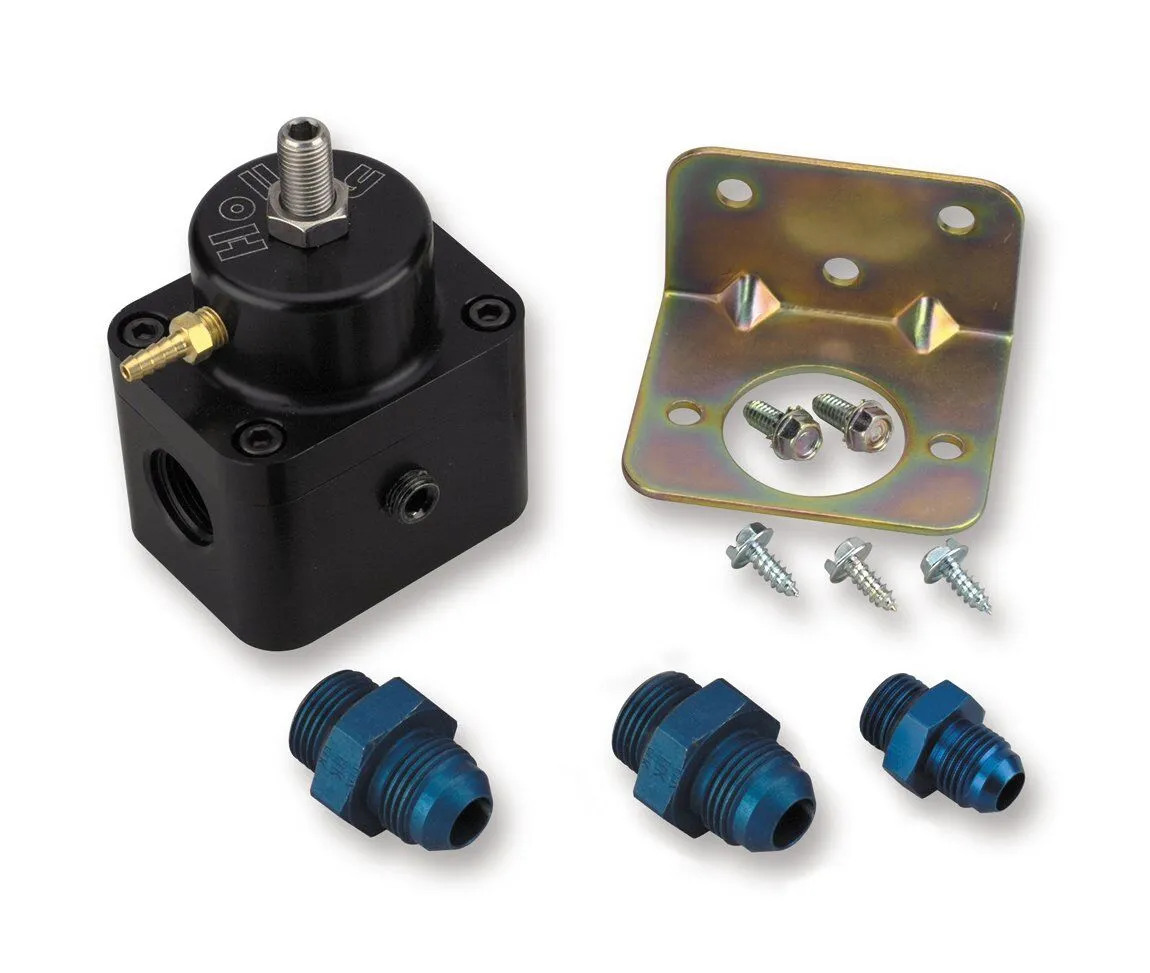

This precision adjustable fuel metering regulator is the ultimate fuel pressure control unit designed to work on all naturally aspirated EFI, turbo and supercharged applications like vehicles that run in the Pro Street, Pro Import and Outlaw classes. This is a 2 port 1:1 boost compensating return style regulator that is adjustable from 15-65 PSI +

boost reference and is designed to be used in conjunction with any electric EFI fuel pump. Features built in gauge port, mounting bracket, two AN -8 O-ring fittings and a AN-6 O-ring return fitting.

Black anodized.

Features

  • Black anodized
  • Easy installation
  • -8an & -6an o-ring style fittings included to adapt to steel braided fuel lines
  • Designed to regulate high fuel demands for naturally aspirated EFI, turbo, supercharged and nos race applications
  • Engineered to regulate extreme flow volumes generated by racing fuel systems
  • CNC machined billet aluminum
  • Allows adjustment from 15-65 psi + boost reference

Specifications

AdjustableYes
BrandHolley
ColourHard Coat Anodized
Emission Code4
Fuel SystemGasoline
Fuel TypeGasoline
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter8 AN ORB
Inlet Port Quantity1
Inlet Size8 AN O-Ring
Inlet Type8 AN ORB
MaterialAluminum
Maximum Pressure65
Minimum Pressure15
Mounting Bracket IncludedYes
Mounting TypeInline
Outlet GenderFemale
Outlet Port Diameter6 AN ORB
Outlet Port Diameter8 AN ORB
Outlet Port Quantity2
Outlet Size8 AN O-Ring
Outlet Type8 AN ORB
Outlet Type6 AN ORB
Port Quantity2
Pressure Range15-65 PSI
Product TypeFuel Pressure Regulator
RebuildableYes
Return Size6 AN O-Ring
Sale CategoryAir and Fuel Delivery
StyleBypass
Vacuum Port Quantity1
WarrantyLimited 90 Day

Compatibility

  • Universal Part

This precision adjustable fuel metering regulator is the ultimate fuel pressure control unit designed to work on all naturally aspirated EFI, turbo and supercharged applications like vehicles that run in the Pro Street, Pro Import and Outlaw classes. This is a 2 port 1:1 boost compensating return style regulator that is adjustable from 15-65 PSI +

boost reference and is designed to be used in conjunction with any electric EFI fuel pump. Features built in gauge port, mounting bracket, two AN -8 O-ring fittings and a AN-6 O-ring return fitting.

Black anodized.

Features

  • Black anodized
  • Easy installation
  • -8an & -6an o-ring style fittings included to adapt to steel braided fuel lines
  • Designed to regulate high fuel demands for naturally aspirated EFI, turbo, supercharged and nos race applications
  • Engineered to regulate extreme flow volumes generated by racing fuel systems
  • CNC machined billet aluminum
  • Allows adjustment from 15-65 psi + boost reference
AdjustableYes
BrandHolley
ColourHard Coat Anodized
Emission Code4
Fuel SystemGasoline
Fuel TypeGasoline
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter8 AN ORB
Inlet Port Quantity1
Inlet Size8 AN O-Ring
Inlet Type8 AN ORB
MaterialAluminum
Maximum Pressure65
Minimum Pressure15
Mounting Bracket IncludedYes
Mounting TypeInline
Outlet GenderFemale
Outlet Port Diameter6 AN ORB
Outlet Port Diameter8 AN ORB
Outlet Port Quantity2
Outlet Size8 AN O-Ring
Outlet Type8 AN ORB
Outlet Type6 AN ORB
Port Quantity2
Pressure Range15-65 PSI
Product TypeFuel Pressure Regulator
RebuildableYes
Return Size6 AN O-Ring
Sale CategoryAir and Fuel Delivery
StyleBypass
Vacuum Port Quantity1
WarrantyLimited 90 Day
  • Universal Part
