Description

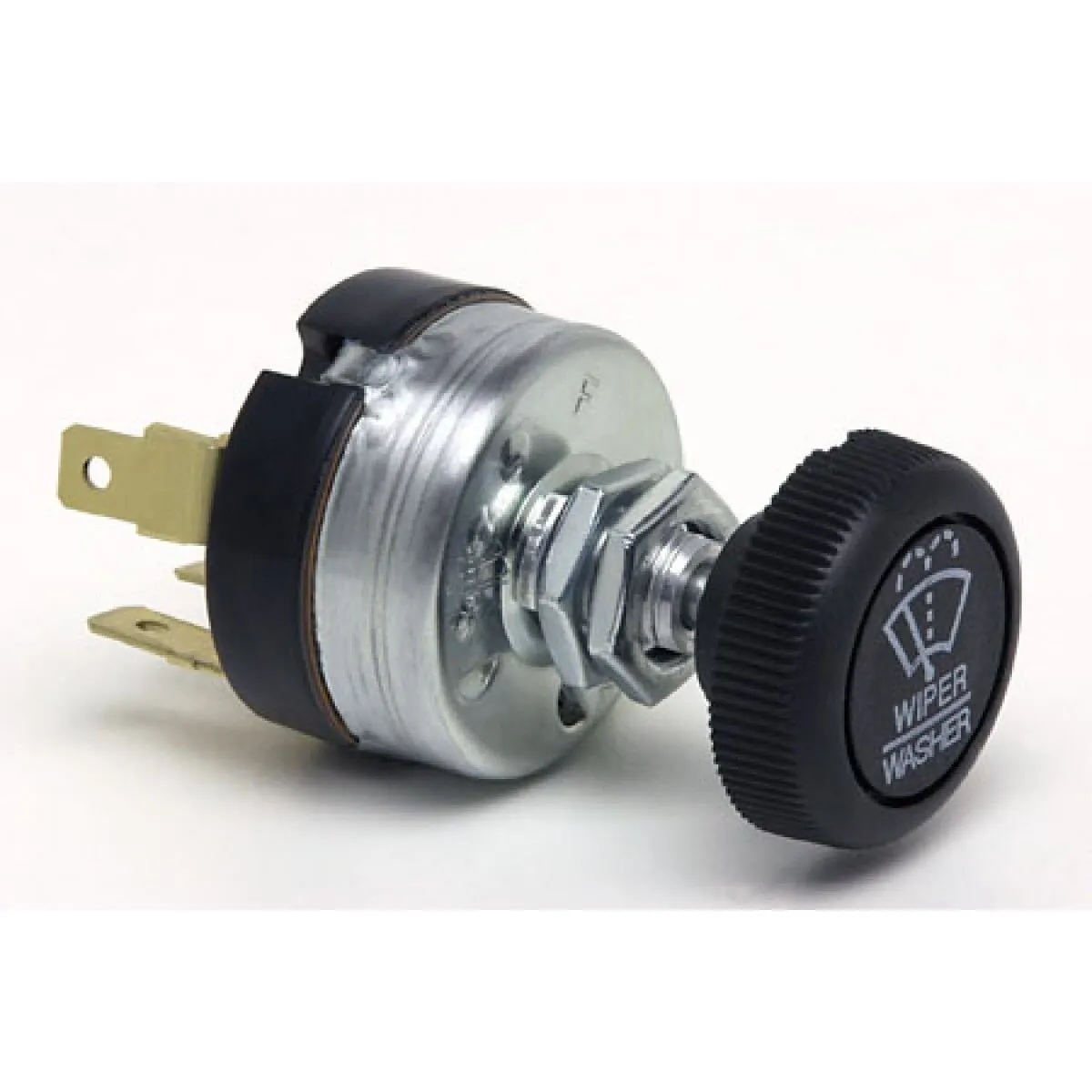

Two speed wiper switch with push-to-wash for part# 553-342 Instrument Bezel.

The 5 blade switch has an internal 6 amp circuit breaker at 12V DC.

Features

  • Electric Two-speed Wiper Switch with Push-to-Wash
  • Black plastic knob with metal insert and set screw, white imprint.
  • Plated steel case 1 3/8" (34.9mm) diameter, 3/8" (9.5mm) long.
  • Mounting stem 7/16" -28 thread, .38" (9.6mm) long.
  • 5 blade terminals.
  • Internal 6A circuit breaker at 12V DC

Specifications

# of Speeds2
BrandHolley
Circuit Breaker Amperage6 Amps
ColourBlack
Emission Code5
IlluminatedNo
Indicator MarkingsNo
Lever IncludedYes
Multi Function SwitchYes
Product TypeWiper Switch
Switch Activation TypeRotary
Switch Activation TypePush
Terminal Quantity5
Terminal TypeBlade Style (male)
Voltage12V

Compatibility

  • Universal Part

Two speed wiper switch with push-to-wash for part# 553-342 Instrument Bezel.

The 5 blade switch has an internal 6 amp circuit breaker at 12V DC.

Features

  • Electric Two-speed Wiper Switch with Push-to-Wash
  • Black plastic knob with metal insert and set screw, white imprint.
  • Plated steel case 1 3/8" (34.9mm) diameter, 3/8" (9.5mm) long.
  • Mounting stem 7/16" -28 thread, .38" (9.6mm) long.
  • 5 blade terminals.
  • Internal 6A circuit breaker at 12V DC
# of Speeds2
BrandHolley
Circuit Breaker Amperage6 Amps
ColourBlack
Emission Code5
IlluminatedNo
Indicator MarkingsNo
Lever IncludedYes
Multi Function SwitchYes
Product TypeWiper Switch
Switch Activation TypeRotary
Switch Activation TypePush
Terminal Quantity5
Terminal TypeBlade Style (male)
Voltage12V
  • Universal Part
