Description

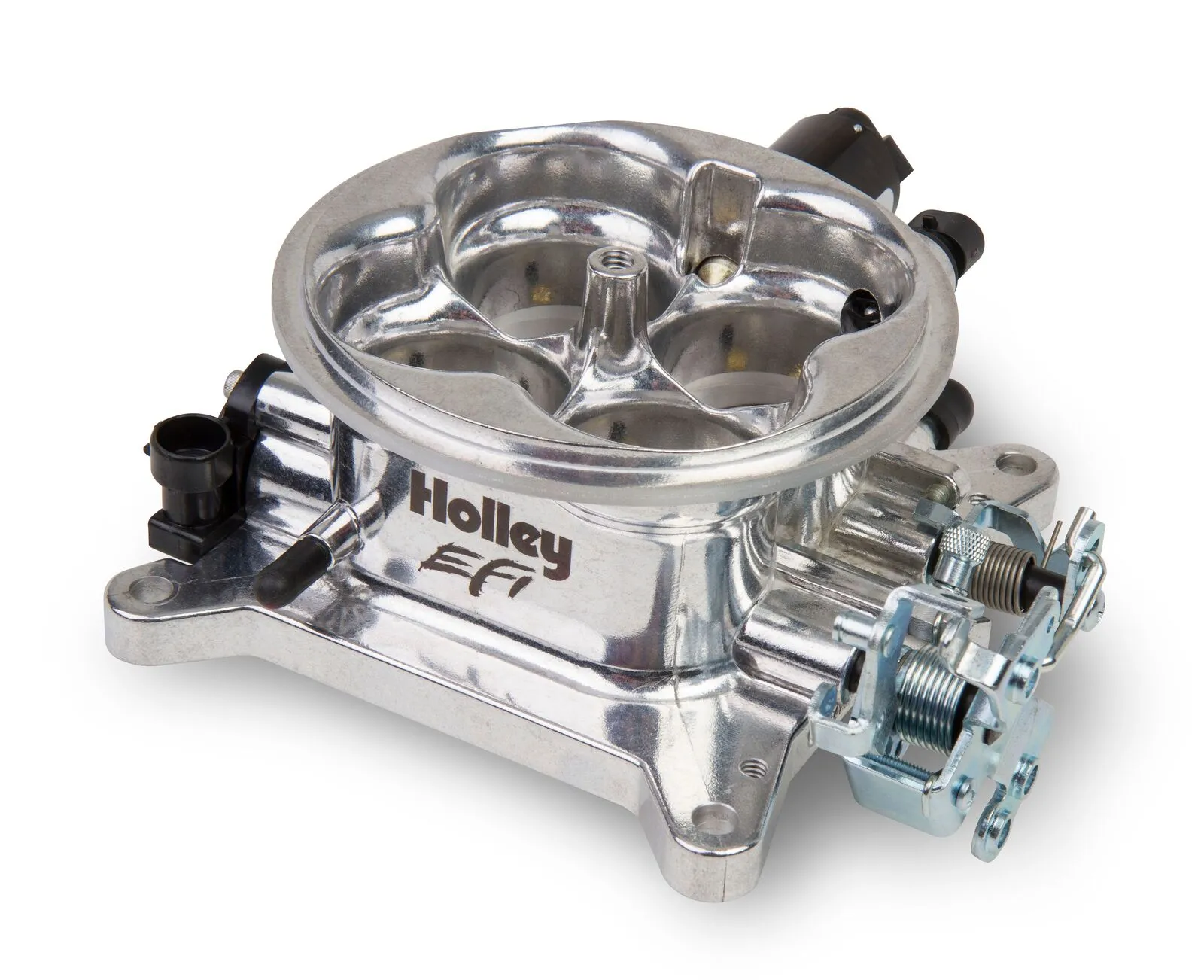

Holley's new 1000 CFM Throttle Body shares the same air entry area design that powers every NASCAR Sprint Cup Series™ car! The throttle body features integrated throttle position, idle air control and intake air temperature sensors, Ford and GM transmission kick down levers as well as all necessary vacuum ports.

Features

  • Standard square bore mounting pattern for installation on many intake manifolds
  • Flows 1000 CFM to handle high horsepower engines
  • Exclusive CFD computer modeled air entry area delivers maximum velocity and accelerated air speed
  • Integrated TPS, IAC, and Air Temperature Sensor
  • Hi Flow IAC passages for large cubic inch engines for idle stability
  • Ford Transmission kick down Lever for use with Ford automatic transmissions
  • Integrated GM 700R4 transmission kick down location no adapters needed
  • All necessary vacuum ports (1) timed spark, (2) 3/8" and (2) 3/16" full manifold vacuum ports
  • 1.75" throttle plates mounted to PTFE coated throttle shafts for high flow and a smooth feel
  • High quality die cast aluminum for strength and weight reduction
  • Tumble polished finish

Specifications

AdjustableYes
Barrels4
Bore Diameter4x1.75 IN
BrandHolley EFI
CFM1000
Emission Code3
Flange Style4150/4160 Square Bore
Fuel Injectors IncludedNo
Fuel System TypeEFI
Grade TypePerformance
Height2.80"
Idle Air Control Motor IncludedYes
Mounting Hardware IncludedNo
Product TypeThrottle Body
Sale CategoryAir and Fuel Delivery
Throttle Body FinishPolished
Throttle Body MaterialCast Aluminum
Throttle Body Spacer IncludedNo
Throttle Bore1.750 inch
Throttle Position Sensor IncludedYes

Compatibility

  • Universal Part

Holley's new 1000 CFM Throttle Body shares the same air entry area design that powers every NASCAR Sprint Cup Series™ car! The throttle body features integrated throttle position, idle air control and intake air temperature sensors, Ford and GM transmission kick down levers as well as all necessary vacuum ports.

Features

  • Standard square bore mounting pattern for installation on many intake manifolds
  • Flows 1000 CFM to handle high horsepower engines
  • Exclusive CFD computer modeled air entry area delivers maximum velocity and accelerated air speed
  • Integrated TPS, IAC, and Air Temperature Sensor
  • Hi Flow IAC passages for large cubic inch engines for idle stability
  • Ford Transmission kick down Lever for use with Ford automatic transmissions
  • Integrated GM 700R4 transmission kick down location no adapters needed
  • All necessary vacuum ports (1) timed spark, (2) 3/8" and (2) 3/16" full manifold vacuum ports
  • 1.75" throttle plates mounted to PTFE coated throttle shafts for high flow and a smooth feel
  • High quality die cast aluminum for strength and weight reduction
  • Tumble polished finish
AdjustableYes
Barrels4
Bore Diameter4x1.75 IN
BrandHolley EFI
CFM1000
Emission Code3
Flange Style4150/4160 Square Bore
Fuel Injectors IncludedNo
Fuel System TypeEFI
Grade TypePerformance
Height2.80"
Idle Air Control Motor IncludedYes
Mounting Hardware IncludedNo
Product TypeThrottle Body
Sale CategoryAir and Fuel Delivery
Throttle Body FinishPolished
Throttle Body MaterialCast Aluminum
Throttle Body Spacer IncludedNo
Throttle Bore1.750 inch
Throttle Position Sensor IncludedYes
  • Universal Part
