Description

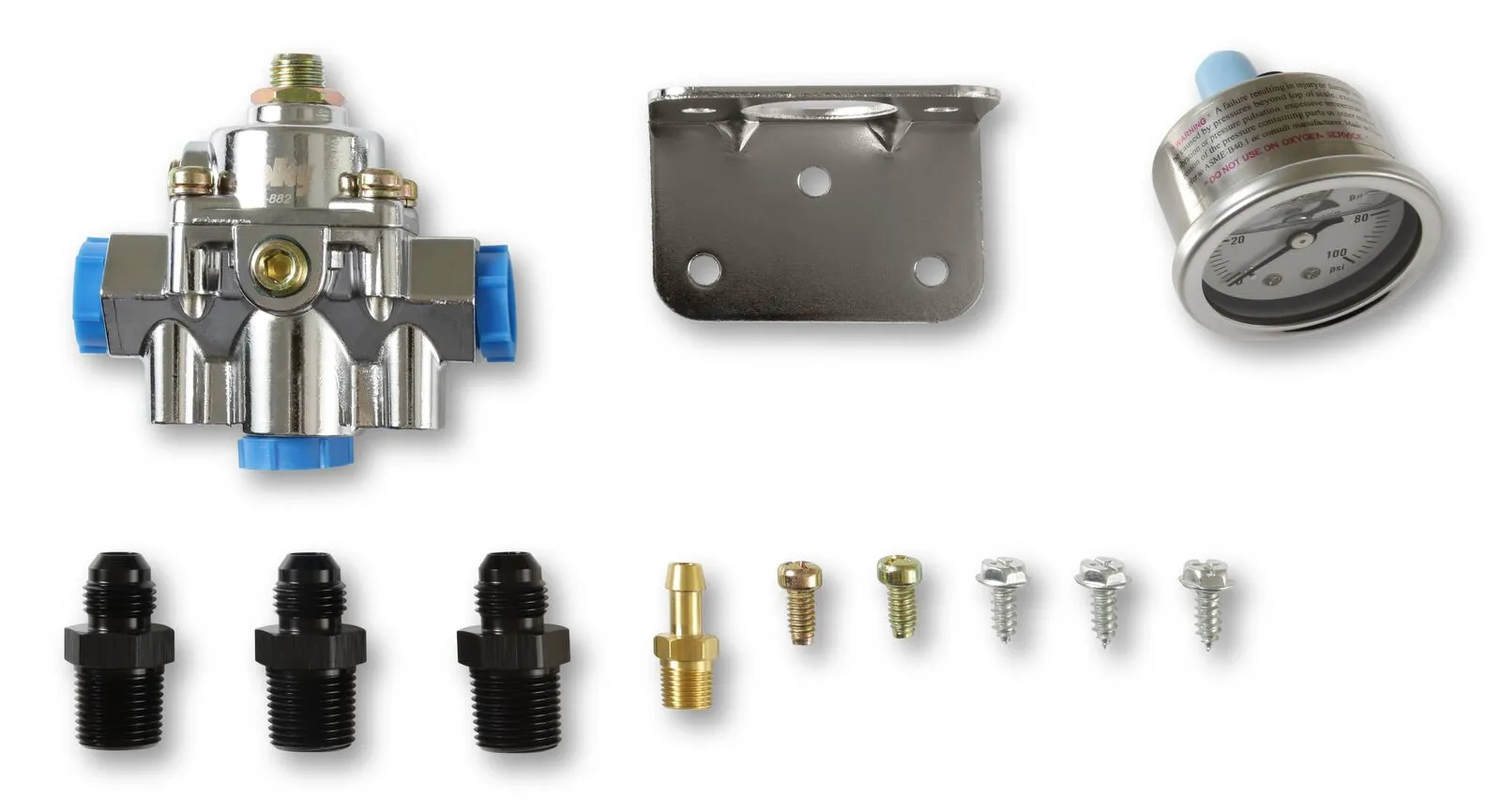

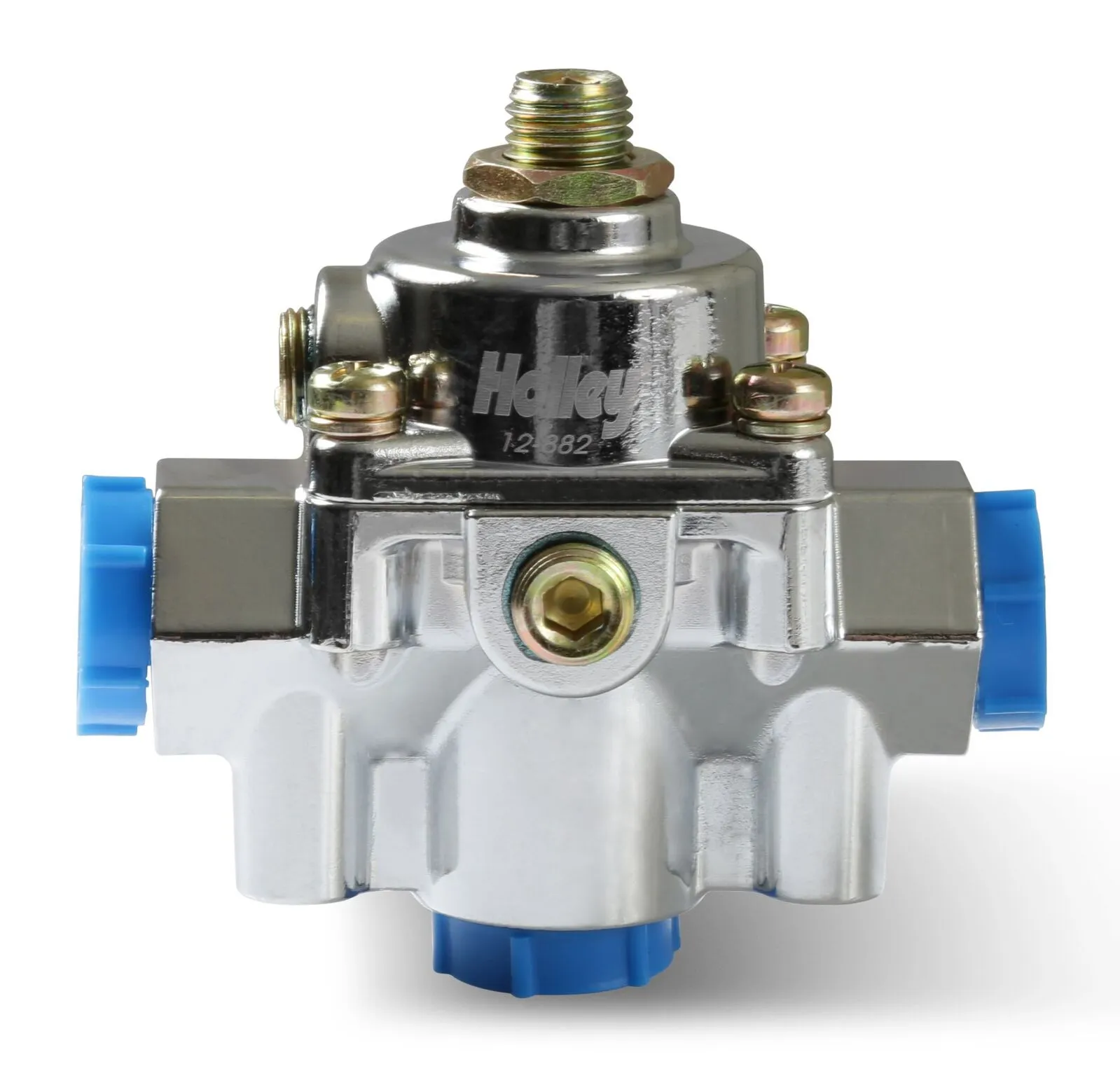

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-882 regulator features a die cast aluminum body and a chrome top for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 Mr. Gasket 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

Features

  • Die Cast Aluminum Construction
  • Adjustable from 15-60 psi for precise fuel pressure adjustments
  • Used in return style systems with a line back to the fuel tank
  • 3/8” NPT Inlet, Outlet, and Return Ports

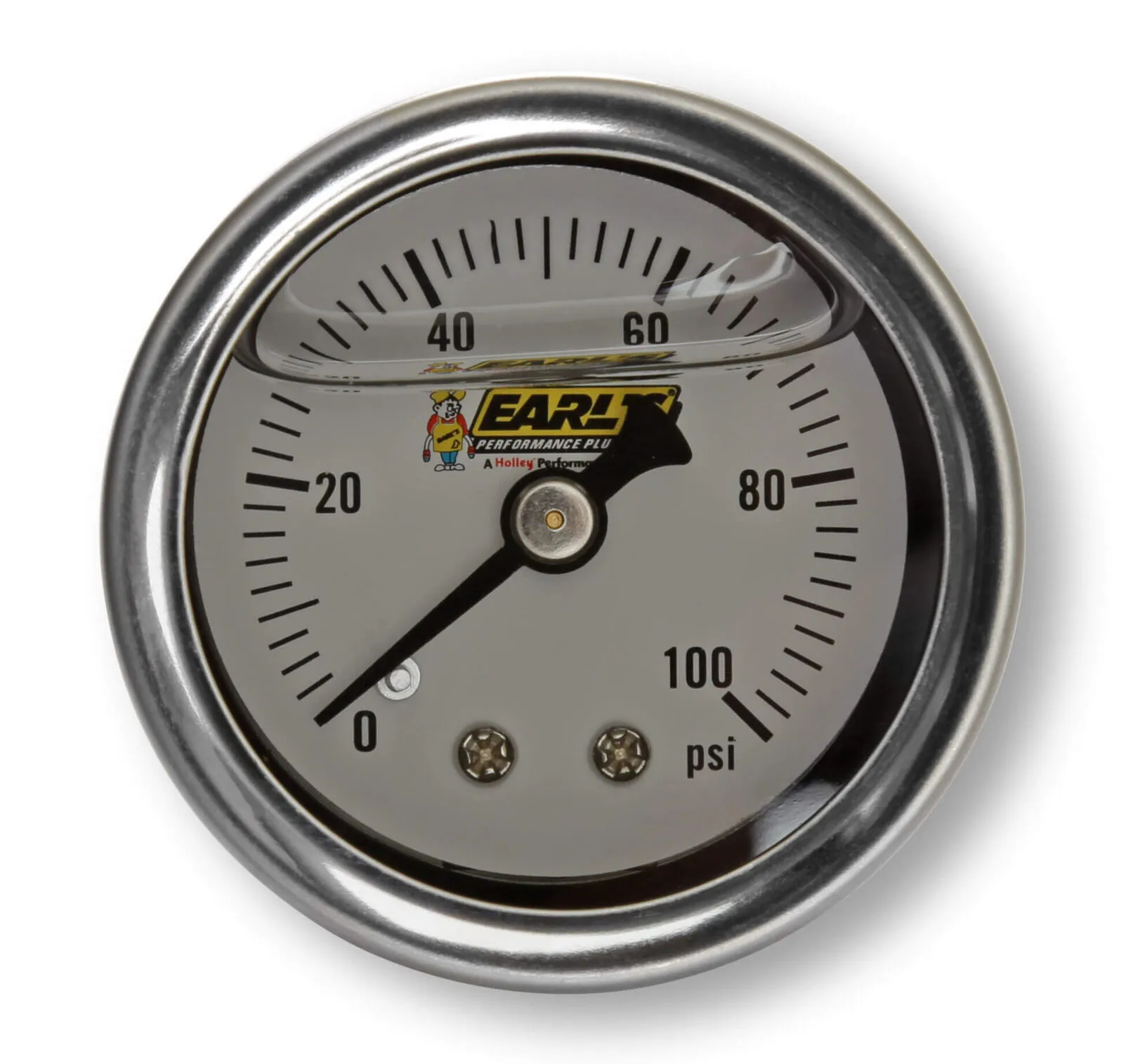

  • 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
  • 1/8" NPT Boost Reference (1:1) and Barbed Fitting
  • Mr. Gasket 3/8” NPT to -6 AN fittings (481666-BL x3)
  • Mounting Bracket Included

Specifications

AdjustableYes
BrandHolley EFI
ColourChrome
Emission Code5
Fuel SystemEFI
Fuel TypeGasoline
Gauge IncludedYes
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter3/8 NPT IN
Inlet Size3/8 inch NPT
Inlet TypeNPT
MaterialAluminium
Maximum Pressure60 PS
Minimum Pressure15 PS
Mounting Bracket IncludedYes
Mounting TypeBolt On
Outlet GenderFemale
Outlet Port Diameter3/8 NPT IN
Outlet Size3/8 inch NPT
Outlet TypeNPT
Port Quantity5
Pressure Range15-60 PSI
Pressure Rating15-60 PS
Product TypeFuel Pressure Regulator
RebuildableYes
Return Size3/8 inch NPT
Sale CategoryAir and Fuel Delivery
StyleBypass
Vacuum Port Quantity1
WarrantyLimited 90 Day Warranty

Compatibility

  • Universal Part

Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-882 regulator features a die cast aluminum body and a chrome top for corrosion resistance and good looks. The regulator contains 3/8" NPT in/out ports, a 3/8" NPT return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, 3 Mr. Gasket 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

Features

  • Die Cast Aluminum Construction
  • Adjustable from 15-60 psi for precise fuel pressure adjustments
  • Used in return style systems with a line back to the fuel tank
  • 3/8” NPT Inlet, Outlet, and Return Ports
  • 1/8” NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL)
  • 1/8" NPT Boost Reference (1:1) and Barbed Fitting
  • Mr. Gasket 3/8” NPT to -6 AN fittings (481666-BL x3)
  • Mounting Bracket Included
AdjustableYes
BrandHolley EFI
ColourChrome
Emission Code5
Fuel SystemEFI
Fuel TypeGasoline
Gauge IncludedYes
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter3/8 NPT IN
Inlet Size3/8 inch NPT
Inlet TypeNPT
MaterialAluminium
Maximum Pressure60 PS
Minimum Pressure15 PS
Mounting Bracket IncludedYes
Mounting TypeBolt On
Outlet GenderFemale
Outlet Port Diameter3/8 NPT IN
Outlet Size3/8 inch NPT
Outlet TypeNPT
Port Quantity5
Pressure Range15-60 PSI
Pressure Rating15-60 PS
Product TypeFuel Pressure Regulator
RebuildableYes
Return Size3/8 inch NPT
Sale CategoryAir and Fuel Delivery
StyleBypass
Vacuum Port Quantity1
WarrantyLimited 90 Day Warranty
  • Universal Part
