Description

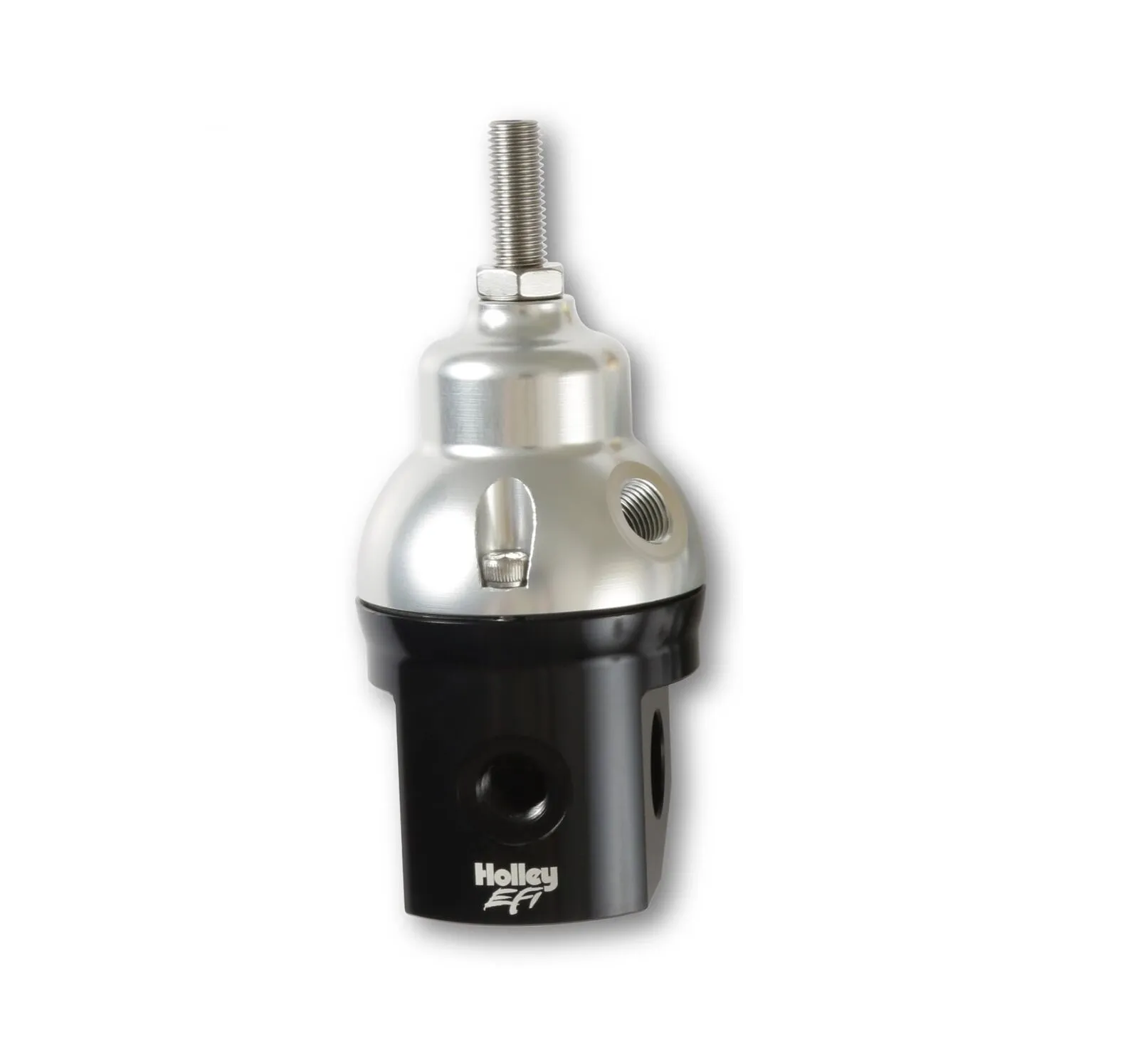

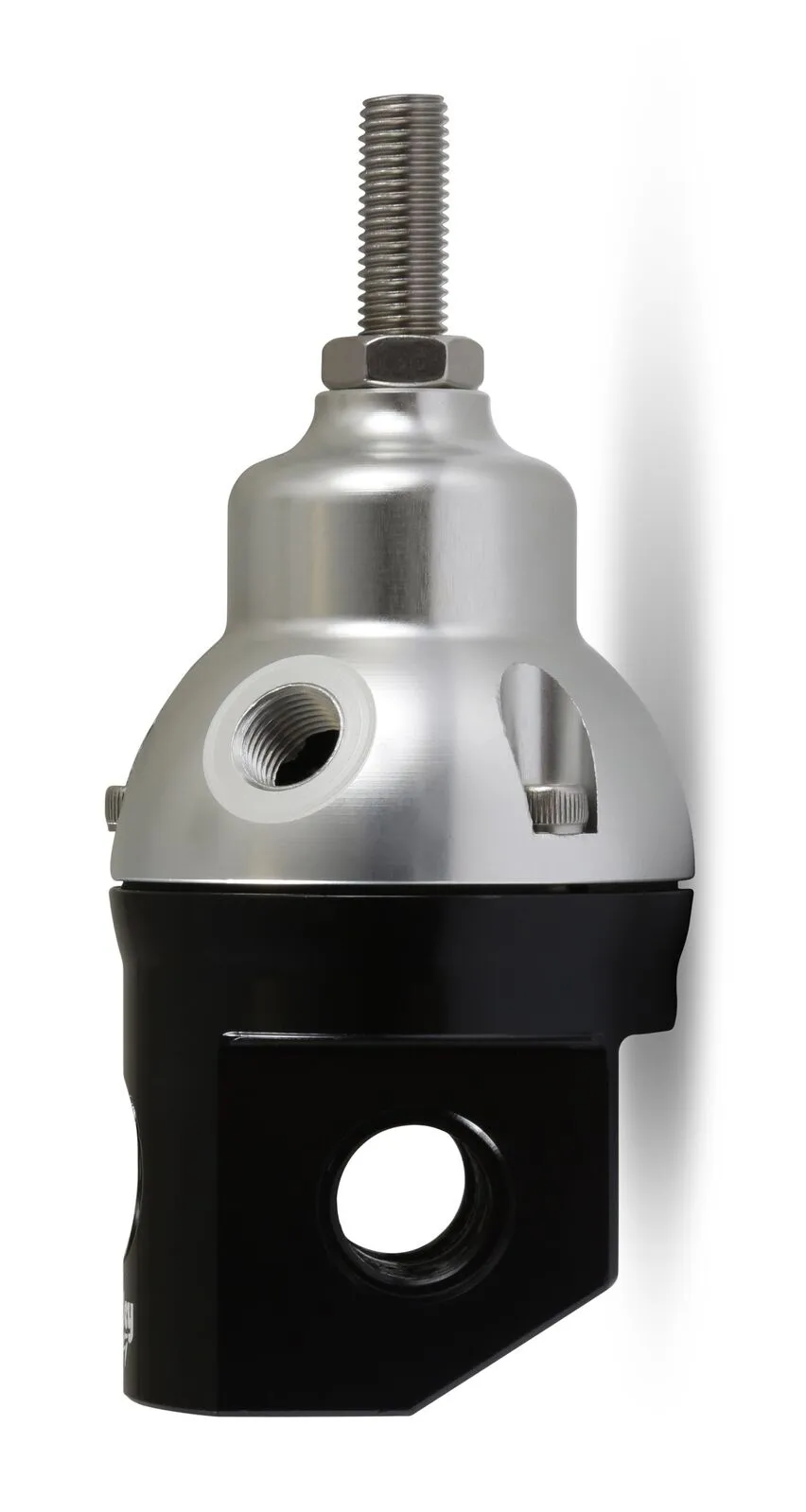

Holley EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 15-90 psi, a gauge port, and a boost reference port as well. The regulators are ideal for vehicles/systems where superior flow and pressure control are desired. The regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-894 has -6AN port sizes and the 12-895 has -8AN port sizes.

Features

  • Adjustable from 15-90 psi for precise fuel pressure adjustments
  • Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
  • Used in systems with a return line back to tank
  • Includes fitting for manifold reference
  • Use with electric pumps only
  • Available in -6AN and -8AN Port sizes
  • 1/8-inch NPT Boost Reference Port (Ratio 1:1)
  • 1/8-inch NPT Fuel Gauge Port
  • Mounting bracket included

Specifications

AdjustableYes
BrandHolley EFI
Emission Code3
Fuel TypeGasoline
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter-6AN
Inlet TypeORB
Maximum Pressure90 PS
Minimum Pressure15 PS
Mounting Bracket IncludedYes
Mounting TypeBolt On
Outlet GenderFemale
Outlet Port Diameter-6AN
Outlet TypeORB
Port Quantity5
Pressure Rating15-90 PS
Product TypeFuel Pressure Regulator
RebuildableYes
StyleBypass
Vacuum Port Quantity1
WarrantyLimited 1 Year Warranty

Compatibility

  • Universal Part

Holley EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 15-90 psi, a gauge port, and a boost reference port as well. The regulators are ideal for vehicles/systems where superior flow and pressure control are desired. The regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-894 has -6AN port sizes and the 12-895 has -8AN port sizes.

Features

  • Adjustable from 15-90 psi for precise fuel pressure adjustments
  • Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
  • Used in systems with a return line back to tank
  • Includes fitting for manifold reference
  • Use with electric pumps only
  • Available in -6AN and -8AN Port sizes
  • 1/8-inch NPT Boost Reference Port (Ratio 1:1)
  • 1/8-inch NPT Fuel Gauge Port
  • Mounting bracket included
AdjustableYes
BrandHolley EFI
Emission Code3
Fuel TypeGasoline
Gauge IncludedNo
Gauge Port IncludedYes
Grade TypePerformance
Inlet GenderFemale
Inlet Port Diameter-6AN
Inlet TypeORB
Maximum Pressure90 PS
Minimum Pressure15 PS
Mounting Bracket IncludedYes
Mounting TypeBolt On
Outlet GenderFemale
Outlet Port Diameter-6AN
Outlet TypeORB
Port Quantity5
Pressure Rating15-90 PS
Product TypeFuel Pressure Regulator
RebuildableYes
StyleBypass
Vacuum Port Quantity1
WarrantyLimited 1 Year Warranty
  • Universal Part
