Description

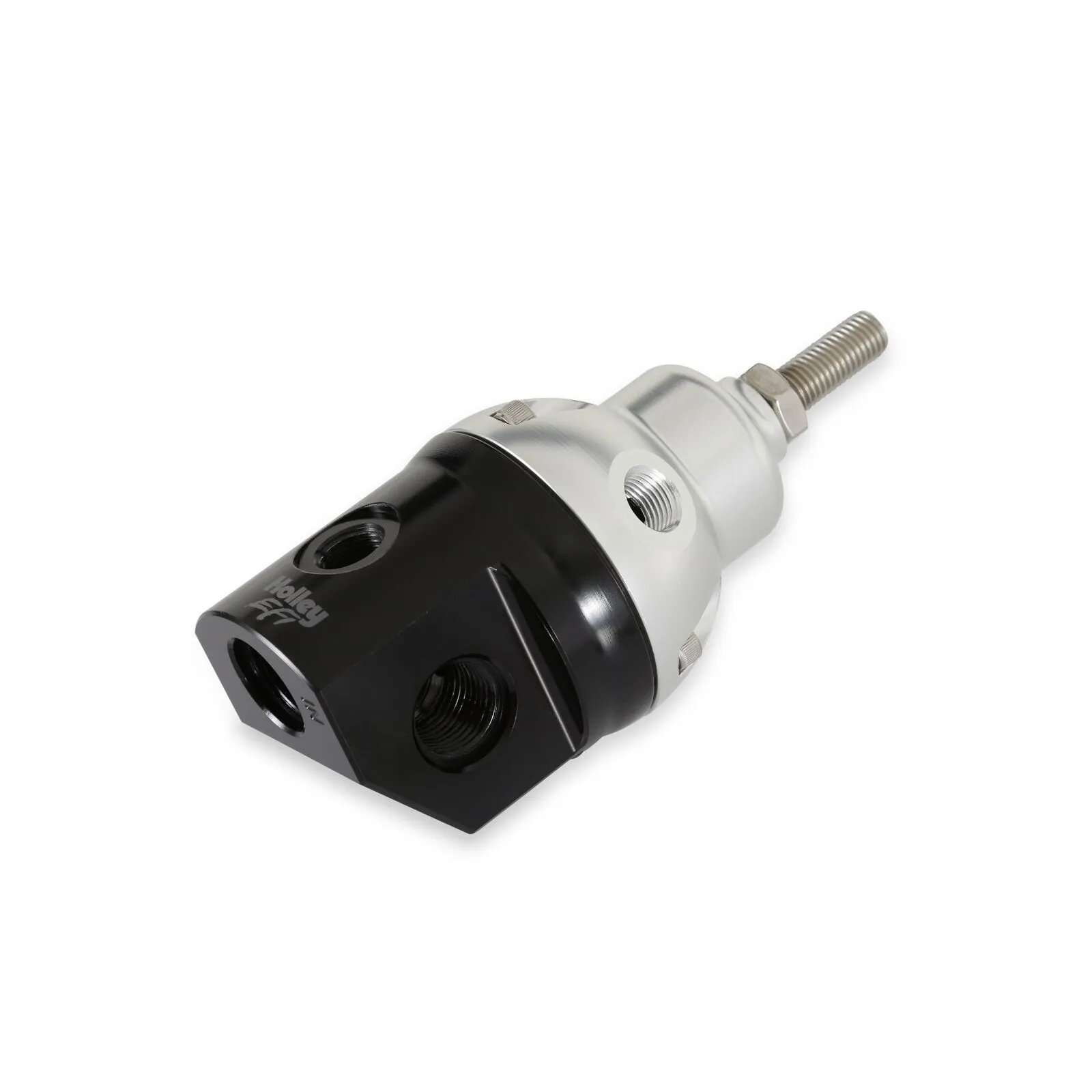

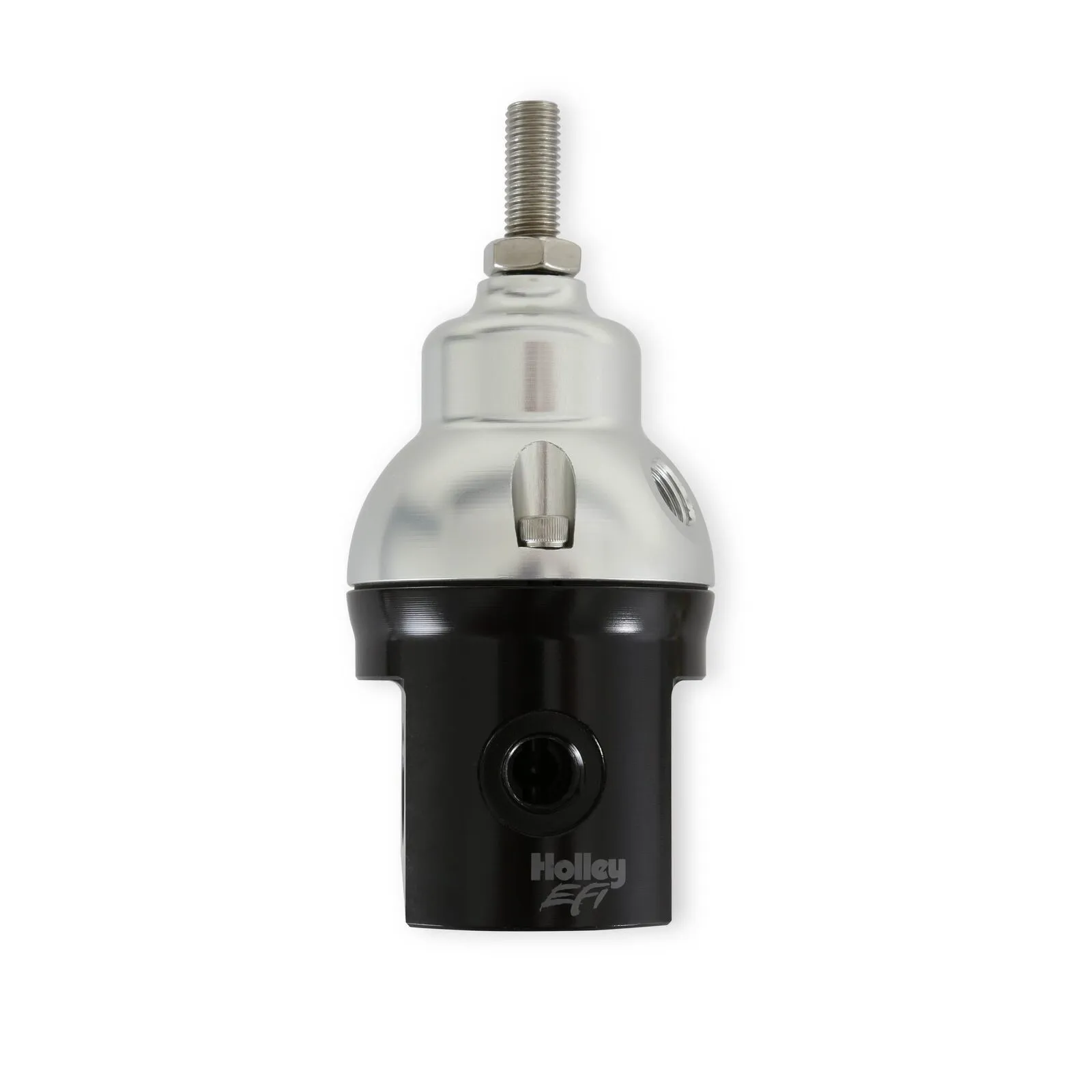

Holley EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 15-90 psi, a gauge port, and a boost reference port as well. The regulators are ideal for vehicles/systems where superior flow and pressure control are desired. The regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-894 has -6AN port sizes and the 12-895 has -8AN port sizes.

Features

  • Adjustable from 15-90 psi for precise fuel pressure adjustments
  • Regulator constructed of billet aluminum with a black anodized base and clear anodized top for good looks and corrosion resistance.

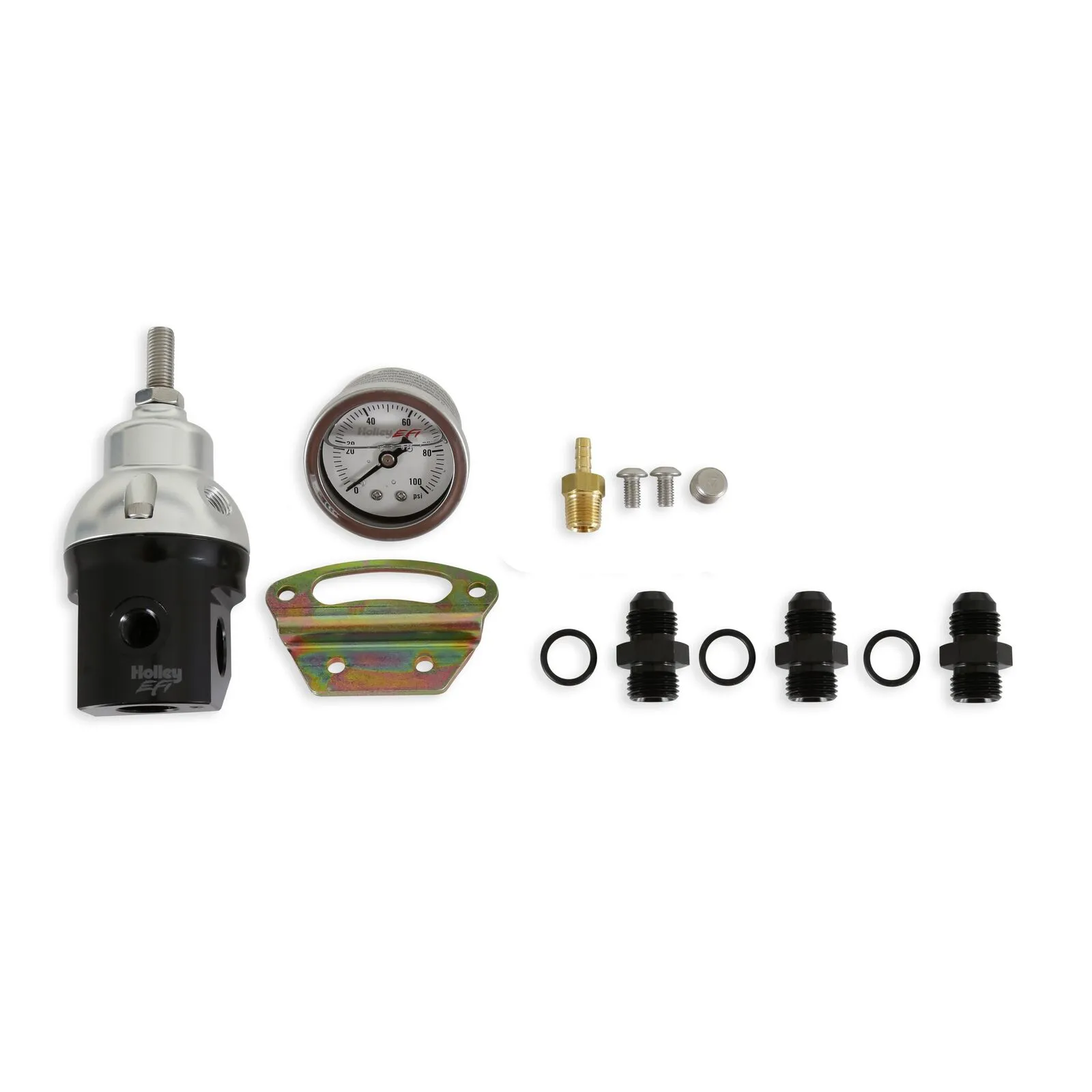

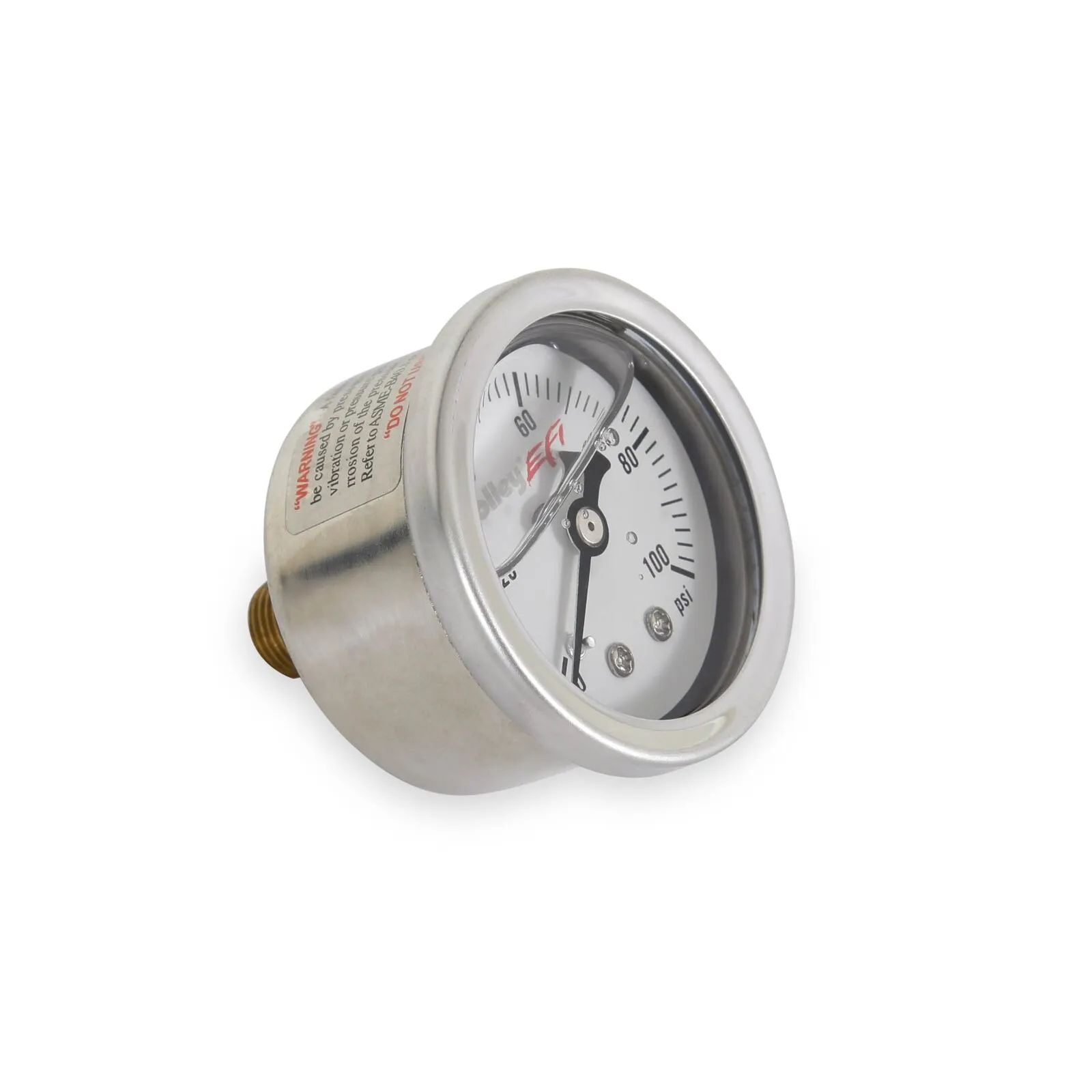

  • Kit includes Holley Fuel Pressure Gauge (PN 26-507)
  • Regulator Features an 1/8” NPT Gauge Port and 1/8" NPT Boost Reference Port (Barbed Fitting Included)

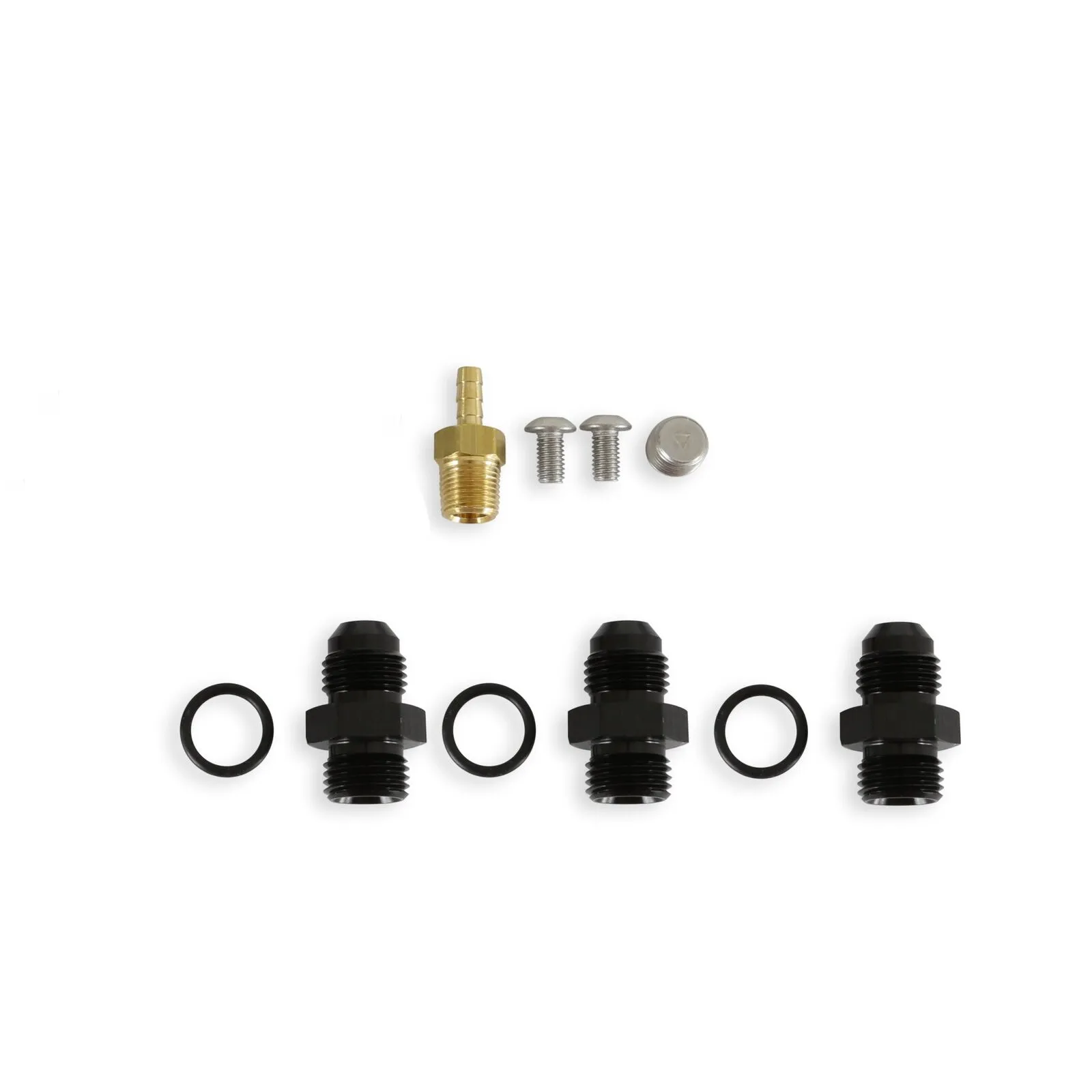

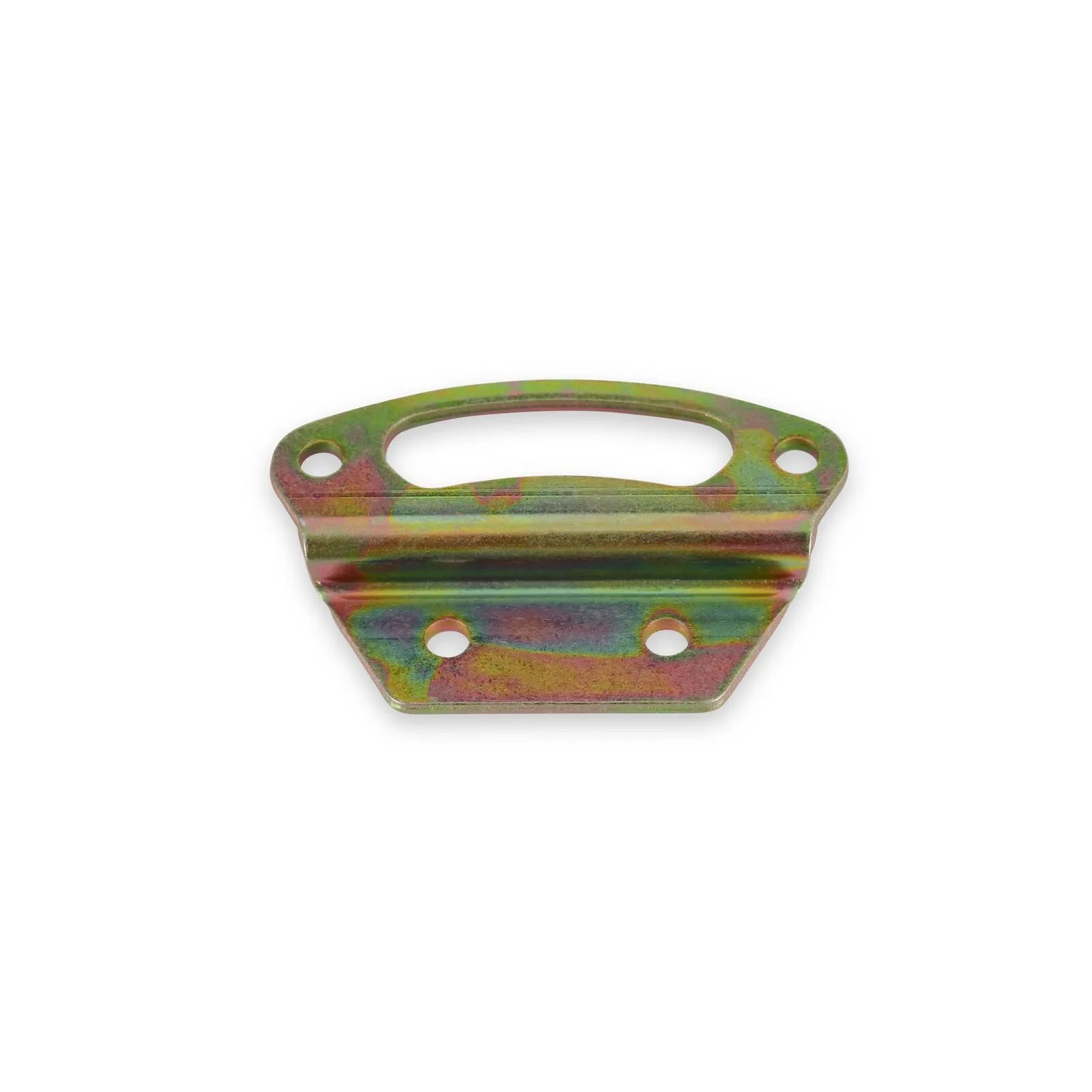

  • Mounting bracket and fittings included

Specifications

AdjustableYes
BrandHolley EFI
ColourBlack and Silver
Emission Code5
Fuel Pressure Range15-90 PSI
Fuel System TypeEFI
Fuel TypeGasoline
Gauge PortYes
Grade TypePerformance
Inlet Port Diameter-6AN
Inlet QuantityOne
Inlet Size-6 ORB
Inlet TypeORB
MaterialBillet Aluminum
Maximum Pressure Reading100 PS
Mounting Hardware IncludedYes
Mounting TypeBolt On
Outlet Port Diameter-6AN
Outlet QuantityTwo
Outlet Size-6 ORB
Outlet TypeORB
Port Quantity5
Product TypeFuel Pressure Regulator
Return Size-6 ORB
Sale CategoryAir and Fuel Delivery
StyleBypass

Compatibility

  • Universal Part

Holley EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 15-90 psi, a gauge port, and a boost reference port as well. The regulators are ideal for vehicles/systems where superior flow and pressure control are desired. The regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-894 has -6AN port sizes and the 12-895 has -8AN port sizes.

Features

  • Adjustable from 15-90 psi for precise fuel pressure adjustments
  • Regulator constructed of billet aluminum with a black anodized base and clear anodized top for good looks and corrosion resistance.
  • Kit includes Holley Fuel Pressure Gauge (PN 26-507)
  • Regulator Features an 1/8” NPT Gauge Port and 1/8" NPT Boost Reference Port (Barbed Fitting Included)
  • Mounting bracket and fittings included
AdjustableYes
BrandHolley EFI
ColourBlack and Silver
Emission Code5
Fuel Pressure Range15-90 PSI
Fuel System TypeEFI
Fuel TypeGasoline
Gauge PortYes
Grade TypePerformance
Inlet Port Diameter-6AN
Inlet QuantityOne
Inlet Size-6 ORB
Inlet TypeORB
MaterialBillet Aluminum
Maximum Pressure Reading100 PS
Mounting Hardware IncludedYes
Mounting TypeBolt On
Outlet Port Diameter-6AN
Outlet QuantityTwo
Outlet Size-6 ORB
Outlet TypeORB
Port Quantity5
Product TypeFuel Pressure Regulator
Return Size-6 ORB
Sale CategoryAir and Fuel Delivery
StyleBypass
  • Universal Part
