Description

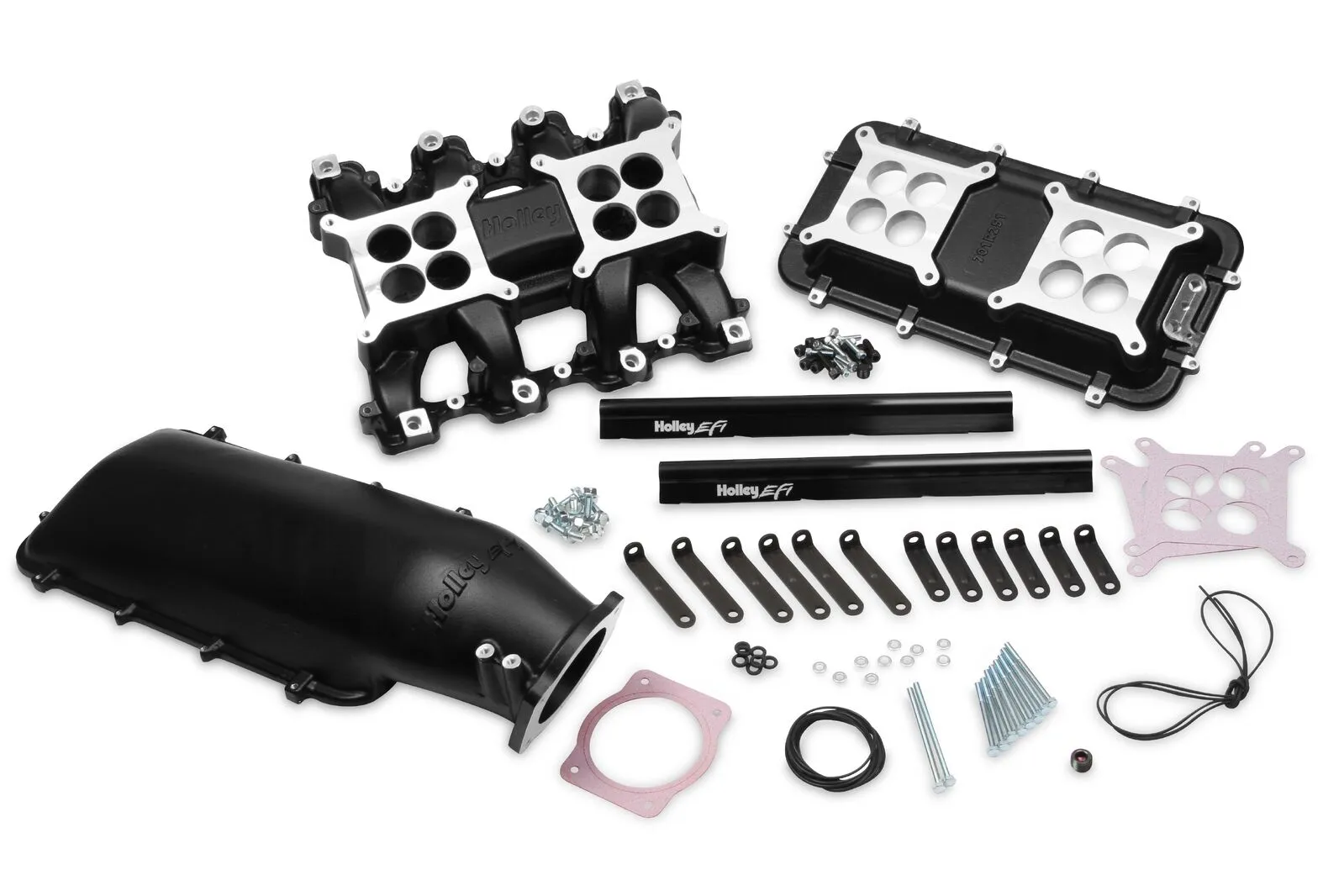

The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a power band from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or naturally aspirated applications.

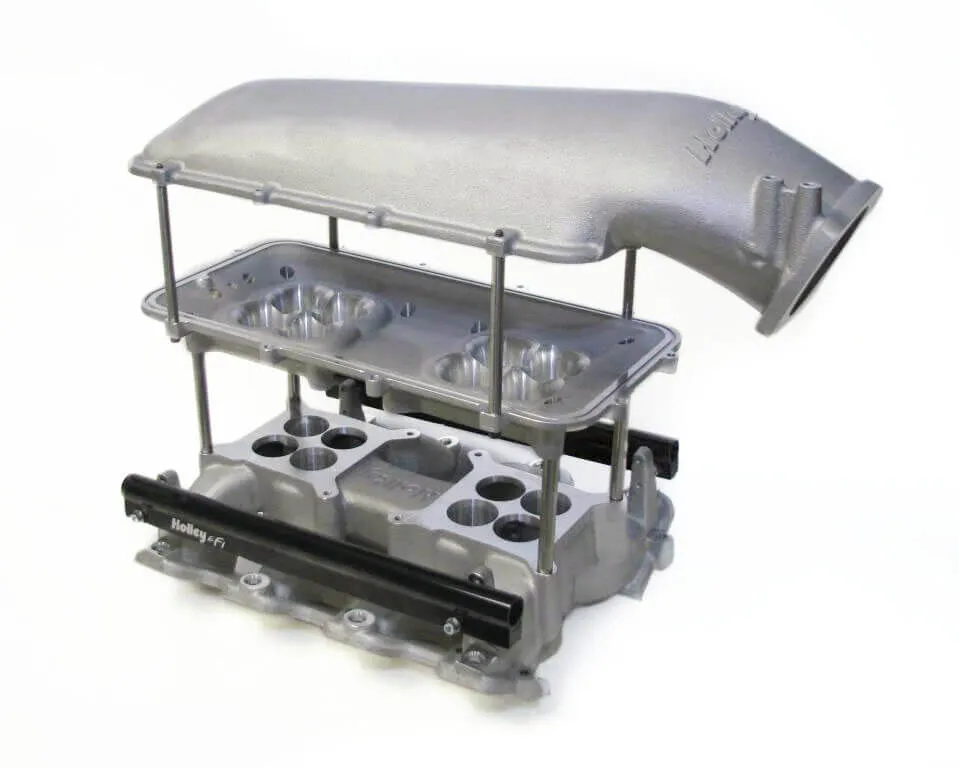

This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems.

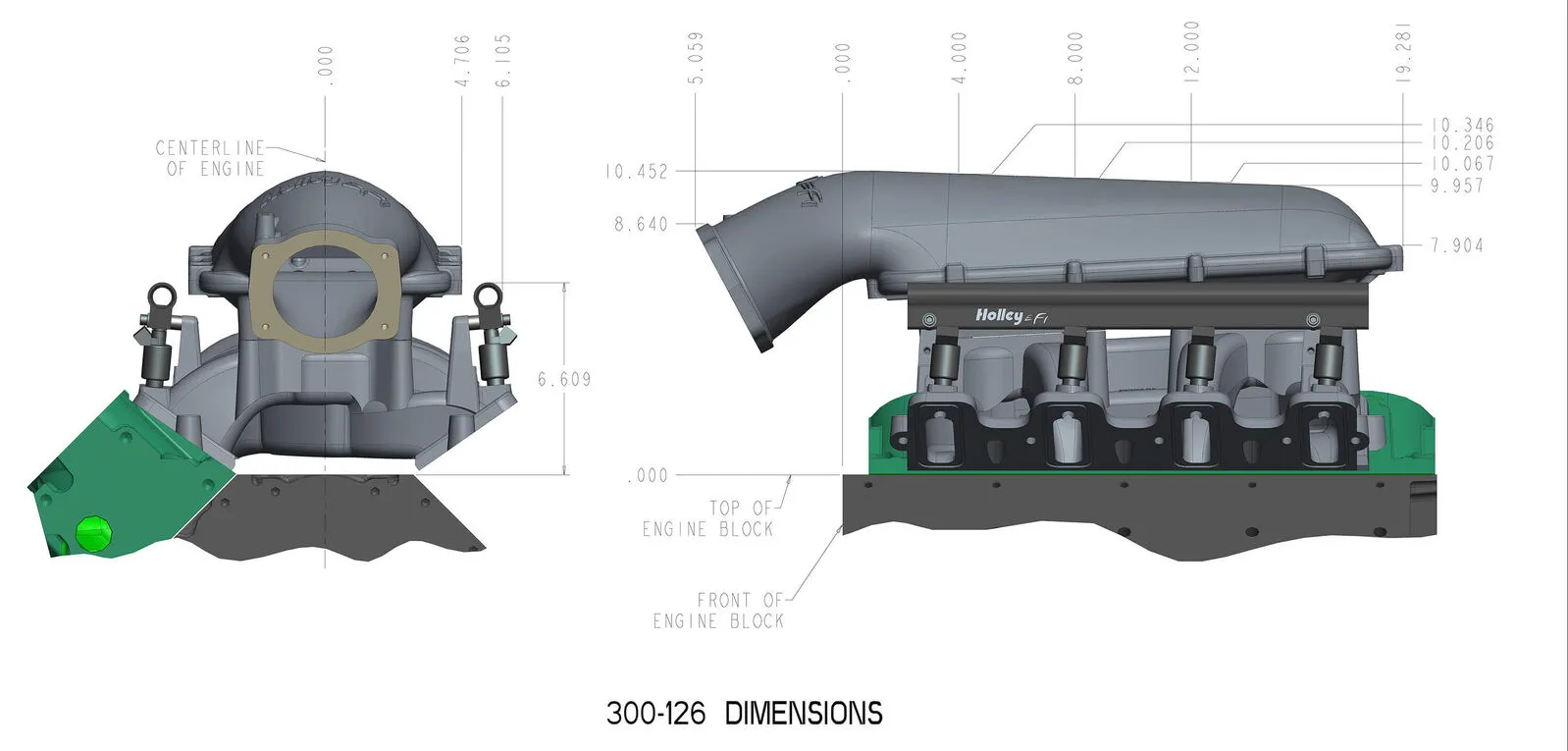

*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

Features

  • 1500-6500RPM Power Band
  • 95MM EFI Plenum
  • 92MM EFI Plenum
  • Overall Height of 10.44 inches
  • Mid-Rise manifold for excellent street/strip performance
  • Fits GM LS3/L92 engines
  • Black Ceramic Coating for an aggresive look in your engine compartment

Specifications

Basic Operating RPM Range2500-7000 RPM
BrandHolley EFI
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourBlack
ConstructionCast
EGR PortNo
Emission Code4
EngineGM LS3/L92
FinishBlack
Front Height10.44 inch
Front Maximum Height10.44 IN
Fuel System TypeEFI
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeMid Rise
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Product TypeIntake Manifold
Rear Height9.99 inch
Rear Maximum Height9.99 IN
Recommended UseForced Induction
Removable RunnersNo
RPM Power Band2500-7000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body Bore Diameter95 MM
Throttle Body IncludedNo
WarrantyLimited 90 Day

Compatibility

  • Universal Part

The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a power band from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or naturally aspirated applications.

This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems.

*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

Features

  • 1500-6500RPM Power Band
  • 95MM EFI Plenum
  • 92MM EFI Plenum
  • Overall Height of 10.44 inches
  • Mid-Rise manifold for excellent street/strip performance
  • Fits GM LS3/L92 engines
  • Black Ceramic Coating for an aggresive look in your engine compartment
Basic Operating RPM Range2500-7000 RPM
BrandHolley EFI
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourBlack
ConstructionCast
EGR PortNo
Emission Code4
EngineGM LS3/L92
FinishBlack
Front Height10.44 inch
Front Maximum Height10.44 IN
Fuel System TypeEFI
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeMid Rise
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Product TypeIntake Manifold
Rear Height9.99 inch
Rear Maximum Height9.99 IN
Recommended UseForced Induction
Removable RunnersNo
RPM Power Band2500-7000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body Bore Diameter95 MM
Throttle Body IncludedNo
WarrantyLimited 90 Day
  • Universal Part
