Description

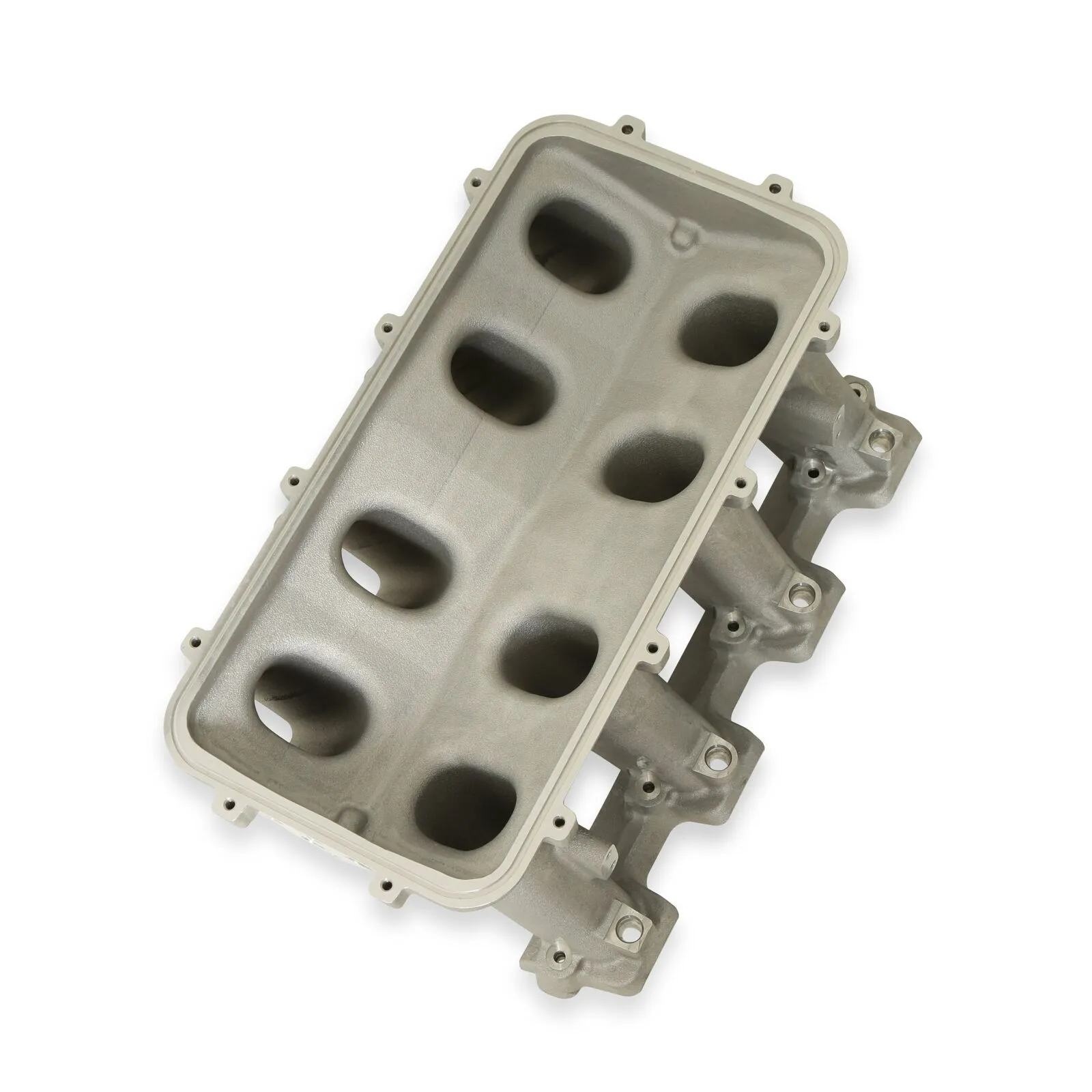

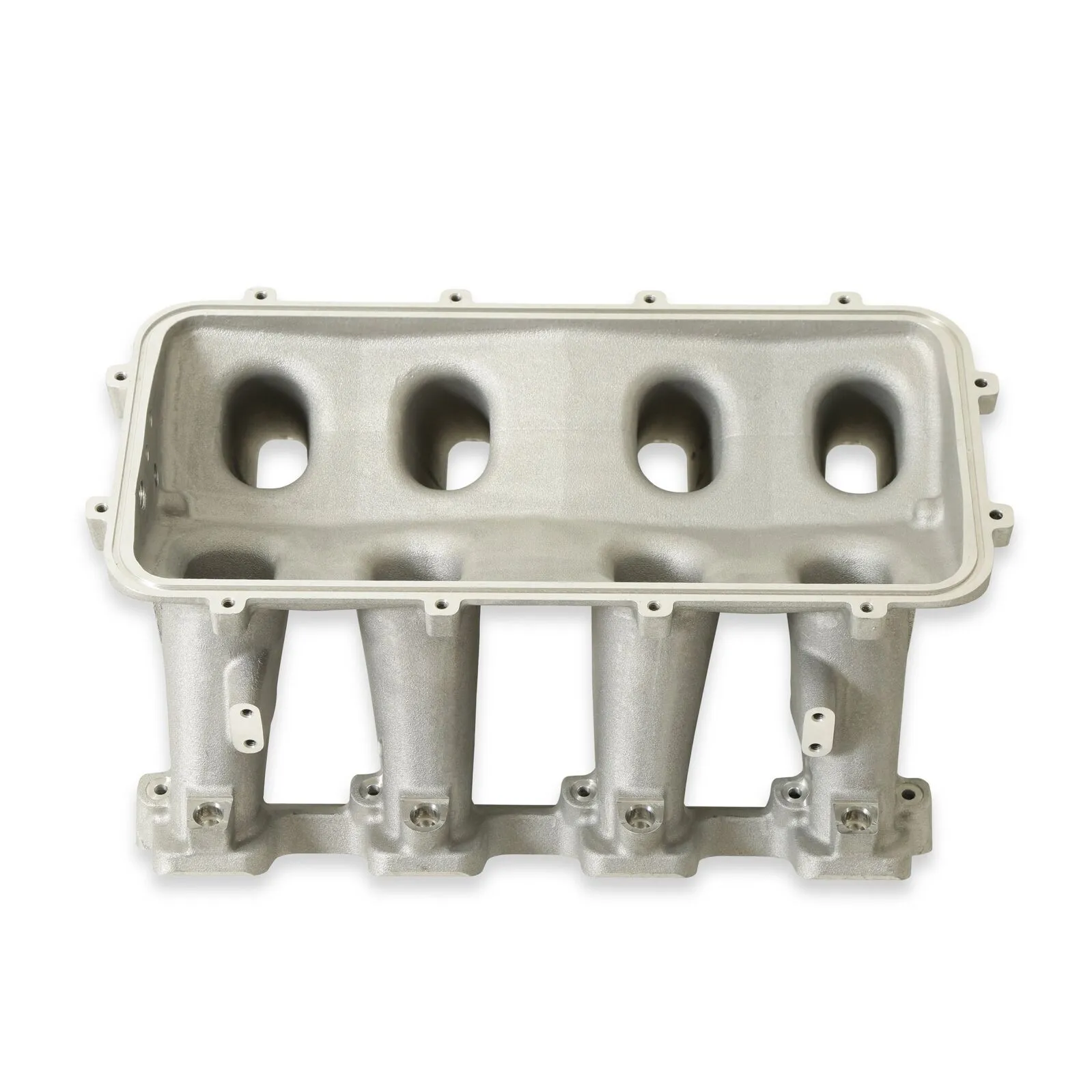

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Features

  • Port Size – 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type – Round 3/32” O-Ring Viton, 3” I.D.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25” to 2.77 in²

Specifications

Basic Operating RPM Range3500-8000 RPM
BrandHolley EFI
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourNatural
ConstructionCast
EGR PortNo
Emission Code4
EngineGM LS3/L92
FinishSilver
Fuel System TypeEFI
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural
Product TypeIntake Manifold Base
Removable RunnersNo
RPM Power Band3500-8000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
Type of ComponentLower Manifold
WarrantyLimited 90 Day

Compatibility

  • Universal Part

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Features

  • Port Size – 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type – Round 3/32” O-Ring Viton, 3” I.D.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25” to 2.77 in²
Basic Operating RPM Range3500-8000 RPM
BrandHolley EFI
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourNatural
ConstructionCast
EGR PortNo
Emission Code4
EngineGM LS3/L92
FinishSilver
Fuel System TypeEFI
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural
Product TypeIntake Manifold Base
Removable RunnersNo
RPM Power Band3500-8000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
Type of ComponentLower Manifold
WarrantyLimited 90 Day
  • Universal Part
