Description

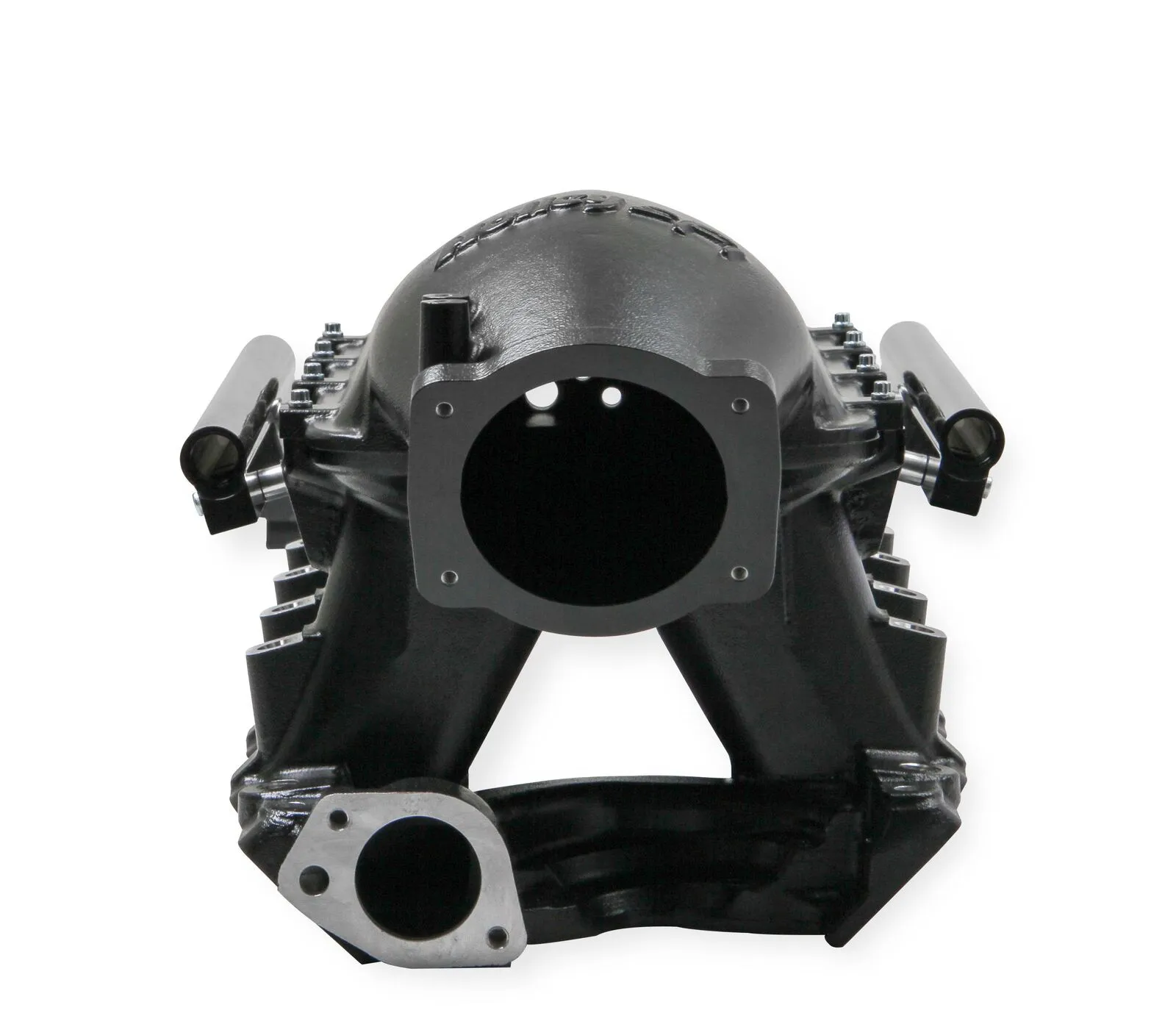

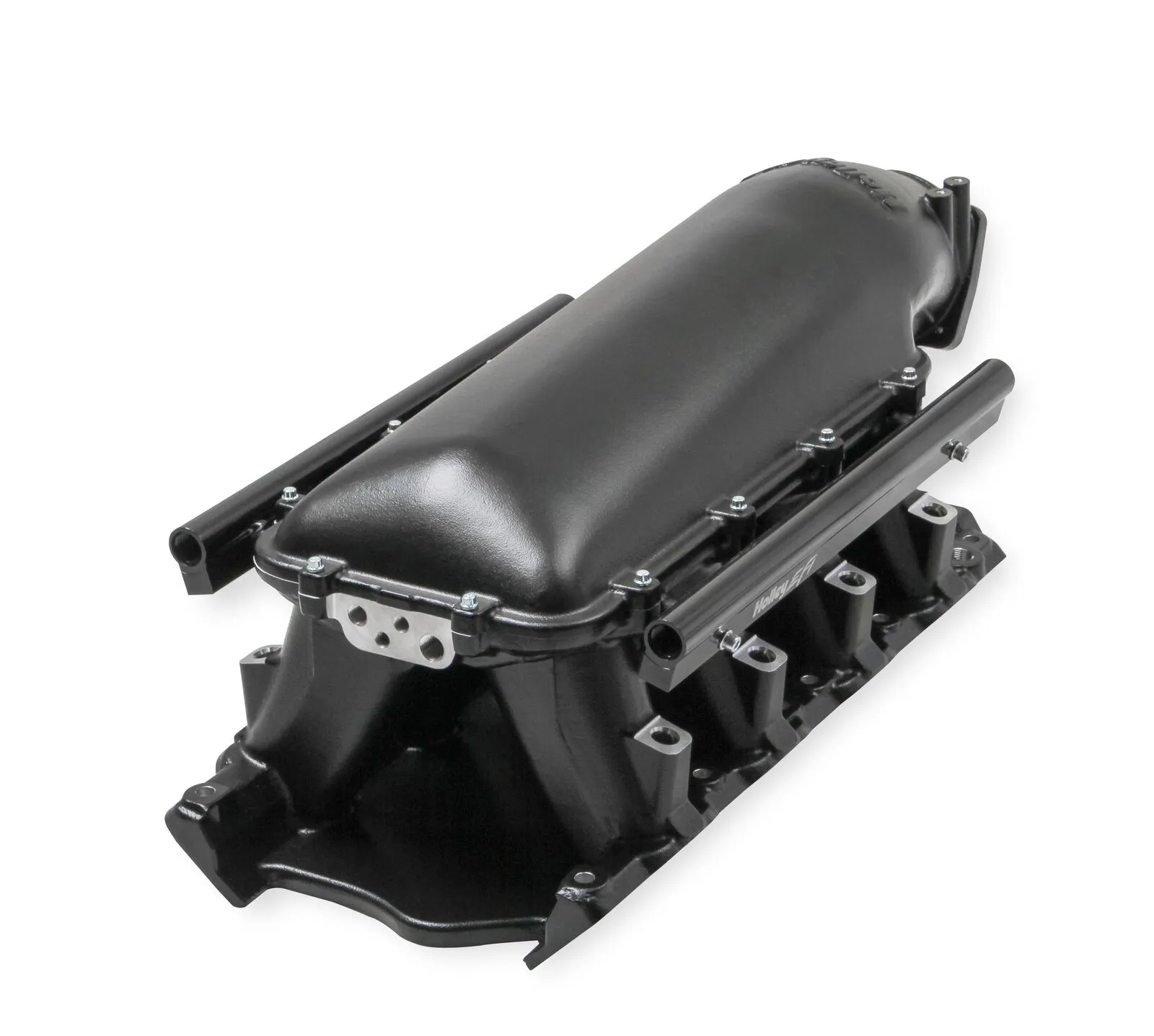

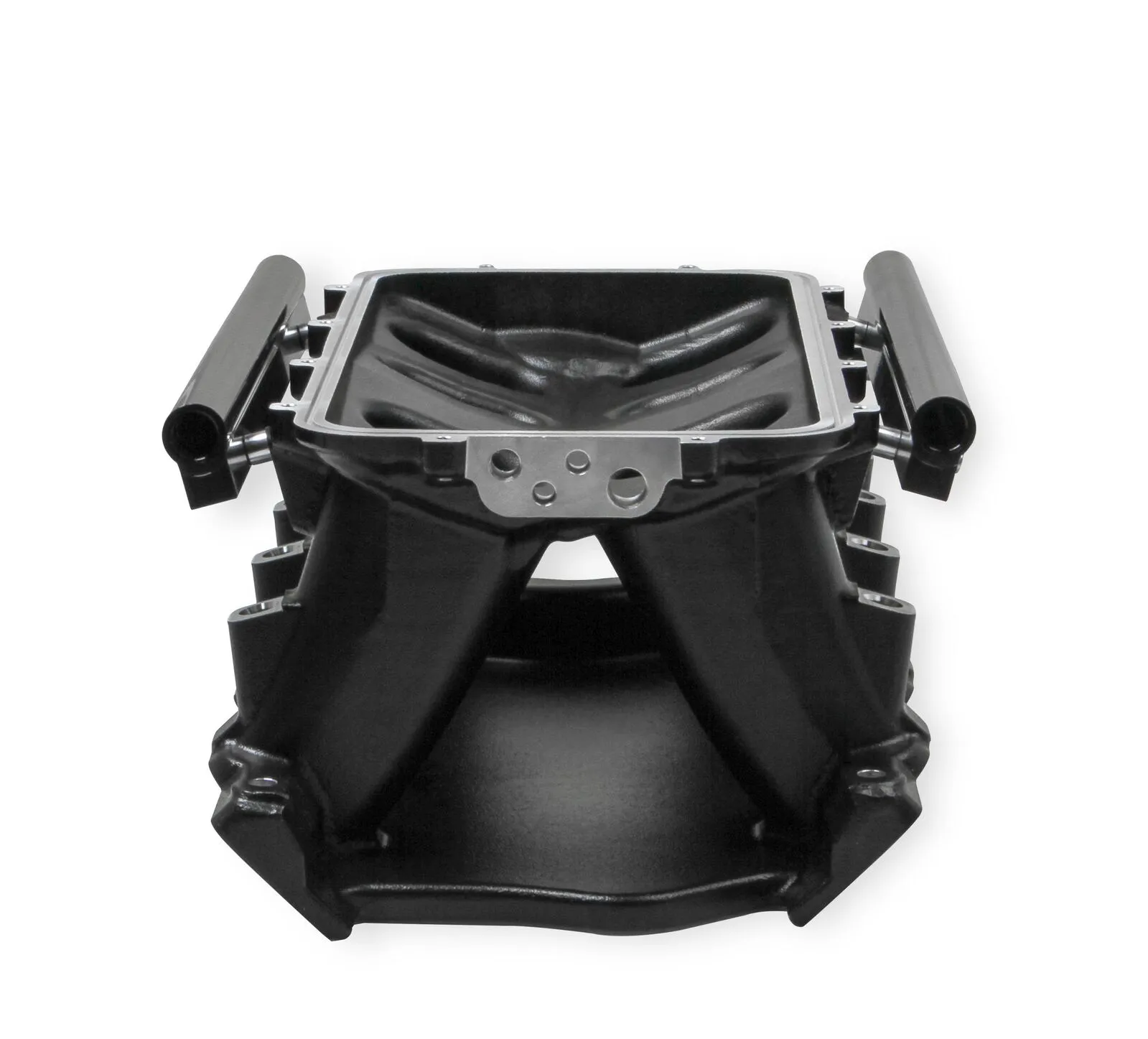

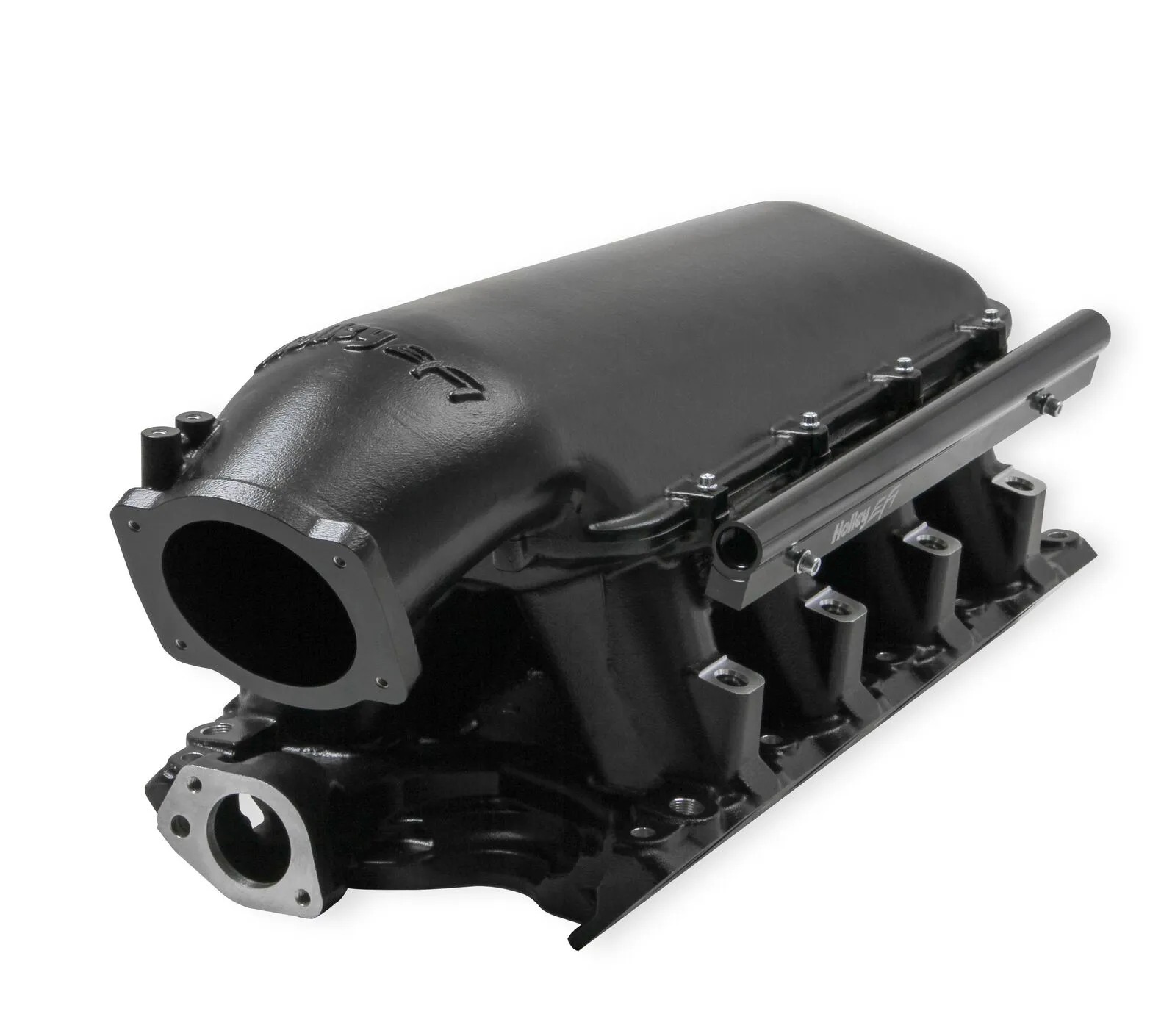

The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 95MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Manifold is designed for a 9.5" deck height.

Manifold Width is 11.32".

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

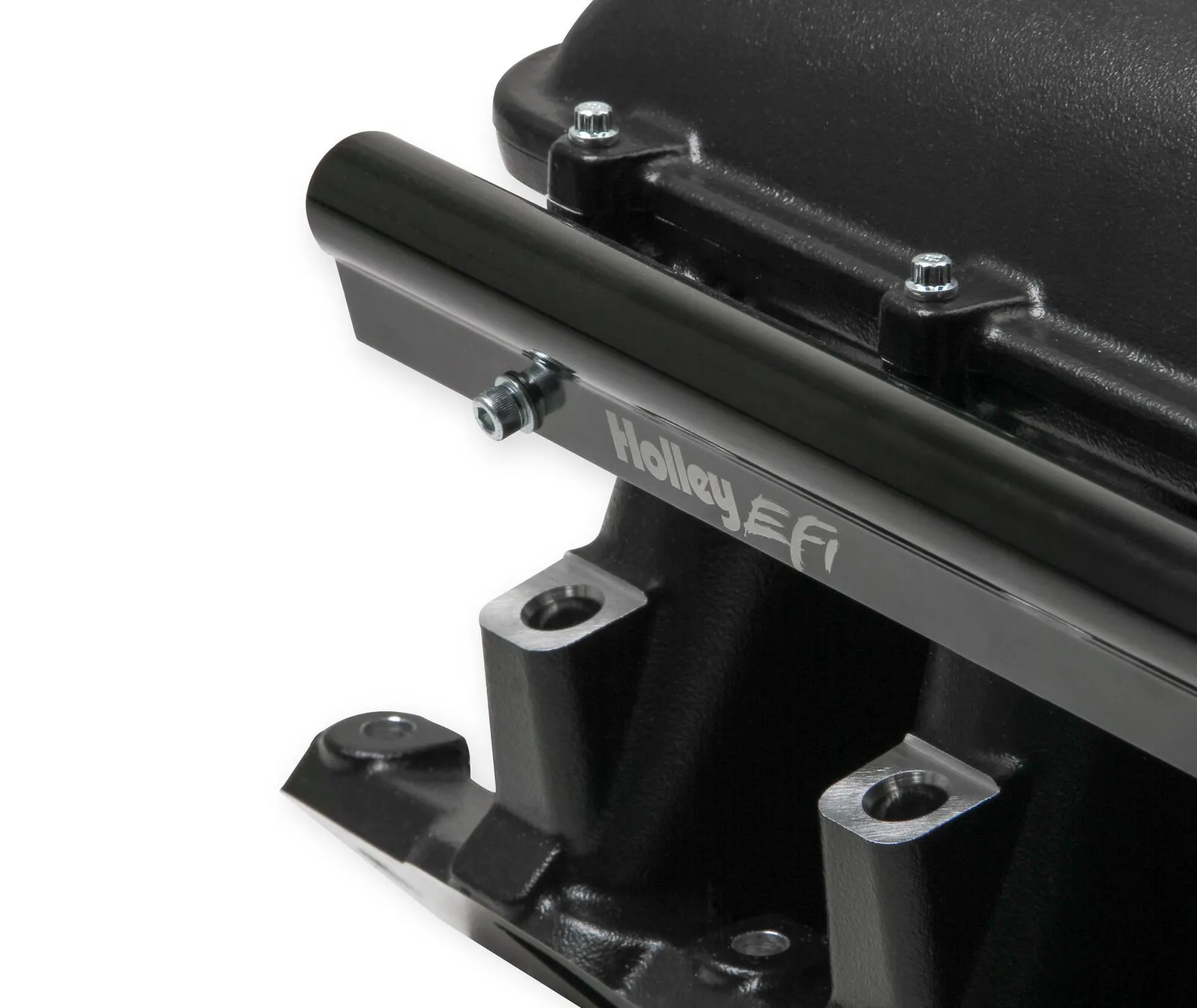

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction with black finish.

Features

  • The 351W manifold is available to work with 95MM or 105MM GM LS throttle bodies
  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 9.5" deck height.
  • Black Finish
  • Requires the Use of Holley EFI Dual Sync Distributor - 565-111

Specifications

Basic Operating RPM Range1500-7000 RPM
BrandHolley EFI
ColourBlack
ConstructionCast
EGR PortNo
Emission Code4
EngineFord 351W
FinishBlack
Flange StyleEFI
Fuel System TypeEFI
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeHi-Ram
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Port Size2.00" x 1.190"
Product TypeIntake Manifold
Removable RunnersNo
RPM Power Band1500-7000
RPM Power Band1500-7000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body Bore Diameter95 MM
Throttle Body IncludedNo
Throttle Bore95mm
WarrantyLimited 90 Day

Compatibility

  • Universal Part

The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 95MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Manifold is designed for a 9.5" deck height.

Manifold Width is 11.32".

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction with black finish.

Features

  • The 351W manifold is available to work with 95MM or 105MM GM LS throttle bodies
  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 9.5" deck height.
  • Black Finish
  • Requires the Use of Holley EFI Dual Sync Distributor - 565-111
Basic Operating RPM Range1500-7000 RPM
BrandHolley EFI
ColourBlack
ConstructionCast
EGR PortNo
Emission Code4
EngineFord 351W
FinishBlack
Flange StyleEFI
Fuel System TypeEFI
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeHi-Ram
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Port Size2.00" x 1.190"
Product TypeIntake Manifold
Removable RunnersNo
RPM Power Band1500-7000
RPM Power Band1500-7000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body Bore Diameter95 MM
Throttle Body IncludedNo
Throttle Bore95mm
WarrantyLimited 90 Day
  • Universal Part
