Description

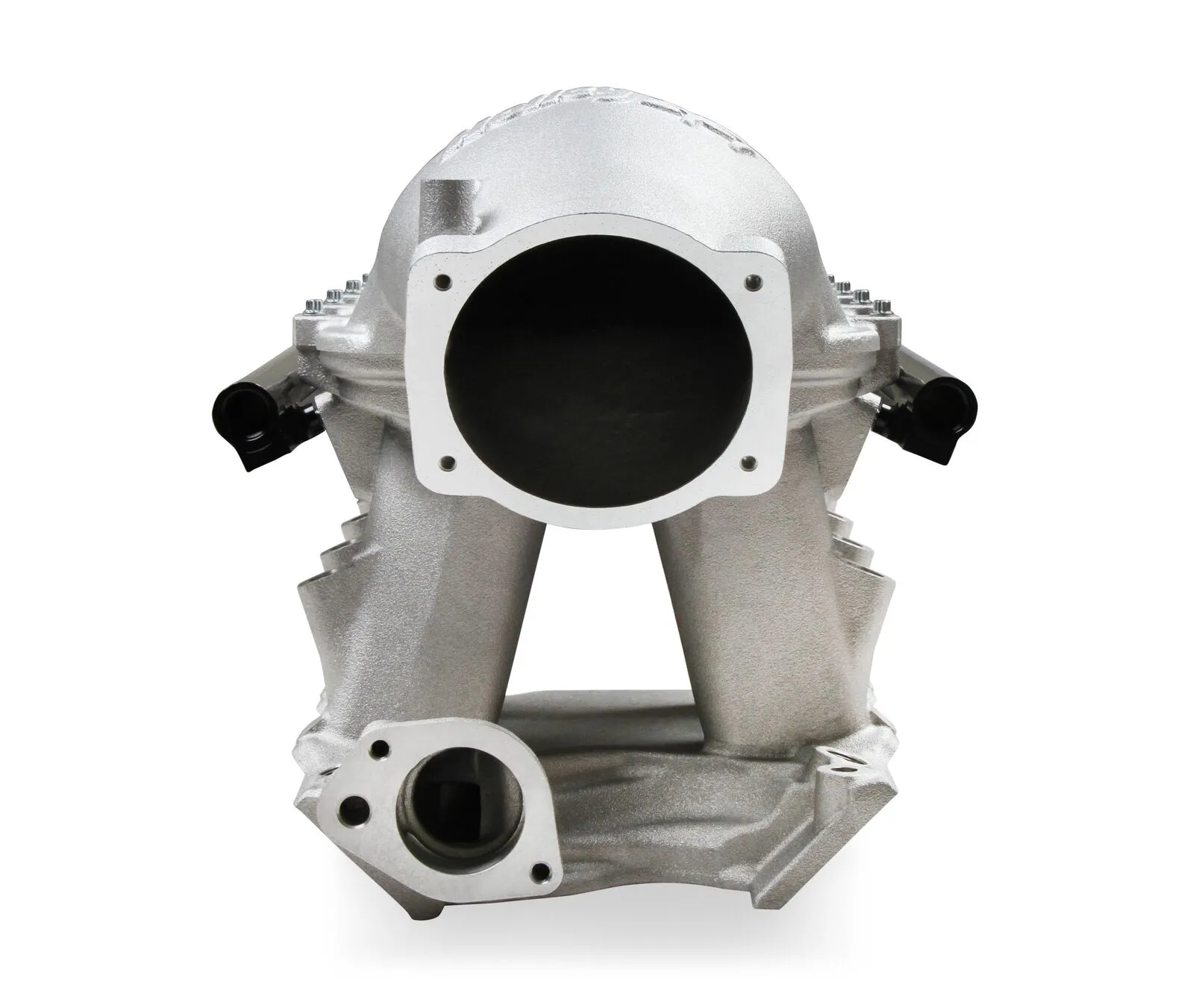

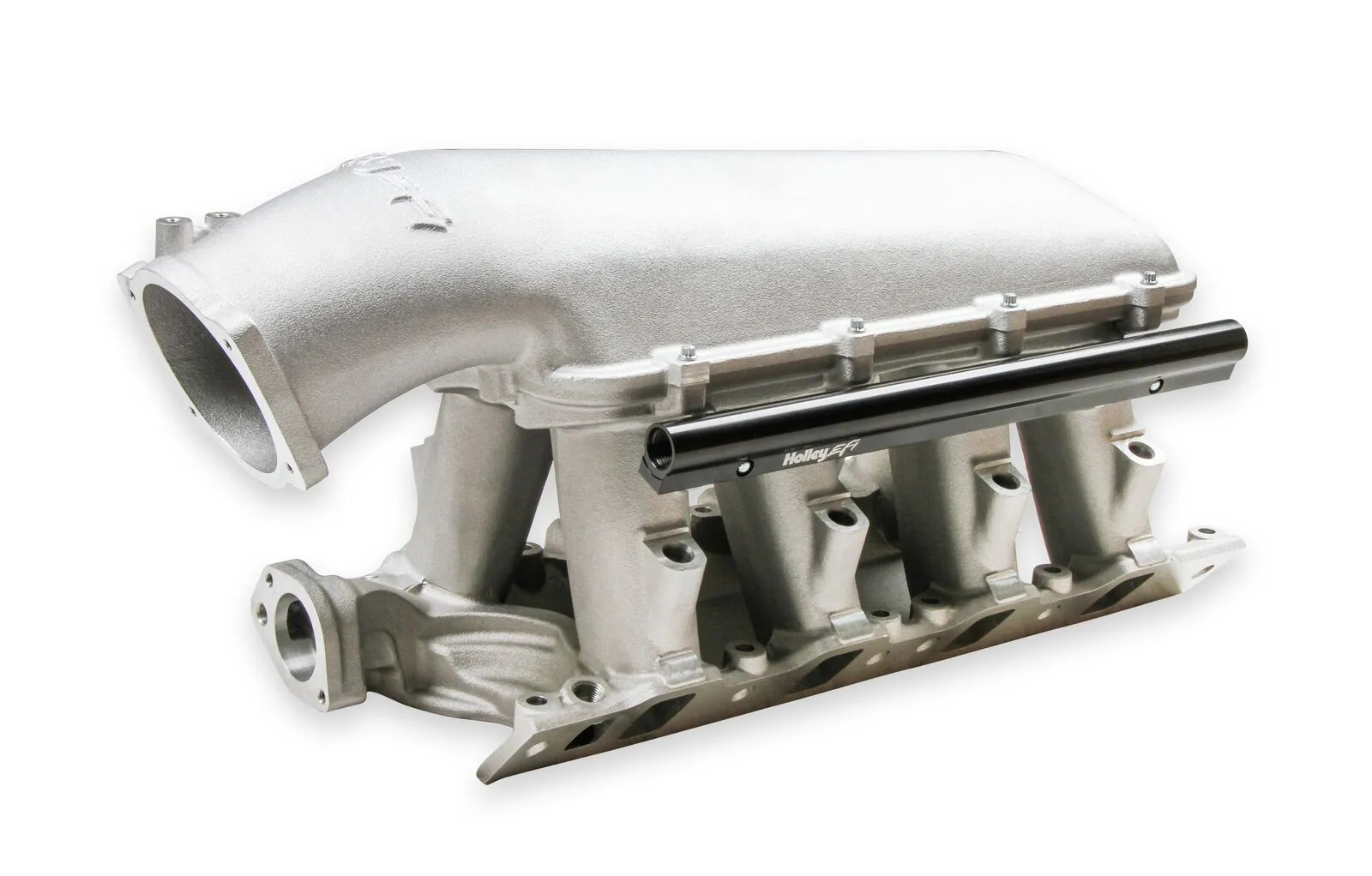

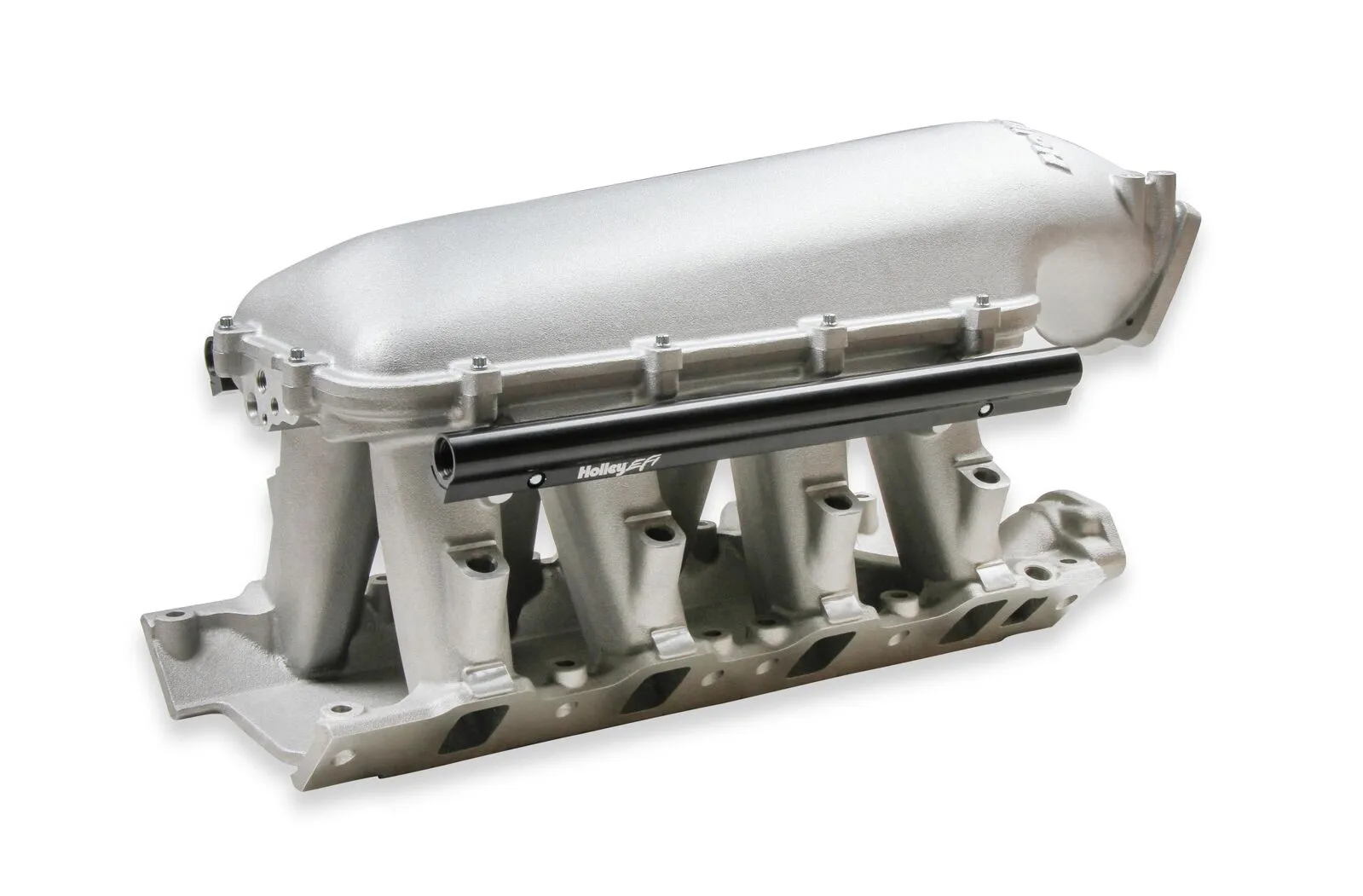

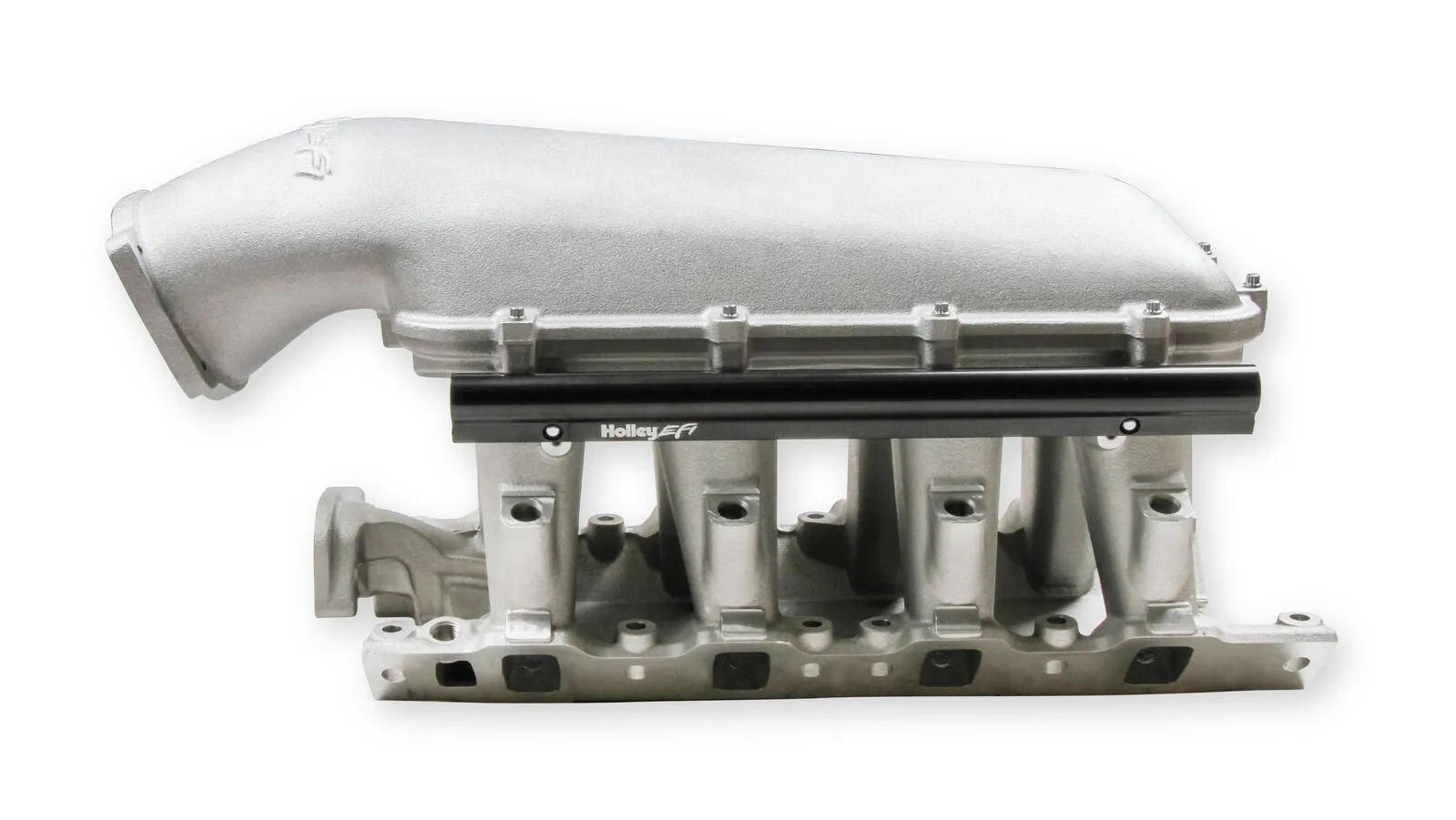

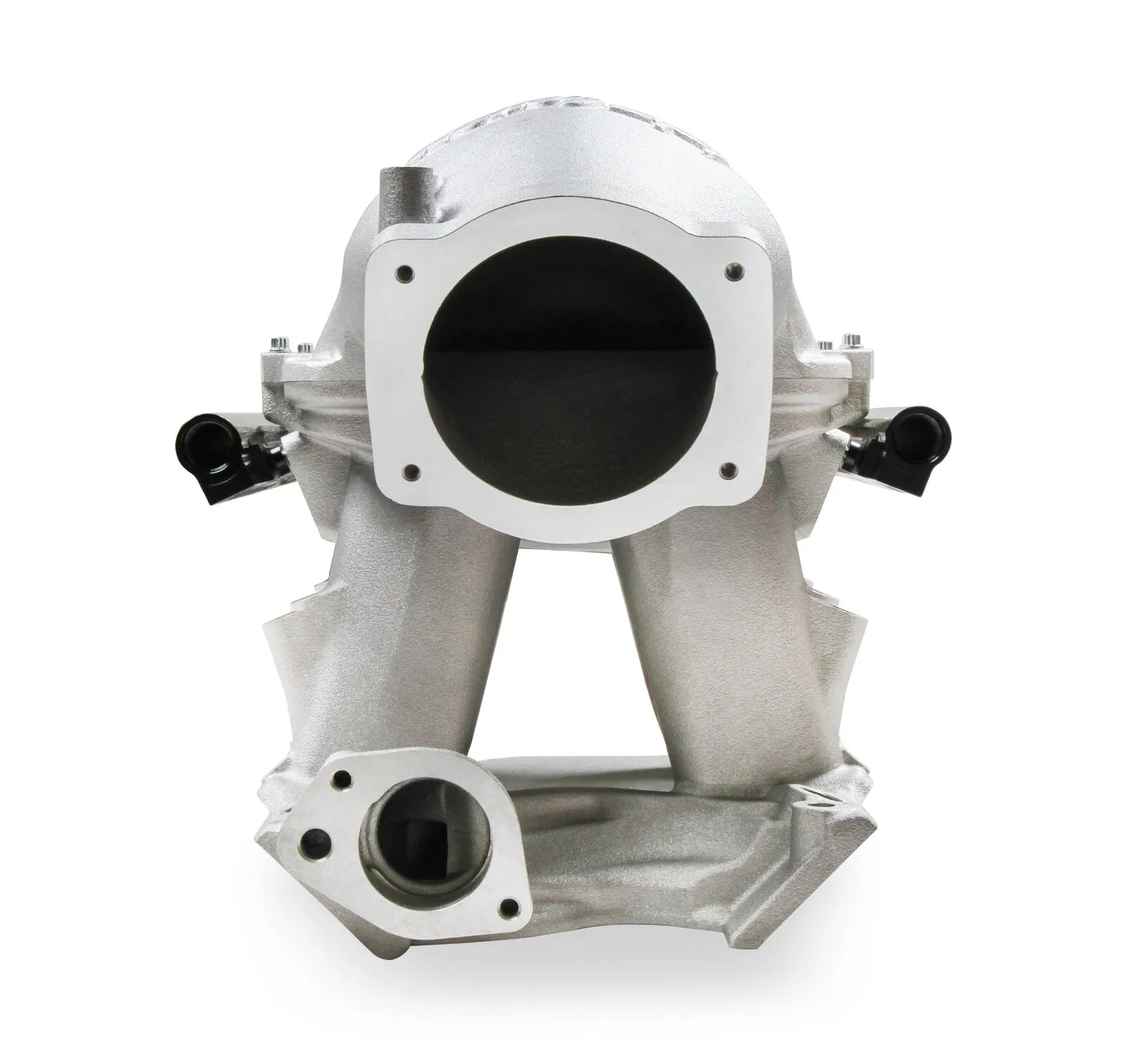

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Manifold is designed for a 8.2" deck height.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction.

*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

Features

  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 8.2" SBF deck height.
  • The 8.2 SBF manifold is available to work with 105MM throttle bodies

Specifications

Basic Operating RPM Range1500-7000 RPM
BrandHolley EFI
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourNatural
ConstructionCast
EGR PortNo
Emission Code3
EngineFord Small Block
FinishSatin
Flange StyleEFI
Fuel System TypeEFI
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeHi-Ram
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural

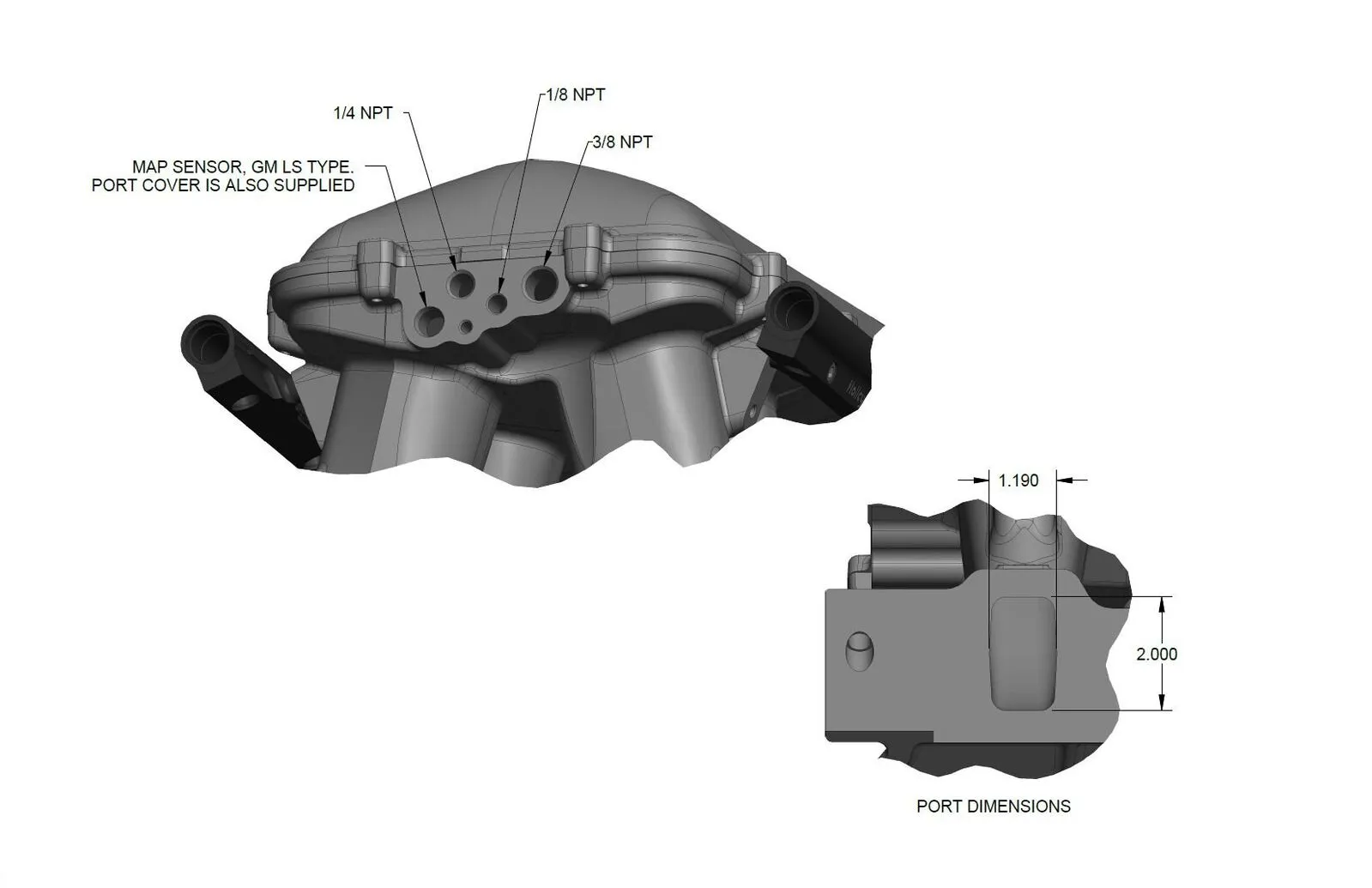

Port Size2.00" x 1.190"
Product TypeIntake Manifold
Removable RunnersNo
RPM Power Band1500-7000
RPM Power Band1500-7000 RPM
Single Or Dual Plane TypeSingle Plane
Throttle Body Bore Diameter105 MM
Throttle Body IncludedNo
Throttle Bore105mm
WarrantyLimited 90 Day

Compatibility

  • Universal Part

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Manifold is designed for a 8.2" deck height.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

• Cast aluminum construction.

*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

Features

  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 8.2" SBF deck height.
  • The 8.2 SBF manifold is available to work with 105MM throttle bodies
Basic Operating RPM Range1500-7000 RPM
BrandHolley EFI
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourNatural
ConstructionCast
EGR PortNo
Emission Code3
EngineFord Small Block
FinishSatin
Flange StyleEFI
Fuel System TypeEFI
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeHi-Ram
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural
Port Size2.00" x 1.190"
Product TypeIntake Manifold
Removable RunnersNo
RPM Power Band1500-7000
RPM Power Band1500-7000 RPM
Single Or Dual Plane TypeSingle Plane
Throttle Body Bore Diameter105 MM
Throttle Body IncludedNo
Throttle Bore105mm
WarrantyLimited 90 Day
  • Universal Part
