Description

The carbureted Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

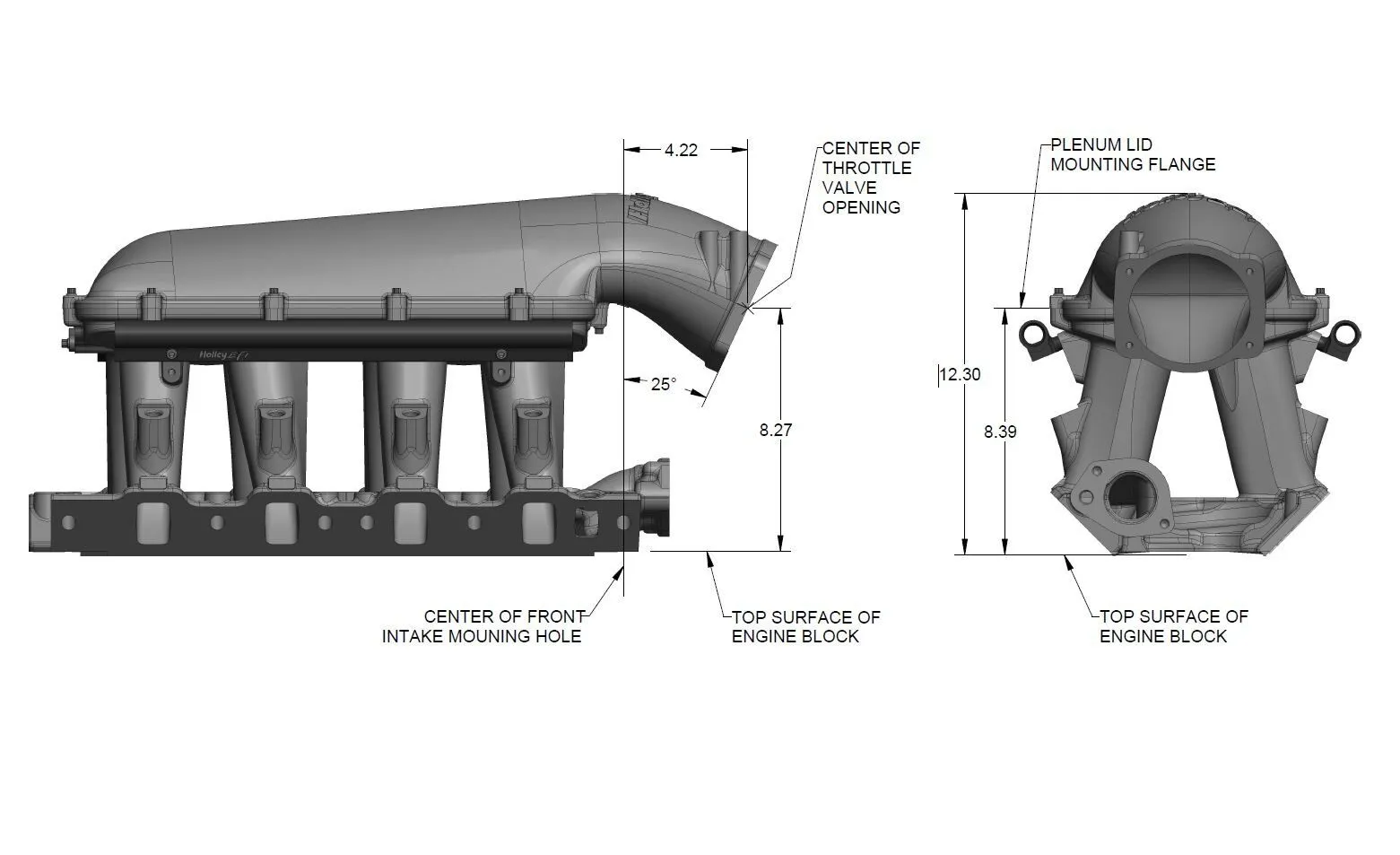

Manifold is designed for a 8.2" deck height.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• Cast aluminum construction.

***Carbureted Base Manifold only-Manifold tops available seperately.

*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

*** For carbureted applications you can use MSD PN 85797 Ford 289-302 Distributor with Steel Gear

Features

  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 8.2" SBF deck height.
  • Carbureted Base Manifold only.

Specifications

Basic Operating RPM Range1500-7000 RPM
BrandHolley EFI
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourNatural
ConstructionCast
EGR PortNo
Emission Code3
EngineFord Small Block
FinishSatin
Fuel System TypeCarburetor
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeHi-Ram
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural
Port Size2.00" x 1.190"
Product TypeIntake Manifold Base
Removable RunnersNo
RPM Power Band1500-7000
RPM Power Band1500-7000 RPM
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
WarrantyLimited 90 Day

Compatibility

  • Universal Part

The carbureted Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Manifold is designed for a 8.2" deck height.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

• Cast aluminum construction.

***Carbureted Base Manifold only-Manifold tops available seperately.

*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

*** For carbureted applications you can use MSD PN 85797 Ford 289-302 Distributor with Steel Gear

Features

  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 8.2" SBF deck height.
  • Carbureted Base Manifold only.
Basic Operating RPM Range1500-7000 RPM
BrandHolley EFI
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourNatural
ConstructionCast
EGR PortNo
Emission Code3
EngineFord Small Block
FinishSatin
Fuel System TypeCarburetor
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeHi-Ram
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural
Port Size2.00" x 1.190"
Product TypeIntake Manifold Base
Removable RunnersNo
RPM Power Band1500-7000
RPM Power Band1500-7000 RPM
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
WarrantyLimited 90 Day
  • Universal Part
