Description

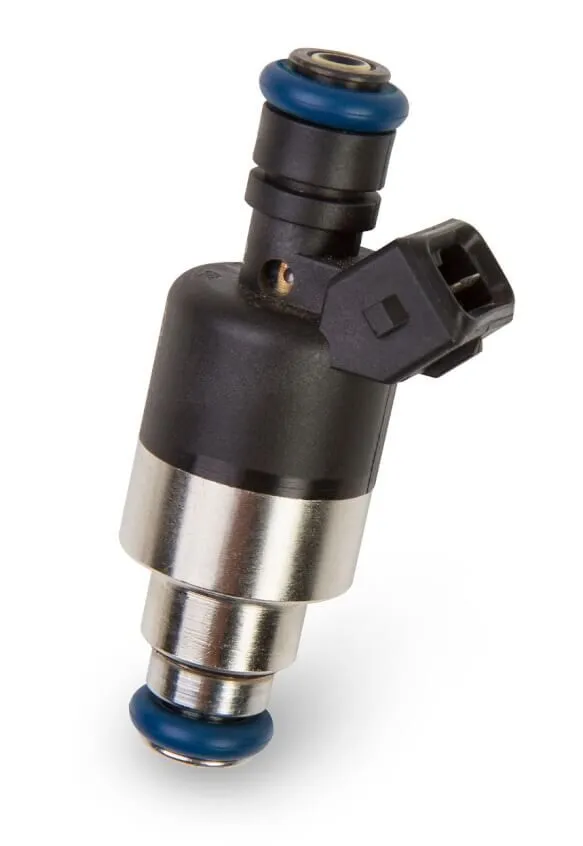

Holley EFI 160lb/hr Flow Matched Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. The Holley EFI Flow Matched Fuel Injectors provide precision fuel delivery you can depend on.

Features

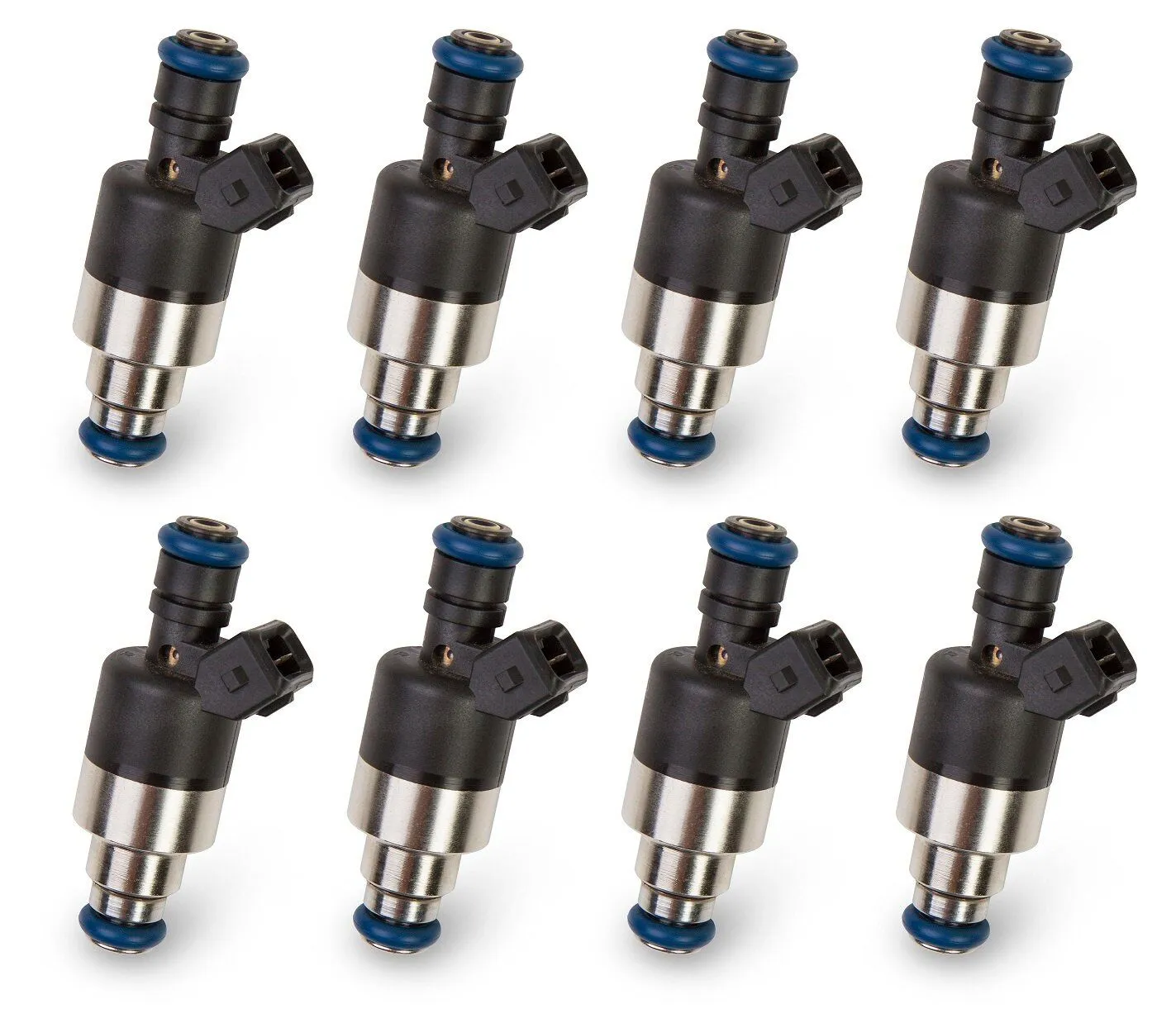

  • Bosch/EV1 style performance injectors - Set of 8
  • Low impedance (2.0 Ohms) for use with peak and hold drivers
  • Rated injector flow: 160 lb/hr @ 43 PSI
  • Supports up to 2525 horsepower
  • Tri-cone spray pattern
  • Maximum recommended fuel pressure: 75 PSI
  • Dynamic Flow Matched within 1%

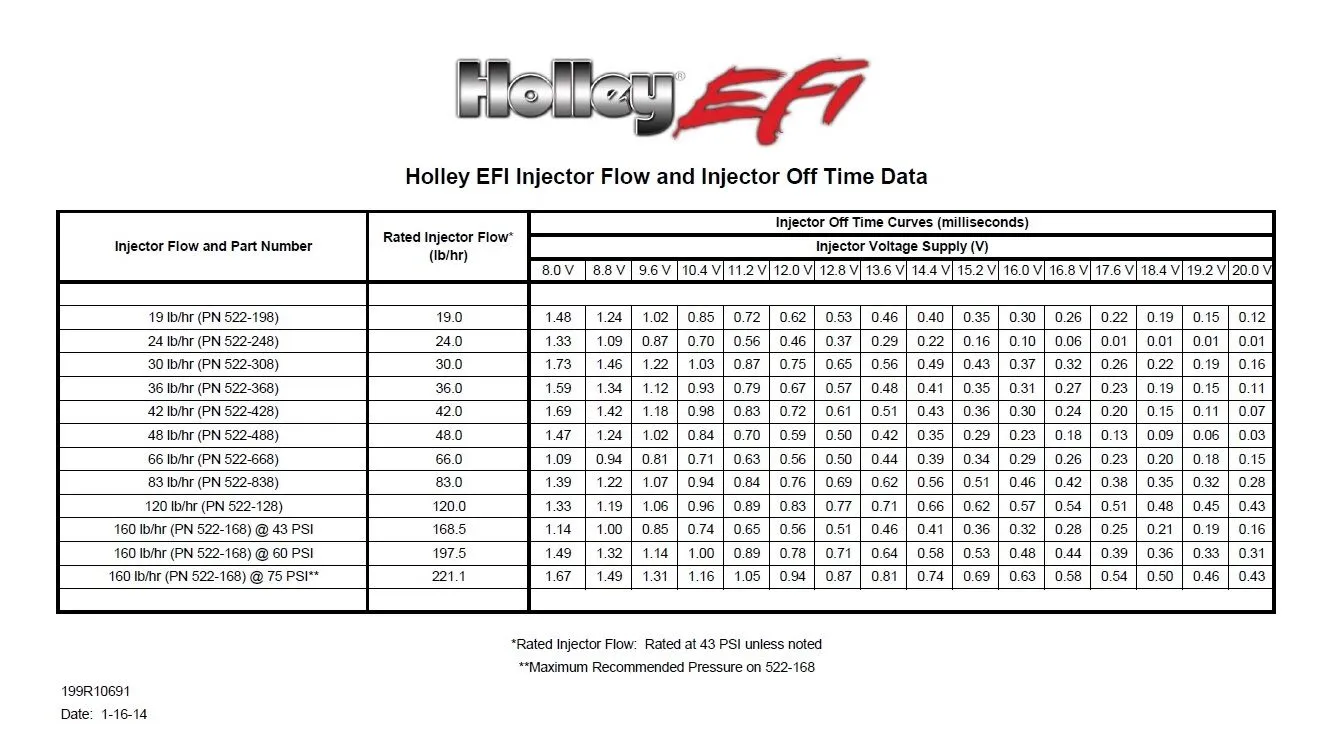

  • Injector Dead Times matched within 20 microseconds

Specifications

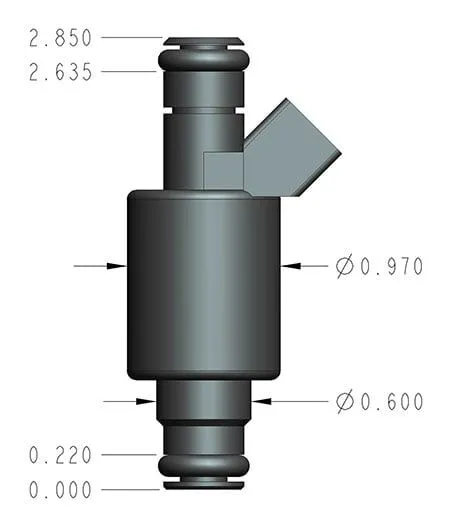

Body Diameter0.97
Body Length2.85"
Body StyleEV1
BrandHolley EFI
Connector SeriesEV1 - Jetronic - (Bosch Style)
Emission Code3
Fuel TypeE-85, Gasoline
Grade TypePerformance
ImpedanceLow (2.0 Ohm)
O-Ring to O-Ring2.415"
Product TypeFuel Injector
Rated Injector Flow160 lb/hr
Sale CategoryAir and Fuel Delivery
Terminal Quantity1
Universal Or Specific FitUniversal

Compatibility

  • Universal Part

Holley EFI 160lb/hr Flow Matched Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. The Holley EFI Flow Matched Fuel Injectors provide precision fuel delivery you can depend on.

Features

  • Bosch/EV1 style performance injectors - Set of 8
  • Low impedance (2.0 Ohms) for use with peak and hold drivers
  • Rated injector flow: 160 lb/hr @ 43 PSI
  • Supports up to 2525 horsepower
  • Tri-cone spray pattern
  • Maximum recommended fuel pressure: 75 PSI
  • Dynamic Flow Matched within 1%
  • Injector Dead Times matched within 20 microseconds
Body Diameter0.97
Body Length2.85"
Body StyleEV1
BrandHolley EFI
Connector SeriesEV1 - Jetronic - (Bosch Style)
Emission Code3
Fuel TypeE-85, Gasoline
Grade TypePerformance
ImpedanceLow (2.0 Ohm)
O-Ring to O-Ring2.415"
Product TypeFuel Injector
Rated Injector Flow160 lb/hr
Sale CategoryAir and Fuel Delivery
Terminal Quantity1
Universal Or Specific FitUniversal
  • Universal Part
