Description

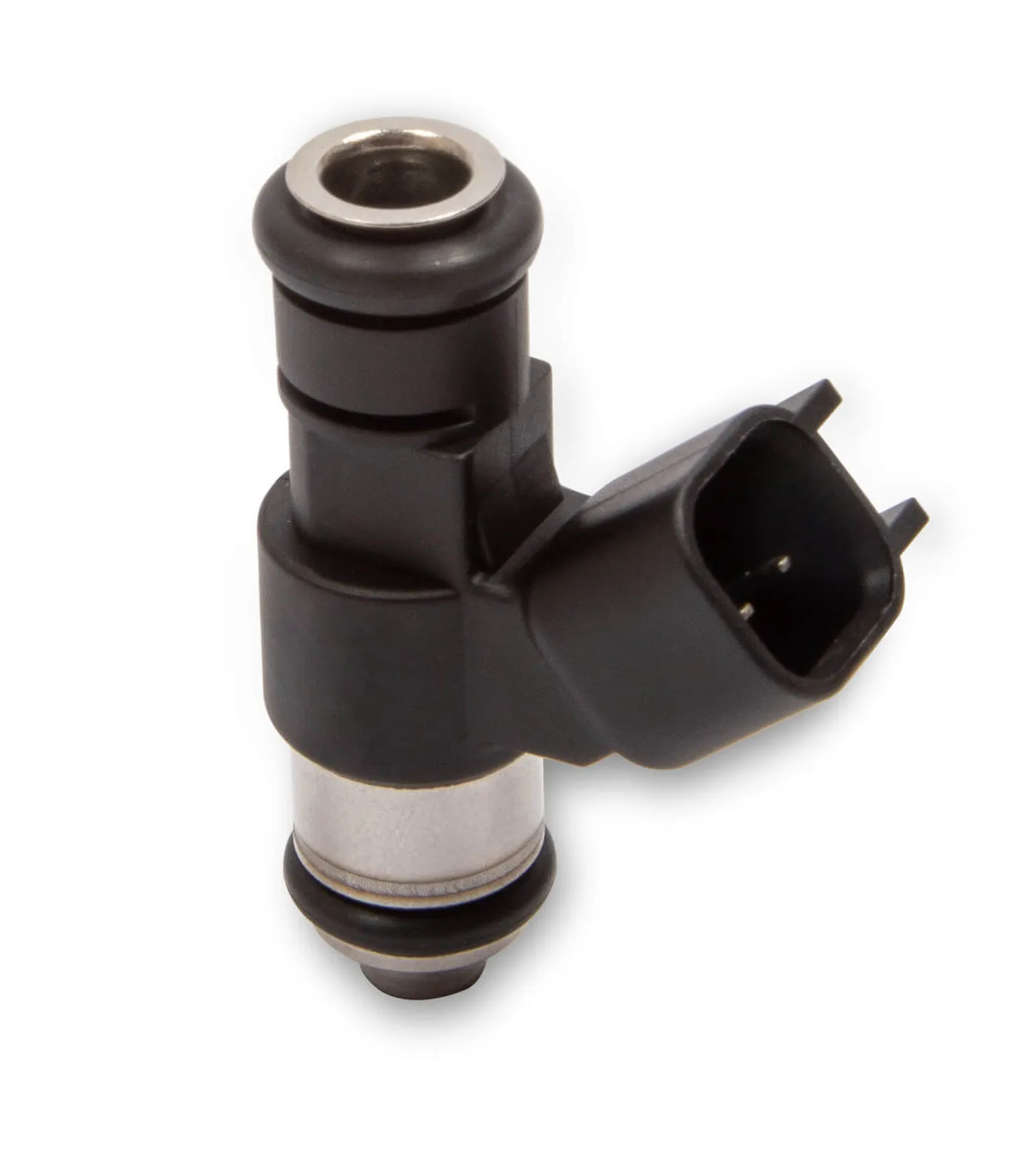

Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

Features

  • PICO/EV6 style performance injectors – sold individually or set of 8
  • High impedance for use with saturated drivers
  • Rated injector flow 220 lb./hr. at 43 PSI of base fuel pressure
  • USCAR injector connector
  • 40mm o-ring to o-ring length
  • Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
  • Methanol compatible – for use in extreme horsepower applications

Specifications

Body Diameter0.97
Body Length2.85"
Body StyleEV6
BrandHolley EFI
ColourBlack
Connector SeriesUSCAR - EV6
Connector ShapeUSCAR - EV6
Emission Code4
Flow Rate220 4U
Fuel Injection TypePort
Fuel TypeE-85, Gasoline, Methanol
Gasket Or Seal IncludedYes
Grade TypePerformance
ImpedanceHigh
Mounting Hardware IncludedNo
O-Ring Quantity2 per injector
O-Ring to O-Ring2.415"
Product TypeFuel Injector
Rated Injector Flow220 lb/hr
Retainer Clips IncludedNo
Sale CategoryAir and Fuel Delivery
Terminal GenderFemale

Compatibility

  • Universal Part

Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

Features

  • PICO/EV6 style performance injectors – sold individually or set of 8
  • High impedance for use with saturated drivers
  • Rated injector flow 220 lb./hr. at 43 PSI of base fuel pressure
  • USCAR injector connector
  • 40mm o-ring to o-ring length
  • Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
  • Methanol compatible – for use in extreme horsepower applications
Body Diameter0.97
Body Length2.85"
Body StyleEV6
BrandHolley EFI
ColourBlack
Connector SeriesUSCAR - EV6
Connector ShapeUSCAR - EV6
Emission Code4
Flow Rate220 4U
Fuel Injection TypePort
Fuel TypeE-85, Gasoline, Methanol
Gasket Or Seal IncludedYes
Grade TypePerformance
ImpedanceHigh
Mounting Hardware IncludedNo
O-Ring Quantity2 per injector
O-Ring to O-Ring2.415"
Product TypeFuel Injector
Rated Injector Flow220 lb/hr
Retainer Clips IncludedNo
Sale CategoryAir and Fuel Delivery
Terminal GenderFemale
  • Universal Part
