Description

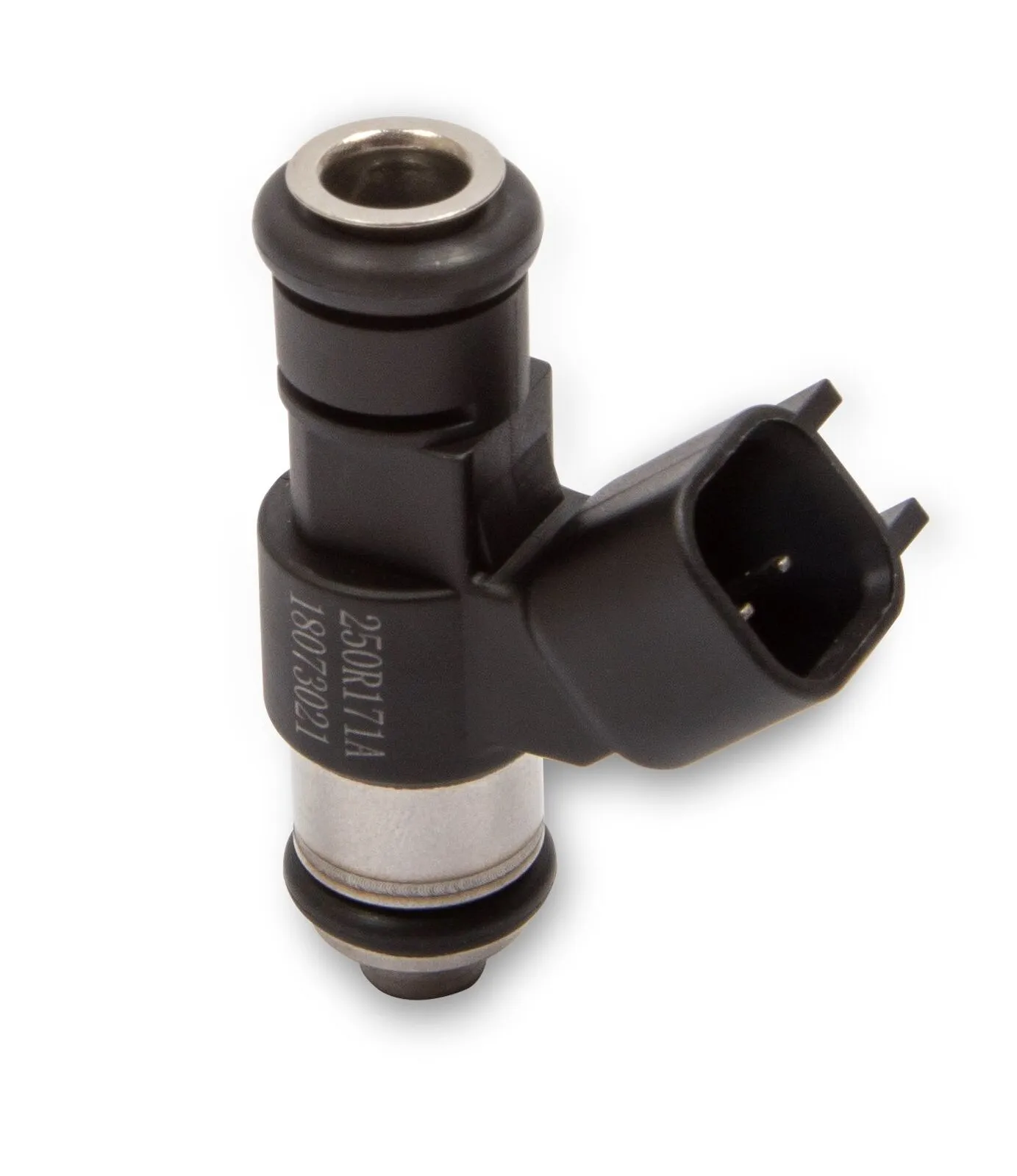

Sniper EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors.

Features

  • PICO/EV6 style performance injector
  • High impedance (12.2 Ohms) for use with saturated drivers
  • Rated injector flow: 36 lb/hr @ 43 PSI
  • Supports up to 575 horsepower (set of 8)
  • Tri-cone spray pattern

Specifications

Body Diameter0.65
Body Length1.85"
Body StyleEV6
BrandHolley Sniper EFI
Connector SeriesEV6
Emission Code4
Flow Rate36
Fuel TypeE-85, Gasoline
Gasket Or Seal IncludedYes
Grade TypePerformance
ImpedanceHigh (12.2 Ohm)
O-Ring to O-Ring1.421
Product TypeFuel Injector
Rated Injector Flow36 lb/hr
Sale CategoryAir and Fuel Delivery
Terminal GenderMale
Terminal Quantity1
Terminal TypeBlade
Wiring Harness IncludedNo

Compatibility

  • Universal Part

Sniper EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors.

Features

  • PICO/EV6 style performance injector
  • High impedance (12.2 Ohms) for use with saturated drivers
  • Rated injector flow: 36 lb/hr @ 43 PSI
  • Supports up to 575 horsepower (set of 8)
  • Tri-cone spray pattern
Body Diameter0.65
Body Length1.85"
Body StyleEV6
BrandHolley Sniper EFI
Connector SeriesEV6
Emission Code4
Flow Rate36
Fuel TypeE-85, Gasoline
Gasket Or Seal IncludedYes
Grade TypePerformance
ImpedanceHigh (12.2 Ohm)
O-Ring to O-Ring1.421
Product TypeFuel Injector
Rated Injector Flow36 lb/hr
Sale CategoryAir and Fuel Delivery
Terminal GenderMale
Terminal Quantity1
Terminal TypeBlade
Wiring Harness IncludedNo
  • Universal Part
