Description

Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.

Features

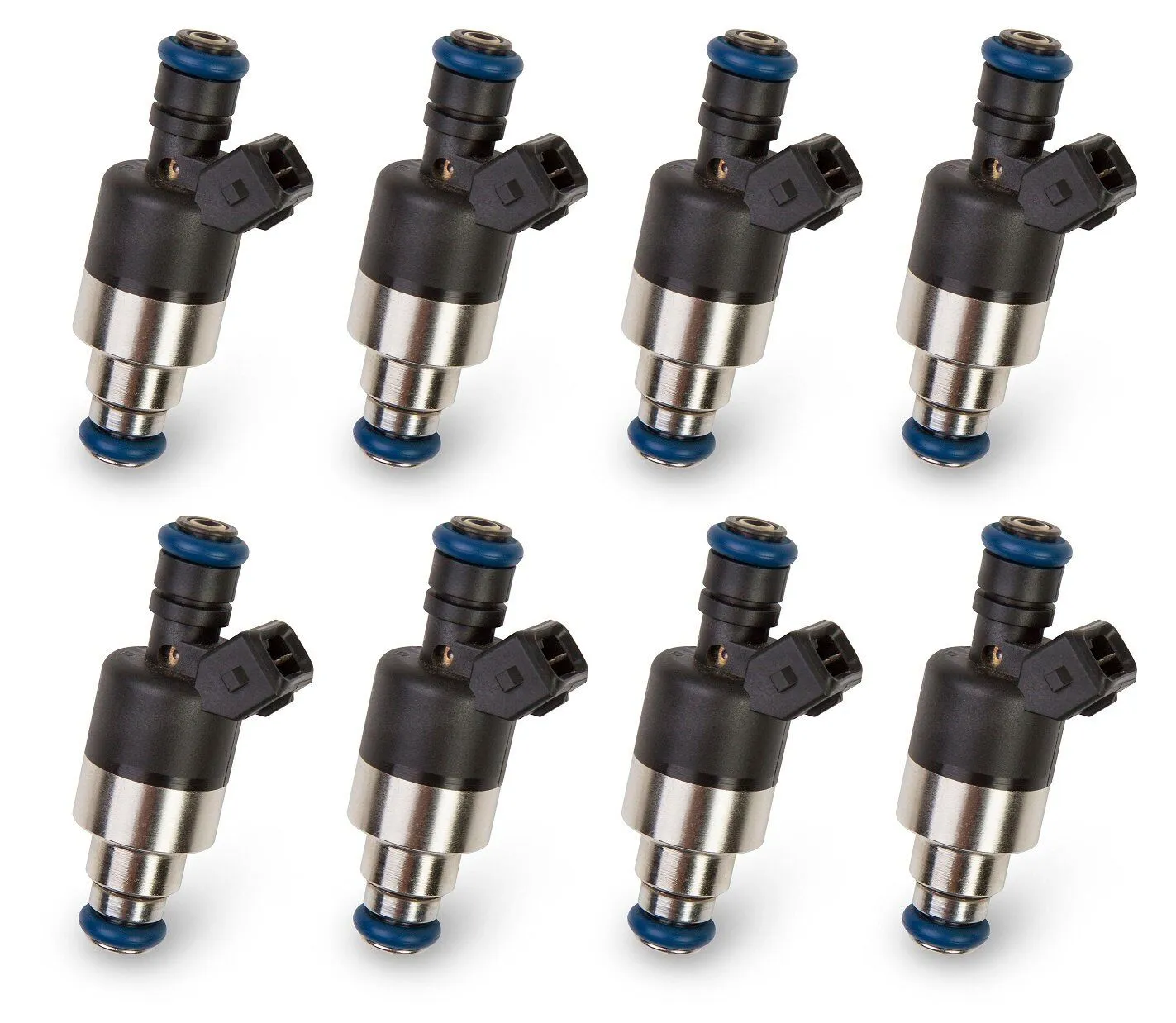

  • Bosch/EV1 style performance injectors - Set of 8
  • High impedance for use with saturated drivers
  • Rated injector flow: 42 lb/hr @ 43 PSI
  • Supports up to 670 horsepower
  • Tri-cone spray pattern

Specifications

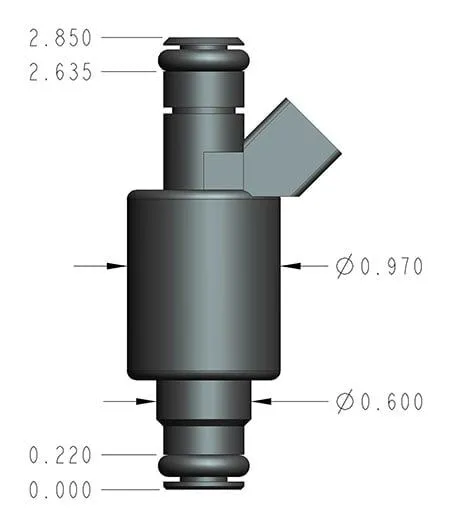

Body Diameter0.97
Body Length2.85"
Body StyleEV1
BrandHolley EFI
ColourBlack
Connector SeriesEV1 - Jetronic - (Bosch Style)
Connector ShapeEV1 - Jetronic - (Bosch Style)
Emission Code3
Flow Rate42 4U
Fuel Injection TypePort
Fuel TypeE-85, Gasoline
Gasket Or Seal IncludedYes
Grade TypePerformance
ImpedanceHigh
Mounting Hardware IncludedNo
O-Ring Quantity2 per injector
O-Ring to O-Ring2.415"
Product TypeFuel Injector
Rated Injector Flow42 lb/hr
Retainer Clips IncludedNo
Sale CategoryAir and Fuel Delivery
Terminal GenderFemale

Compatibility

  • Universal Part

Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.

Features

  • Bosch/EV1 style performance injectors - Set of 8
  • High impedance for use with saturated drivers
  • Rated injector flow: 42 lb/hr @ 43 PSI
  • Supports up to 670 horsepower
  • Tri-cone spray pattern
Body Diameter0.97
Body Length2.85"
Body StyleEV1
BrandHolley EFI
ColourBlack
Connector SeriesEV1 - Jetronic - (Bosch Style)
Connector ShapeEV1 - Jetronic - (Bosch Style)
Emission Code3
Flow Rate42 4U
Fuel Injection TypePort
Fuel TypeE-85, Gasoline
Gasket Or Seal IncludedYes
Grade TypePerformance
ImpedanceHigh
Mounting Hardware IncludedNo
O-Ring Quantity2 per injector
O-Ring to O-Ring2.415"
Product TypeFuel Injector
Rated Injector Flow42 lb/hr
Retainer Clips IncludedNo
Sale CategoryAir and Fuel Delivery
Terminal GenderFemale
  • Universal Part
