Description

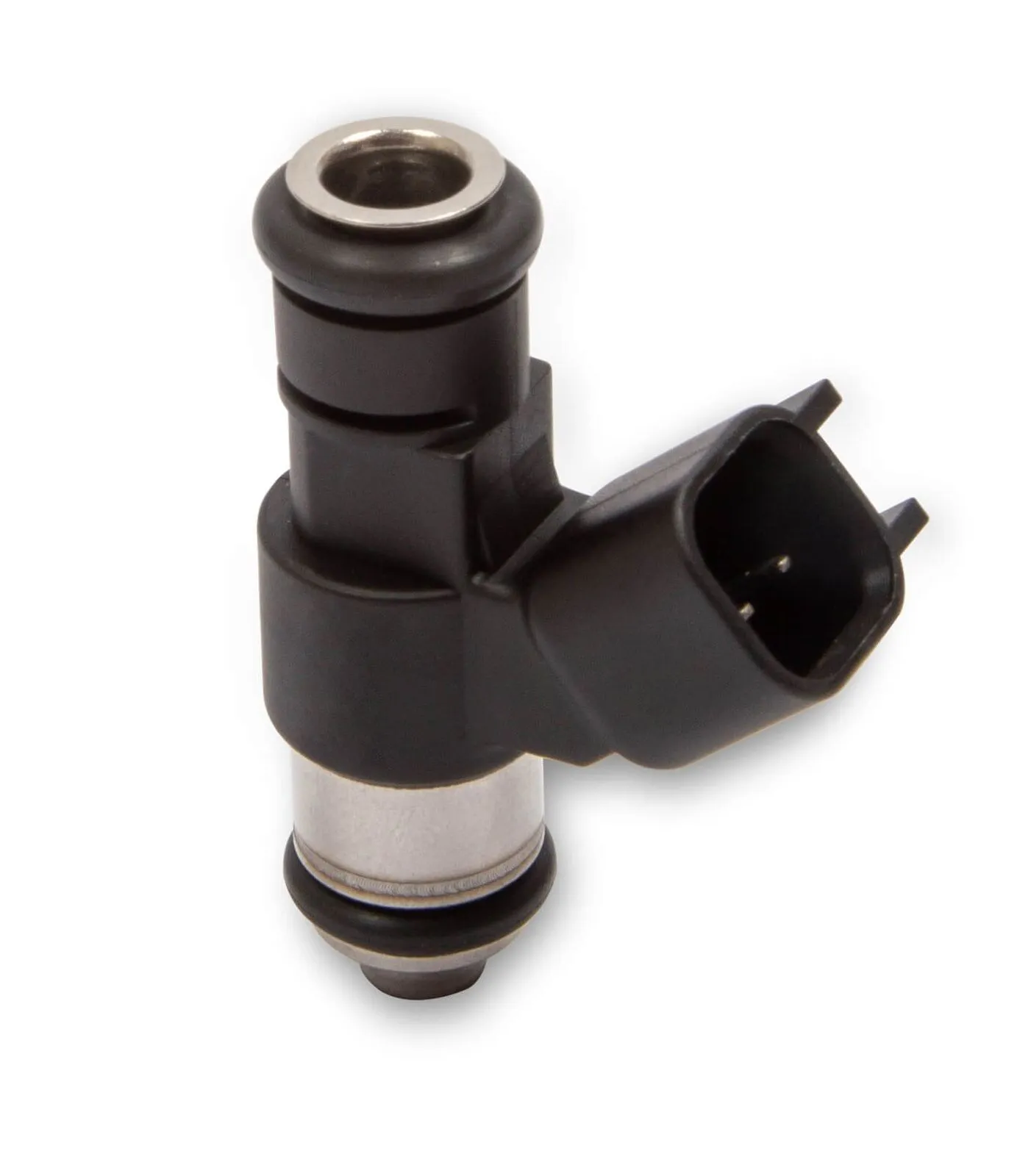

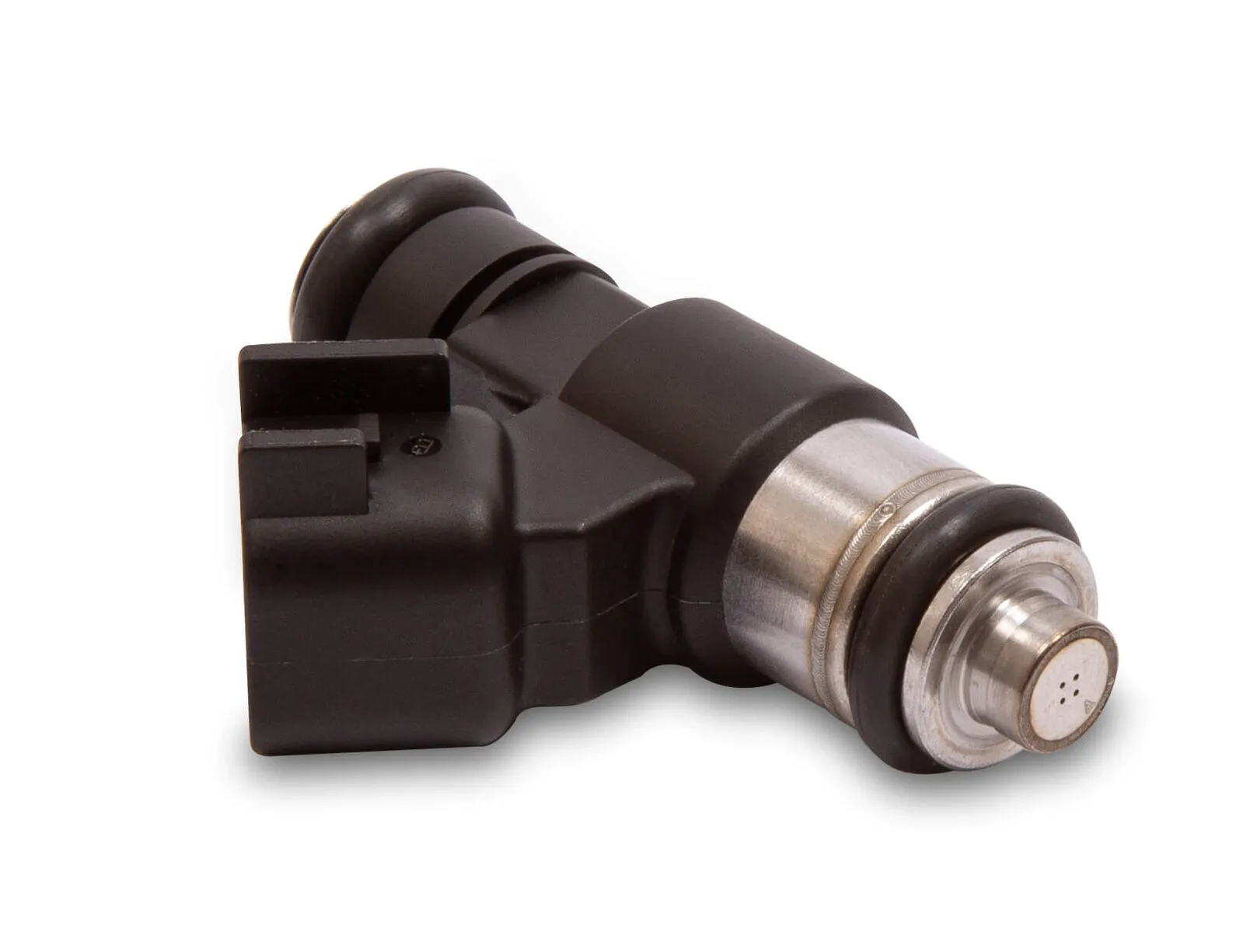

Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

Features

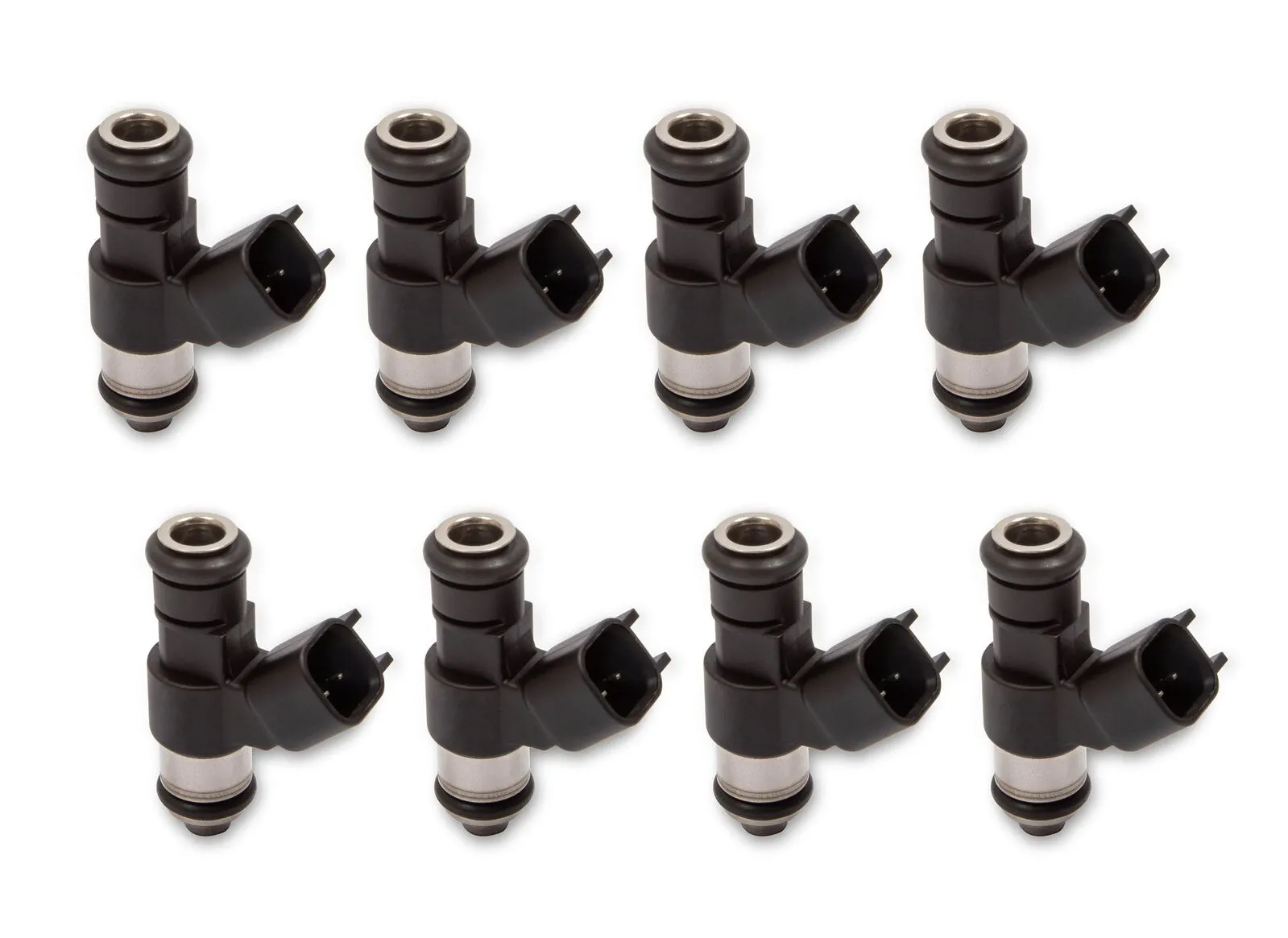

  • PICO/EV6 style performance injectors – sold individually or set of 8
  • High impedance for use with saturated drivers
  • Rated injector flow: 42 lb./hr. at 60 PSI of base fuel pressure
  • USCAR injector connector
  • 40mm o-ring to o-ring length
  • Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9

Specifications

Body Diameter0.65
Body Length1.85"
Body StyleEV6
BrandHolley EFI
ColourBlack
Connector SeriesEV6
Connector ShapeEV6
Emission Code4
Flow Rate42 4U
Fuel Injection TypePort
Fuel TypeE-85, Gasoline
Gasket Or Seal IncludedYes
Grade TypePerformance
ImpedanceHigh (12.2 Ohm)
Mounting Hardware IncludedNo
O-Ring Quantity2 per injector
O-Ring to O-Ring1.421
Product TypeFuel Injector
Rated Injector Flow42 lb/hr
Retainer Clips IncludedNo
Sale CategoryAir and Fuel Delivery
Terminal GenderFemale

Compatibility

  • Universal Part

Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

Features

  • PICO/EV6 style performance injectors – sold individually or set of 8
  • High impedance for use with saturated drivers
  • Rated injector flow: 42 lb./hr. at 60 PSI of base fuel pressure
  • USCAR injector connector
  • 40mm o-ring to o-ring length
  • Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
Body Diameter0.65
Body Length1.85"
Body StyleEV6
BrandHolley EFI
ColourBlack
Connector SeriesEV6
Connector ShapeEV6
Emission Code4
Flow Rate42 4U
Fuel Injection TypePort
Fuel TypeE-85, Gasoline
Gasket Or Seal IncludedYes
Grade TypePerformance
ImpedanceHigh (12.2 Ohm)
Mounting Hardware IncludedNo
O-Ring Quantity2 per injector
O-Ring to O-Ring1.421
Product TypeFuel Injector
Rated Injector Flow42 lb/hr
Retainer Clips IncludedNo
Sale CategoryAir and Fuel Delivery
Terminal GenderFemale
  • Universal Part
