Description

The new Hi-Flow billet fuel rails are a direct fit for the Ford 7.3l Godzilla engines. The fuel rails feature a 5/8" diameter fuel passage that provides more flow capacity for high horsepower applications over the stock rails.

The black anodized rails have -8 ORB ports on each end and an 1/8" NPT port for a fuel gauge installation if you choose to do so.

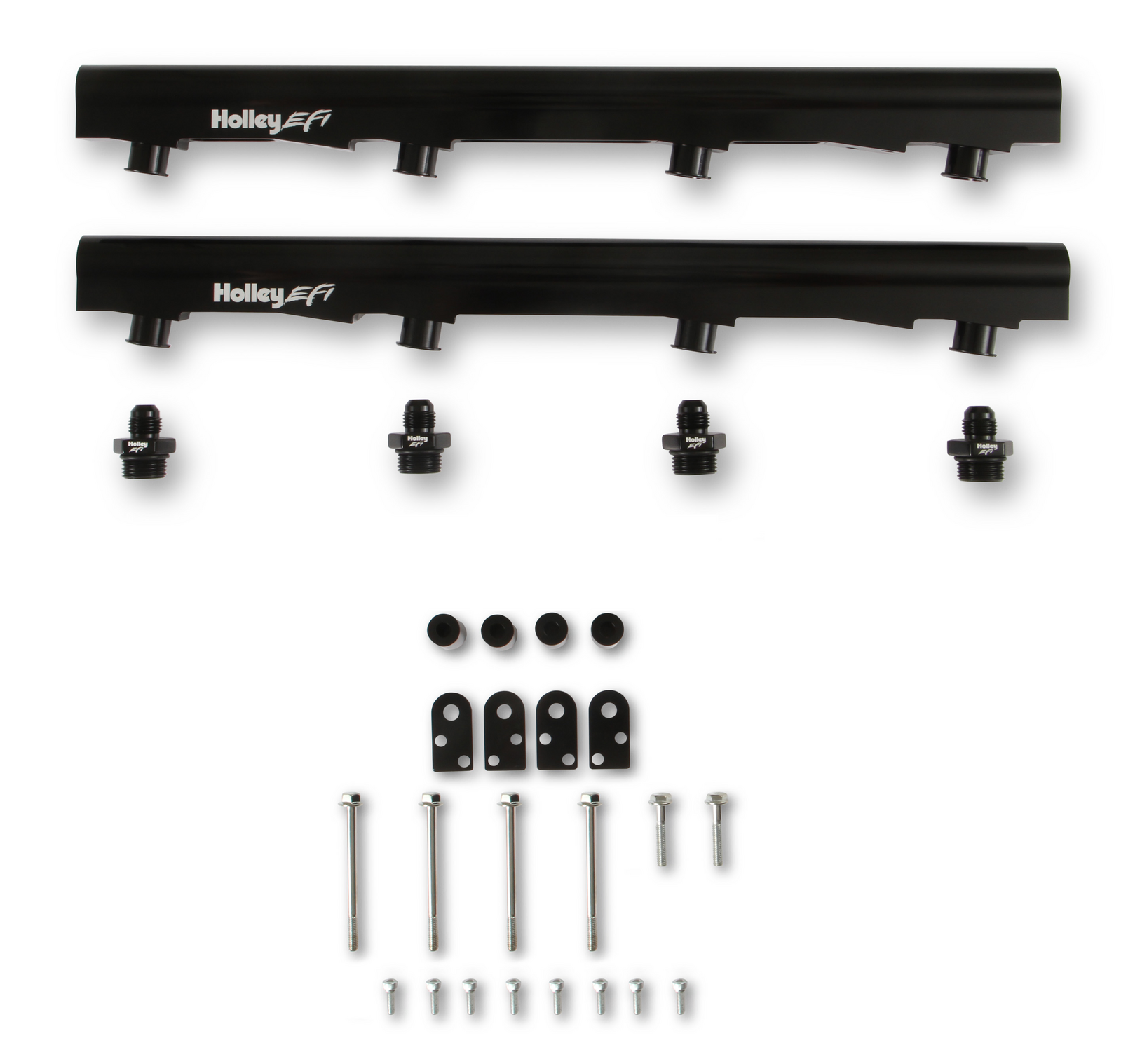

• The 534-265 includes fuel rails, mounting brackets and required mounting hardware.

• The 534-266 fuel rail kit includes everything from the 534-265 plus (6ft) braided hose, (4) 90 degree and (2) straight -6 hose ends.

Features

  • Bright dip, black anodized finish with laser etched EFI logo for long lasting good looks
  • 5/8” diameter fuel passage provides the flow capacity for high horsepower applications
  • Fuel rails are machined to accept -8 (3/4-16) O-ring fittings
  • Fuel rails fit your stock intake manifold
  • Includes (4) -6 to 3/4-16 O-ring adapters
  • Works with factory injectors

Specifications

BrandHolley EFI
Category FilterFuel Injection - EFI
Clearance CategoryFuel Injection - EFI
ColourBlack
Emission Code5
EngineFord 7.3L Godzilla
Fittings IncludedYes
Fuel Injection TypePort
Fuel Injectors IncludedNo
Fuel System TypeEFI
Gasket Or Seal IncludedYes
Grade TypePerformance
MaterialAluminium
Product TypeFuel Rail
Sale CategoryAir and Fuel Delivery

Compatibility

  • Universal Part

The new Hi-Flow billet fuel rails are a direct fit for the Ford 7.3l Godzilla engines. The fuel rails feature a 5/8" diameter fuel passage that provides more flow capacity for high horsepower applications over the stock rails.

The black anodized rails have -8 ORB ports on each end and an 1/8" NPT port for a fuel gauge installation if you choose to do so.

• The 534-265 includes fuel rails, mounting brackets and required mounting hardware.

• The 534-266 fuel rail kit includes everything from the 534-265 plus (6ft) braided hose, (4) 90 degree and (2) straight -6 hose ends.

Features

  • Bright dip, black anodized finish with laser etched EFI logo for long lasting good looks
  • 5/8” diameter fuel passage provides the flow capacity for high horsepower applications
  • Fuel rails are machined to accept -8 (3/4-16) O-ring fittings
  • Fuel rails fit your stock intake manifold
  • Includes (4) -6 to 3/4-16 O-ring adapters
  • Works with factory injectors
BrandHolley EFI
Category FilterFuel Injection - EFI
Clearance CategoryFuel Injection - EFI
ColourBlack
Emission Code5
EngineFord 7.3L Godzilla
Fittings IncludedYes
Fuel Injection TypePort
Fuel Injectors IncludedNo
Fuel System TypeEFI
Gasket Or Seal IncludedYes
Grade TypePerformance
MaterialAluminium
Product TypeFuel Rail
Sale CategoryAir and Fuel Delivery
  • Universal Part
