Description

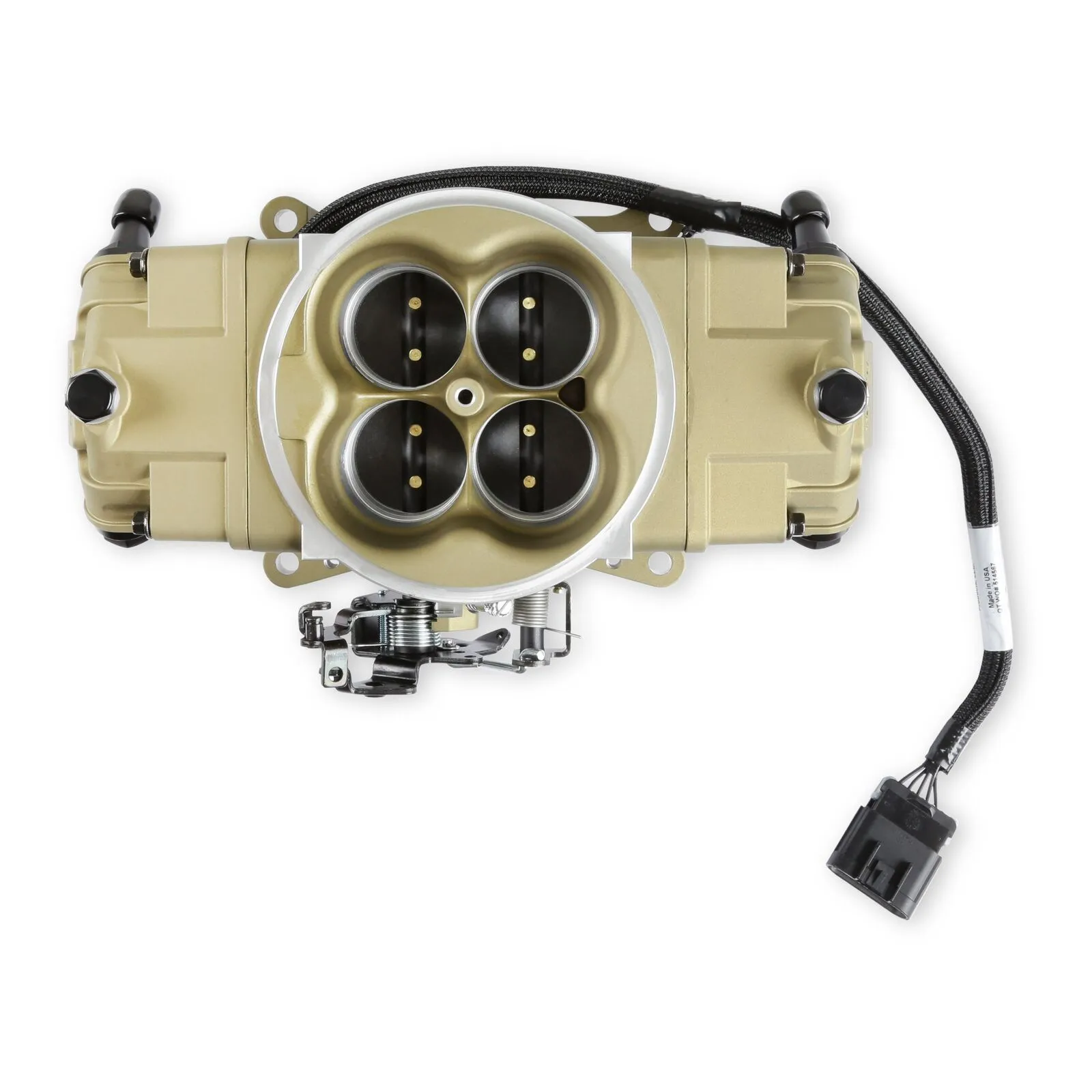

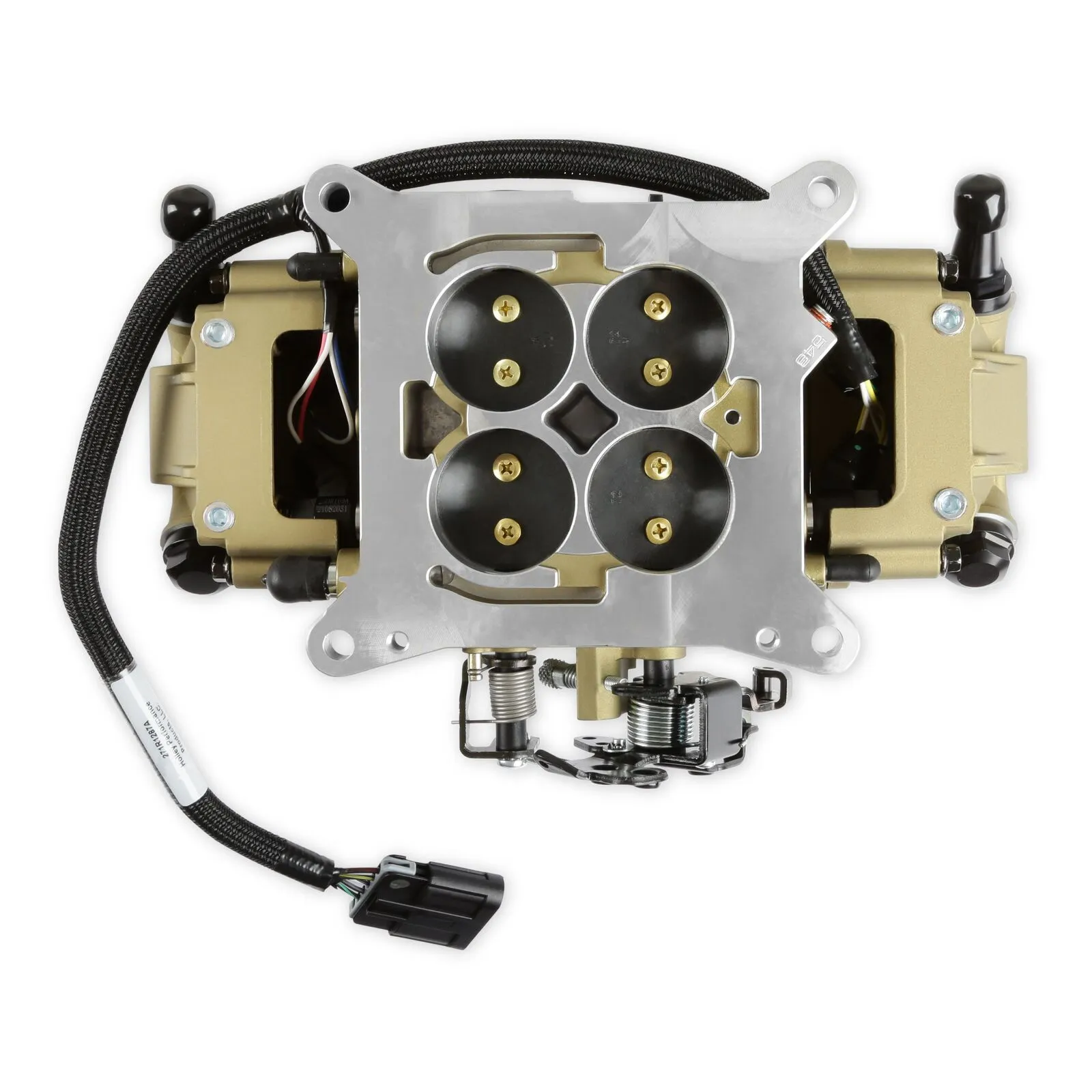

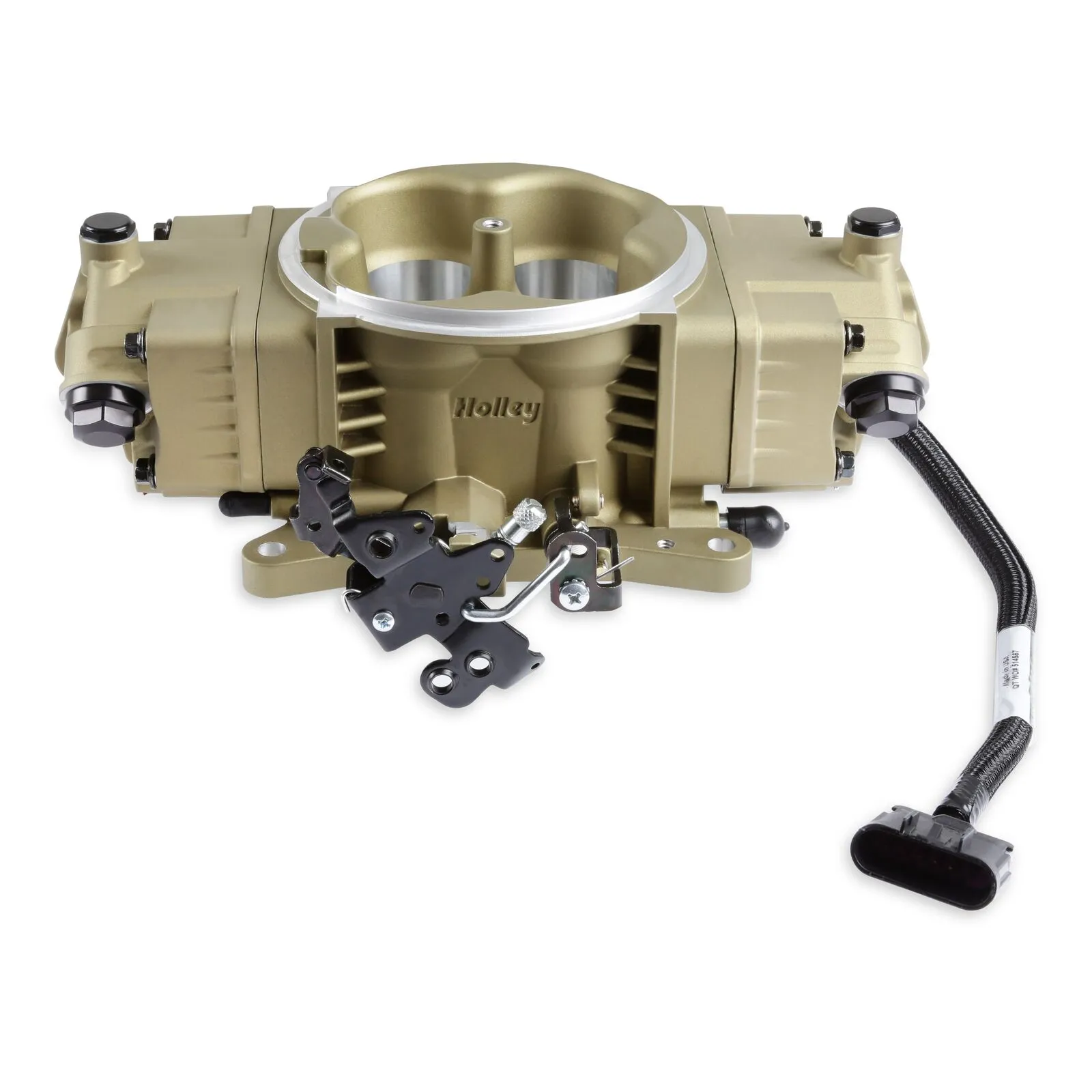

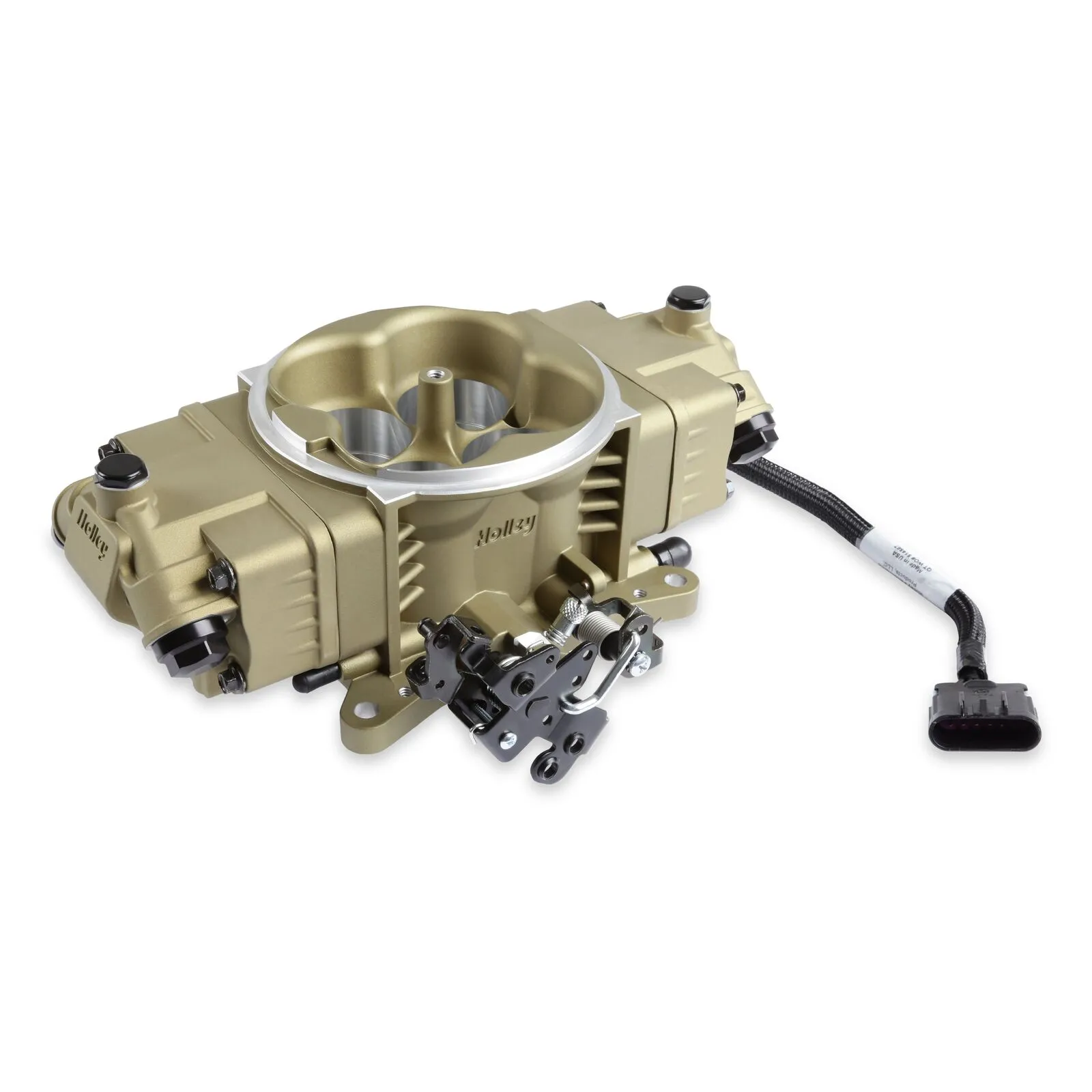

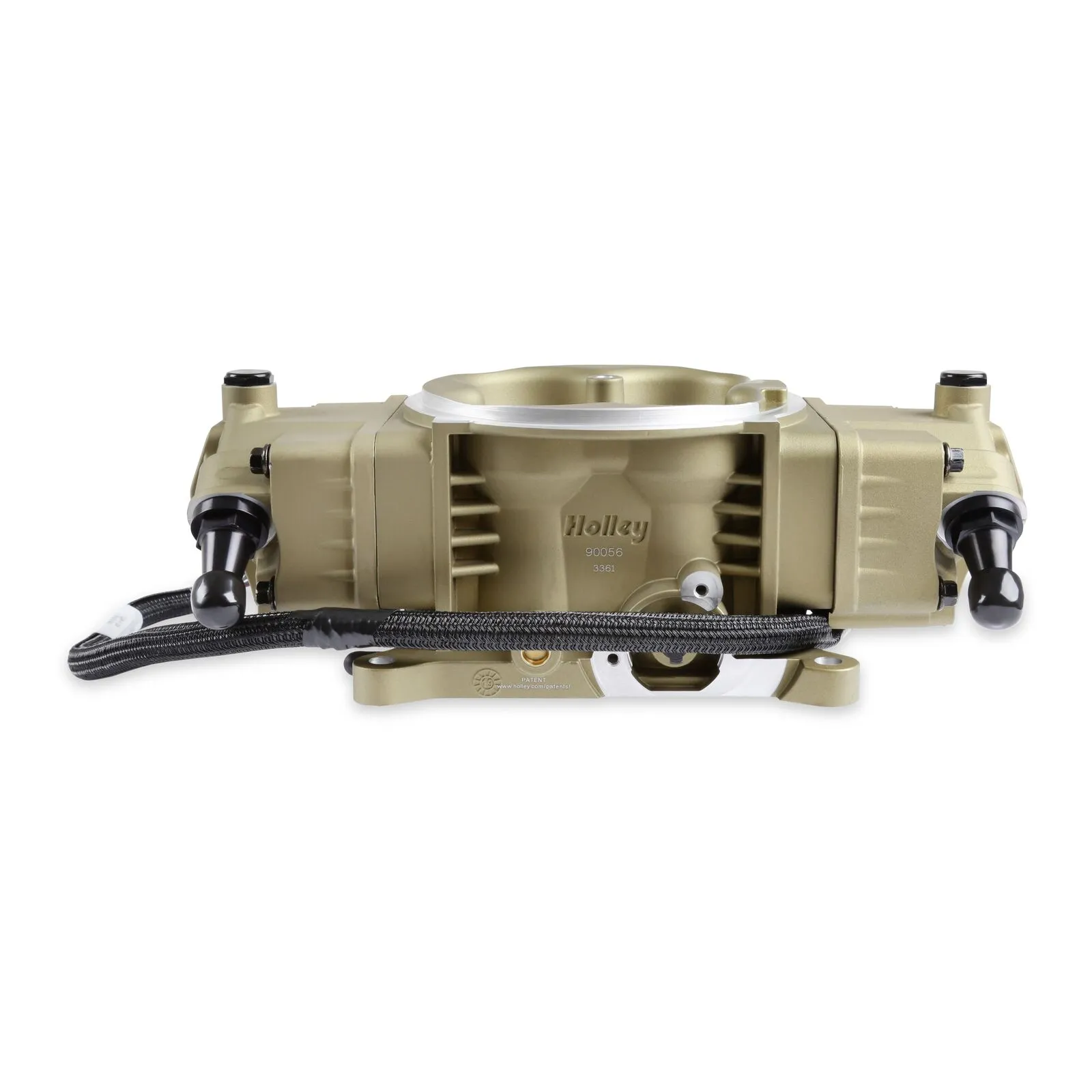

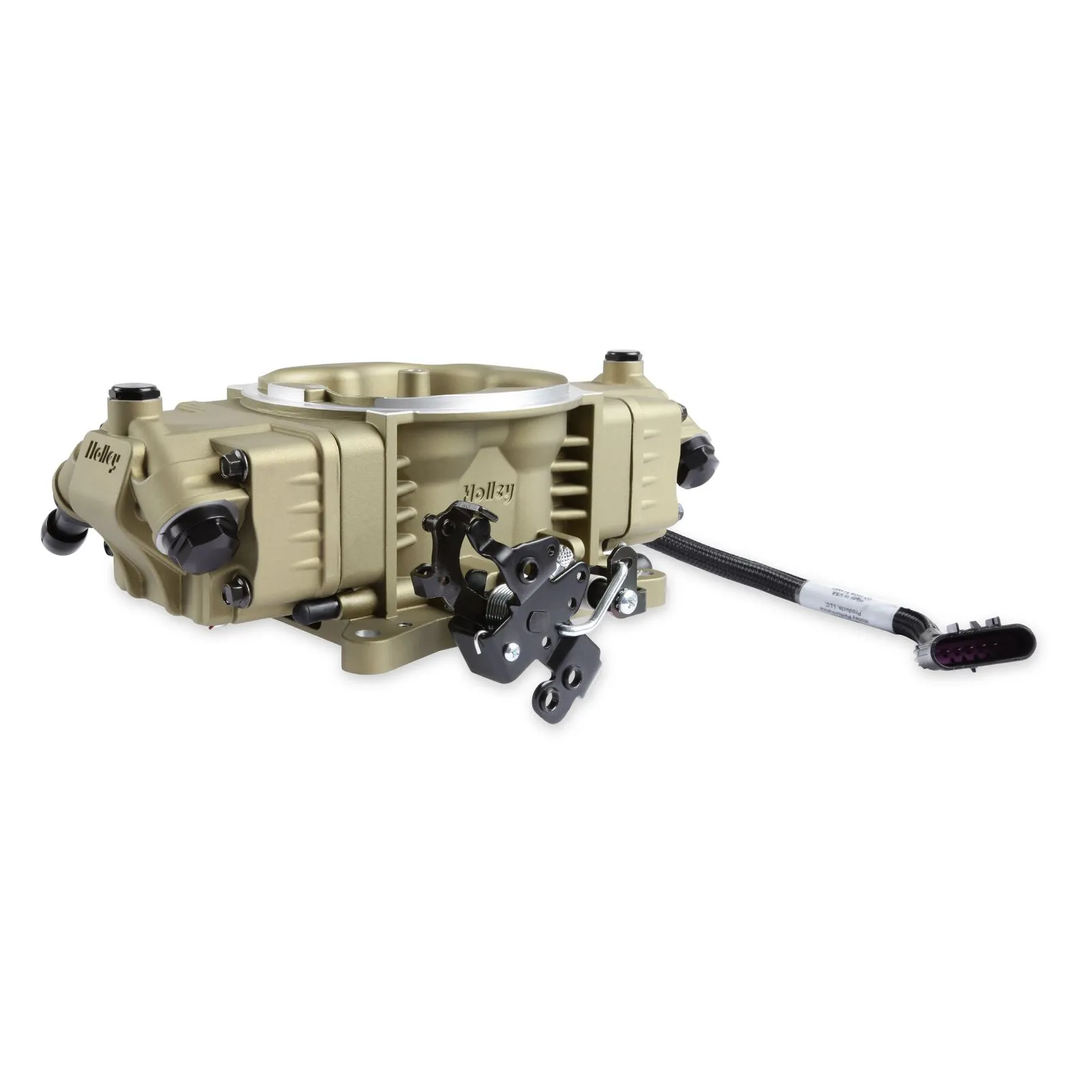

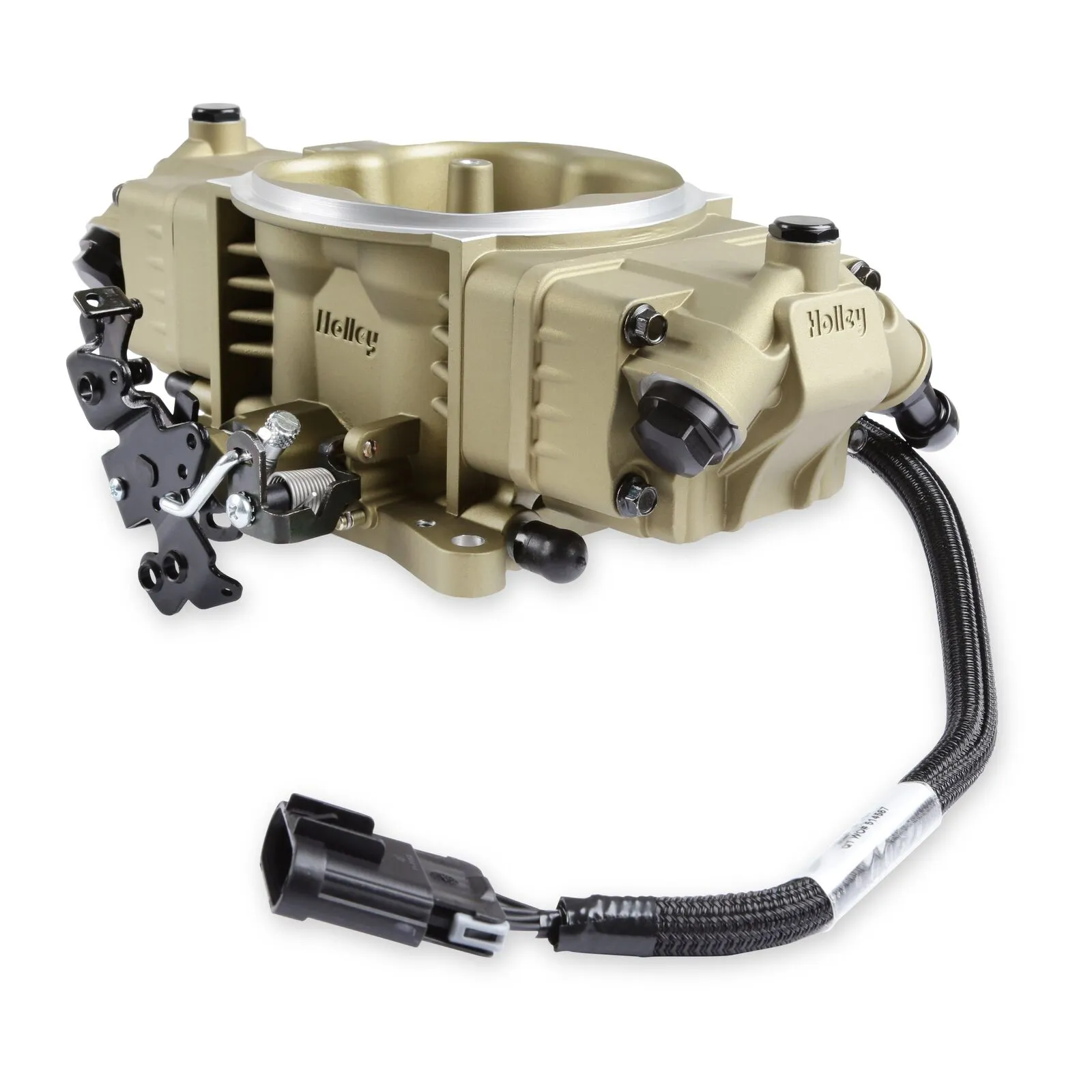

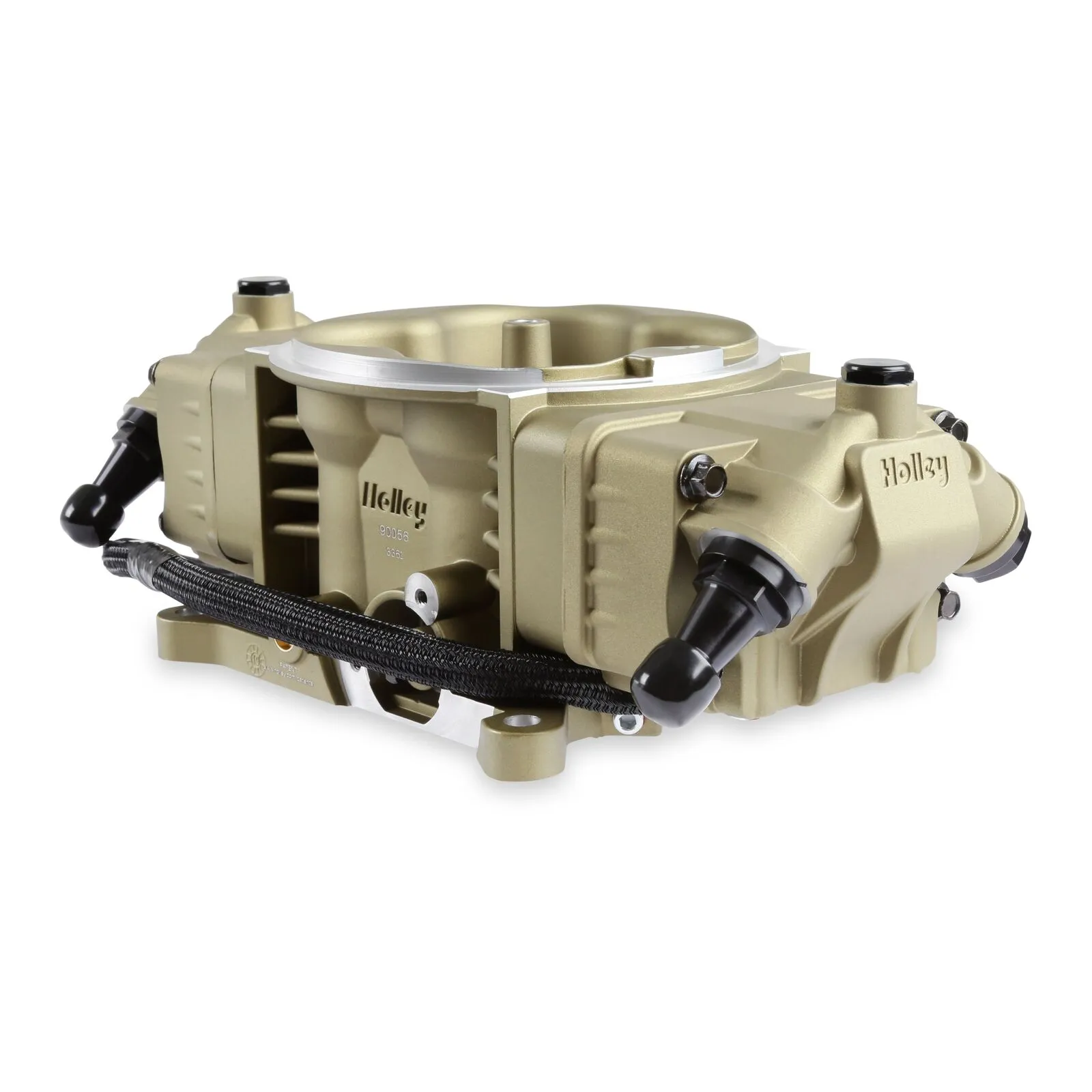

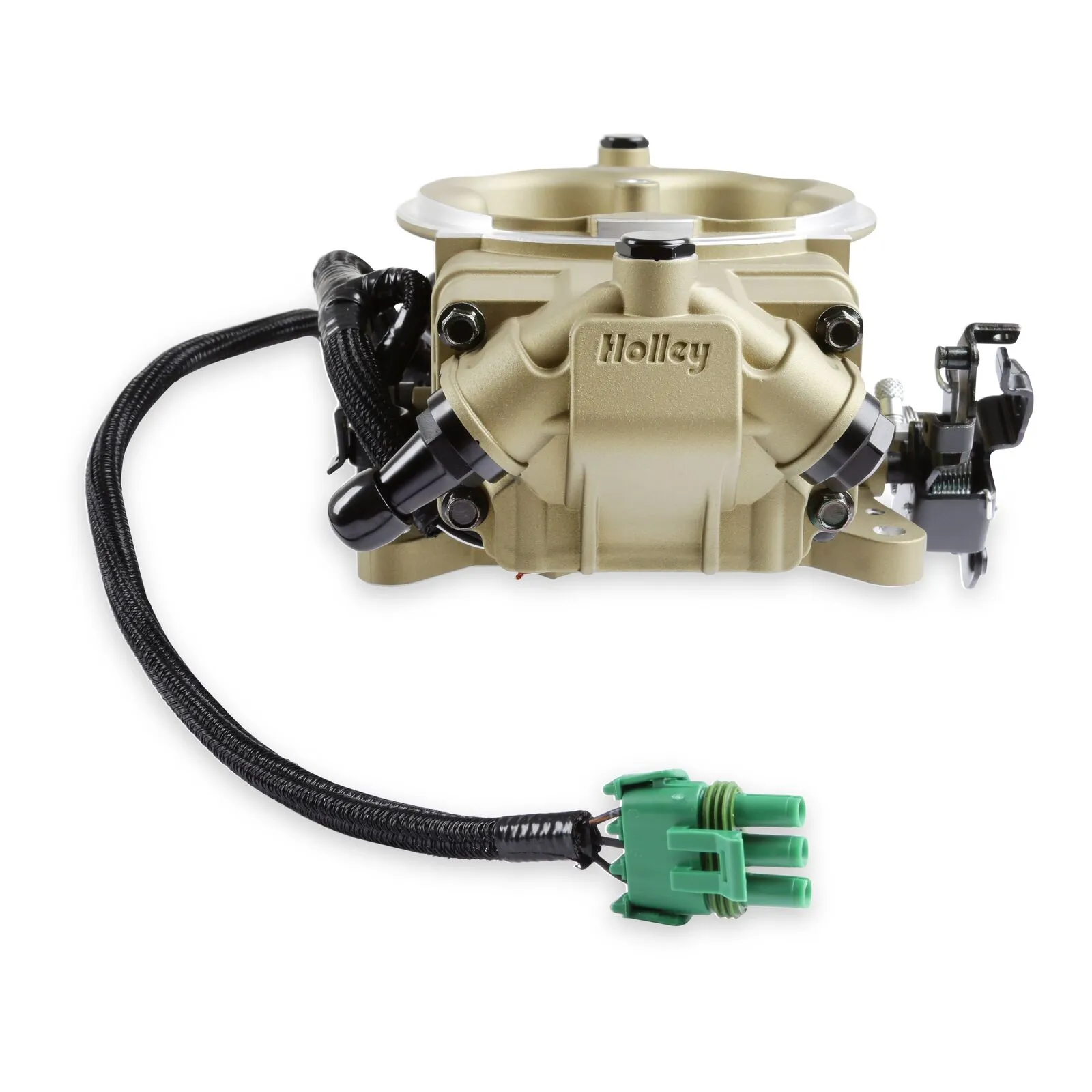

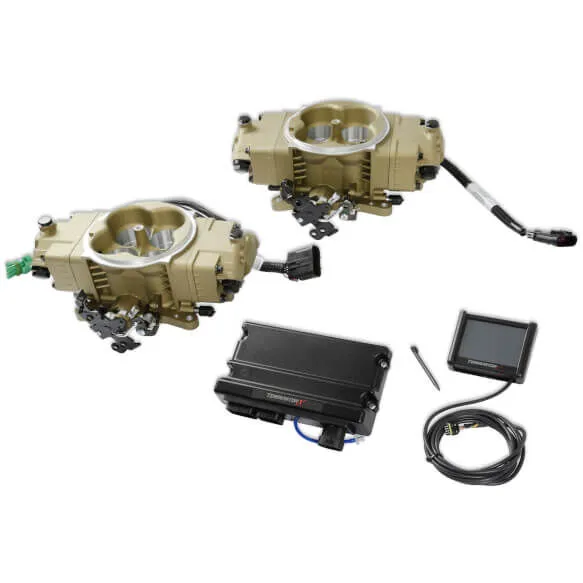

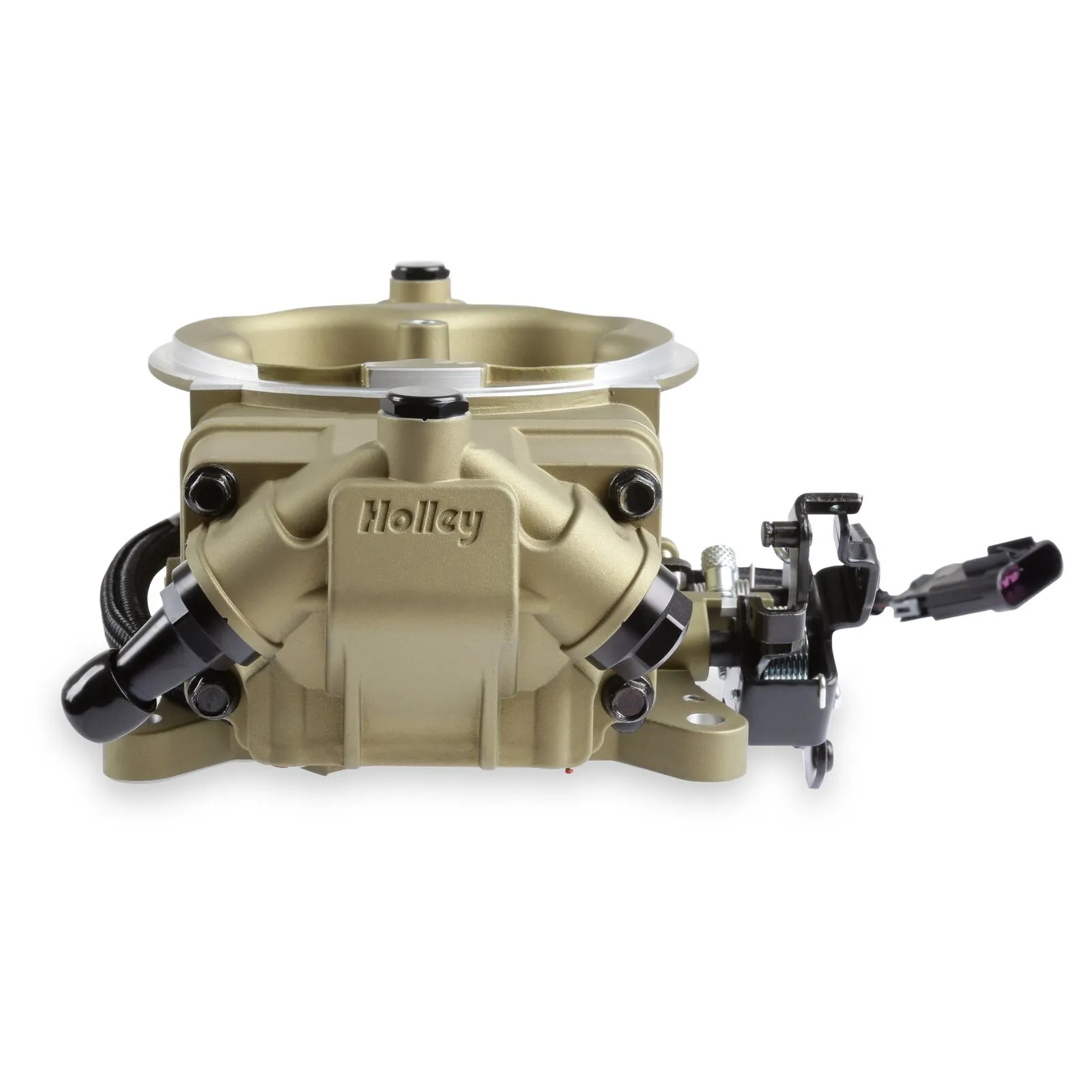

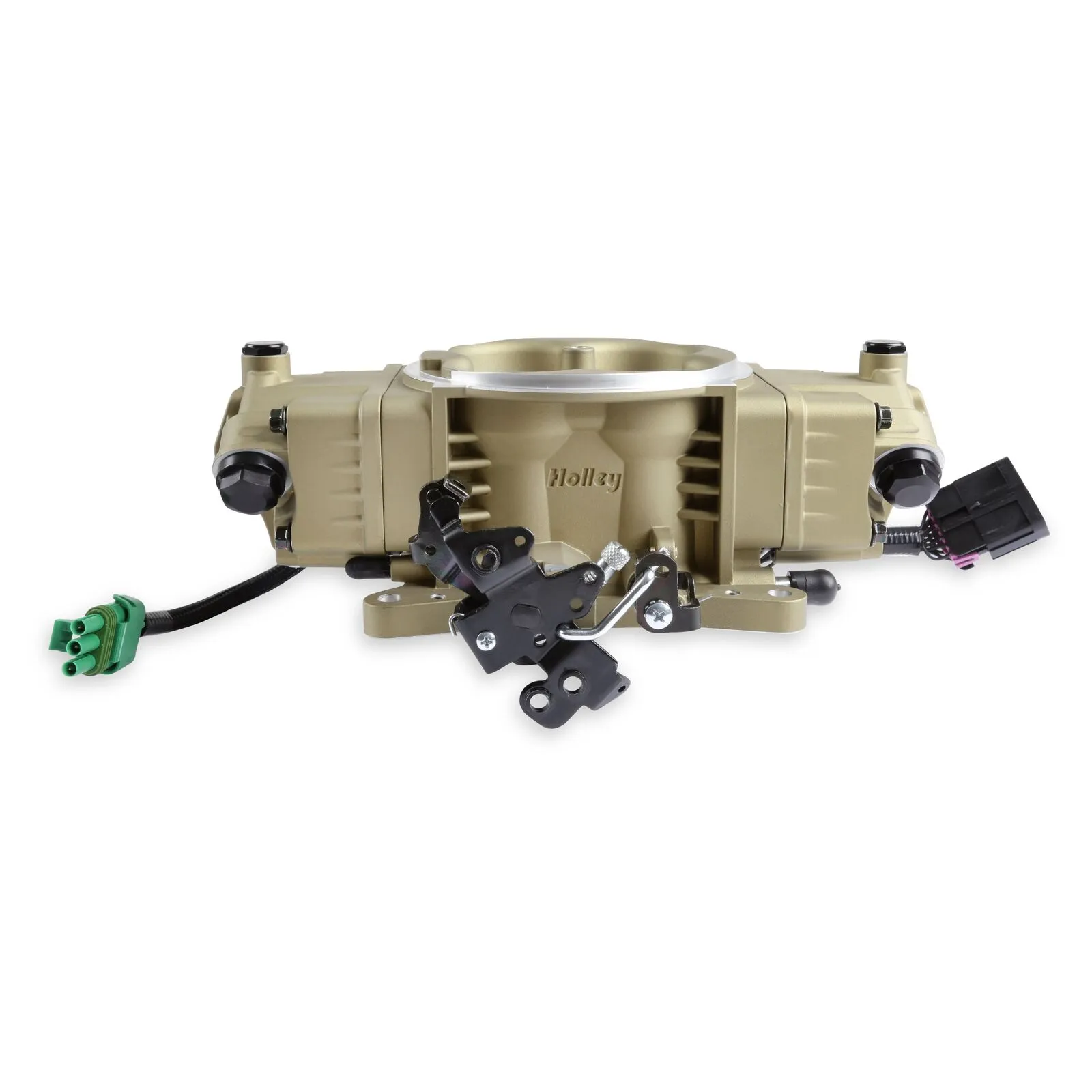

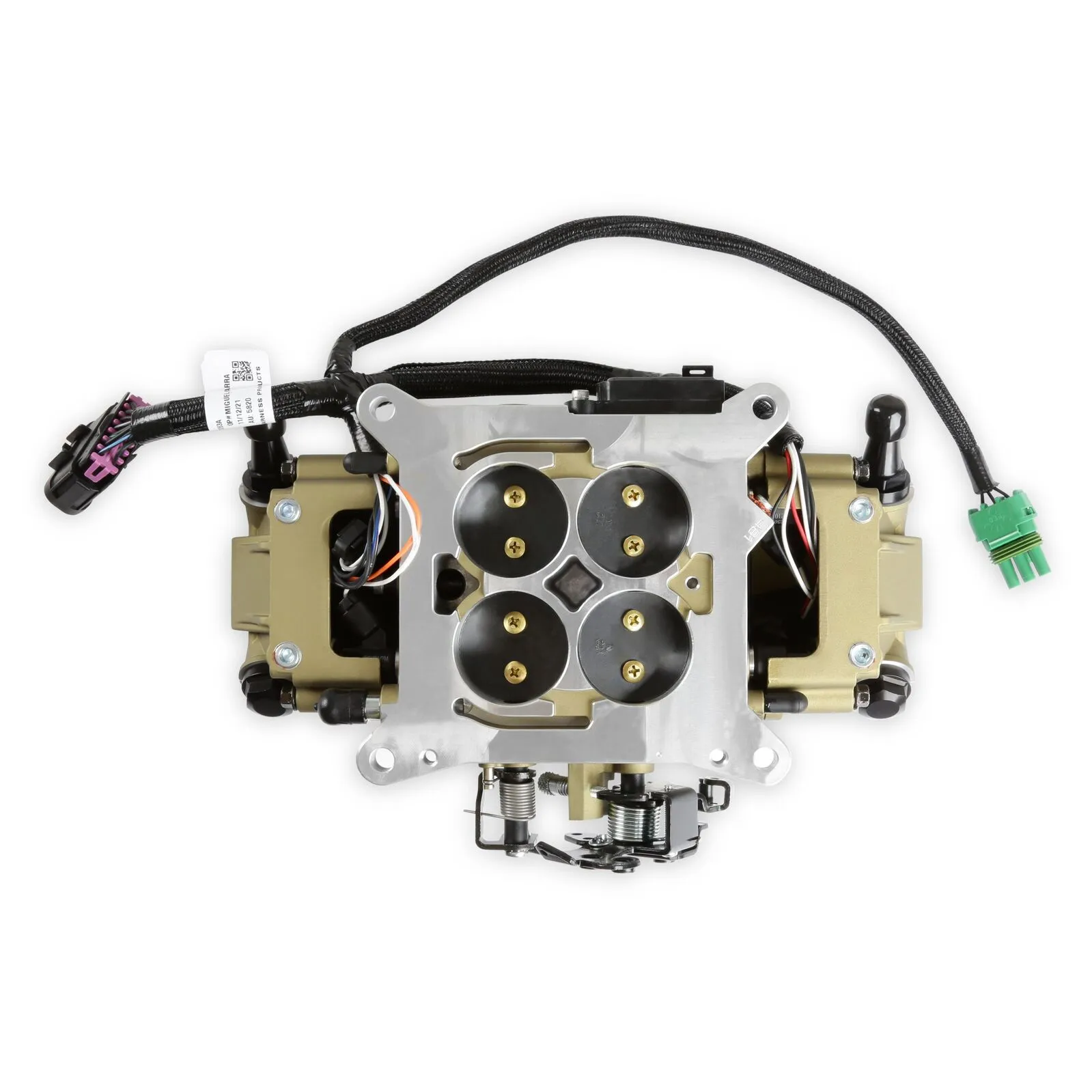

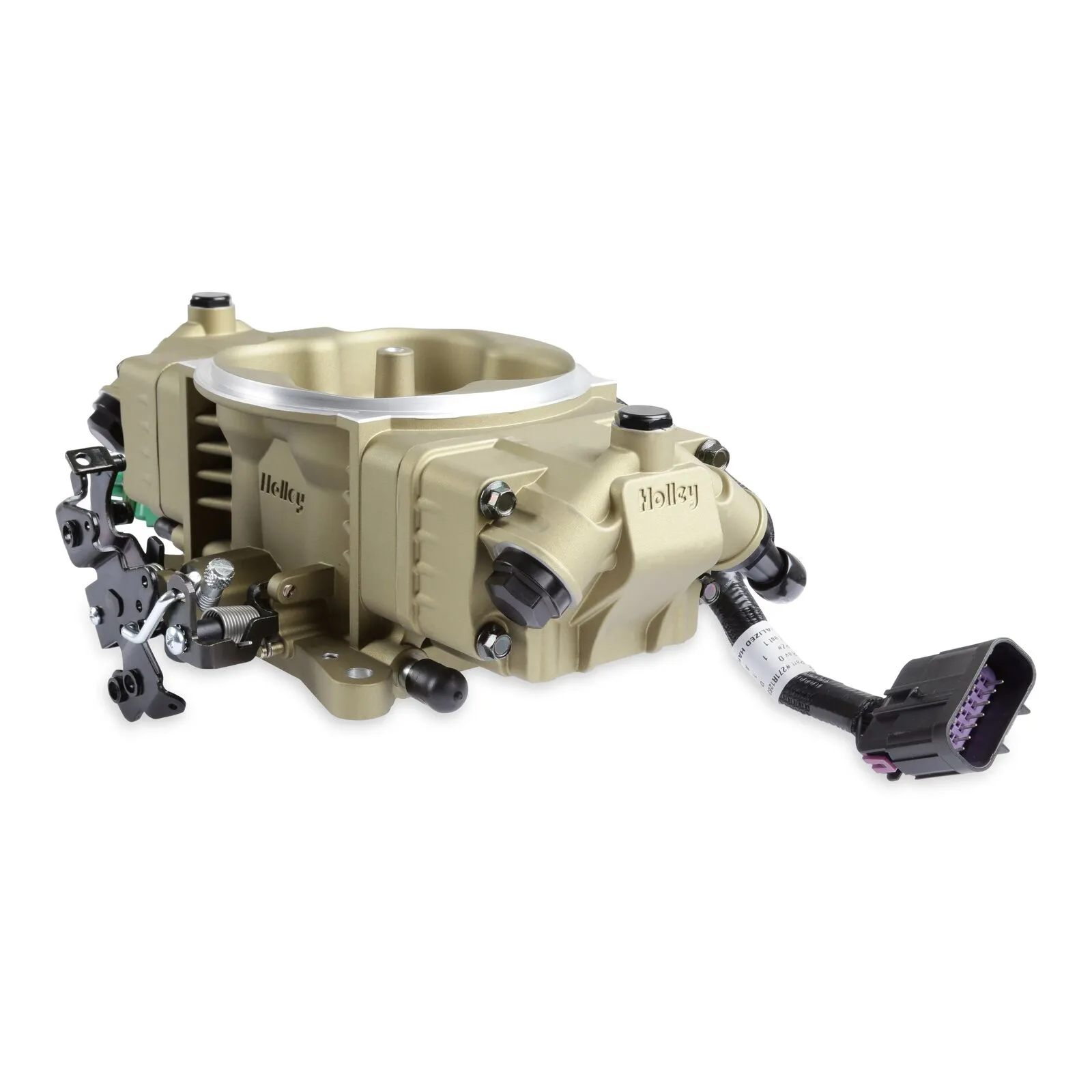

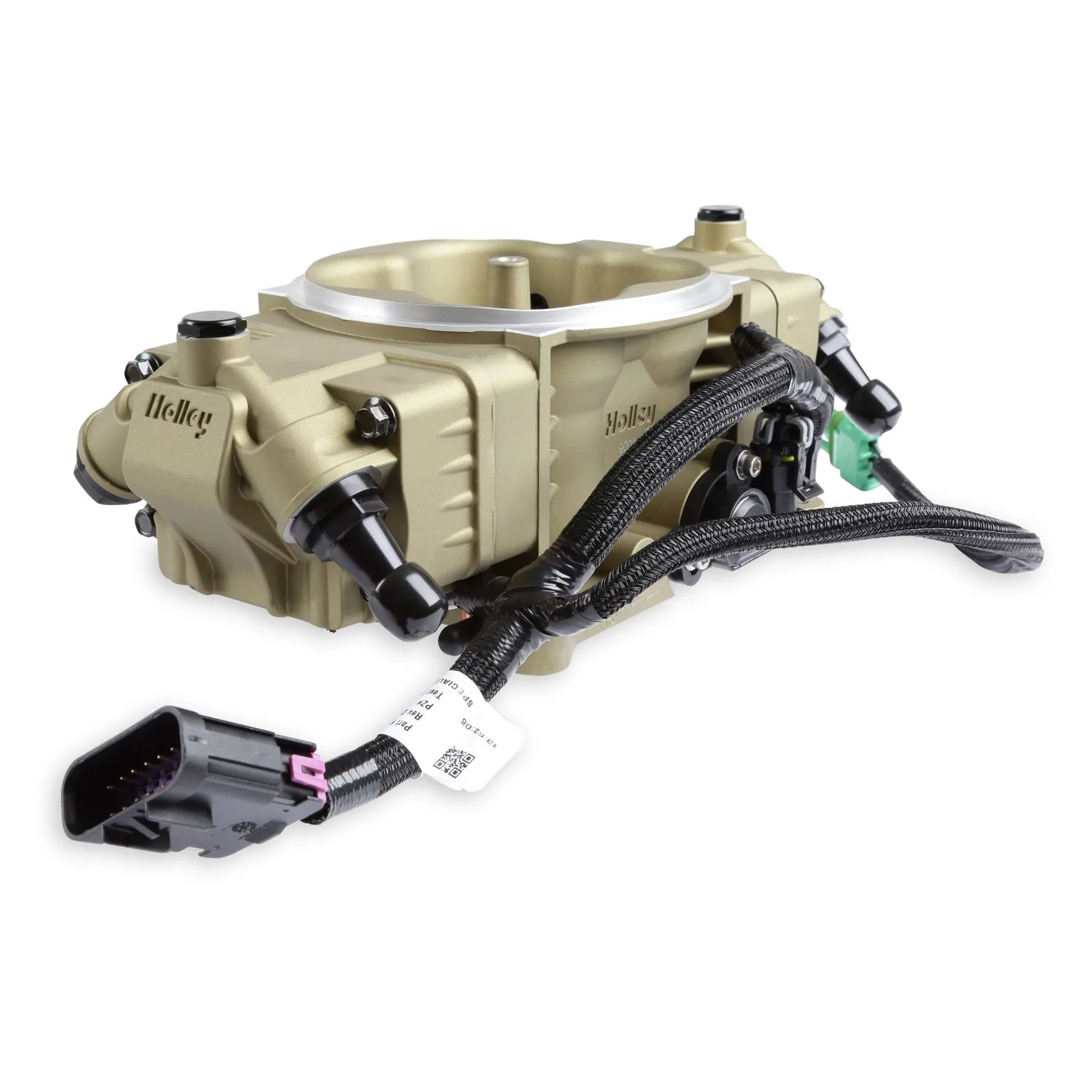

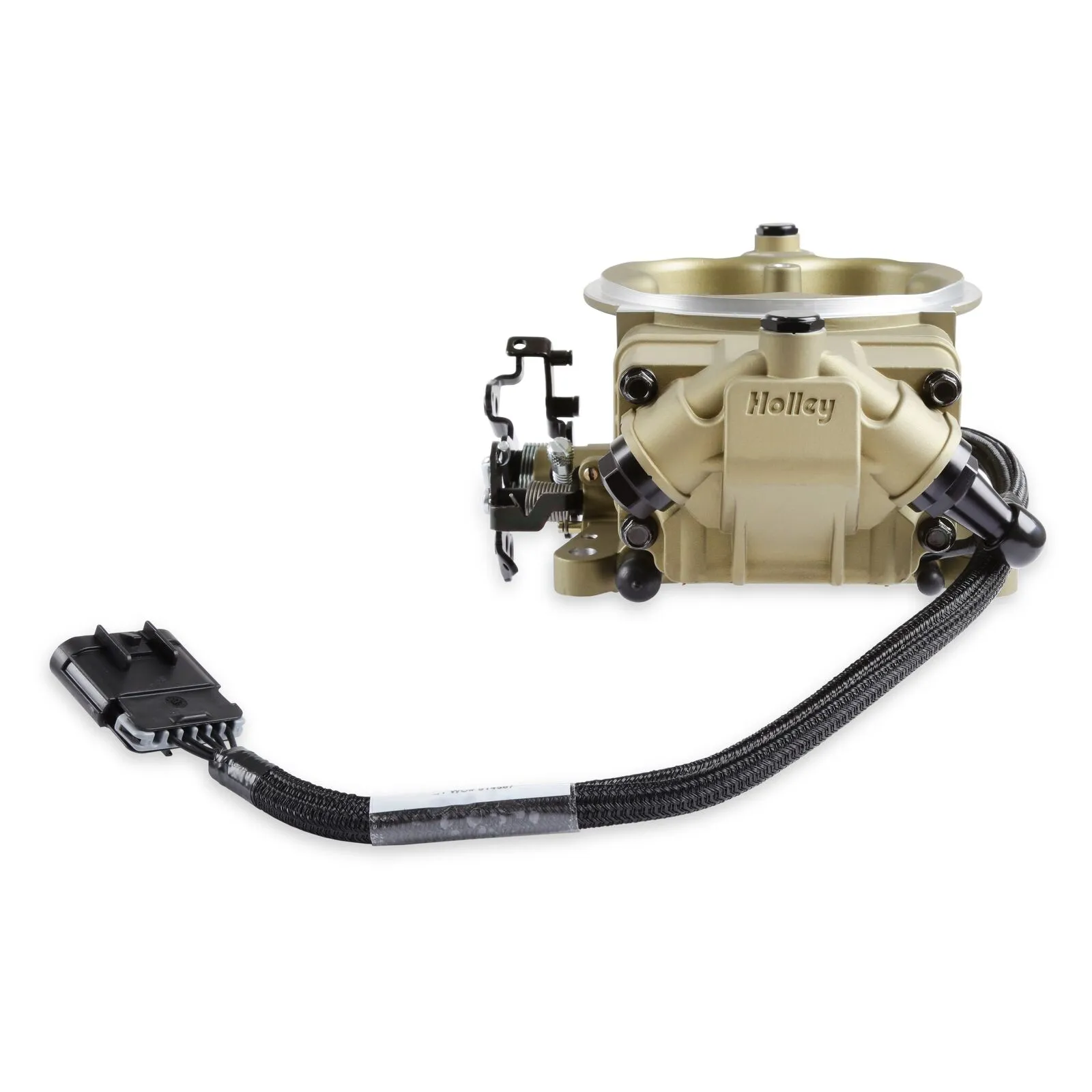

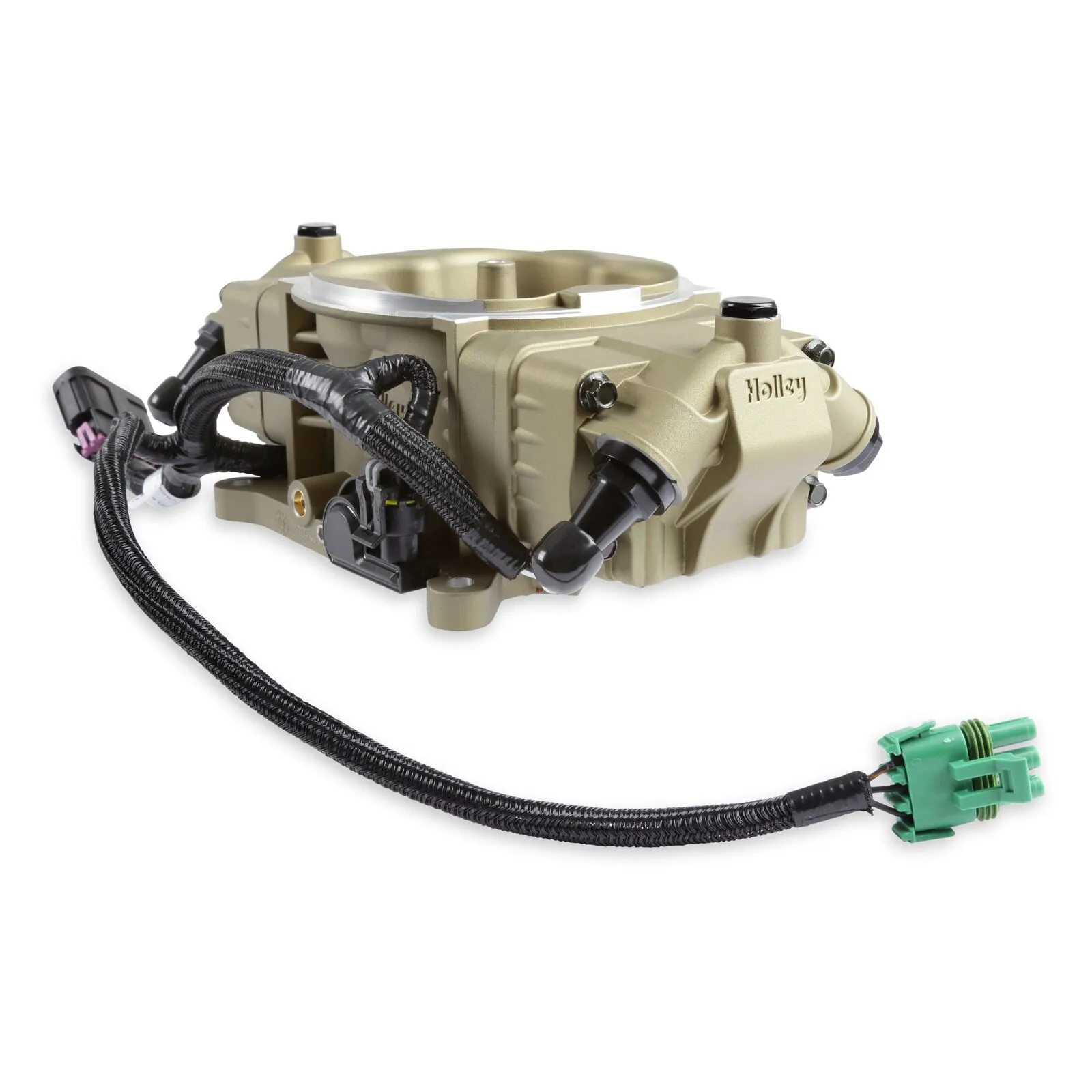

The Terminator X Stealth 4150 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower.

Features

  • Bolt on 2x4 4150 Flange Carburetor Replacement
  • Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
  • Internal 1bar MAP sensor, built into the Terminator X ECU
  • External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as Holley part # 12-886
  • Integrated ignition timing control
  • High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
  • Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
  • Self-tuning ECU means you donÂ’t have to be a computer/tuning wiz to have EFI!
  • The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
  • OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service
  • Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
  • Plug and play with Holley EFI Accessories, such as the 12.3” and 6.86” Pro Dash; CAN EGT; and Digital Analog style EFI gauges
  • Available in 3 finishes: Shiny, Black, and Gold

Specifications

Accelerometer SupportYes
Boost ControlYes
BrandHolley EFI
CAN-BUS SupportYes
CFM950
Coil Per Cylinder Ignition SupportYes
ColourGold
Datalogging SupportYes
Dry Nitrous ControlYes
e85 SupportNo
EGT SupportYes
Emission Code3
FinishGold
Flange Size4150
Flange StyleSquarebore
Forced Induction SupportYes
Fuel Filter IncludedNo
Fuel Hose IncludedNo
Fuel Injectors IncludedYes
Fuel Pressure58.5 PSI
Fuel Pressure Regulator IncludedNo
Fuel Pump IncludedNo
Grade TypePerformance
Handheld IncludedYes
Ignition Timing ControlYes
Ignition TypeUniversal
Individual Cylinder Fuel CorrectionsNo
Injector Size100 lb/hr @ 58.5 PSI
Inlet / Outlet Size6AN
Intake Manifold IncludedNo
Knock Retard SupportYes
MAP Sensor1bar
Max Horsepower Rating1500+
Multi-Stage Nitrous ControlYes
Product TypeEFI System
Progressive Nitrous ControlYes
Sale CategoryAir and Fuel Delivery
Self-TuningYes
Terminator LS OptionsFuel, Spark
Throttle Bore1.75 in.
Throttle Position Sensor IncludedYes
Traction Control SupportYes
Transmission
User-TuneableYes
Wet Nitrous ControlYes

Compatibility

  • Universal Part

The Terminator X Stealth 4150 2x4 EFI systems from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower.

Features

  • Bolt on 2x4 4150 Flange Carburetor Replacement
  • Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
  • Internal 1bar MAP sensor, built into the Terminator X ECU
  • External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as Holley part # 12-886
  • Integrated ignition timing control
  • High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
  • Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
  • Self-tuning ECU means you donÂ’t have to be a computer/tuning wiz to have EFI!
  • The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
  • OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service
  • Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
  • Plug and play with Holley EFI Accessories, such as the 12.3” and 6.86” Pro Dash; CAN EGT; and Digital Analog style EFI gauges
  • Available in 3 finishes: Shiny, Black, and Gold
Accelerometer SupportYes
Boost ControlYes
BrandHolley EFI
CAN-BUS SupportYes
CFM950
Coil Per Cylinder Ignition SupportYes
ColourGold
Datalogging SupportYes
Dry Nitrous ControlYes
e85 SupportNo
EGT SupportYes
Emission Code3
FinishGold
Flange Size4150
Flange StyleSquarebore
Forced Induction SupportYes
Fuel Filter IncludedNo
Fuel Hose IncludedNo
Fuel Injectors IncludedYes
Fuel Pressure58.5 PSI
Fuel Pressure Regulator IncludedNo
Fuel Pump IncludedNo
Grade TypePerformance
Handheld IncludedYes
Ignition Timing ControlYes
Ignition TypeUniversal
Individual Cylinder Fuel CorrectionsNo
Injector Size100 lb/hr @ 58.5 PSI
Inlet / Outlet Size6AN
Intake Manifold IncludedNo
Knock Retard SupportYes
MAP Sensor1bar
Max Horsepower Rating1500+
Multi-Stage Nitrous ControlYes
Product TypeEFI System
Progressive Nitrous ControlYes
Sale CategoryAir and Fuel Delivery
Self-TuningYes
Terminator LS OptionsFuel, Spark
Throttle Bore1.75 in.
Throttle Position Sensor IncludedYes
Traction Control SupportYes
Transmission
User-TuneableYes
Wet Nitrous ControlYes
  • Universal Part
