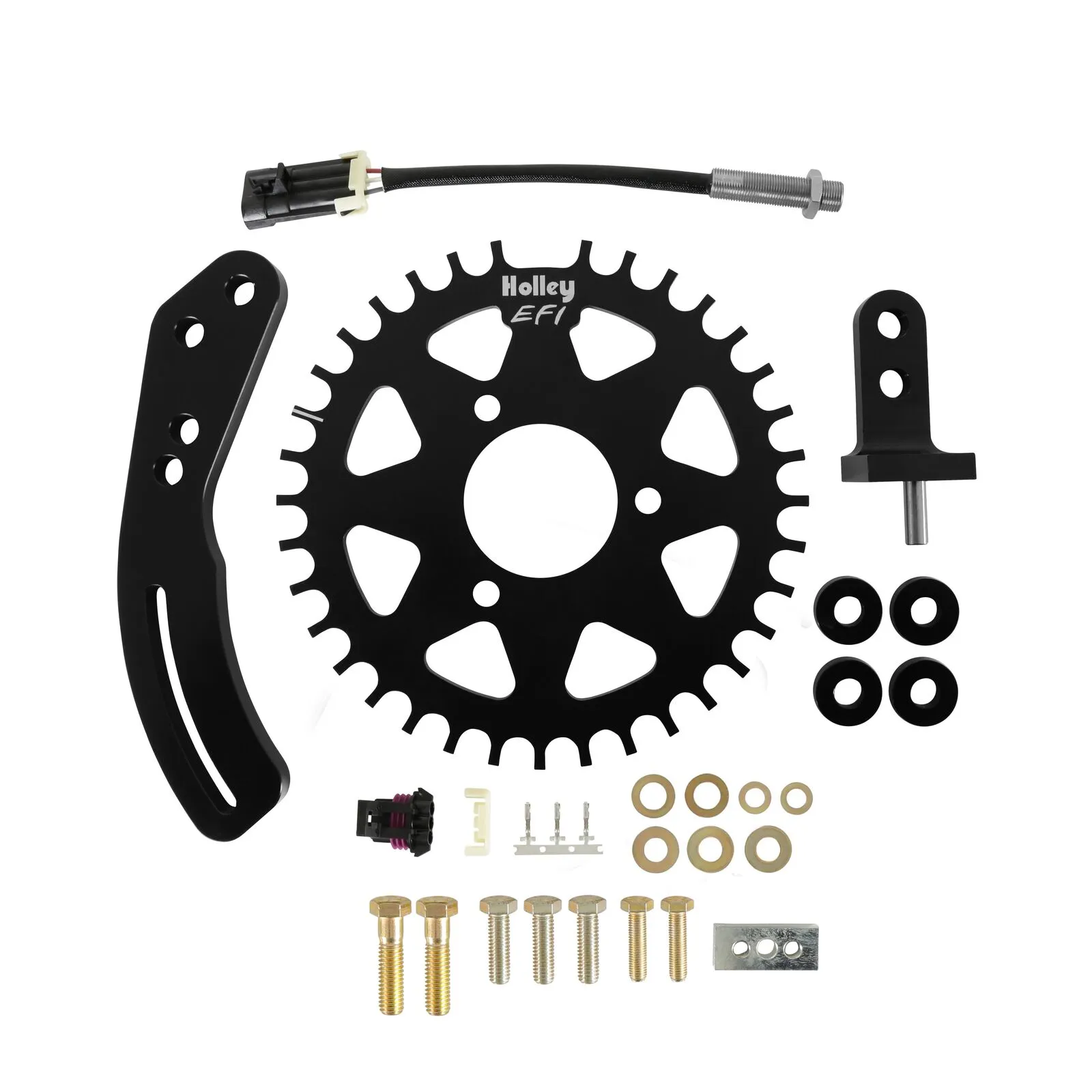

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on early model BBC Chevy applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.

Features

  • 8” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
  • Crank wheel centers off of the balancerÂ’s hub, eliminating the need for a centering ring

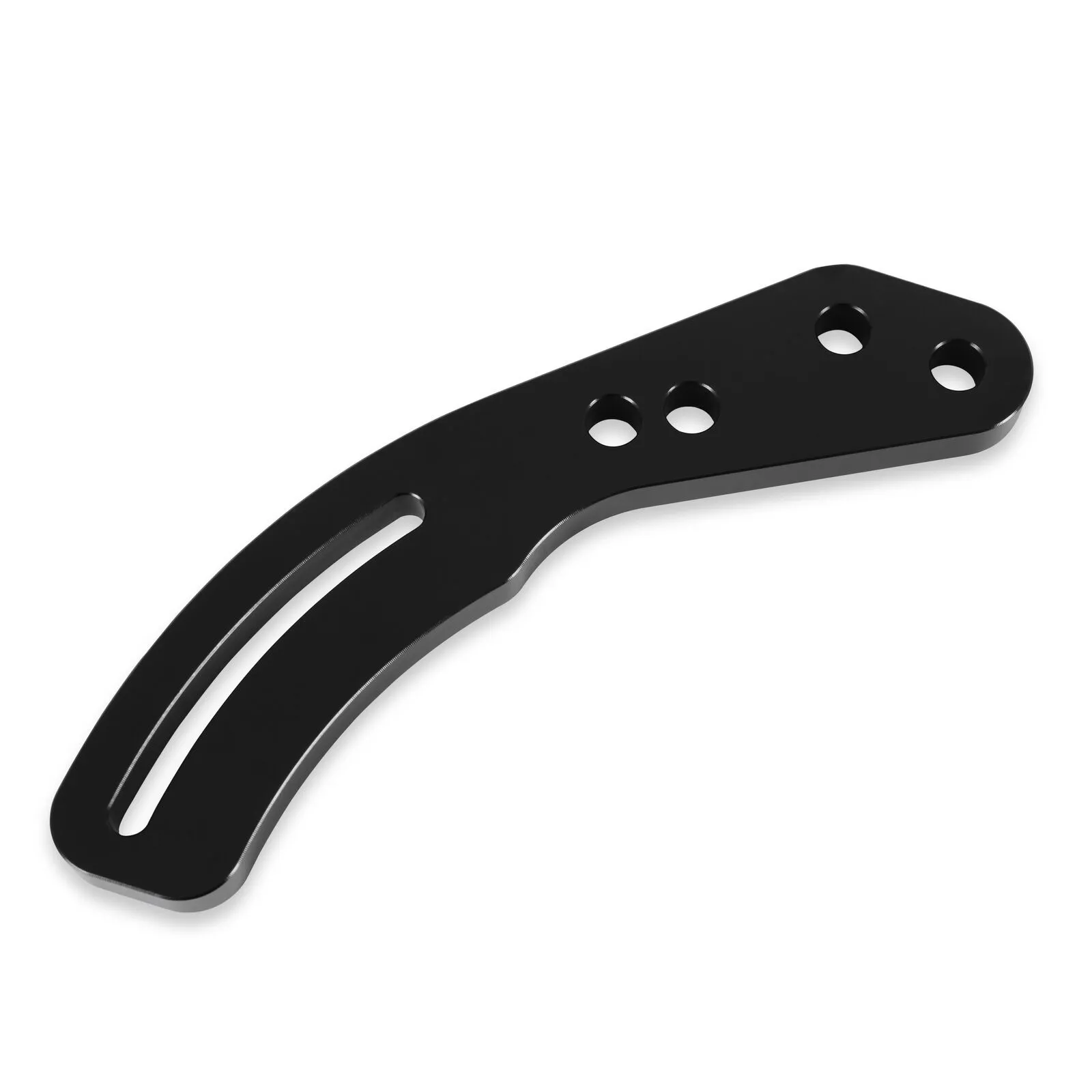

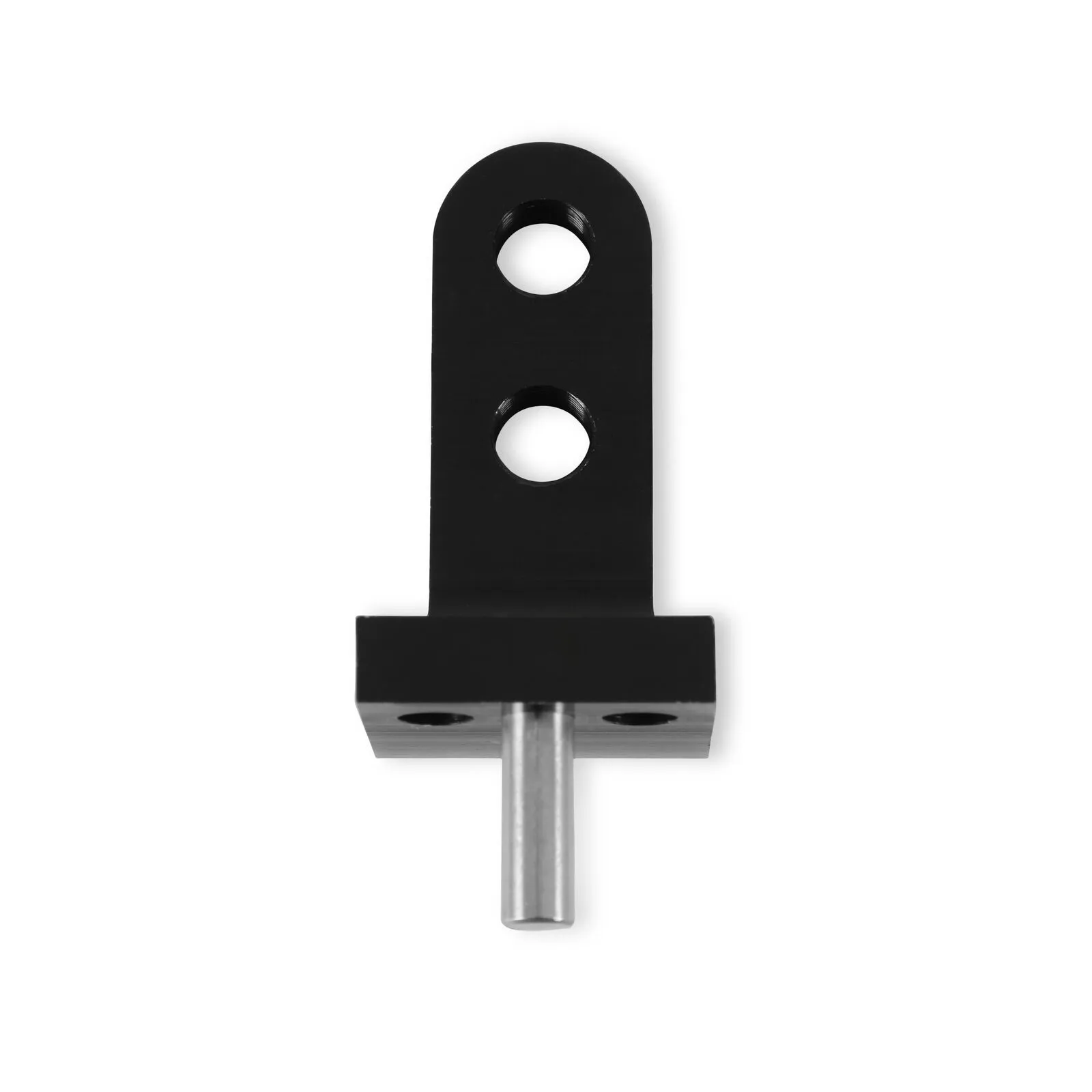

  • All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo

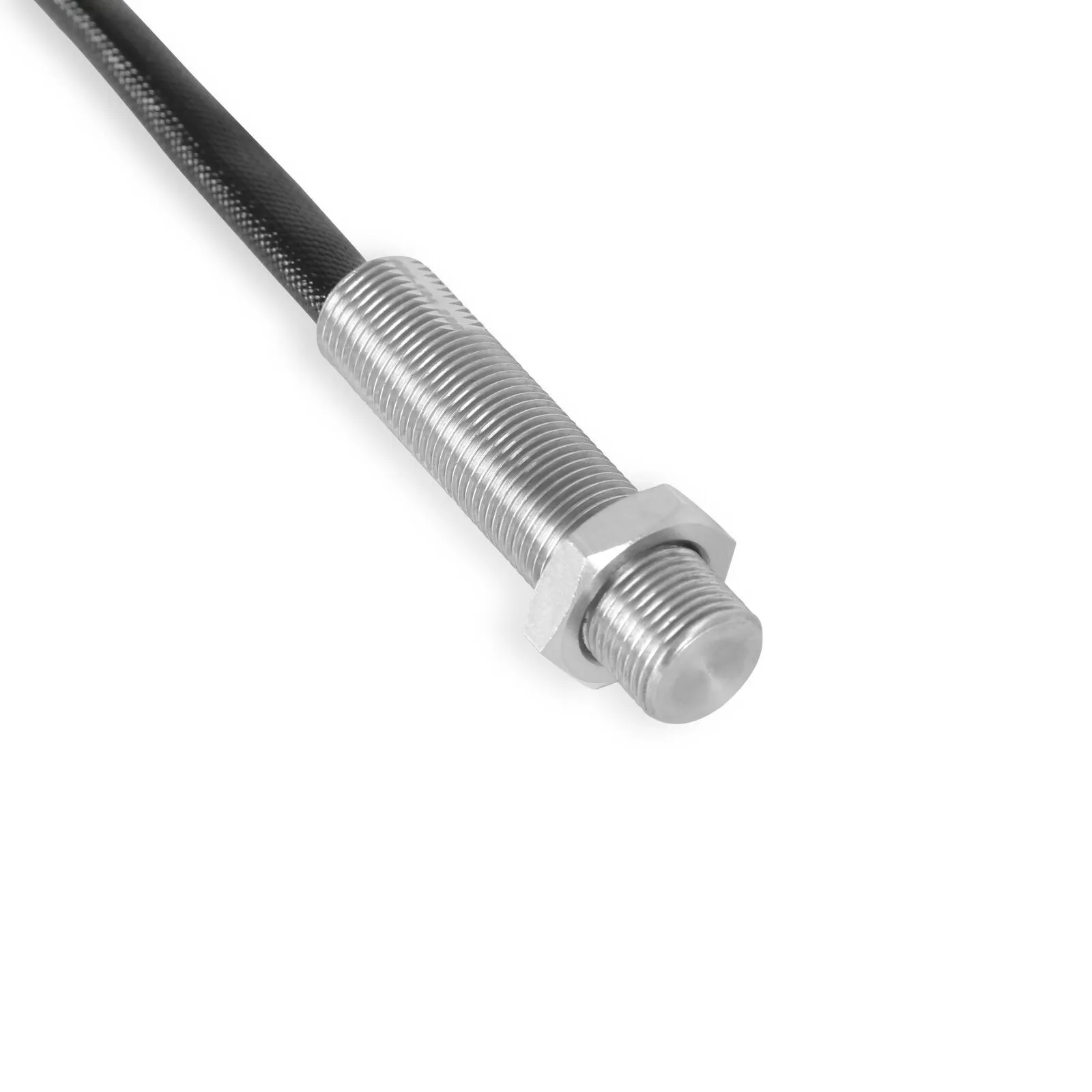

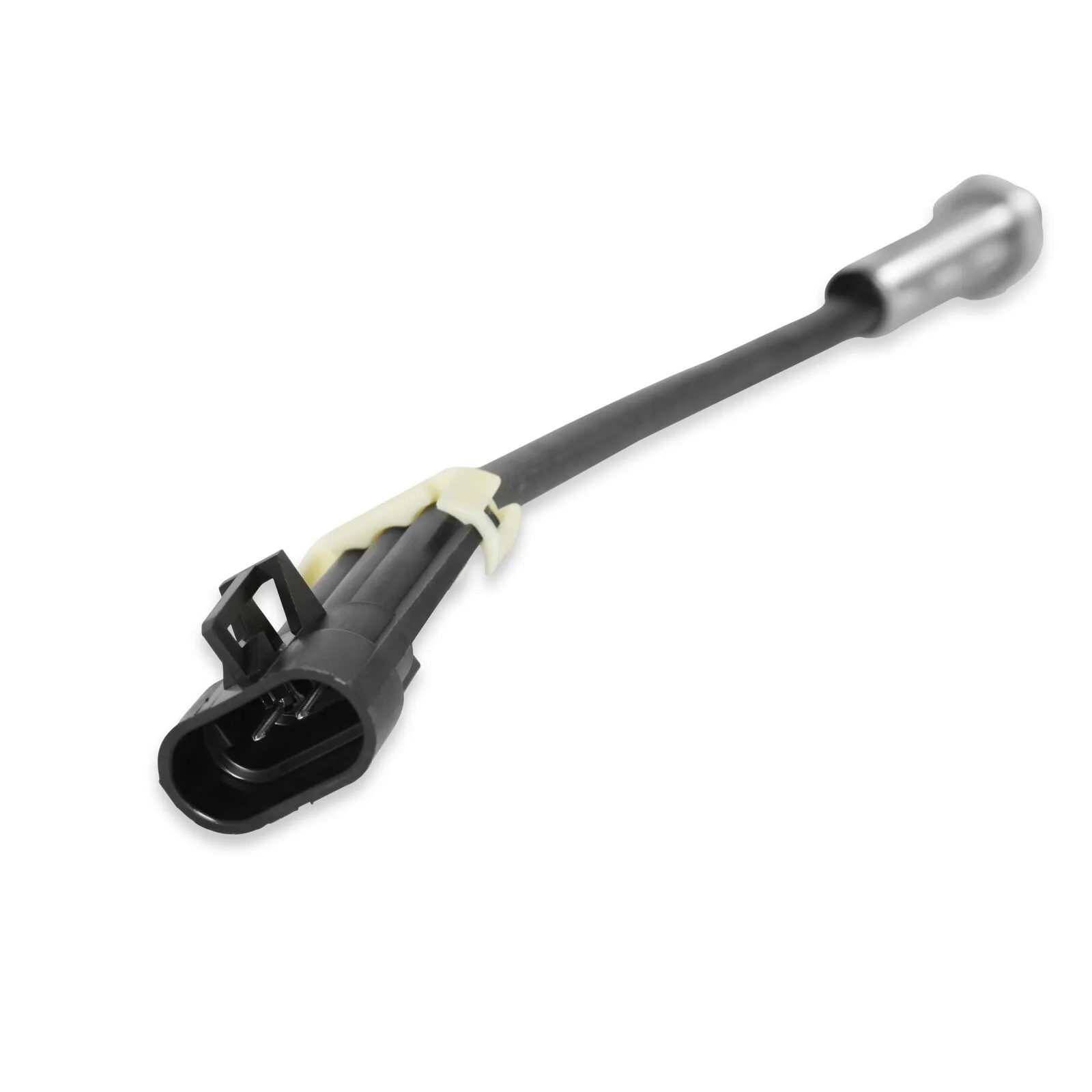

  • Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
  • All Grade 8 & Mil. Spec mounting hardware

Specifications

Bracket ColourBlack
Bracket MaterialAluminum
BrandHolley EFI
Category FilterIgnition
Clearance CategoryIgnition
ColourBlack
Diameter8 in., 8"
Emission Code4
FinishBlack Zinc Oxide
Grade TypePerformance
MakeChevrolet
Pickup IncludedYes
Product TypeCrank Trigger Kit
Sale CategoryIgnition
Sensor Dimensions12mm x 50mm
Sensor TypeHall Effect
Trigger Type36-1
Trigger Wheel ColourBlack
Trigger Wheel MaterialSteel
Trigger Wheel Mount Hole Quantity3
Trigger Wheel Outside Diameter8 IN
Trigger Wheel Thickness1/4 IN
Wheel Width1/4"

Compatibility

  • Universal Part

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on early model BBC Chevy applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.

Features

  • 8” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
  • Crank wheel centers off of the balancerÂ’s hub, eliminating the need for a centering ring
  • All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo
  • Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
  • All Grade 8 & Mil. Spec mounting hardware
Bracket ColourBlack
Bracket MaterialAluminum
BrandHolley EFI
Category FilterIgnition
Clearance CategoryIgnition
ColourBlack
Diameter8 in., 8"
Emission Code4
FinishBlack Zinc Oxide
Grade TypePerformance
MakeChevrolet
Pickup IncludedYes
Product TypeCrank Trigger Kit
Sale CategoryIgnition
Sensor Dimensions12mm x 50mm
Sensor TypeHall Effect
Trigger Type36-1
Trigger Wheel ColourBlack
Trigger Wheel MaterialSteel
Trigger Wheel Mount Hole Quantity3
Trigger Wheel Outside Diameter8 IN
Trigger Wheel Thickness1/4 IN
Wheel Width1/4"
  • Universal Part
