Description

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on SBF applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.

Features

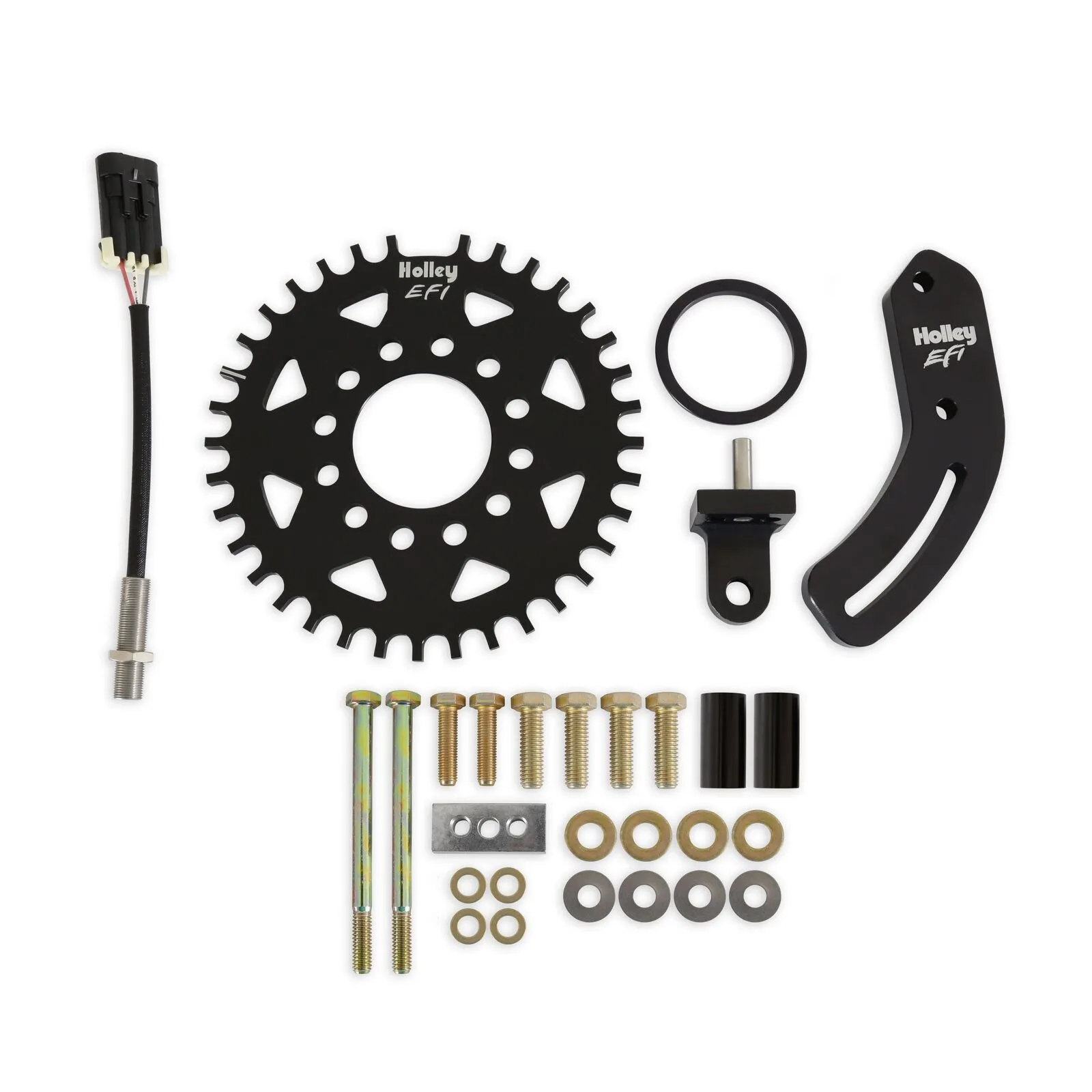

  • 7.25” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
  • Crank wheel centers off of the balancerÂ’s hub, eliminating the need for a centering ring
  • All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo
  • Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
  • All Grade 8 & Mil. Spec mounting hardware

Specifications

Bracket ColourBlack
Bracket MaterialAluminum
BrandHolley EFI
Category FilterFuel Injection - EFI
Clearance CategoryFuel Injection - EFI
ColourBlack
Diameter7.25 in., 7.25"
Emission Code4
FinishBlack Zinc Oxide
Grade TypePerformance
MakeFord
Pickup IncludedYes
Product TypeCrank Trigger Kit
Sale CategoryIgnition
Sensor Dimensions12mm x 50mm
Sensor TypeHall Effect
Trigger Type36-1
Trigger Wheel ColourBlack
Trigger Wheel MaterialSteel
Trigger Wheel Outside Diameter7.25 IN
Trigger Wheel Thickness1/4 IN
Wheel Width1/4"

Compatibility

  • Universal Part

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on SBF applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.

Features

  • 7.25” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
  • Crank wheel centers off of the balancerÂ’s hub, eliminating the need for a centering ring
  • All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo
  • Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
  • All Grade 8 & Mil. Spec mounting hardware
Bracket ColourBlack
Bracket MaterialAluminum
BrandHolley EFI
Category FilterFuel Injection - EFI
Clearance CategoryFuel Injection - EFI
ColourBlack
Diameter7.25 in., 7.25"
Emission Code4
FinishBlack Zinc Oxide
Grade TypePerformance
MakeFord
Pickup IncludedYes
Product TypeCrank Trigger Kit
Sale CategoryIgnition
Sensor Dimensions12mm x 50mm
Sensor TypeHall Effect
Trigger Type36-1
Trigger Wheel ColourBlack
Trigger Wheel MaterialSteel
Trigger Wheel Outside Diameter7.25 IN
Trigger Wheel Thickness1/4 IN
Wheel Width1/4"
  • Universal Part
