Description

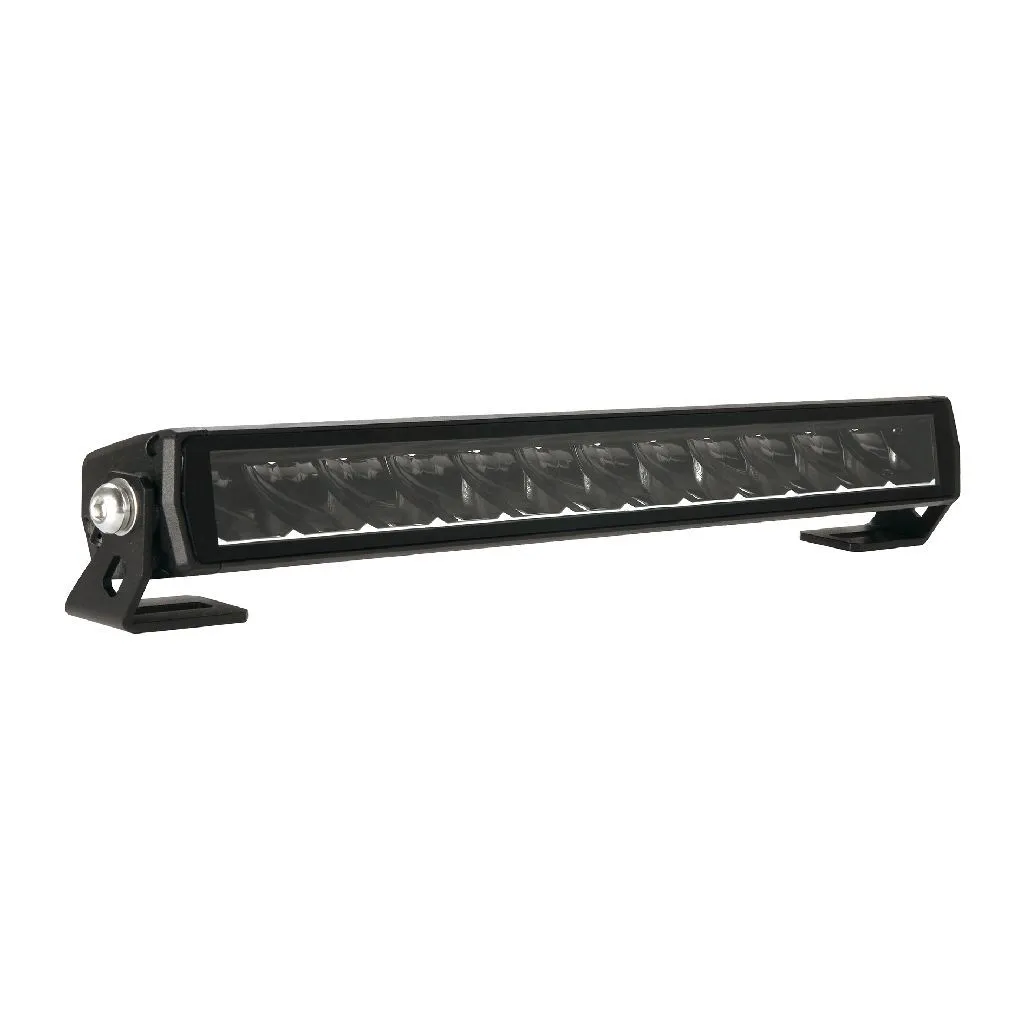

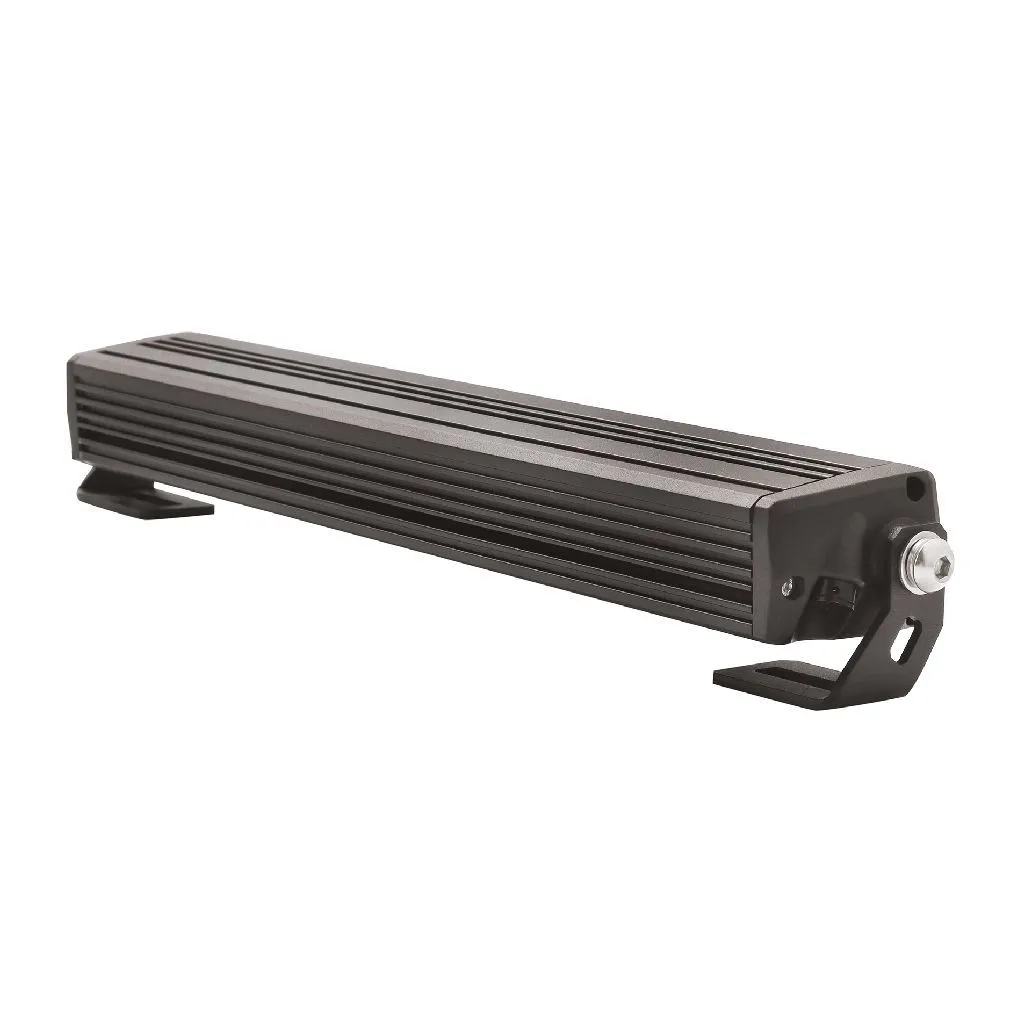

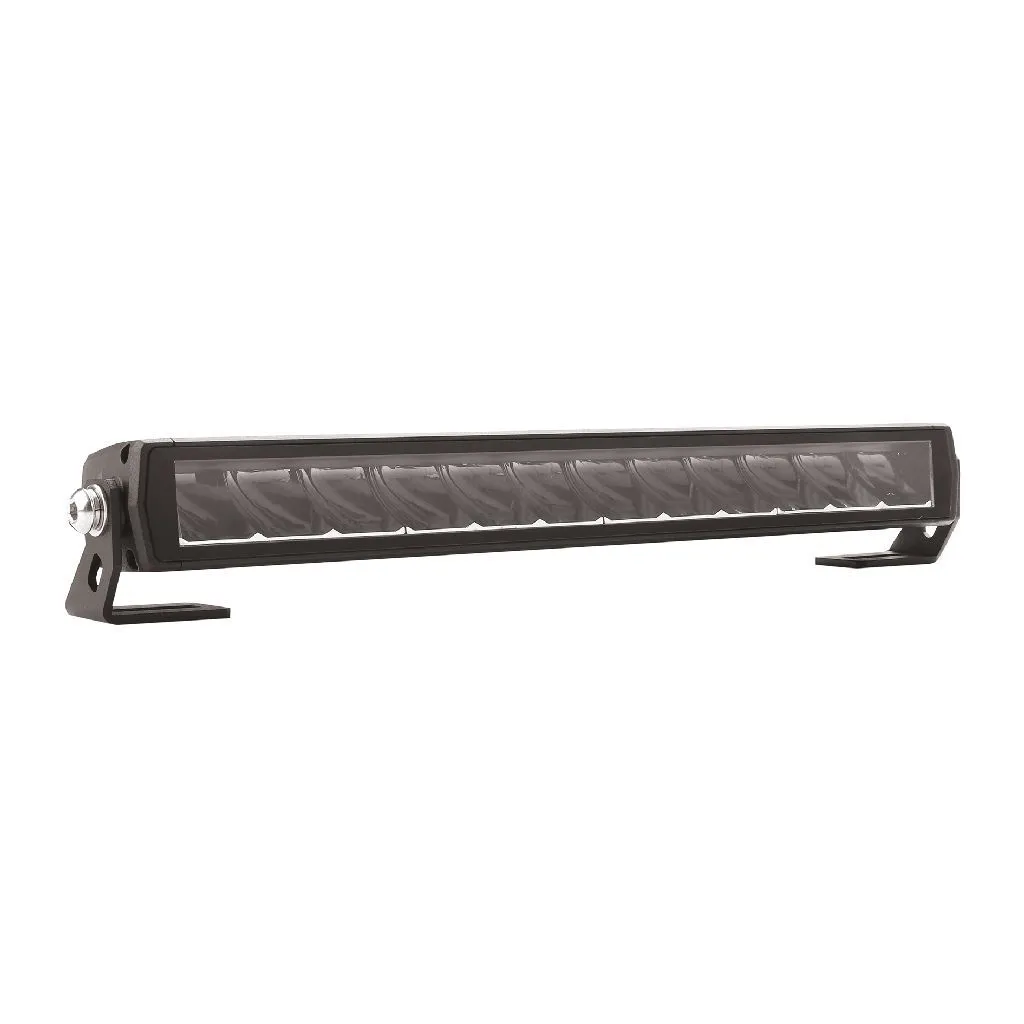

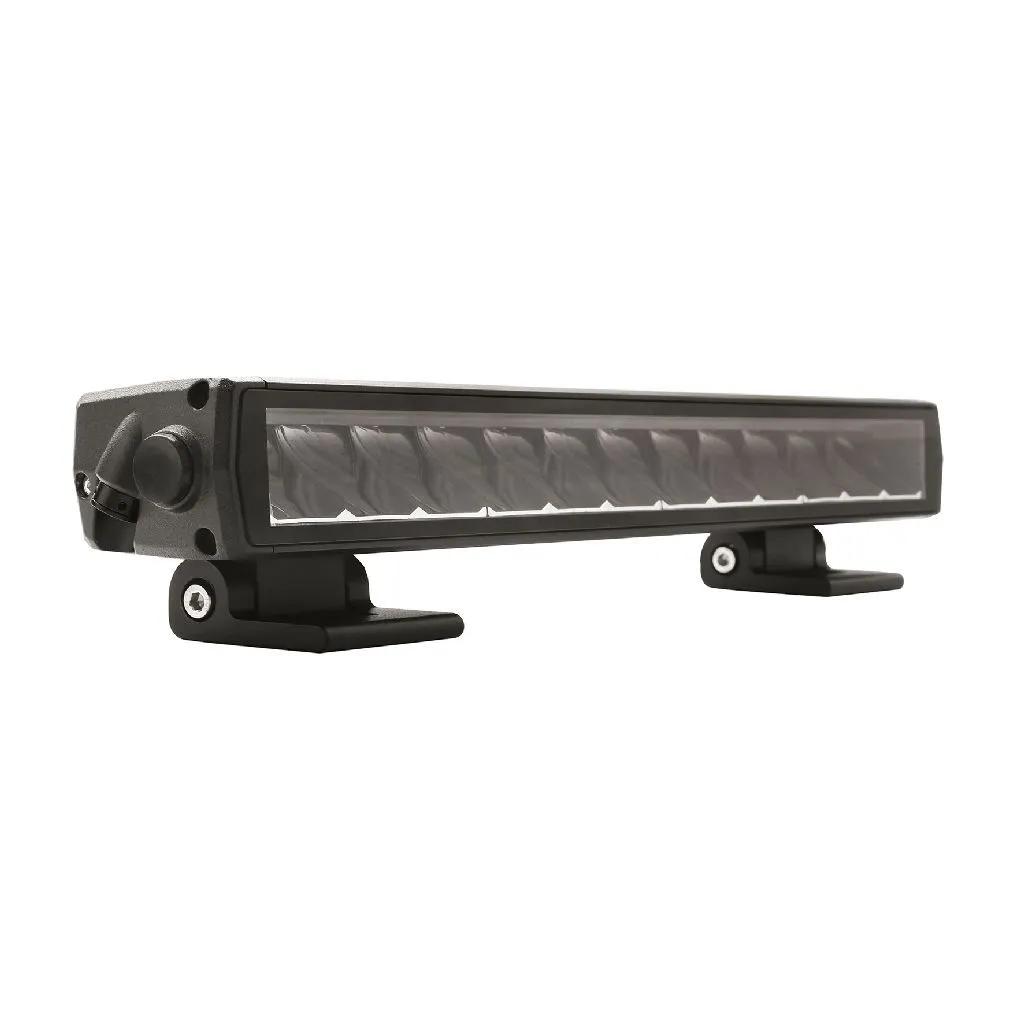

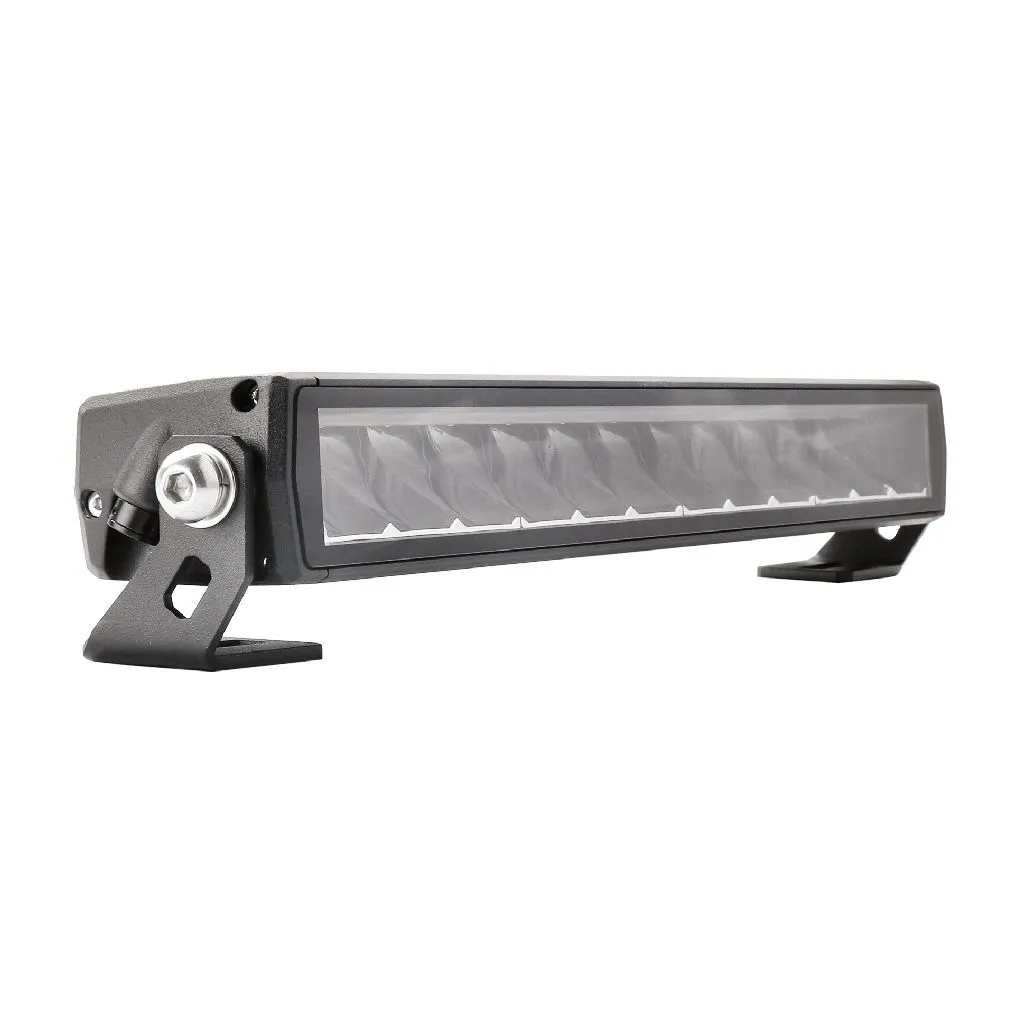

12 LED Driving Lamp Lightbar Drvng Beam 9-36V 120W 8,800Lmn

Specifications

  • Ultra Slim - 40.5mm height for Single Row Lightbars & 52.5mm depth for both Single Row & Dual Row Lightbars
  • Flush Front Fascia With no Exposed Screws - Easy To clean & no chance of screws corroding
  • Black anodised polyester powder coated extruded 6063 Aluminium housing With integrated heat-sink & pressure equalising vent
  • Polycarbonate reflector focusing optic drive technology With Lexan polycarbonate lens
  • Cross slider bracket assembly Allows the bottom brackets To be positioned anywhere along bars length
  • 500mm lead With 2 Pin deutsch plug
  • Driving beam
  • 120W, 12 x 10W high intensity LP LEDs
  • 8,800 Raw & 7,500 Effective Lumens
  • 1 Lux @ 360m & 129,300cd peak beam intensity
  • 9 36V Multi voltage
  • Current Draw: 5.3A @ 12V & 2.5A @ 24V
  • 358mm length
  • Weight: 1.13kg

What's Included

  1. Bottom Mount Bracket - 6063 Aluminium
  2. Side Mount Bracket - SUS201 Stainless Steel

Compatibility

  • Universal Part

12 LED Driving Lamp Lightbar Drvng Beam 9-36V 120W 8,800Lmn

  • Ultra Slim - 40.5mm height for Single Row Lightbars & 52.5mm depth for both Single Row & Dual Row Lightbars
  • Flush Front Fascia With no Exposed Screws - Easy To clean & no chance of screws corroding
  • Black anodised polyester powder coated extruded 6063 Aluminium housing With integrated heat-sink & pressure equalising vent
  • Polycarbonate reflector focusing optic drive technology With Lexan polycarbonate lens
  • Cross slider bracket assembly Allows the bottom brackets To be positioned anywhere along bars length
  • 500mm lead With 2 Pin deutsch plug
  • Driving beam
  • 120W, 12 x 10W high intensity LP LEDs
  • 8,800 Raw & 7,500 Effective Lumens
  • 1 Lux @ 360m & 129,300cd peak beam intensity
  • 9 36V Multi voltage
  • Current Draw: 5.3A @ 12V & 2.5A @ 24V
  • 358mm length
  • Weight: 1.13kg
  1. Bottom Mount Bracket - 6063 Aluminium
  2. Side Mount Bracket - SUS201 Stainless Steel
  • Universal Part
