Description

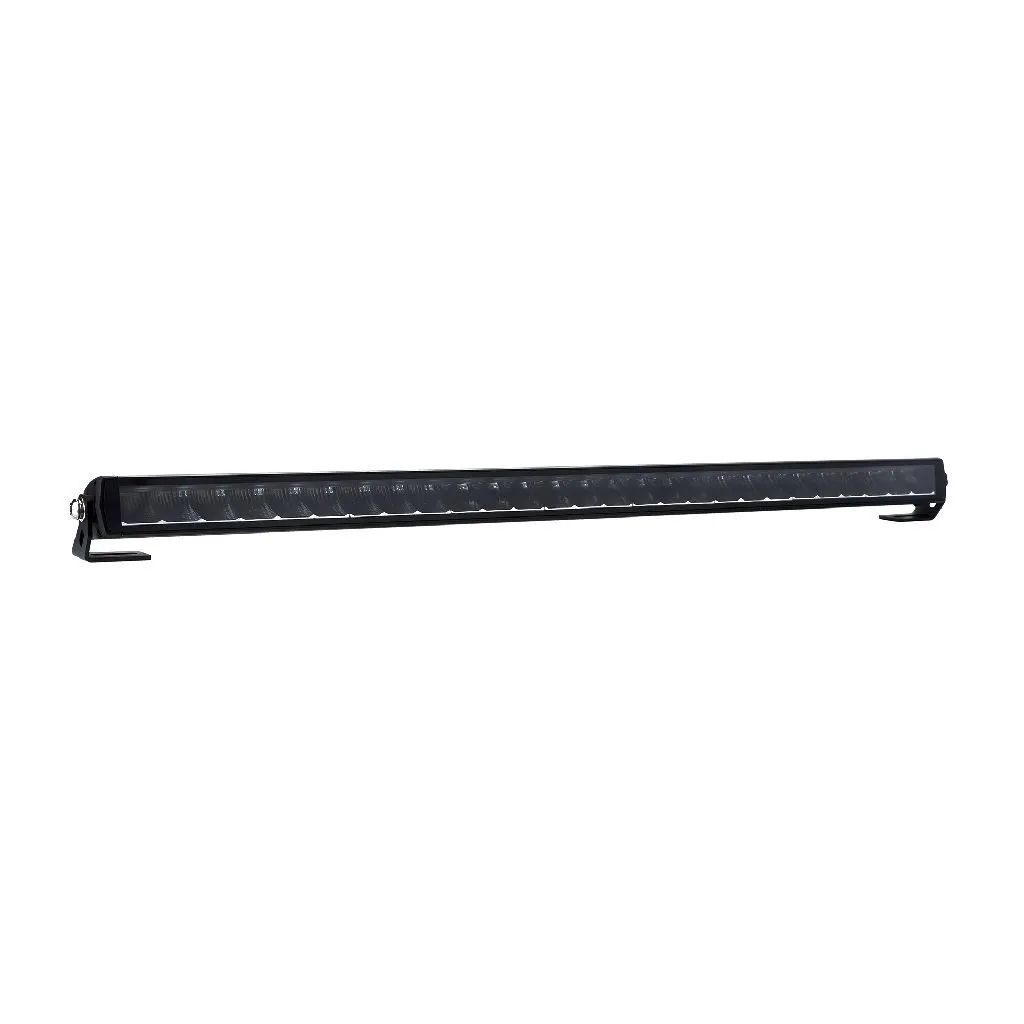

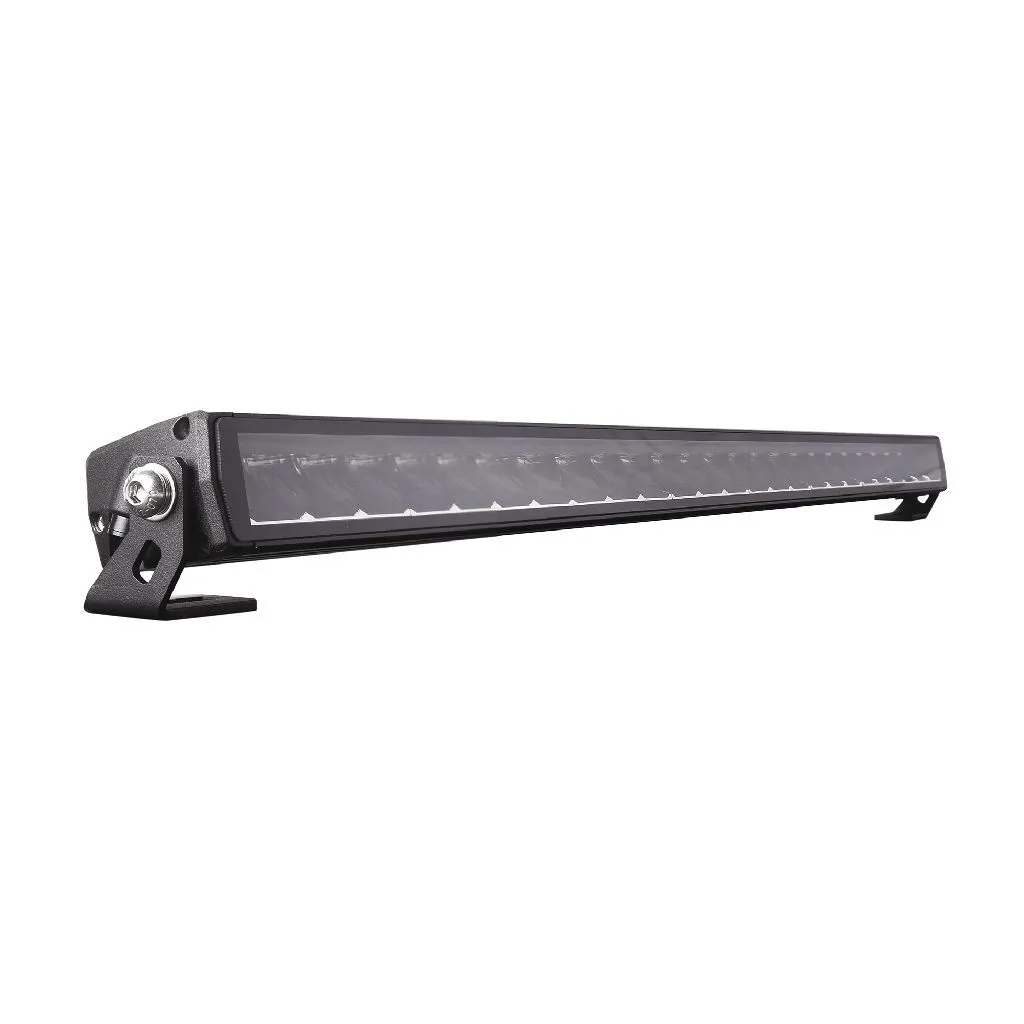

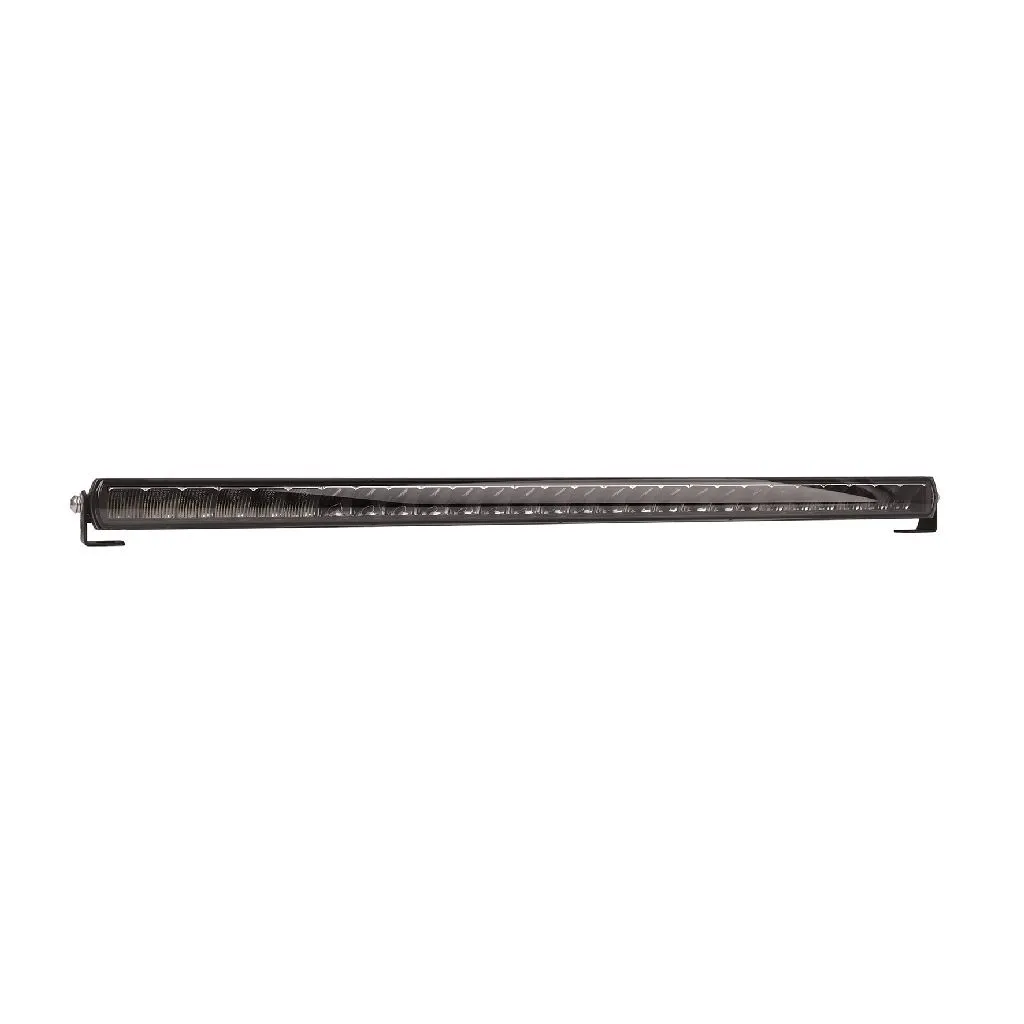

27 LED Driving Lamp Lightbar Combo Beam 9-36V 270W 19,800Lm

Specifications

  • Ultra Slim - 40.5mm height for Single Row Lightbars & 52.5mm depth for both Single Row & Dual Row Lightbars
  • Flush Front Fascia With no Exposed Screws - Easy To clean & no chance of screws corroding
  • Black anodised polyester powder coated extruded 6063 Aluminium housing With integrated heat-sink & pressure equalising vent
  • Polycarbonate reflector focusing optic drive technology With Lexan polycarbonate lens
  • Cross slider bracket assembly Allows the bottom brackets To be positioned anywhere along barÂ’s length
  • 500mm lead With 2 Pin deutsch plug
  • Combo beam
  • 270W, 27 x 10W high intensity LP LEDÂ’s
  • 19,800 Raw & 16,800 Effective Lumens & 6,000K
  • 1 Lux @ 510m & 462,400cd peak beam intensity
  • 9 – 36V Multi voltage
  • Current Draw: 12.4A @ 12V & 6.1A @ 24V
  • 763mm length
  • Weight: 1.9kg

What's Included

  1. Bottom Mount Bracket - 6063 Aluminium
  2. Side Mount Bracket - SUS201 Stainless Steel

Compatibility

  • Universal Part

27 LED Driving Lamp Lightbar Combo Beam 9-36V 270W 19,800Lm

  • Ultra Slim - 40.5mm height for Single Row Lightbars & 52.5mm depth for both Single Row & Dual Row Lightbars
  • Flush Front Fascia With no Exposed Screws - Easy To clean & no chance of screws corroding
  • Black anodised polyester powder coated extruded 6063 Aluminium housing With integrated heat-sink & pressure equalising vent
  • Polycarbonate reflector focusing optic drive technology With Lexan polycarbonate lens
  • Cross slider bracket assembly Allows the bottom brackets To be positioned anywhere along barÂ’s length
  • 500mm lead With 2 Pin deutsch plug
  • Combo beam
  • 270W, 27 x 10W high intensity LP LEDÂ’s
  • 19,800 Raw & 16,800 Effective Lumens & 6,000K
  • 1 Lux @ 510m & 462,400cd peak beam intensity
  • 9 – 36V Multi voltage
  • Current Draw: 12.4A @ 12V & 6.1A @ 24V
  • 763mm length
  • Weight: 1.9kg
  1. Bottom Mount Bracket - 6063 Aluminium
  2. Side Mount Bracket - SUS201 Stainless Steel
  • Universal Part
