Description

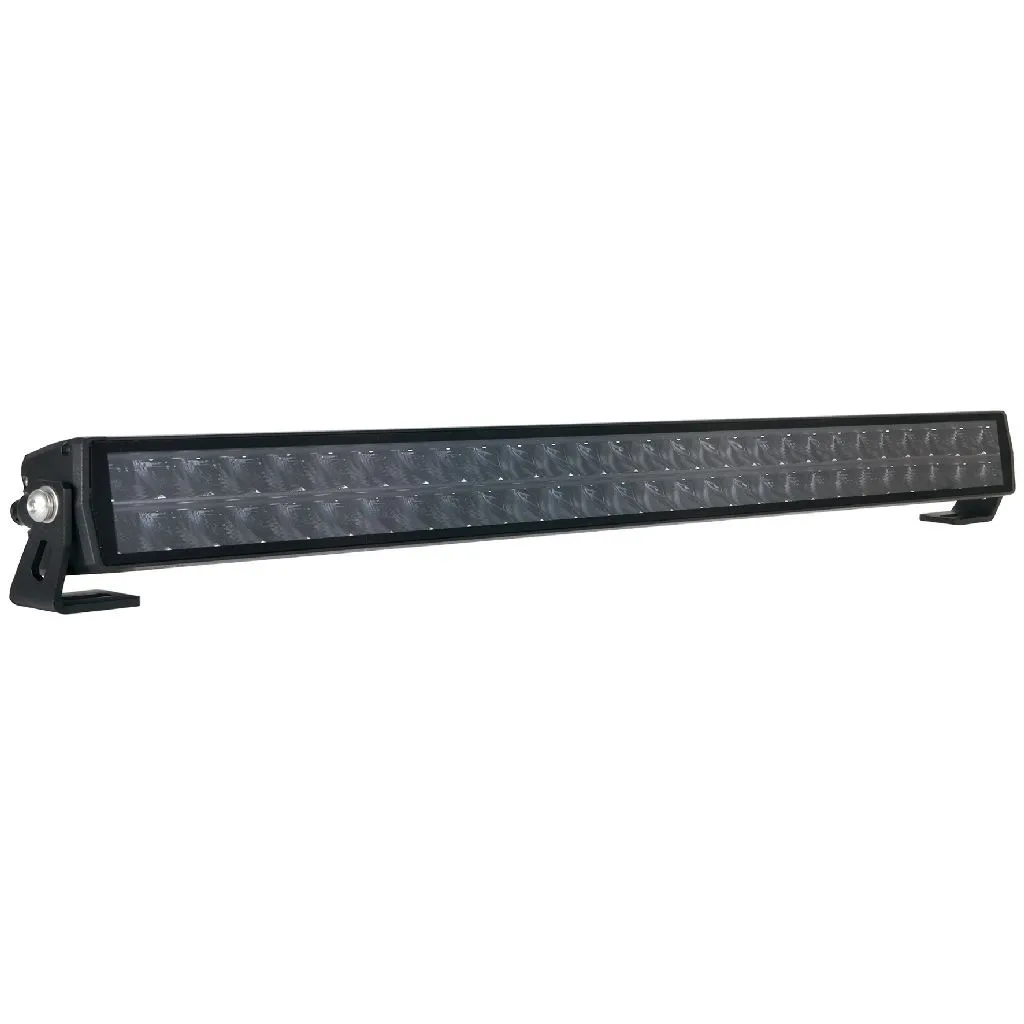

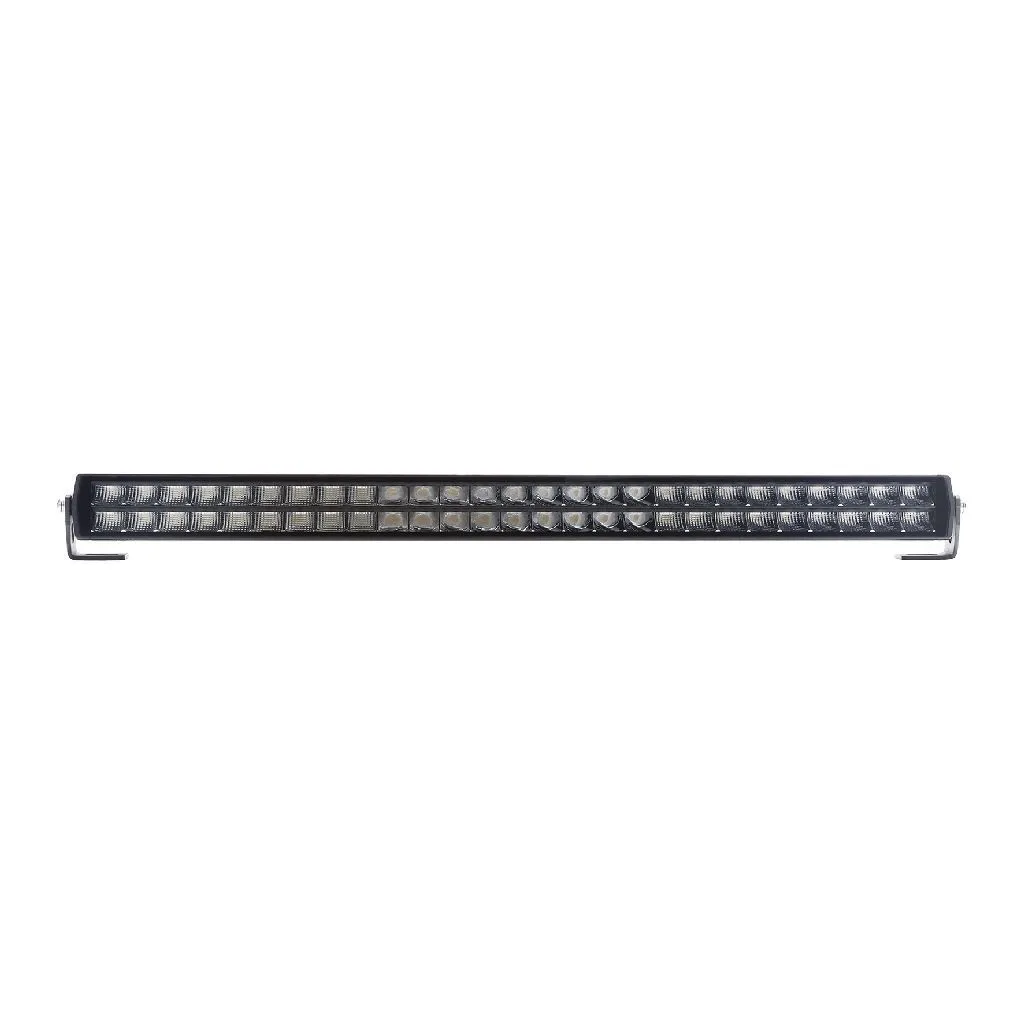

54 LED Dual Row Driving Lamp Lightbar Combo Beam 9-36V 270W

Specifications

  • Ultra Slim - 52.5mm depth for both Single Row & Dual Row Lightbars
  • Flush Front Fascia With no Exposed Screws - Easy To clean & no chance of screws corroding
  • Black anodised polyester powder coated extruded 6063 Aluminium housing With integrated heat-sink & pressure equalising vent
  • Polycarbonate reflector focusing optic drive technology With Lexan polycarbonate lens
  • Cross slider bracket assembly Allows the bottom brackets To be positioned anywhere along barÂ’s length
  • 500mm lead With 2 Pin deutsch plug
  • Combo beam
  • 270W, 54 x 5W high intensity LP LEDÂ’s
  • 24,300 Raw & 20,600 Effective Lumens & 6,000K
  • 1 Lux @ 705m & 497,000cd peak beam intensity
  • 9 – 36V Multi voltage
  • Current Draw: 15.2A @ 12 V & 7.3A @ 24V
  • 765mm length
  • Weight: 2.75kg

What's Included

  1. Bottom Mount Bracket - 6063 Aluminium
  2. Side Mount Bracket - SUS201 Stainless Steel

Compatibility

  • Universal Part

54 LED Dual Row Driving Lamp Lightbar Combo Beam 9-36V 270W

  • Ultra Slim - 52.5mm depth for both Single Row & Dual Row Lightbars
  • Flush Front Fascia With no Exposed Screws - Easy To clean & no chance of screws corroding
  • Black anodised polyester powder coated extruded 6063 Aluminium housing With integrated heat-sink & pressure equalising vent
  • Polycarbonate reflector focusing optic drive technology With Lexan polycarbonate lens
  • Cross slider bracket assembly Allows the bottom brackets To be positioned anywhere along barÂ’s length
  • 500mm lead With 2 Pin deutsch plug
  • Combo beam
  • 270W, 54 x 5W high intensity LP LEDÂ’s
  • 24,300 Raw & 20,600 Effective Lumens & 6,000K
  • 1 Lux @ 705m & 497,000cd peak beam intensity
  • 9 – 36V Multi voltage
  • Current Draw: 15.2A @ 12 V & 7.3A @ 24V
  • 765mm length
  • Weight: 2.75kg
  1. Bottom Mount Bracket - 6063 Aluminium
  2. Side Mount Bracket - SUS201 Stainless Steel
  • Universal Part
