Description

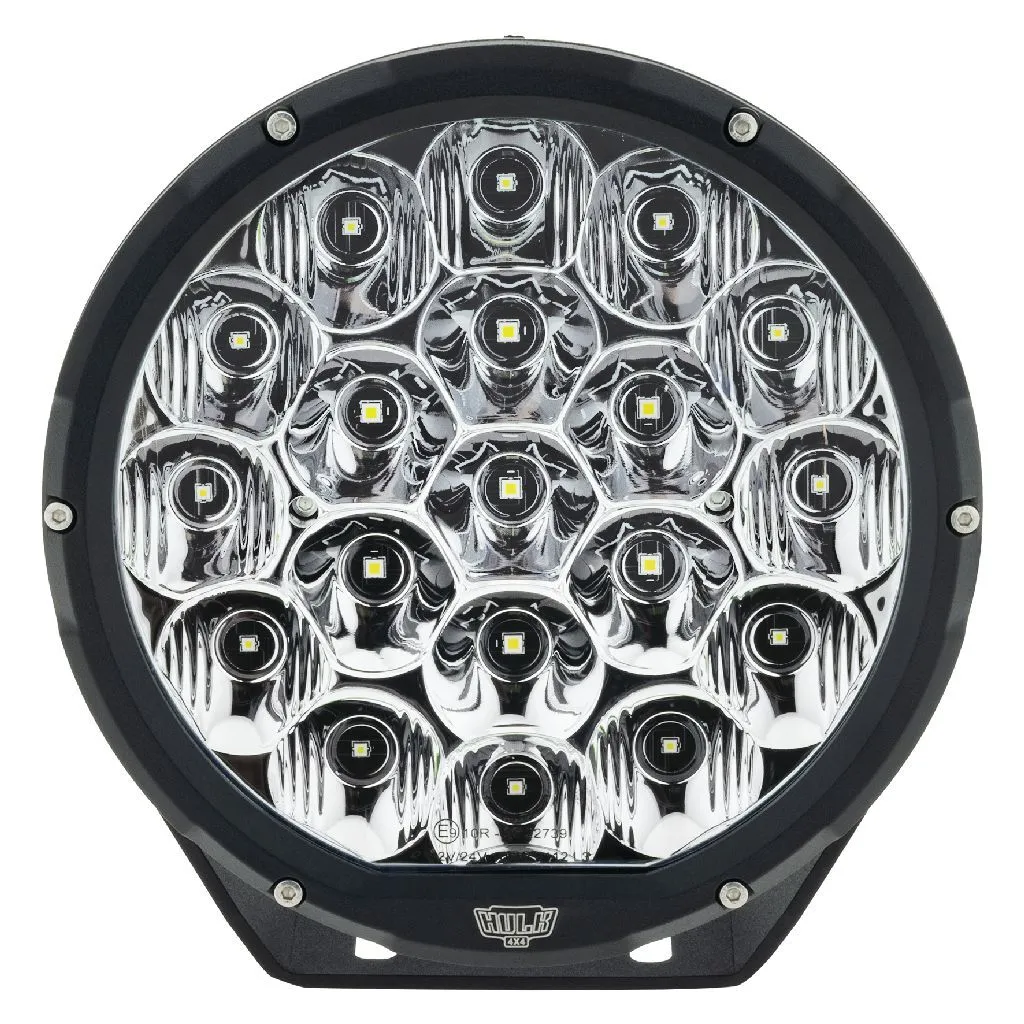

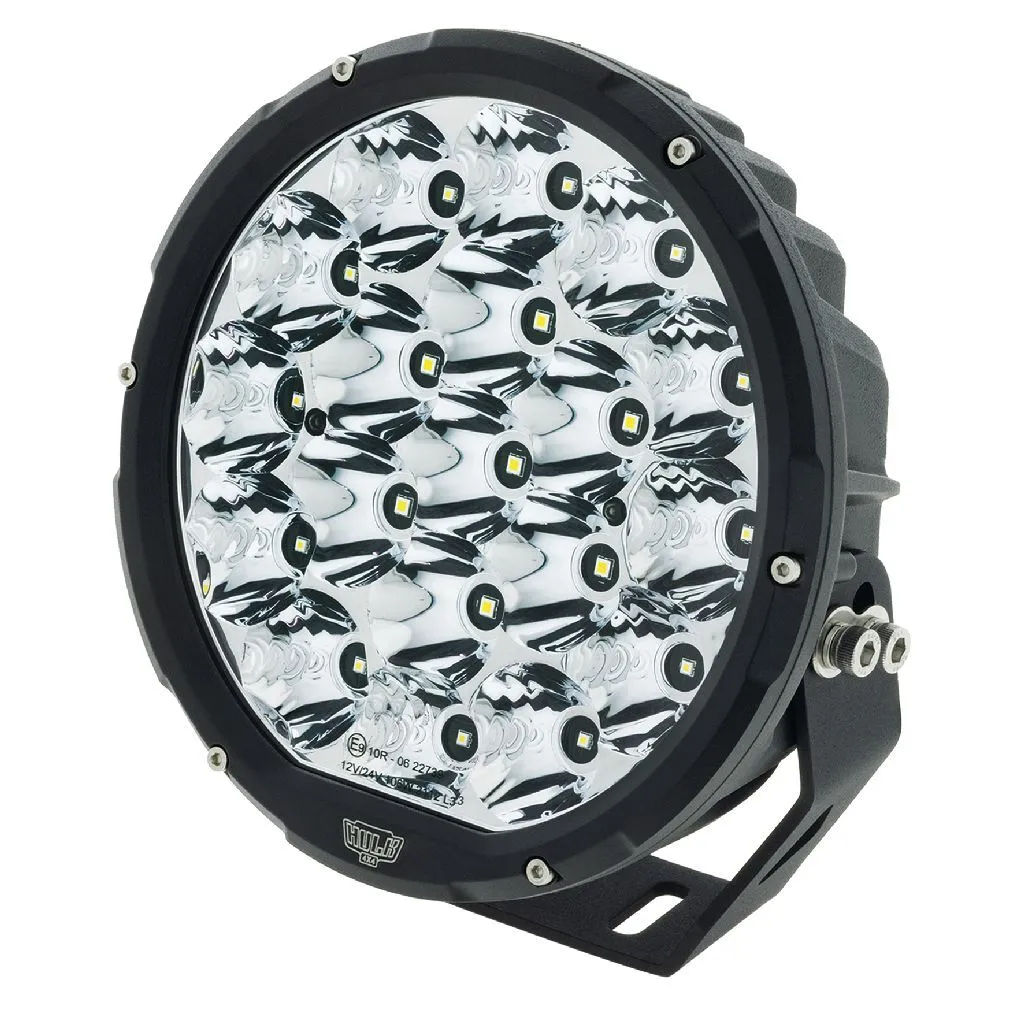

7" Rnd LED Driving Lamp Drivng Beam 9-36V 106W 19 LED's Black

Specifications

  • Black Bezel
  • 9 - 36 Volt 106 Watt
  • Driving Beam Pattern 25 Degrees
  • 12 x 3 Watt High Intensity LP LED's and 7 x 10 Watt High Intensity LP LED's
  • 11,000 Raw and 8,800 Effective Lumens and 6,000K
  • 1 Lux @ 538m and 289,000cd Peak Beam Intensity
  • Current Draw: 7.1amp @ 12 Volt and 3.4amp @ 24 Volt
  • Combined Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Die Cast Aluminium (ADC12) Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Stainless Steel (SUS304) Multiple Bolt Mount Bracket and Hardware
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant to 15G
  • Anti Rust, corrosion and freezing resistance
  • 50,000 Hours LED Lifespan
  • ECE R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 2 Year Warranty
  • Weight: 1.4kg

Compatibility

  • Universal Part

7" Rnd LED Driving Lamp Drivng Beam 9-36V 106W 19 LED's Black

  • Black Bezel
  • 9 - 36 Volt 106 Watt
  • Driving Beam Pattern 25 Degrees
  • 12 x 3 Watt High Intensity LP LED's and 7 x 10 Watt High Intensity LP LED's
  • 11,000 Raw and 8,800 Effective Lumens and 6,000K
  • 1 Lux @ 538m and 289,000cd Peak Beam Intensity
  • Current Draw: 7.1amp @ 12 Volt and 3.4amp @ 24 Volt
  • Combined Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Die Cast Aluminium (ADC12) Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Stainless Steel (SUS304) Multiple Bolt Mount Bracket and Hardware
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant to 15G
  • Anti Rust, corrosion and freezing resistance
  • 50,000 Hours LED Lifespan
  • ECE R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 2 Year Warranty
  • Weight: 1.4kg
  • Universal Part
