Description

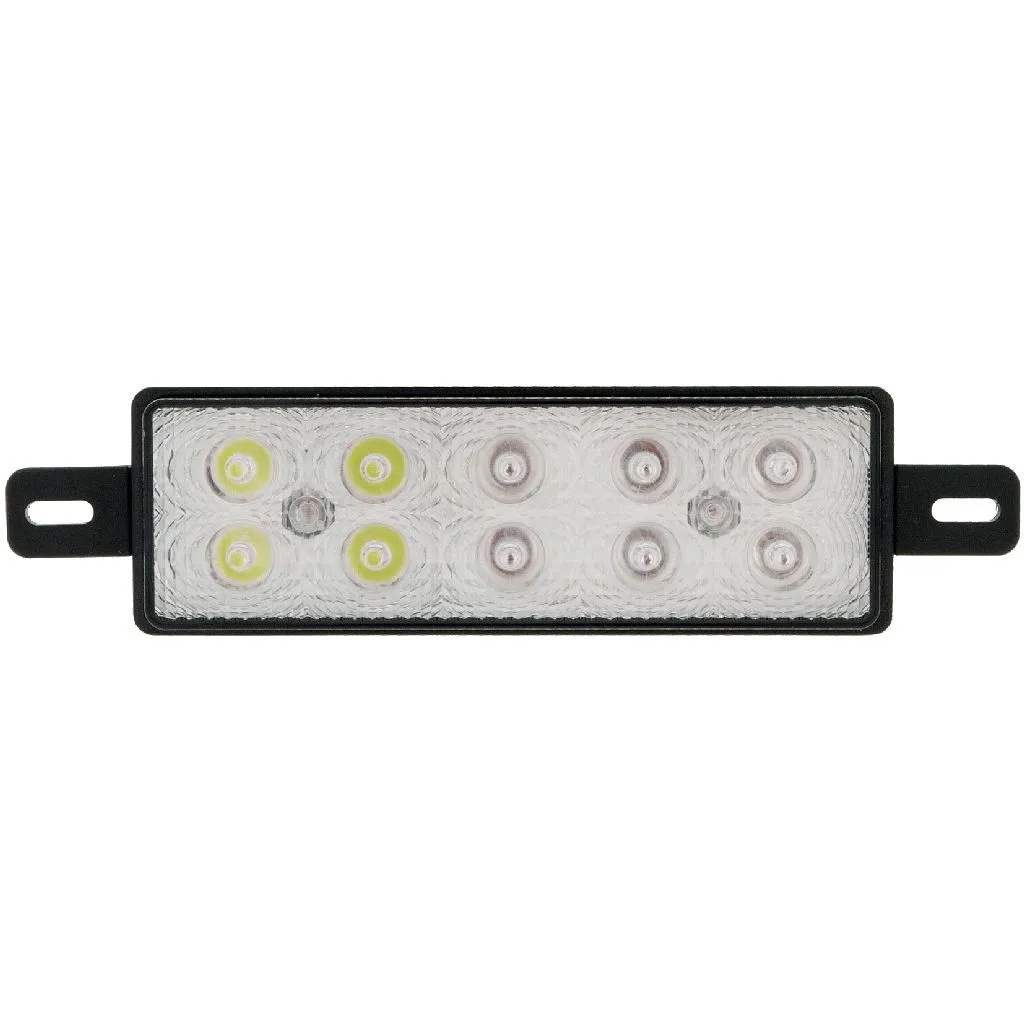

LED Front Direction Indicator Position & Drl Lamp 9-33V Bull

Specifications

  • Retro fits to existing Bull Bars in 4x4 applications and provides the additional safety feature of
  • a fully compliant DRL function
  • Amber and White Illumination
  • 4 x High Intensity White LED's in Position / DRL Lamp and 6 x High Intensity Amber LED's in the Indicator Lamp
  • Clear Optical Polycarbonate Lens with unique Circular lens patterns
  • Black ABS Plastic Housing with mounting screws included
  • Tab or Surface Mount- low mounting depth for easy installation
  • Pre-wired 300mm Lead
  • Fully encapsulated circuitry
  • Sealed against Dust and Moisture
  • 100,000 Hours LED Lifespan
  • 0.31amps at 12 Volt Current Draw for Indicator function
  • 0.31amps at 12 Volt Current Draw for DRL function
  • 0.15amps at 12 Volt Current Draw for Front Position function
  • ADR 6/00 Cat 1 Front Indicator Lamp specifications approved
  • ADR 76/00 DRL Lamp specifications approved
  • ADR 49/00 Front Position Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating
  • Warranty: 2 Years
  • Blister Qty: 1
  • Type: LED
  • Shape: Rectangular
  • Mount: Surface
  • Colour: Amber/White
  • Voltage: Multivolt
  • Width (mm): 228.5
  • Depth (mm): 29
  • Height (mm): 56

Compatibility

  • Universal Part

LED Front Direction Indicator Position & Drl Lamp 9-33V Bull

  • Retro fits to existing Bull Bars in 4x4 applications and provides the additional safety feature of
  • a fully compliant DRL function
  • Amber and White Illumination
  • 4 x High Intensity White LED's in Position / DRL Lamp and 6 x High Intensity Amber LED's in the Indicator Lamp
  • Clear Optical Polycarbonate Lens with unique Circular lens patterns
  • Black ABS Plastic Housing with mounting screws included
  • Tab or Surface Mount- low mounting depth for easy installation
  • Pre-wired 300mm Lead
  • Fully encapsulated circuitry
  • Sealed against Dust and Moisture
  • 100,000 Hours LED Lifespan
  • 0.31amps at 12 Volt Current Draw for Indicator function
  • 0.31amps at 12 Volt Current Draw for DRL function
  • 0.15amps at 12 Volt Current Draw for Front Position function
  • ADR 6/00 Cat 1 Front Indicator Lamp specifications approved
  • ADR 76/00 DRL Lamp specifications approved
  • ADR 49/00 Front Position Lamp specifications approved
  • Refer to ADR 13/00 for mounting instructions
  • IP67 Rating
  • Warranty: 2 Years
  • Blister Qty: 1
  • Type: LED
  • Shape: Rectangular
  • Mount: Surface
  • Colour: Amber/White
  • Voltage: Multivolt
  • Width (mm): 228.5
  • Depth (mm): 29
  • Height (mm): 56
  • Universal Part
