Description

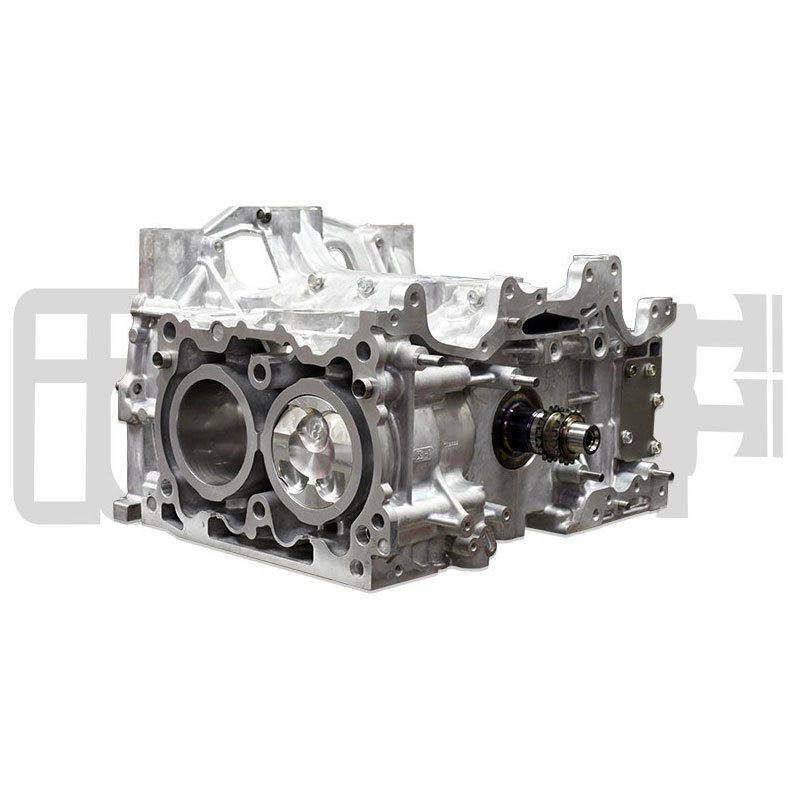

The IAG Stage 2 short block starts with new Subaru FA 2.0L engine case halves that are bored and honed to 86.1mm on our in-house Sunnen SV-30 the most advanced automotive cylinder hone available. IAG‘s in-house honing process is able to set piston to wall clearances tighter for a quieter running engine.

The short block is measured and assembled using a new 2015-18 Subaru 2.0L WRX crankshaft that is matched to King main bearings. Brian Crower H-Beam rods with ARP2000 rod bolts are utilized along with King or ACL rod bearings. The case halves are sealed with new OEM case bolts and sealant. Finally, IAG-Spec 86.1mm forged pistons are spec'd and installed along with an OEM oil plug finishing off the short block.

Stage 2 FA20 Includes:

  • Case Halves - Brand new OEM Subaru FA20 case halves, bored and honed to 86.1mm
  • Pistons - IAG-Spec 86.1mm Forged Pistons, Ring Set, and .150" x 2.250" Chromoly Wrist Pins.
  • Connecting Rods - Brian Crower H-Beam / ARP2000 Rod Bolts
  • Rod - ACL or King XPG
  • Main Bearings - King XPG
  • Crankshaft - New Subaru FA20 DIT WRX crankshaft
  • Case / Main Bolts - Standard Subaru case bolts
  • Hardware - OEM Oil Plug - comes preinstalled at the oil pan location

Compression Ratio:

  • 10.0:1 (.6 lower than stock compression) on standard gasket thickness.

Power:

  • The IAG Stage 2 Short Block has a power output rating of 600BHP

Additional Options Available:

  • Oil Plugs & Rear Main Seal kit (Sold Separately)
    • (1) 11021AA190 Plug
    • (2) 11024AA141 Plugs
    • (1) 806792010 Rear Main Seal

Note: All IAG Short Blocks are balanced and blueprinted.

Please review the PDF document below regarding installation, break-in procedures and warranty information.

Specifications

Compatibility

  • 2015+ Subaru WRX (FA20)

The IAG Stage 2 short block starts with new Subaru FA 2.0L engine case halves that are bored and honed to 86.1mm on our in-house Sunnen SV-30 the most advanced automotive cylinder hone available. IAG‘s in-house honing process is able to set piston to wall clearances tighter for a quieter running engine.

The short block is measured and assembled using a new 2015-18 Subaru 2.0L WRX crankshaft that is matched to King main bearings. Brian Crower H-Beam rods with ARP2000 rod bolts are utilized along with King or ACL rod bearings. The case halves are sealed with new OEM case bolts and sealant. Finally, IAG-Spec 86.1mm forged pistons are spec'd and installed along with an OEM oil plug finishing off the short block.

Stage 2 FA20 Includes:

  • Case Halves - Brand new OEM Subaru FA20 case halves, bored and honed to 86.1mm
  • Pistons - IAG-Spec 86.1mm Forged Pistons, Ring Set, and .150" x 2.250" Chromoly Wrist Pins.
  • Connecting Rods - Brian Crower H-Beam / ARP2000 Rod Bolts
  • Rod - ACL or King XPG
  • Main Bearings - King XPG
  • Crankshaft - New Subaru FA20 DIT WRX crankshaft
  • Case / Main Bolts - Standard Subaru case bolts
  • Hardware - OEM Oil Plug - comes preinstalled at the oil pan location

Compression Ratio:

  • 10.0:1 (.6 lower than stock compression) on standard gasket thickness.

Power:

  • The IAG Stage 2 Short Block has a power output rating of 600BHP

Additional Options Available:

  • Oil Plugs & Rear Main Seal kit (Sold Separately)
    • (1) 11021AA190 Plug
    • (2) 11024AA141 Plugs
    • (1) 806792010 Rear Main Seal

Note: All IAG Short Blocks are balanced and blueprinted.

Please review the PDF document below regarding installation, break-in procedures and warranty information.

  • 2015+ Subaru WRX (FA20)
