Description

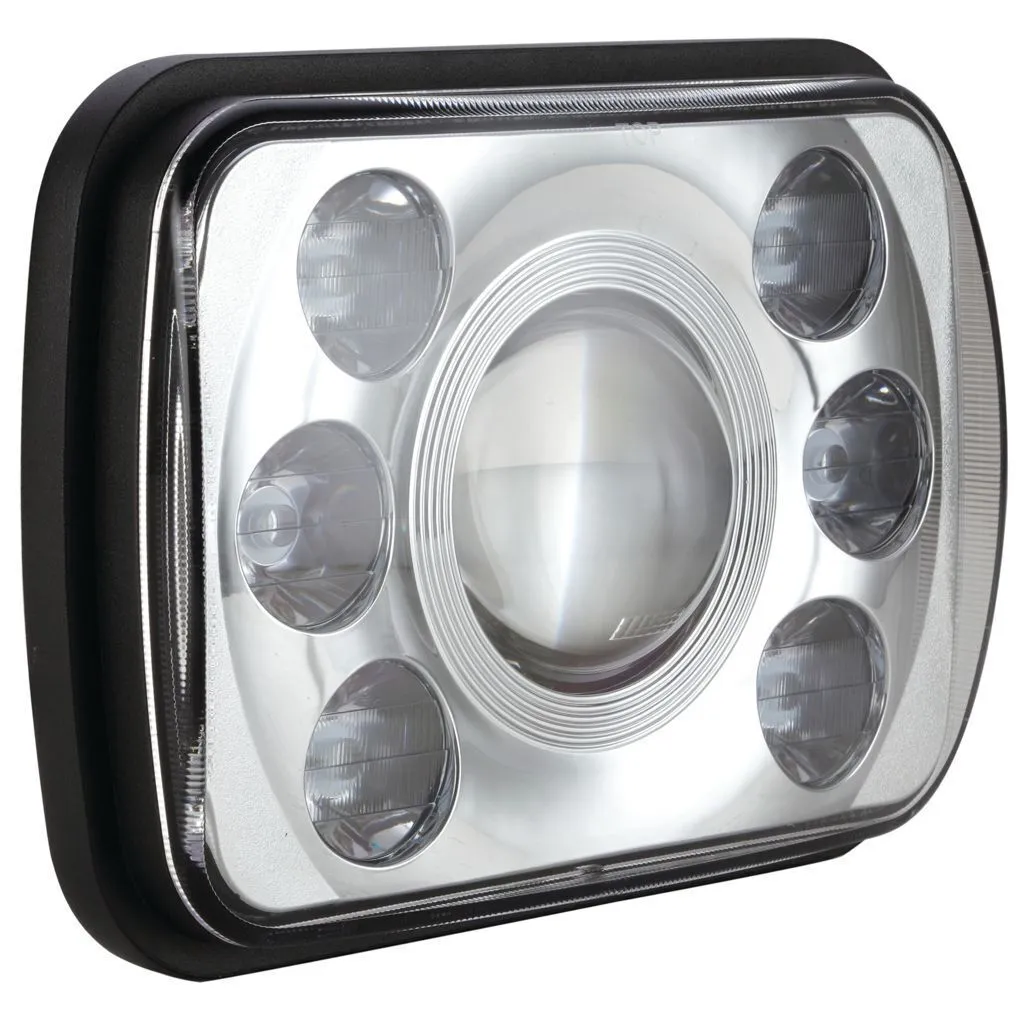

Ignite Rectangle LED HeadLamp 9 - 36 Volt 65 Watt
  • Current Draw: 4.1amp @ 12 Volt and 1.8amp @ 24 Volt
  • Proprietary Polycarbonate TIR Optical System Reflector Technology for High Beam and Position Lamp.
  • Lexan Polycarbonate Lens and Reflectors
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Replaces Headlights, either Semi Sealed or Sealed Beams
  • 150mm Lead with H4 Connector
  • 200mm x 142mm or 7" x 5" - Chrome Fascia
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R7, DOT, SAE and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
  • Weight: 1.19kg
  • Spare Parts:-
  • High / Low Beam and Position Lamp
  • IWH030 Adaptor Harness for Negative Switched Vehicles
  • 6 x 10 Watt High Intensity LumiLEDs LED's for Position Lamp and High Beam
  • 1 x 5 Watt High Intensity Philips LED for Low Beam
  • High Beam: 3,900 Raw Lumens and 3,315 Effective Lumens and 6,500K
  • Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens and 6,500K

Specifications

Beam Type High/Low Beam
Depth (mm) 116
Height (mm) 142
Shape Rectangular
Type LED
Voltage Multivolt
Width (mm) 200
SKU IHL200SC
Barcode # 9323327944958
Brand Ignite

Compatibility

  • Universal Part
Ignite Rectangle LED HeadLamp 9 - 36 Volt 65 Watt
  • Current Draw: 4.1amp @ 12 Volt and 1.8amp @ 24 Volt
  • Proprietary Polycarbonate TIR Optical System Reflector Technology for High Beam and Position Lamp.
  • Lexan Polycarbonate Lens and Reflectors
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Replaces Headlights, either Semi Sealed or Sealed Beams
  • 150mm Lead with H4 Connector
  • 200mm x 142mm or 7" x 5" - Chrome Fascia
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R7, DOT, SAE and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
  • Weight: 1.19kg
  • Spare Parts:-
  • High / Low Beam and Position Lamp
  • IWH030 Adaptor Harness for Negative Switched Vehicles
  • 6 x 10 Watt High Intensity LumiLEDs LED's for Position Lamp and High Beam
  • 1 x 5 Watt High Intensity Philips LED for Low Beam
  • High Beam: 3,900 Raw Lumens and 3,315 Effective Lumens and 6,500K
  • Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens and 6,500K
Beam Type High/Low Beam
Depth (mm) 116
Height (mm) 142
Shape Rectangular
Type LED
Voltage Multivolt
Width (mm) 200
SKU IHL200SC
Barcode # 9323327944958
Brand Ignite
  • Universal Part
