Description

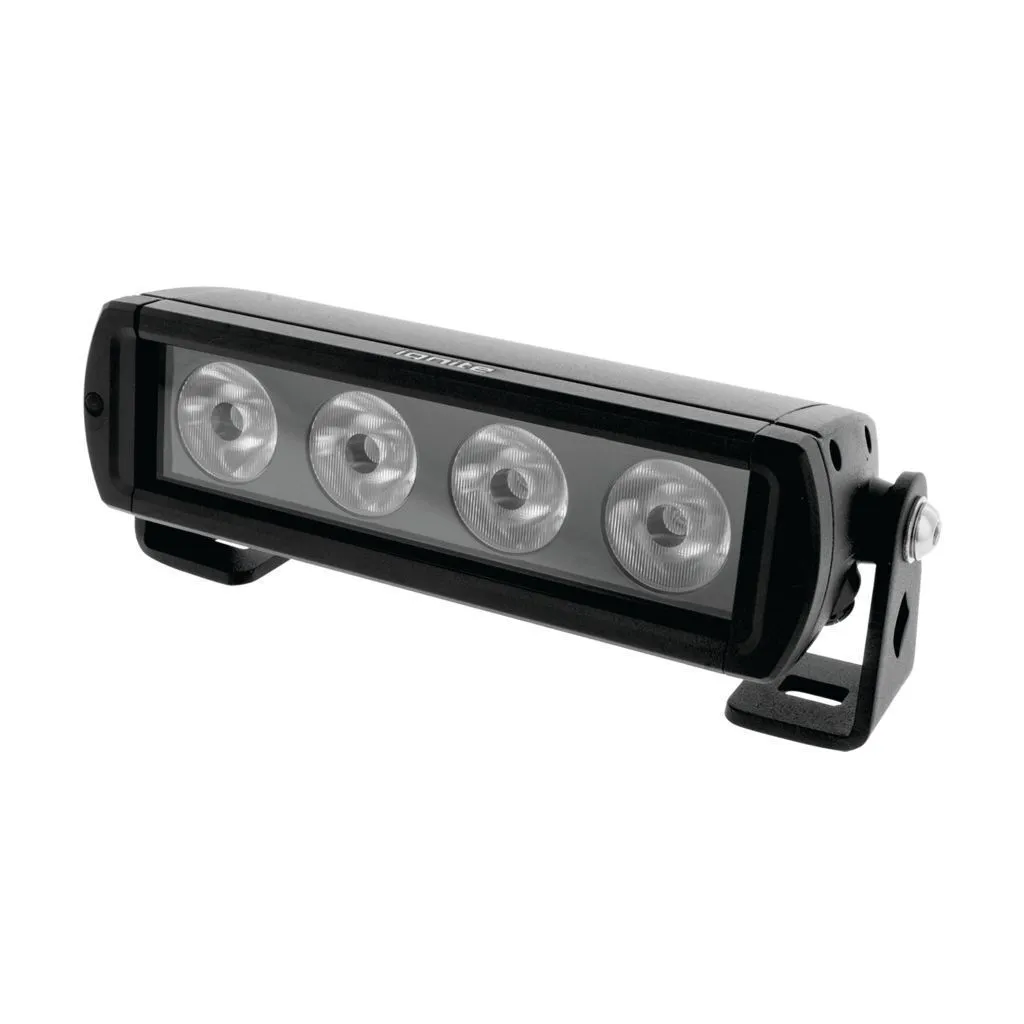

Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 40 Watt
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • 4 x 10 Watt High Intensity Osram LED's
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
Spare Parts:
  • INPB001 Licence Plate Mounting Bracket
  • IBB50MM Round Bullbar Mounting Bracket 50mm
  • IBB64MM Round Bullbar Mounting Bracket 64mm
  • Flood (Spread) Beam Pattern 35 Degrees
  • IBB76MM Round Bullbar Mounting Bracket 76mm
  • IAS40MM 40mm Spacer Mounting Bracket
  • IBB01 Back Mounting Bracket
  • IBB02 Spare Bottom Mounting Bracket
  • 4,140 Raw Lumens, 1 Lux @ 177m and 6,000K
  • Current Draw: 2.6amp @ 12 Volt and 1.3amp @ 24 Volt
  • Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
  • Light Transmittance >95%

Specifications

Beam Type Flood
Depth (mm) 70
Height (mm) 56
Rows Single
Mount Other
No. of LED 4
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 190
SKU ILB190FB
Barcode # 9323327944444
Brand Ignite

Compatibility

  • Universal Part
Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 40 Watt
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • 4 x 10 Watt High Intensity Osram LED's
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
Spare Parts:
  • INPB001 Licence Plate Mounting Bracket
  • IBB50MM Round Bullbar Mounting Bracket 50mm
  • IBB64MM Round Bullbar Mounting Bracket 64mm
  • Flood (Spread) Beam Pattern 35 Degrees
  • IBB76MM Round Bullbar Mounting Bracket 76mm
  • IAS40MM 40mm Spacer Mounting Bracket
  • IBB01 Back Mounting Bracket
  • IBB02 Spare Bottom Mounting Bracket
  • 4,140 Raw Lumens, 1 Lux @ 177m and 6,000K
  • Current Draw: 2.6amp @ 12 Volt and 1.3amp @ 24 Volt
  • Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
  • Light Transmittance >95%
Beam Type Flood
Depth (mm) 70
Height (mm) 56
Rows Single
Mount Other
No. of LED 4
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 190
SKU ILB190FB
Barcode # 9323327944444
Brand Ignite
  • Universal Part
