Description

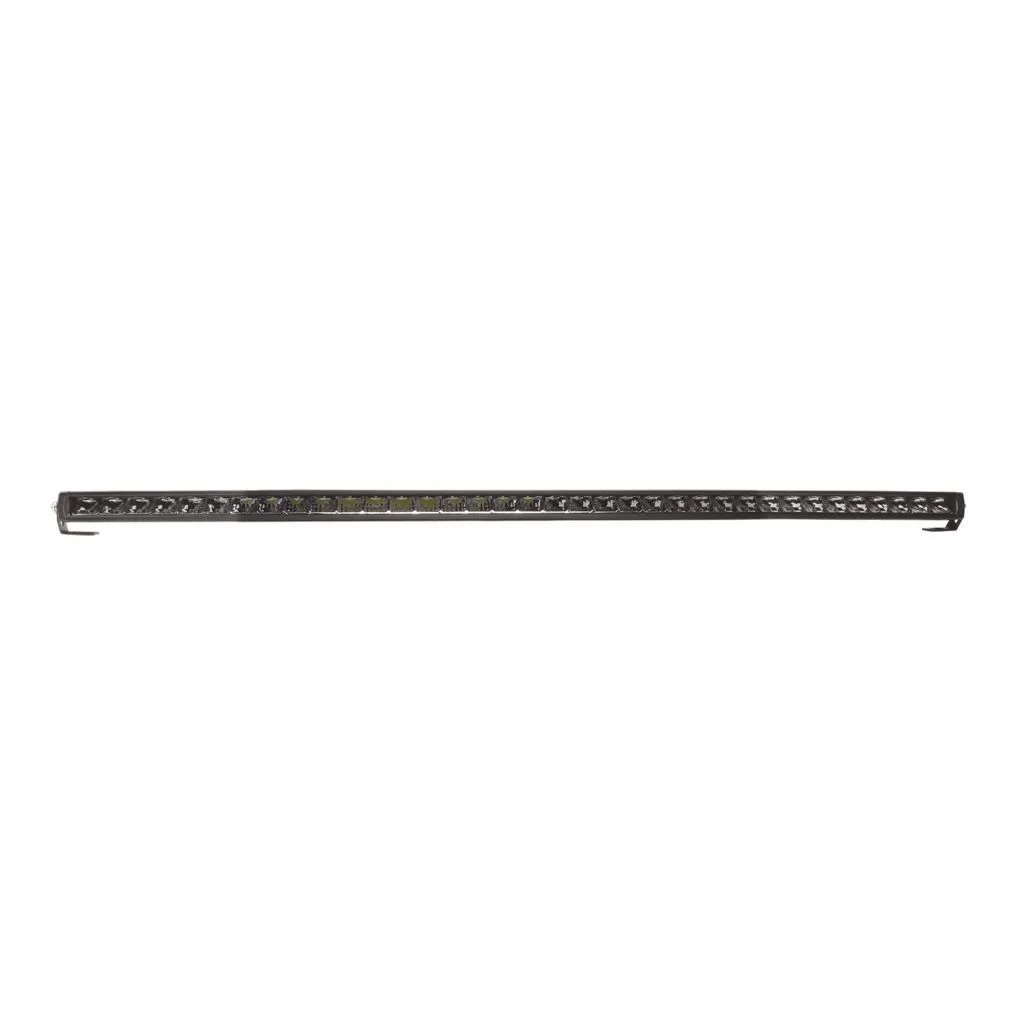

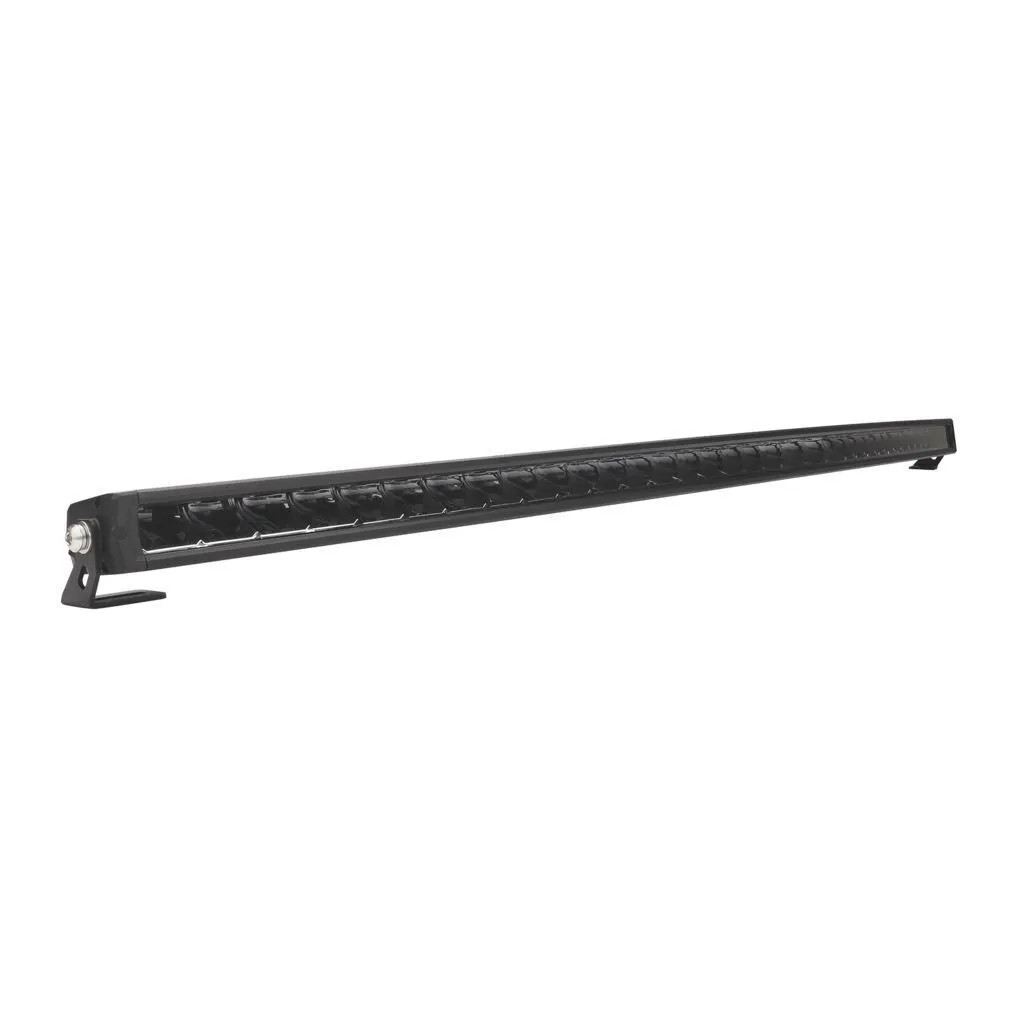

Ignite Ultra Slimline Single Row Curved LED Driving Lamp Lightbar 9 - 36 Volt 252 Watt
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
  • and Pressure Equalising Vent
  • Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Driving Beam Pattern
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112 (Ref 50), R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
  • Weight: _._ _kg
  • 36 x 7 Watt High Intensity LP LED's
  • 22,200 Raw and 18,800 Effective Lumens and 6,000K
  • 1 Lux @ 460m and 211,600cd Peak Beam Intensity
  • Current Draw: 16amp @ 12 Volt and 7.7amp @ 24 Volt
  • Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens

Specifications

Beam Type Other
Depth (mm) 58
Height (mm) 55
Rows Single
Mount Other
No. of LED 36
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 1274
SKU ILB610C
Barcode # 9323327945603
Brand Ignite

Compatibility

  • Universal Part
Ignite Ultra Slimline Single Row Curved LED Driving Lamp Lightbar 9 - 36 Volt 252 Watt
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
  • and Pressure Equalising Vent
  • Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Driving Beam Pattern
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112 (Ref 50), R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
  • Weight: _._ _kg
  • 36 x 7 Watt High Intensity LP LED's
  • 22,200 Raw and 18,800 Effective Lumens and 6,000K
  • 1 Lux @ 460m and 211,600cd Peak Beam Intensity
  • Current Draw: 16amp @ 12 Volt and 7.7amp @ 24 Volt
  • Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
Beam Type Other
Depth (mm) 58
Height (mm) 55
Rows Single
Mount Other
No. of LED 36
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 1274
SKU ILB610C
Barcode # 9323327945603
Brand Ignite
  • Universal Part
