Description

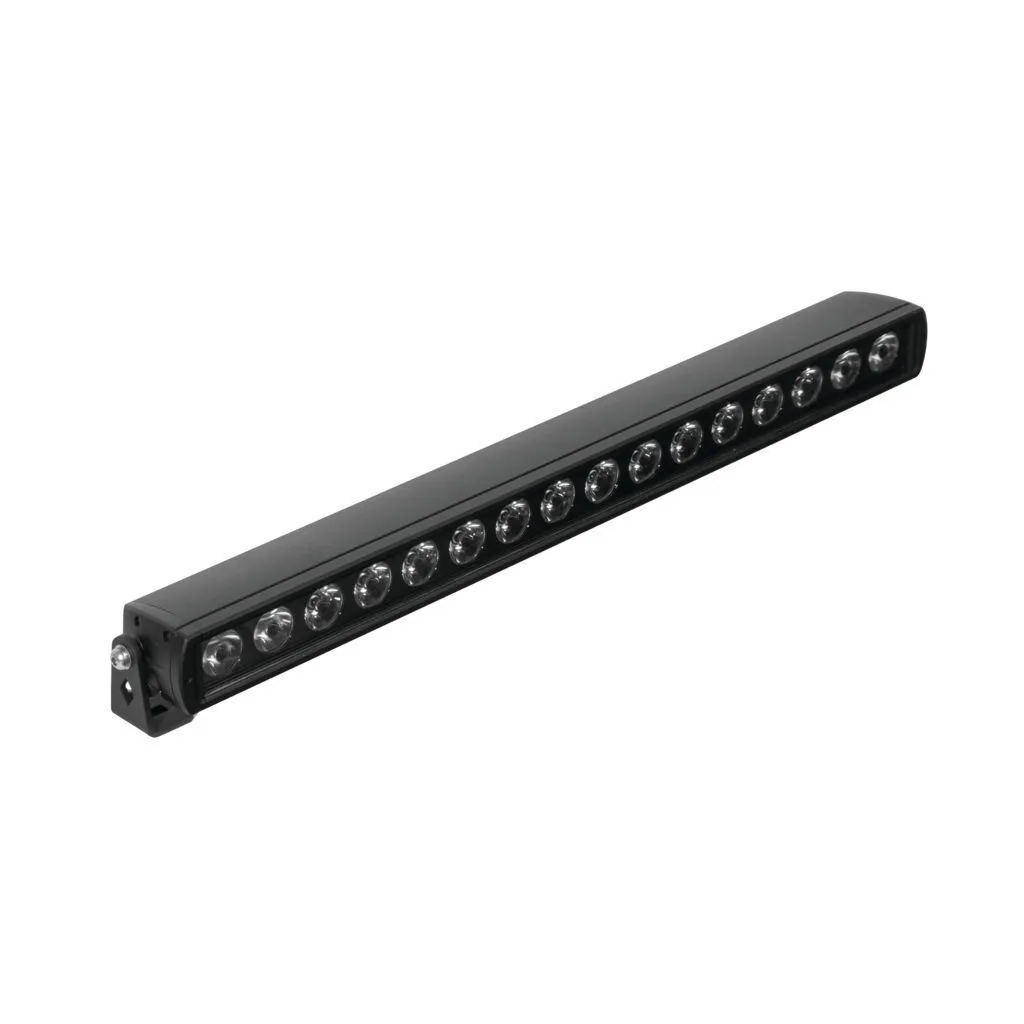

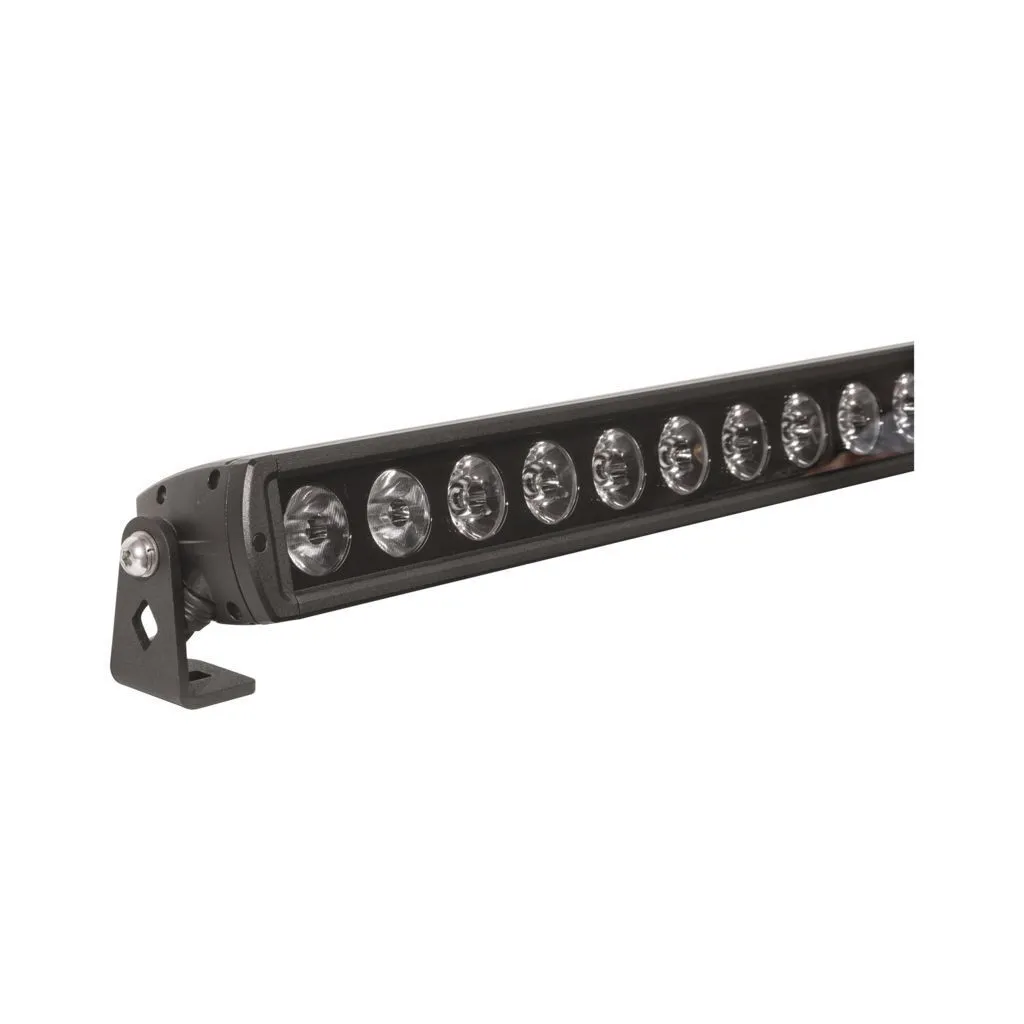

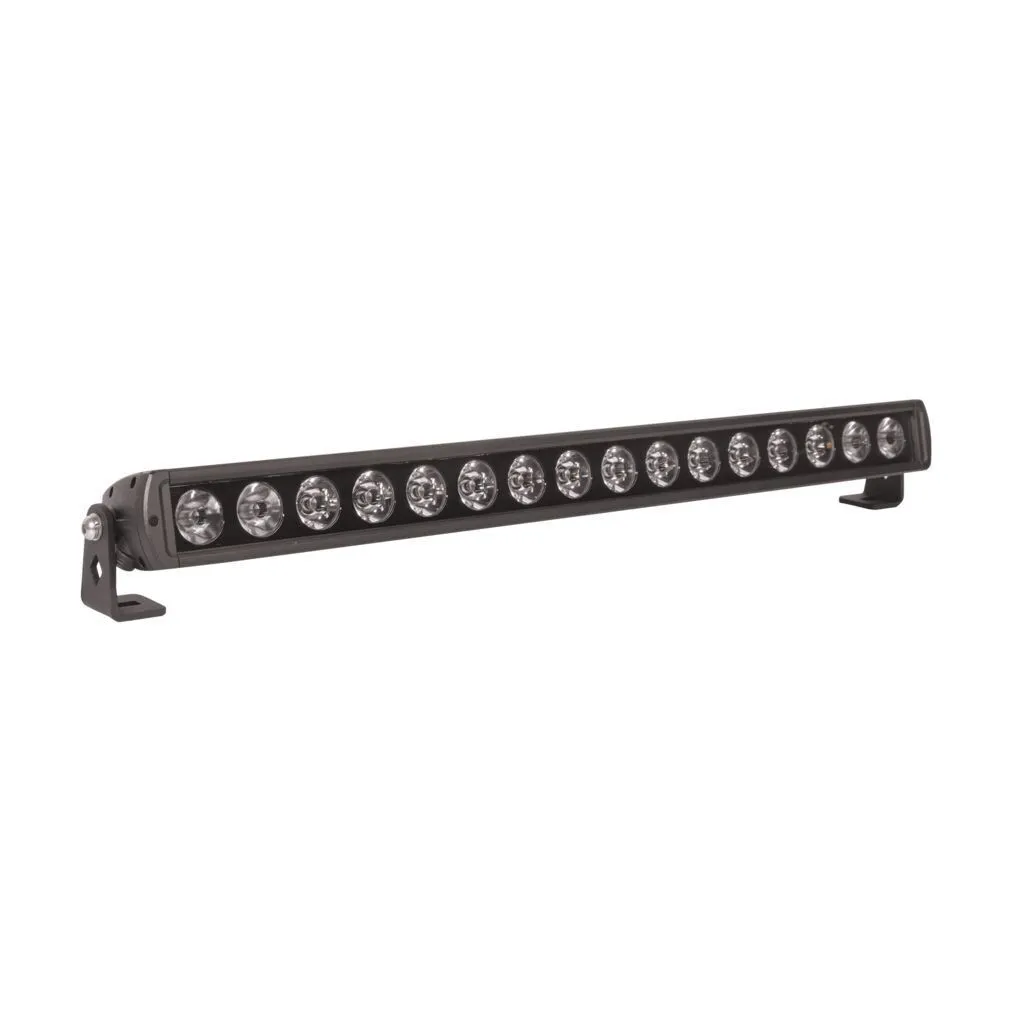

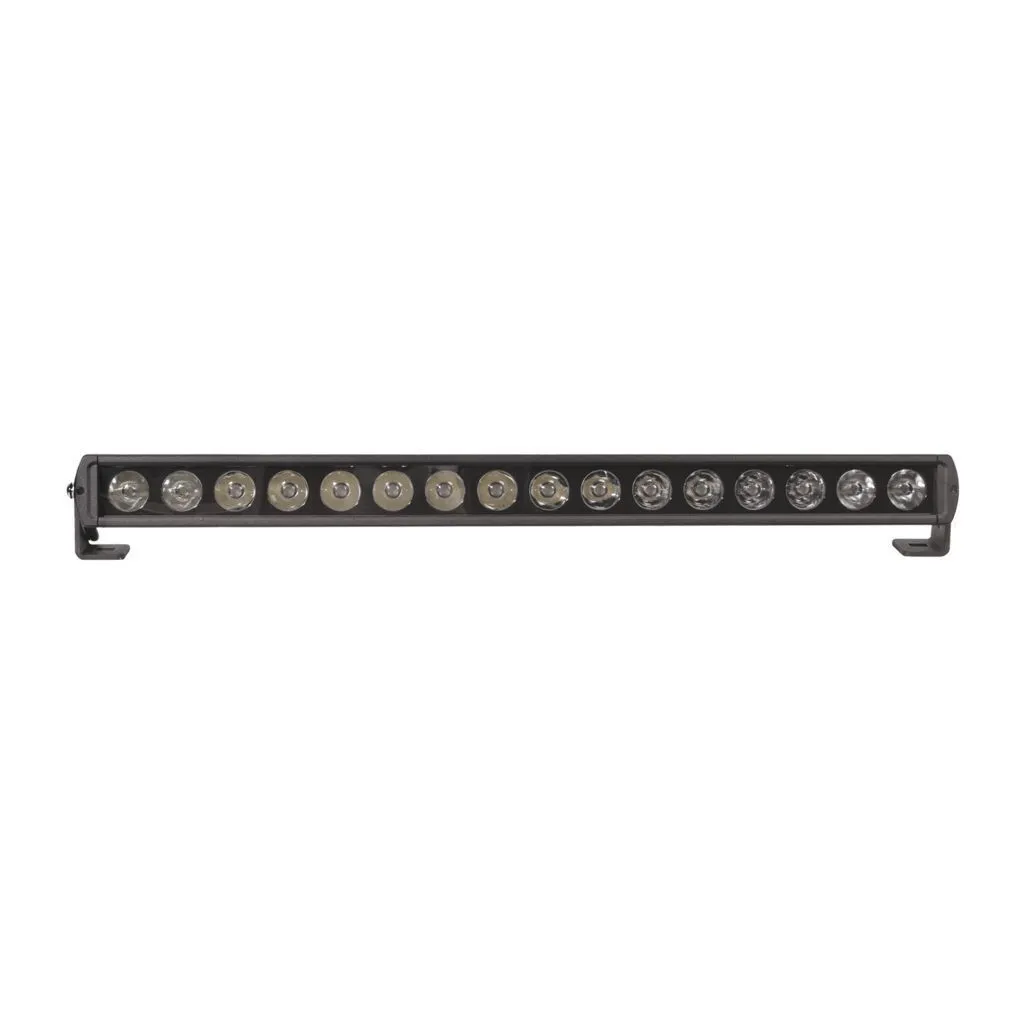

Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 160 Watt
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Spot (Pencil) Beam Pattern 15 Degrees
  • Reverse Polarity Protection
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
Spare Parts:
  • BB50MM Round Bullbar Mounting Bracket 50mm
  • 16 x 10 Watt High Intensity Osram LED's
  • IBB64MM Round Bullbar Mounting Bracket 64mm
  • IBB76MM Round Bullbar Mounting Bracket 76mm
  • IAS40MM 40mm Spacer Mounting Bracket
  • IBB01 Back Mounting Bracket
  • IBB02 Spare Bottom Mounting Bracket
  • 16,560 Raw Lumens, 1 Lux @ 575m and 6,000K
  • 1 Lux @ 575m and 330,625cd Peak Beam Intensity
  • Current Draw: 10.3amp @ 12 Volt and 5.2amp @ 24 Volt
  • Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens

Specifications

Beam Type Spot
Depth (mm) 70
Height (mm) 56
Rows Single
Mount Other
No. of LED Other
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 670
SKU ILB670SB
Barcode # 9323379444543
Brand Ignite

Compatibility

  • Universal Part
Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 160 Watt
  • Light Transmittance >95%
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Spot (Pencil) Beam Pattern 15 Degrees
  • Reverse Polarity Protection
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
Spare Parts:
  • BB50MM Round Bullbar Mounting Bracket 50mm
  • 16 x 10 Watt High Intensity Osram LED's
  • IBB64MM Round Bullbar Mounting Bracket 64mm
  • IBB76MM Round Bullbar Mounting Bracket 76mm
  • IAS40MM 40mm Spacer Mounting Bracket
  • IBB01 Back Mounting Bracket
  • IBB02 Spare Bottom Mounting Bracket
  • 16,560 Raw Lumens, 1 Lux @ 575m and 6,000K
  • 1 Lux @ 575m and 330,625cd Peak Beam Intensity
  • Current Draw: 10.3amp @ 12 Volt and 5.2amp @ 24 Volt
  • Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
Beam Type Spot
Depth (mm) 70
Height (mm) 56
Rows Single
Mount Other
No. of LED Other
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 670
SKU ILB670SB
Barcode # 9323379444543
Brand Ignite
  • Universal Part
