Description

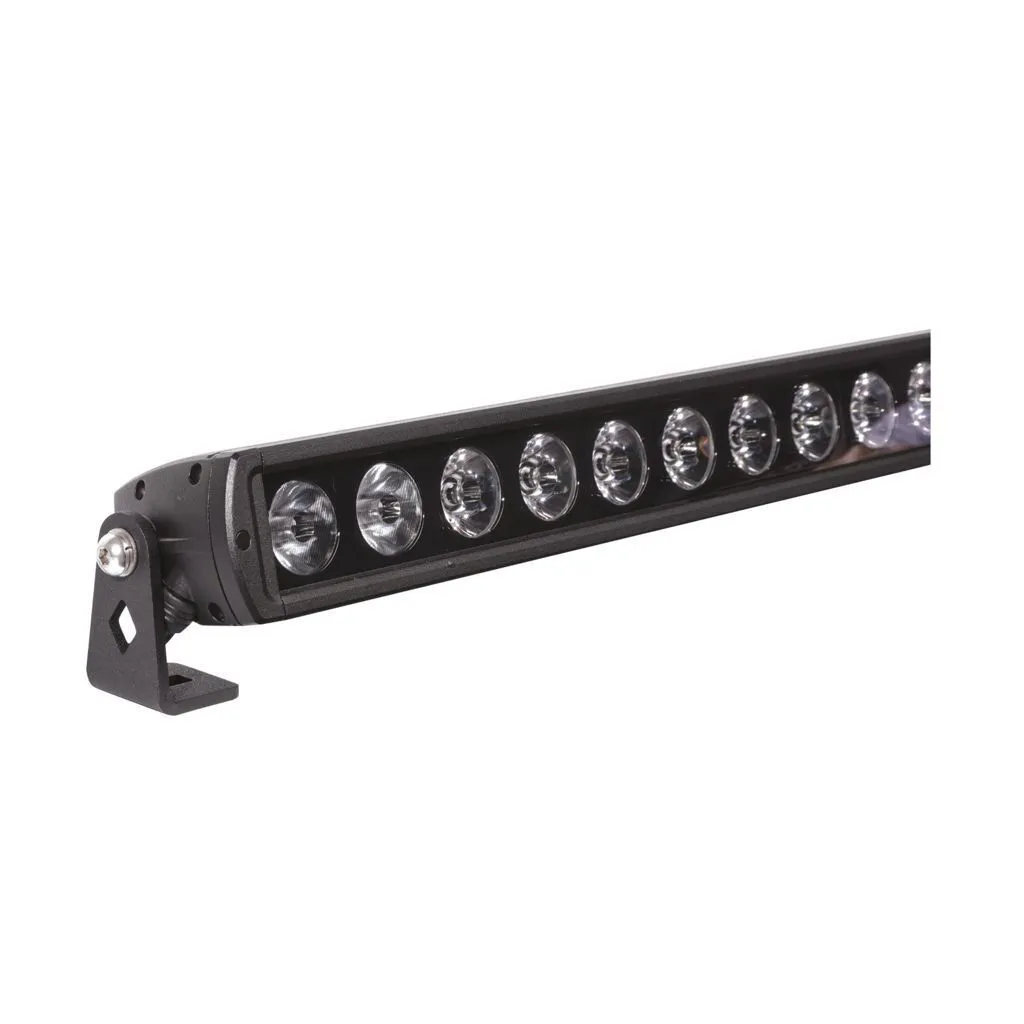

Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 240 Watt
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • 24 x 10 Watt High Intensity Osram LED's
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
Spare Parts:
  • IBB50MM Round Bullbar Mounting Bracket 50mm
  • IBB64MM Round Bullbar Mounting Bracket 64mm
  • IBB76MM Round Bullbar Mounting Bracket 76mm
  • Flood (Spread) Beam Pattern 35 Degrees
  • IAS40MM 40mm Spacer Mounting Bracket
  • IBB01 Back Mounting Bracket
  • IBB02 Spare Bottom Mounting Bracket
  • 24,840 Raw Lumens, 1 Lux @ 434m and 6,000K
  • Current Draw: 16.2amp @ 12 Volt and 8.1amp @ 24 Volt
  • Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
  • Light Transmittance >95%

Specifications

Beam Type Flood
Depth (mm) 70
Height (mm) 56
Rows Single
Mount Other
No. of LED 24
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 990
SKU ILB990FB
Barcode # 9323379444567
Brand Ignite

Compatibility

  • Universal Part
Ignite SX Series Single Row LED Driving Lamp Lightbar 9 - 36 Volt 240 Watt
  • Integrated Electronic Thermal Management (ETM)
  • Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
  • Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
  • Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
  • 500mm Lead with 2 Pin Deutsch Plug
  • Over and Under Voltage Protection
  • Reverse Polarity Protection
  • 24 x 10 Watt High Intensity Osram LED's
  • UV, Water and Shock resistant
  • 50,000 Hours LED Lifespan
  • ECE R112, R10 and CE Approved
  • IP68 and IP69K Rating
  • Environment Temperature: -40°C ~ +60°C
  • 5 Year Warranty
Spare Parts:
  • IBB50MM Round Bullbar Mounting Bracket 50mm
  • IBB64MM Round Bullbar Mounting Bracket 64mm
  • IBB76MM Round Bullbar Mounting Bracket 76mm
  • Flood (Spread) Beam Pattern 35 Degrees
  • IAS40MM 40mm Spacer Mounting Bracket
  • IBB01 Back Mounting Bracket
  • IBB02 Spare Bottom Mounting Bracket
  • 24,840 Raw Lumens, 1 Lux @ 434m and 6,000K
  • Current Draw: 16.2amp @ 12 Volt and 8.1amp @ 24 Volt
  • Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
  • Light Transmittance >95%
Beam Type Flood
Depth (mm) 70
Height (mm) 56
Rows Single
Mount Other
No. of LED 24
Series Other
Type LED
Voltage Multivolt
Watts Other
Width (mm) 990
SKU ILB990FB
Barcode # 9323379444567
Brand Ignite
  • Universal Part
